PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS of Ferrari Ferrari California (2012-2014)

View All

Ferrari California (2012-2014) - PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS

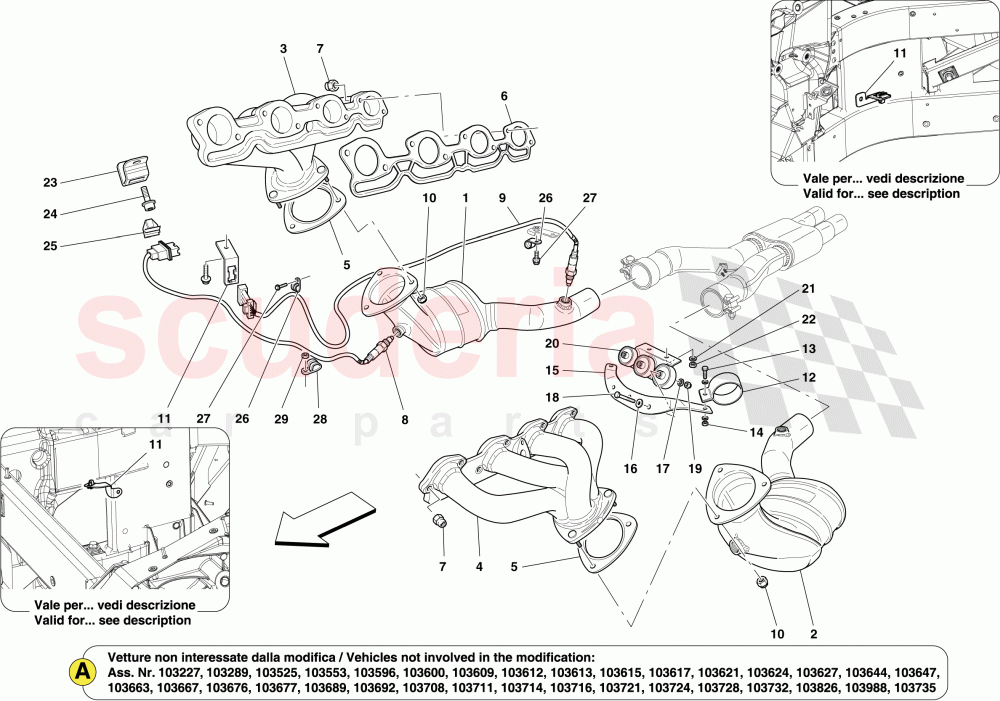

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	253956	R.H. CATALYST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253957	LH CATALYST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259052	COMPL. RH EXHAUST MANIFOLD	Enquire	To Order
	259052	COMPL. RH EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259053	COMPL. LH EXHAUST MANIFOLD	Enquire	To Order
	264652	COMPL. LH EXHAUST MANIFOLD	Enquire	To Order
	259053	COMPL. LH EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189211	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268256	Manifold Gasket	Enquire	To Order
	235756268256	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	138392	Exhaust Brass Locknut M8 x 1.25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	280463	FRONT OXYGEN SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180915	Rear Lambda Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	138392	Exhaust Brass Locknut M8 x 1.25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185408	BRACKET	Enquire	To Order
	185408	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246666	CATALYST SUPPORT CLAMP	Enquire	To Order
	288171	MOUNTING CLAMP FOR CATALYTIC CONVERTERS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13839224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288169	CATALYTIC CONVERTER MOUNTING BRACKET	Enquire	To Order
	246667	CATALYST SUPPORT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12642078	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044321	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248379	CATALYST SUPPORT BRACKET WITH 3 PADS	Enquire	To Order
	290062	CATALYTIC CONVERTER MOUNTING BRACKET WITH 3 BUSHES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254278	FRONT OXYGEN SENSOR CONNECTOR BRACKET	Enquire	To Order
	276058	FRONT RH OXYGEN SENSOR CONNECTOR BRACKET	Enquire	To Order
	276422	CONNECTOR FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291283	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441390	P clip Bracket With Sheath D.12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	253956	R.H. CATALYST	253956 R.H. CATALYST	-	1	Enquire
2	253957	LH CATALYST	253957 LH CATALYST	-	1	Enquire
3	259052	COMPL. RH EXHAUST MANIFOLD	259052 COMPL. RH EXHAUST MANIFOLD Applicable for USA, CDN, USA LIGHT	-	1	Enquire
3	259052	COMPL. RH EXHAUST MANIFOLD	259052 COMPL. RH EXHAUST MANIFOLD Not for USA, CDN, USA LIGHT; Applicable up to Ass. No. 103178	-	1	Enquire
4	259053	COMPL. LH EXHAUST MANIFOLD	259053 COMPL. LH EXHAUST MANIFOLD Not for USA, CDN, USA LIGHT; Applicable up to Ass. No. 103178	-	1	Enquire
4	264652	COMPL. LH EXHAUST MANIFOLD	264652 COMPL. LH EXHAUST MANIFOLD not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
4	259053	COMPL. LH EXHAUST MANIFOLD	259053 COMPL. LH EXHAUST MANIFOLD Applicable for USA, CDN, USA LIGHT	-	1	Enquire
5	189211	GASKET	189211 GASKET	-	2	Enquire

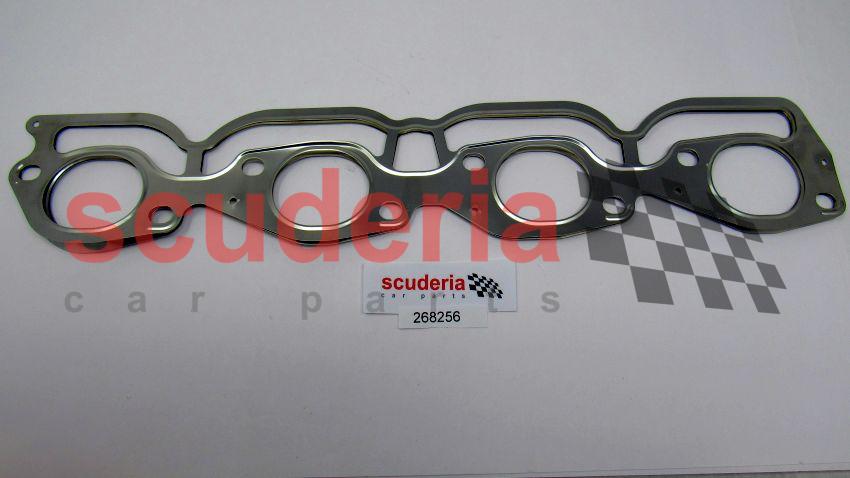

6	268256	Manifold Gasket	268256 Manifold Gasket	-	2	Enquire
6	235756268256	GASKET	235756268256 GASKET Applicable until depletion	-	2	Enquire
7	138392	Exhaust Brass Locknut M8 x 1.25	138392 Exhaust Brass Locknut M8 x 1.25	-	16	Enquire
8	280463	FRONT OXYGEN SENSOR	280463 FRONT OXYGEN SENSOR	-	2	Enquire
9	180915	Rear Lambda Sensor	180915 Rear Lambda Sensor	-	2	Enquire
10	138392	Exhaust Brass Locknut M8 x 1.25	138392 Exhaust Brass Locknut M8 x 1.25	-	6	Enquire
11	185408	BRACKET	185408 BRACKET Applicable up to Ass. No. 103178	-	2	Enquire
11	185408	BRACKET	185408 BRACKET not affected by modification; Applicable from Ass. No. 103179	-	2	Enquire

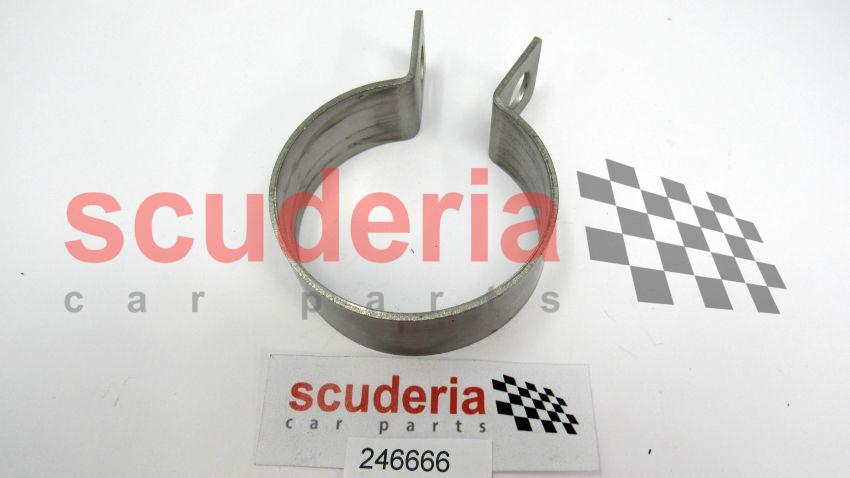

12	246666	CATALYST SUPPORT CLAMP	246666 CATALYST SUPPORT CLAMP Applicable up to Ass. No. 103178	-	2	Enquire
12	288171	MOUNTING CLAMP FOR CATALYTIC CONVERTERS	288171 MOUNTING CLAMP FOR CATALYTIC CONVERTERS not affected by modification; Applicable from Ass. No. 103179	-	2	Enquire
13	13839224	SCREW	13839224 SCREW	-	2	Enquire
14	14059311	NUT	14059311 NUT	-	2	Enquire
15	288169	CATALYTIC CONVERTER MOUNTING BRACKET	288169 CATALYTIC CONVERTER MOUNTING BRACKET not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
15	246667	CATALYST SUPPORT BRACKET	246667 CATALYST SUPPORT BRACKET Applicable up to Ass. No. 103178	-	1	Enquire
16	12642078	WASHER	12642078 WASHER	-	3	Enquire
17	12601374	WASHER	12601374 WASHER	-	3	Enquire
18	16044321	SCREW	16044321 SCREW	-	3	Enquire
19	14059311	NUT	14059311 NUT	-	3	Enquire
20	248379	CATALYST SUPPORT BRACKET WITH 3 PADS	248379 CATALYST SUPPORT BRACKET WITH 3 PADS Applicable up to Ass. No. 107081	-	1	Enquire
20	290062	CATALYTIC CONVERTER MOUNTING BRACKET WITH 3 BUSHES	290062 CATALYTIC CONVERTER MOUNTING BRACKET WITH 3 BUSHES Applicable from Ass. No. 107082	-	1	Enquire
21	11193874	WASHER	11193874 WASHER	-	2	Enquire
22	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	2	Enquire
23	254278	FRONT OXYGEN SENSOR CONNECTOR BRACKET	254278 FRONT OXYGEN SENSOR CONNECTOR BRACKET Applicable up to Ass. No. 103178	-	2	Enquire
23	276058	FRONT RH OXYGEN SENSOR CONNECTOR BRACKET	276058 FRONT RH OXYGEN SENSOR CONNECTOR BRACKET not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
23	276422	CONNECTOR FASTENER BRACKET	276422 CONNECTOR FASTENER BRACKET not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
24	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	2	Enquire
25	291283	CLIP	291283 CLIP	-	2	Enquire
26	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	4	Enquire
27	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	4	Enquire
28	10441390	P clip Bracket With Sheath D.12	10441390 P clip Bracket With Sheath D.12	-	2	Enquire
29	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
