REAR STRUCTURES AND CHASSIS BOX SECTIONS -Applicable from Ass.ly No. 103179 - of Ferrari Ferrari California (2012-2014)

View All

Ferrari California (2012-2014) - REAR STRUCTURES AND CHASSIS BOX SECTIONS -Applicable from Ass.ly No. 103179 -

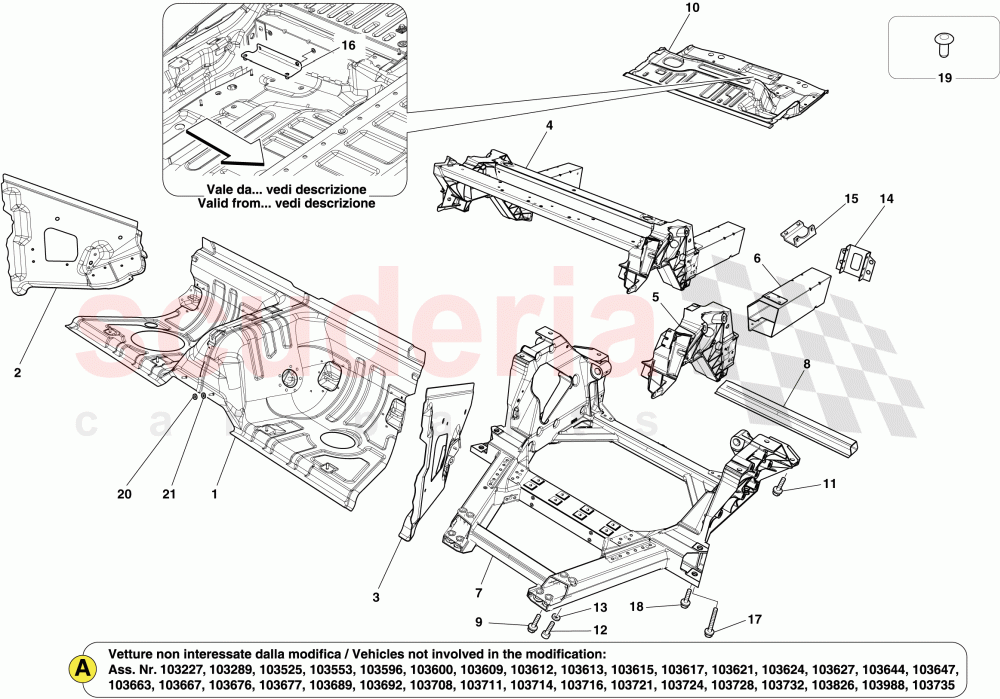

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985283664	REAR SHELF	Enquire	To Order
	985283253	REAR SHELF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985278612	REAR MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289331	REAR SUBFRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985273694	COMPL. REAR CROSS-MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16288524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985286129	SPARE WHEEL TUB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16288724	SCREW	Enquire	To Order
	11343821	SCREW	Enquire	To Order
	239960	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239965	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10520024	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287376	RH REAR STRUT FLANGE	Enquire	To Order
	274157	LH REAR SPAR FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	332828	REAR TORSION BAR MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	278458	TOOL KIT FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268371	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239868	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14645690	RIVET	Enquire	To Order
	284930	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128944	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13507501	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	985283664	REAR SHELF	985283664 REAR SHELF Applicable for 2-seat version; Request ASM authorisation; not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
1	985283253	REAR SHELF	985283253 REAR SHELF Not for 2-seat version; Request ASM authorisation; not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
4	985278612	REAR MODULE	985278612 REAR MODULE Request ASM authorisation; not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
7	289331	REAR SUBFRAME	289331 REAR SUBFRAME Request ASM authorisation; not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
8	985273694	COMPL. REAR CROSS-MEMBER	985273694 COMPL. REAR CROSS-MEMBER Request ASM authorisation; not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
9	16288524	SCREW	16288524 SCREW not affected by modification; Applicable from Ass. No. 103179	-	6	Enquire
10	985286129	SPARE WHEEL TUB	985286129 SPARE WHEEL TUB not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
11	16288724	SCREW	16288724 SCREW M10 X 40; not affected by modification; Applicable from Ass. No. 103179	-	2	Enquire
11	11343821	SCREW	11343821 SCREW M10 X 1.25 X 50; not affected by modification; Applicable from Ass. No. 103179	-	2	Enquire
11	239960	SCREW	239960 SCREW not affected by modification; Applicable from Ass. No. 103179; No longer supplied	-	4	Enquire
12	239965	SCREW	239965 SCREW not affected by modification; Applicable from Ass. No. 103179	-	2	Enquire
13	10520024	WASHER	10520024 WASHER not affected by modification; Applicable from Ass. No. 103179	-	2	Enquire
14	287376	RH REAR STRUT FLANGE	287376 RH REAR STRUT FLANGE not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
14	274157	LH REAR SPAR FLANGE	274157 LH REAR SPAR FLANGE not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
15	332828	REAR TORSION BAR MOUNTING BRACKET	332828 REAR TORSION BAR MOUNTING BRACKET not affected by modification; Applicable from Ass. No. 103179	-	2	Enquire
16	278458	TOOL KIT FASTENER BRACKET	278458 TOOL KIT FASTENER BRACKET not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
17	268371	SCREW	268371 SCREW not affected by modification; Applicable from Ass. No. 103179	-	2	Enquire
18	239868	SCREW	239868 SCREW not affected by modification; Applicable from Ass. No. 103179	-	2	Enquire
19	14645690	RIVET	14645690 RIVET 4.8X10; not affected by modification; Applicable from Ass. No. 103179	-	-	Enquire
19	284930	RIVET	284930 RIVET 4.8X24.8; not affected by modification; Applicable from Ass. No. 103179	-	-	Enquire
20	128944	WASHER	128944 WASHER not affected by modification; Applicable from Ass. No. 103179	-	2	Enquire
21	13507501	WASHER	13507501 WASHER not affected by modification; Applicable from Ass. No. 103179; No longer supplied	-	2	Enquire
