Name: CENTRE STRUCTURES AND CHASSIS BOX SECTIONS -Applicable up to Ass.ly No. 103178-
Rating: 5.0 (1 reviews)

CENTRE STRUCTURES AND CHASSIS BOX SECTIONS -Applicable up to Ass.ly No. 103178- of Ferrari Ferrari California (2012-2014)

View All

Ferrari California (2012-2014) - CENTRE STRUCTURES AND CHASSIS BOX SECTIONS -Applicable up to Ass.ly No. 103178-

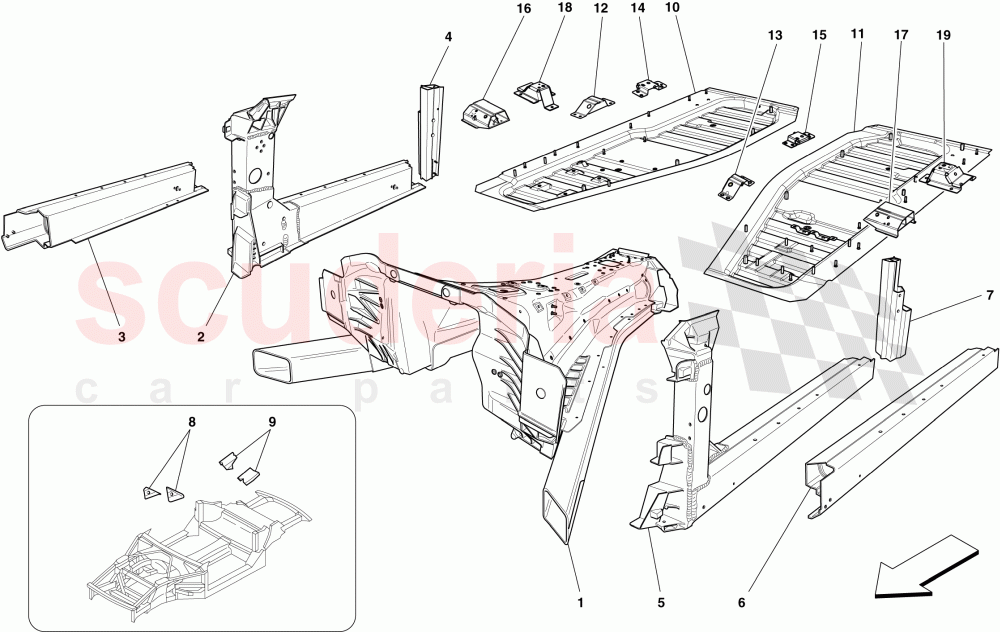

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985261851	TUNNEL	Enquire	To Order
	985261841	TUNNEL	Enquire	To Order
	985246967	TUNNEL	$7,663.55	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	985262123	R.H. CENTRAL SIDEWALL	$9,544.13	To Order
	985261503	R.H. CENTRAL SIDEWALL	$9,544.13	To Order

Photo	Part No	Description	Price (each)	Stock
	985262122	COMPLETE R.H. CROSS MEMBER	$7,053.80	To Order
	985261506	COMPLETE R.H. CROSS MEMBER	$4,035.55	To Order

Photo	Part No	Description	Price (each)	Stock
	985242174	RH. REAR VERTICAL ROD	$898.56	To Order

Photo	Part No	Description	Price (each)	Stock
	985261499	LH. CENTRAL SIDE SHIELD	$9,544.13	To Order

Photo	Part No	Description	Price (each)	Stock
	985261502	COMPLETE L.H. CROSS MEMBER	$4,035.55	To Order

Photo	Part No	Description	Price (each)	Stock
	985242175	LH. REAR VERTICAL ROD	$898.56	To Order

Photo	Part No	Description	Price (each)	Stock
	985261236	FRONT LH BRACE	$113.91	To Order
	985261237	FRONT RH BRACE	$113.91	To Order

Photo	Part No	Description	Price (each)	Stock
	985261238	REAR LH BRACE	$160.44	To Order
	985261239	REAR RH BRACE	$160.44	To Order

Photo	Part No	Description	Price (each)	Stock
	985251716	RH FLOOR	$818.33	To Order

Photo	Part No	Description	Price (each)	Stock
	985251715	LH FLOOR	$818.33	To Order

Photo	Part No	Description	Price (each)	Stock
	226699	INNER FRONT BRACKET, RH SEAT	$115.51	To Order

Photo	Part No	Description	Price (each)	Stock
	224957	INNER FRONT BRACKET, LH SEAT	$115.51	To Order

Photo	Part No	Description	Price (each)	Stock
	226698	INNER REAR BRACKET, RH SEAT	$73.80	To Order

Photo	Part No	Description	Price (each)	Stock
	224958	INNER REAR BRACKET, LH SEAT	$102.68	To Order

Photo	Part No	Description	Price (each)	Stock
	224959	OUTER FRONT BRACKET, RH SEAT	$834.37	To Order

Photo	Part No	Description	Price (each)	Stock
	224960	OUTER FRONT BRACKET, LH SEAT	$117.12	To Order

Photo	Part No	Description	Price (each)	Stock
	248050	OUTER REAR BRACKET, RH SEAT	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	248051	OUTER REAR BRACKET, LH SEAT	$545.55	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	985261851	TUNNEL	985261851 TUNNEL ; Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Applicable for GD; Applicable up to Ass. No. 103178	-	1	Enquire
1	985261841	TUNNEL	985261841 TUNNEL ; Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Not for GD; Applicable up to Ass. No. 103178	-	1	Enquire
1	985246967	TUNNEL	985246967 TUNNEL ; Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD; Applicable up to Ass. No. 103178	$7,663.55	1
1	985256369	TUNNEL	985256369 TUNNEL ; Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for GD; Applicable up to Ass. No. 103178	$7,663.55	1
2	985262123	R.H. CENTRAL SIDEWALL	985262123 R.H. CENTRAL SIDEWALL ; Applicable for GD; Applicable from Ass. No. 87999 up to Ass. No. 103178	$9,544.13	1
2	985261503	R.H. CENTRAL SIDEWALL	985261503 R.H. CENTRAL SIDEWALL ; Not for GD; Applicable from Ass. No. 87999 up to Ass. No. 103178	$9,544.13	1
3	985262122	COMPLETE R.H. CROSS MEMBER	985262122 COMPLETE R.H. CROSS MEMBER ; Applicable for GD; Applicable from Ass. No. 87999 up to Ass. No. 103178	$7,053.80	1
3	985261506	COMPLETE R.H. CROSS MEMBER	985261506 COMPLETE R.H. CROSS MEMBER ; Not for GD; Applicable from Ass. No. 87999 up to Ass. No. 103178	$4,035.55	1
4	985242174	RH. REAR VERTICAL ROD	985242174 RH. REAR VERTICAL ROD ; Applicable up to Ass. No. 103178	$898.56	1
5	985261499	LH. CENTRAL SIDE SHIELD	985261499 LH. CENTRAL SIDE SHIELD ; Applicable from Ass. No. 87999 up to Ass. No. 103178	$9,544.13	1
6	985261502	COMPLETE L.H. CROSS MEMBER	985261502 COMPLETE L.H. CROSS MEMBER ; Applicable from Ass. No. 87999 up to Ass. No. 103178	$4,035.55	1
7	985242175	LH. REAR VERTICAL ROD	985242175 LH. REAR VERTICAL ROD ; Applicable up to Ass. No. 103178	$898.56	1
8	985261236	FRONT LH BRACE	985261236 FRONT LH BRACE Applicable up to Ass. No. 103178	$113.91	1
8	985261237	FRONT RH BRACE	985261237 FRONT RH BRACE Applicable up to Ass. No. 103178	$113.91	1
9	985261238	REAR LH BRACE	985261238 REAR LH BRACE Applicable up to Ass. No. 103178	$160.44	1
9	985261239	REAR RH BRACE	985261239 REAR RH BRACE Applicable up to Ass. No. 103178	$160.44	1
10	985251716	RH FLOOR	985251716 RH FLOOR Applicable up to Ass. No. 103178	$818.33	1
11	985251715	LH FLOOR	985251715 LH FLOOR Applicable up to Ass. No. 103178	$818.33	1
12	226699	INNER FRONT BRACKET, RH SEAT	226699 INNER FRONT BRACKET, RH SEAT	$115.51	1
13	224957	INNER FRONT BRACKET, LH SEAT	224957 INNER FRONT BRACKET, LH SEAT	$115.51	1
14	226698	INNER REAR BRACKET, RH SEAT	226698 INNER REAR BRACKET, RH SEAT	$73.80	1
15	224958	INNER REAR BRACKET, LH SEAT	224958 INNER REAR BRACKET, LH SEAT	$102.68	1
16	224959	OUTER FRONT BRACKET, RH SEAT	224959 OUTER FRONT BRACKET, RH SEAT	$834.37	1
17	224960	OUTER FRONT BRACKET, LH SEAT	224960 OUTER FRONT BRACKET, LH SEAT	$117.12	1
18	248050	OUTER REAR BRACKET, RH SEAT	248050 OUTER REAR BRACKET, RH SEAT	$240.67	1
19	248051	OUTER REAR BRACKET, LH SEAT	248051 OUTER REAR BRACKET, LH SEAT	$545.55	1

Centre Structures And Chassis Box Sections -Applicable Up To Ass.ly No. 103178-

Ferrari California (2012-2014)

Ferrari California (2012-2014) - CENTRE STRUCTURES AND CHASSIS BOX SECTIONS -Applicable up to Ass.ly No. 103178-
