Front Structures And Chassis Box Sections -Applicable From Ass.ly No. 103179 -

Ferrari California (2012-2014)

Find Your Part

Ferrari California (2012-2014) - FRONT STRUCTURES AND CHASSIS BOX SECTIONS -Applicable from Ass.ly No. 103179 -

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
985278373 COMPL. ENGINE SUBFRAME $2,649.18 To Order
Photo Part No Description Price (each) Stock
985273727 UPPER RH SPAR $336.95 To Order
Photo Part No Description Price (each) Stock
985273726 UPPER LH SPAR $336.95 To Order
Photo Part No Description Price (each) Stock
284270 INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE Enquire To Order
985284270 INTERNAL ENGINE COMPARTMENT DIAGONAL FIREWALL BRACE $1,283.66 To Order
985273275 INTERNAL ENGINE COMPARTMENT DIAGONAL FIREWALL BRACE $3,007.00 To Order
Photo Part No Description Price (each) Stock
236992 COMPL. WINDSCREEN VALENCE PANEL $930.65 To Order
Photo Part No Description Price (each) Stock
985284453 COMPL. FRONT SUBCHASSIS $13,939.13 To Order
985278613 COMPL. FRONT SUBCHASSIS $13,939.13 To Order
Photo Part No Description Price (each) Stock
239867 SCREW $2.17 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER $5.53 IN STOCK
Photo Part No Description Price (each) Stock
84653800 WASHER $5.53 IN STOCK
Photo Part No Description Price (each) Stock
284456 FRONT LH STRUT $711.86 To Order
985284456 LH FRONT SPAR $1,331.80 To Order
Photo Part No Description Price (each) Stock
278631 LH FRONT CRASH BOX UPRIGHT $286.17 To Order
Photo Part No Description Price (each) Stock
985270345 RH CENTRE EXTERNAL DIAGONAL BRACE $1,187.39 To Order
985270343 LH CENTRE EXTERNAL DIAGONAL BRACE $1,187.39 To Order
Photo Part No Description Price (each) Stock
985270351 RH LOWER EXTERNAL DIAGONAL BRACE $1,042.97 To Order
985270360 LH LOWER EXTERNAL DIAGONAL BRACE $1,042.97 To Order
Photo Part No Description Price (each) Stock
16044434 SCREW $1.78 IN STOCK
Photo Part No Description Price (each) Stock
985273100 RH UPPER EXTERNAL DIAGONAL FIREWALL BRACE $738.10 To Order
985273099 LH UPPER EXTERNAL DIAGONAL FIREWALL BRACE $738.10 To Order
Photo Part No Description Price (each) Stock
284346 LH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE $133.17 To Order
270349 LH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE $898.56 To Order
284345 RH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE $133.17 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
299582 SCREW $1.28 IN STOCK
Photo Part No Description Price (each) Stock
277723 SCREW $6.05 To Order
Photo Part No Description Price (each) Stock
271283 SCREW $6.05 To Order
View All

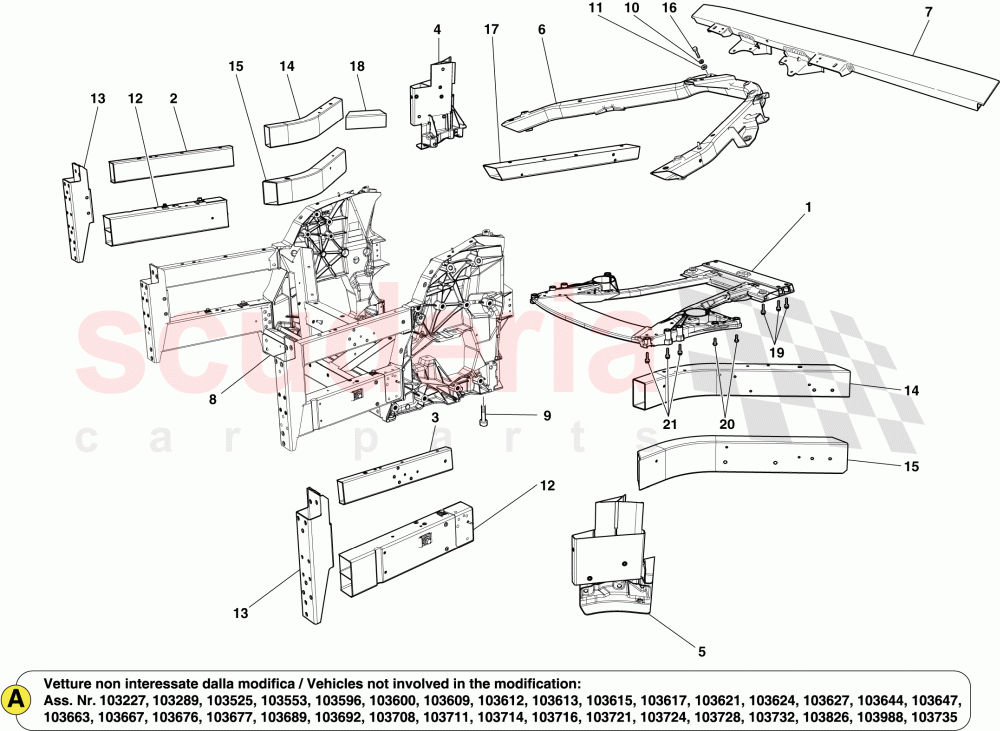

FRONT STRUCTURES AND CHASSIS BOX SECTIONS -Applicable from Ass.ly No. 103179 - of Ferrari Ferrari California (2012-2014) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 985278373
COMPL. ENGINE SUBFRAME
Request ASM authorisation; not affected by modification; Applicable from Ass. No. 103179 		$2,649.18 1
2 985273727
UPPER RH SPAR
Request ASM authorisation; not affected by modification; Applicable from Ass. No. 103179 		$336.95 1
3 985273726
UPPER LH SPAR
Request ASM authorisation; not affected by modification; Applicable from Ass. No. 103179 		$336.95 1
6 284270
INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE
Request ASM authorisation; not affected by modification; Applicable for GD; Applicable from Ass. No. 103179; Applicable after depletion of 985284270 		- 1 Enquire
6 985284270
INTERNAL ENGINE COMPARTMENT DIAGONAL FIREWALL BRACE
Request ASM authorisation; not affected by modification; Applicable for GD; Applicable from Ass. No. 103179; Applicable until depletion 		$1,283.66 1
6 985273275
INTERNAL ENGINE COMPARTMENT DIAGONAL FIREWALL BRACE
Request ASM authorisation; not affected by modification; Not for GD; Applicable from Ass. No. 103179 		$3,007.00 1
7 236992
COMPL. WINDSCREEN VALENCE PANEL
Request ASM authorisation; not affected by modification; Applicable from Ass. No. 103179 		$930.65 1
8 985284453
COMPL. FRONT SUBCHASSIS
Request ASM authorisation; not affected by modification; Applicable for GD; Applicable from Ass. No. 103179 		$13,939.13 1
8 985278613
COMPL. FRONT SUBCHASSIS
Request ASM authorisation; not affected by modification; Not for GD; Applicable from Ass. No. 103179 		$13,939.13 1
9 239867
SCREW
not affected by modification; Applicable from Ass. No. 103179 		$2.17 4
10 84653800
WASHER
not affected by modification; Applicable from Ass. No. 103179
IN STOCK 		$5.53 8
11 84653800
WASHER
not affected by modification; Applicable from Ass. No. 103179
IN STOCK 		$5.53 8
12 284456
FRONT LH STRUT
Request ASM authorisation; not affected by modification; Applicable for GD; Applicable from Ass. No. 103179; Applicable after depletion of 985284456 		$711.86 1
12 985284456
LH FRONT SPAR
Request ASM authorisation; not affected by modification; Applicable for GD; Applicable from Ass. No. 103179; Applicable until depletion 		$1,331.80 1
13 278631
LH FRONT CRASH BOX UPRIGHT
Request ASM authorisation; not affected by modification; Applicable from Ass. No. 103179 		$286.17 1
14 985270345
RH CENTRE EXTERNAL DIAGONAL BRACE
not affected by modification; Applicable from Ass. No. 103179 		$1,187.39 1
14 985270343
LH CENTRE EXTERNAL DIAGONAL BRACE
not affected by modification; Applicable from Ass. No. 103179 		$1,187.39 1
15 985270351
RH LOWER EXTERNAL DIAGONAL BRACE
not affected by modification; Applicable from Ass. No. 103179 		$1,042.97 1
15 985270360
LH LOWER EXTERNAL DIAGONAL BRACE
not affected by modification; Applicable from Ass. No. 103179 		$1,042.97 1
16 16044434
SCREW
M8 X 60; not affected by modification; Applicable from Ass. No. 103179
IN STOCK 		$1.78 4
17 985273100
RH UPPER EXTERNAL DIAGONAL FIREWALL BRACE
not affected by modification; Applicable from Ass. No. 103179 		$738.10 1
17 985273099
LH UPPER EXTERNAL DIAGONAL FIREWALL BRACE
not affected by modification; Applicable from Ass. No. 103179 		$738.10 1
18 284346
LH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE
not affected by modification; Applicable for GD; Applicable from Ass. No. 103179 		$133.17 1
18 270349
LH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE
not affected by modification; Not for GD; Applicable from Ass. No. 103179 		$898.56 1
18 284345
RH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE
not affected by modification; Applicable for GD; Applicable from Ass. No. 103179 		$133.17 1
18 270347
RH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE
not affected by modification; Not for GD; Applicable from Ass. No. 103179 		$898.56 1
19 299582
SCREW
not affected by modification; Applicable from Ass. No. 103179
IN STOCK 		$1.28 6
20 277723
SCREW
not affected by modification; Applicable from Ass. No. 103179 		$6.05 4
21 271283
SCREW
not affected by modification; Applicable from Ass. No. 103179 		$6.05 6
