WHEELHOUSES AND DOORS of Ferrari Ferrari California (2012-2014)

View All

Ferrari California (2012-2014) - WHEELHOUSES AND DOORS

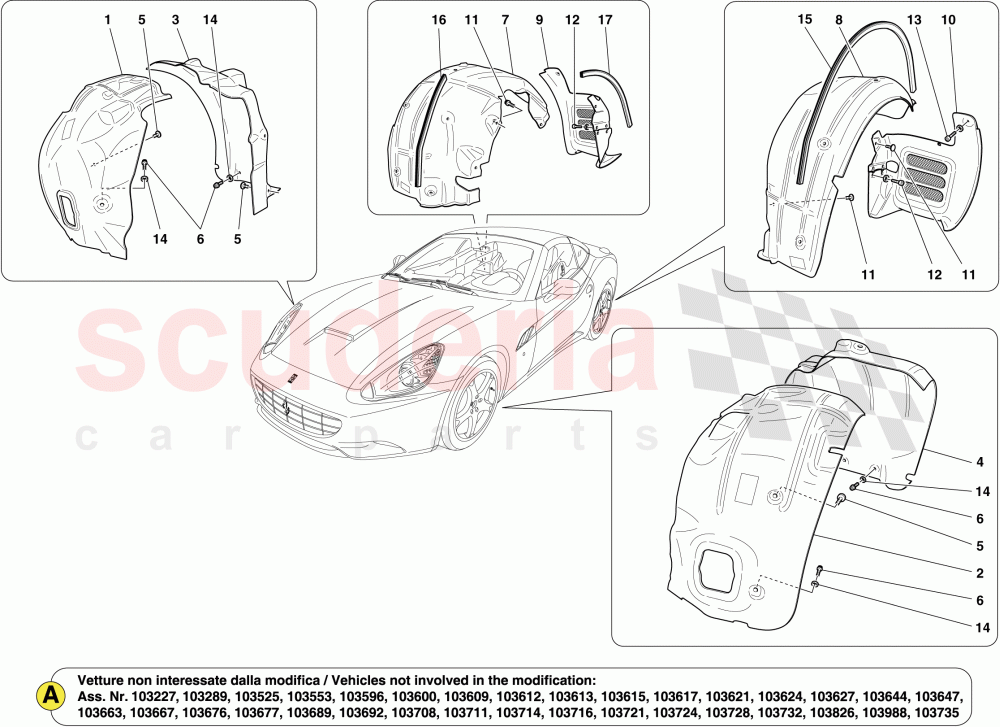

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	84076300	FRONT GRAVEL GUARD FOR RH FRONT WHEELHOUSE	Enquire	To Order
	69748400	RH FRONT WHEELHOUSE GRAVEL GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1002493	KIT PARASASSI P/R ANT. F149 TA	Enquire	To Order
	69748500	FRONT GRAVEL GUARD FOR LH FRONT WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84076500	FRONT GRAVEL GUARD FOR RH REAR WHEELHOUSE	Enquire	To Order
	69748600	FRONT GRAVEL GUARD FOR R.H. REAR WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84076600	FRONT GRAVEL GUARD FOR LH REAR WHEELHOUSE	Enquire	To Order
	69748700	FRONT GRAVEL GUARD FOR L.H. REAR WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14591687	FASTENER BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80874900	SCREW M6 X 22MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84077000	REAR GRAVEL GUARD FOR RH FRONT WHEELHOUSE	Enquire	To Order
	69749300	REAR GRAVEL GUARD FOR R.H. FRONT WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84076900	REAR GRAVEL GUARD FOR LH FRONT WHEELHOUSE	Enquire	To Order
	69749200	REAR GRAVEL GUARD FOR L.H. FRONT WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1002685	REAR GRAVEL GUARD FOR REAR RH WHEELHOUSE	Enquire	To Order
	84076700	REAR GRAVEL GUARD FOR RH REAR WHEELHOUSE	Enquire	To Order
	69748800	REAR GRAVEL GUARD FOR R.H. REAR WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1002685	REAR GRAVEL GUARD FOR REAR RH WHEELHOUSE	Enquire	To Order
	84076800	REAR GRAVEL GUARD FOR LH REAR WHEELHOUSE	Enquire	To Order
	69748900	REAR GRAVEL GUARD FOR L.H. REAR WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14591687	FASTENER BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80874100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80874900	SCREW M6 X 22MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81952700	LH REAR WHEELHOUSE SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81952800	FRONT SEAL, RH REAR WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81952900	REAR SEAL, RH REAR WHEELHOUSE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	84076300	FRONT GRAVEL GUARD FOR RH FRONT WHEELHOUSE	84076300 FRONT GRAVEL GUARD FOR RH FRONT WHEELHOUSE not affected by modification; Also order 84076400 ref. 2, 84076500 ref. 3 and 84076600 ref. 4; Applicable from Ass. No. 103179	-	1	Enquire
1	69748400	RH FRONT WHEELHOUSE GRAVEL GUARD	69748400 RH FRONT WHEELHOUSE GRAVEL GUARD Also order 69748500 ref. 2, 69748600 ref. 3 and 69748700 ref. 4; Applicable up to Ass. No. 103178	-	1	Enquire
2	1002493	KIT PARASASSI P/R ANT. F149 TA	1002493 KIT PARASASSI P/R ANT. F149 TA not affected by modification; Also order 84076300 ref. 1, 84076500 ref. 3 and 84076600 ref. 4; Applicable from Ass. No. 103179	-	1	Enquire
2	69748500	FRONT GRAVEL GUARD FOR LH FRONT WHEELHOUSE	69748500 FRONT GRAVEL GUARD FOR LH FRONT WHEELHOUSE Also order 69748400 ref. 1, 69748600 ref. 3, 69748700 ref. 4; Applicable up to Ass. No. 103178	-	1	Enquire
3	84076500	FRONT GRAVEL GUARD FOR RH REAR WHEELHOUSE	84076500 FRONT GRAVEL GUARD FOR RH REAR WHEELHOUSE not affected by modification; Also order 84076300 ref. 1, 84076400 ref. 2 and 84076600 ref. 4; Applicable from Ass. No. 103179	-	1	Enquire
3	69748600	FRONT GRAVEL GUARD FOR R.H. REAR WHEEL	69748600 FRONT GRAVEL GUARD FOR R.H. REAR WHEEL Also order 69748400 ref. 1, 69748500 ref. 2 and 69748700 ref. 4; Applicable up to Ass. No. 103178	-	1	Enquire
4	84076600	FRONT GRAVEL GUARD FOR LH REAR WHEELHOUSE	84076600 FRONT GRAVEL GUARD FOR LH REAR WHEELHOUSE not affected by modification; Also order 84076300 ref. 1, 84076400 ref. 2 and 84076500 ref. 3; Applicable from Ass. No. 103179	-	1	Enquire
4	69748700	FRONT GRAVEL GUARD FOR L.H. REAR WHEEL	69748700 FRONT GRAVEL GUARD FOR L.H. REAR WHEEL Also order 69748400 ref. 1, 69748500 ref. 2 and 69748600 ref. 3; Applicable up to Ass. No. 103178	-	1	Enquire
5	14591687	FASTENER BUTTON	14591687 FASTENER BUTTON	-	4	Enquire
6	80874900	SCREW M6 X 22MM	80874900 SCREW M6 X 22MM	-	6	Enquire
7	84077000	REAR GRAVEL GUARD FOR RH FRONT WHEELHOUSE	84077000 REAR GRAVEL GUARD FOR RH FRONT WHEELHOUSE not affected by modification; Also order 84076900 ref. 8; Applicable from Ass. No. 103179	-	1	Enquire
7	69749300	REAR GRAVEL GUARD FOR R.H. FRONT WHEELHOUSE	69749300 REAR GRAVEL GUARD FOR R.H. FRONT WHEELHOUSE Also order 69749200 ref. 8; Applicable up to Ass. No. 103178	-	1	Enquire
8	84076900	REAR GRAVEL GUARD FOR LH FRONT WHEELHOUSE	84076900 REAR GRAVEL GUARD FOR LH FRONT WHEELHOUSE not affected by modification; Also order 84077000 ref. 7; Applicable from Ass. No. 103179	-	1	Enquire
8	69749200	REAR GRAVEL GUARD FOR L.H. FRONT WHEELHOUSE	69749200 REAR GRAVEL GUARD FOR L.H. FRONT WHEELHOUSE Also order 69749300 ref. 7; Applicable up to Ass. No. 103178	-	1	Enquire
9	1002685	REAR GRAVEL GUARD FOR REAR RH WHEELHOUSE	1002685 REAR GRAVEL GUARD FOR REAR RH WHEELHOUSE not affected by modification; Also order 85402300 ref. 10; Applicable from Ass. No. 120546	-	1	Enquire
9	84076700	REAR GRAVEL GUARD FOR RH REAR WHEELHOUSE	84076700 REAR GRAVEL GUARD FOR RH REAR WHEELHOUSE not affected by modification; Also order 84076800 ref. 10; Applicable from Ass. No. 103179 up to Ass. No. 120545	-	1	Enquire
9	69748800	REAR GRAVEL GUARD FOR R.H. REAR WHEEL	69748800 REAR GRAVEL GUARD FOR R.H. REAR WHEEL Also order 69748900 ref. 10; Applicable up to Ass. No. 103178	-	1	Enquire
10	1002685	REAR GRAVEL GUARD FOR REAR RH WHEELHOUSE	1002685 REAR GRAVEL GUARD FOR REAR RH WHEELHOUSE not affected by modification; Also order 85402200 ref. 9; Applicable from Ass. No. 120546	-	1	Enquire
10	84076800	REAR GRAVEL GUARD FOR LH REAR WHEELHOUSE	84076800 REAR GRAVEL GUARD FOR LH REAR WHEELHOUSE not affected by modification; Also order 84076700 ref. 9; Applicable from Ass. No. 103179 up to Ass. No. 120545	-	1	Enquire
10	69748900	REAR GRAVEL GUARD FOR L.H. REAR WHEEL	69748900 REAR GRAVEL GUARD FOR L.H. REAR WHEEL Also order 69748800 ref. 9; Applicable up to Ass. No. 103178	-	1	Enquire
11	14591687	FASTENER BUTTON	14591687 FASTENER BUTTON	-	10	Enquire
12	80874100	SCREW	80874100 SCREW	-	16	Enquire
13	80874900	SCREW M6 X 22MM	80874900 SCREW M6 X 22MM	-	6	Enquire
14	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	-	6	Enquire
15	81952700	LH REAR WHEELHOUSE SEAL	81952700 LH REAR WHEELHOUSE SEAL	-	1	Enquire
16	81952800	FRONT SEAL, RH REAR WHEELHOUSE	81952800 FRONT SEAL, RH REAR WHEELHOUSE	-	1	Enquire
17	81952900	REAR SEAL, RH REAR WHEELHOUSE	81952900 REAR SEAL, RH REAR WHEELHOUSE	-	1	Enquire
