Ferrari California (2012-2014) - BODYSHELL AND EXTERNAL FRONT TRIM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
80857200 L.H. BRAKE AIR INTAKE FIXING $946.70 To Order
Photo Part No Description Price (each) Stock
80856800 R.H. Brake Air Intake Fixing $946.70 To Order
Photo Part No Description Price (each) Stock
80356511 COMPLETE LOCK CROSS MEMBER $1,132.41 To Order
Photo Part No Description Price (each) Stock
80967311 BUMPER SUPPORT UPPER BRACKET $449.27 To Order
Photo Part No Description Price (each) Stock
82858700 COMPL. LH HEADLIGHT TUB $516.03 To Order
Photo Part No Description Price (each) Stock
82858600 COMPL. RH HEADLIGHT TUB $516.03 To Order
Photo Part No Description Price (each) Stock
80846011 COMPLETE L.H. FRONT FENDER LINKAGE BRACKET $192.54 To Order
Photo Part No Description Price (each) Stock
80845911 COMPLETE R.H. FRONT FENDER LINKAGE BRACKET $192.54 To Order
Photo Part No Description Price (each) Stock
69883511 COMPLETE L.H. FENDER SUPPORT $478.06 To Order
Photo Part No Description Price (each) Stock
69883311 COMPLETE R.H. FENDER SUPPORT $625.78 To Order
Photo Part No Description Price (each) Stock
80965211 CPL. RH. FRONT MODGUARD $4,599.80 To Order
69874811 CPL. RH. FRONT MODGUARD $5,556.63 To Order
Photo Part No Description Price (each) Stock
81424200 WINDSCREEN WASHER RESERVOIR FASTENER BRACKET $21.48 To Order
Photo Part No Description Price (each) Stock
81580900 TOW HOOK BRACKET $301.00 To Order
Photo Part No Description Price (each) Stock
16286121 SCREW $0.70 To Order
Photo Part No Description Price (each) Stock
16286121 SCREW $0.70 To Order
Photo Part No Description Price (each) Stock
16101714 NUT Enquire To Order
Photo Part No Description Price (each) Stock
62769800 WASHER $0.23 To Order
Photo Part No Description Price (each) Stock
69750300 MOULDING FRAME "SQUADRA CORSE" $732.80 To Order
Photo Part No Description Price (each) Stock
69768900 BRACKET $1,203.43 To Order
Photo Part No Description Price (each) Stock
14306424 SCREW $0.24 To Order
Photo Part No Description Price (each) Stock
13578321 WASHER $0.52 To Order
Photo Part No Description Price (each) Stock
82239700 RH STIFFENER CROSS MEMBER. $25.79 To Order
Photo Part No Description Price (each) Stock

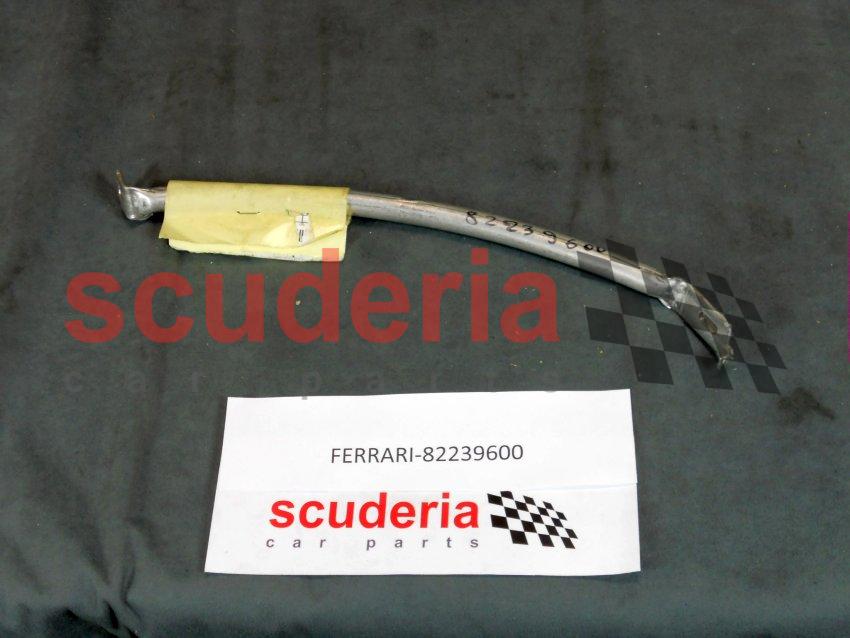

82239600 LH Stiffener Cross Member $25.79 To Order
Photo Part No Description Price (each) Stock
16286121 SCREW $0.70 To Order
Photo Part No Description Price (each) Stock
82862600 HEADLIGHT MOUNTING BRACKET $7.84 To Order
Photo Part No Description Price (each) Stock
880041 Allen Head Bolt M6 X 26 $6.18 To Order
Photo Part No Description Price (each) Stock
82398700 RIVET $0.49 To Order
81126900 RIVET $0.45 To Order
81126800 RIVET $0.41 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
80102500 CENTRAL ABSORBER BRACKET $160.44 To Order
Photo Part No Description Price (each) Stock
16287127 SCREW $0.50 To Order
Photo Part No Description Price (each) Stock
13578305 WASHER $0.10 To Order
Photo Part No Description Price (each) Stock
256799 BUSHING $5.92 To Order
Photo Part No Description Price (each) Stock
82130200 BRACKET $8.49 To Order
Photo Part No Description Price (each) Stock
81231300 RH CROSS MEMBER REINFORCEMENT BRACKET $126.75 To Order
81231100 LH CROSS MEMBER REINFORCEMENT BRACKET $126.75 To Order
View All

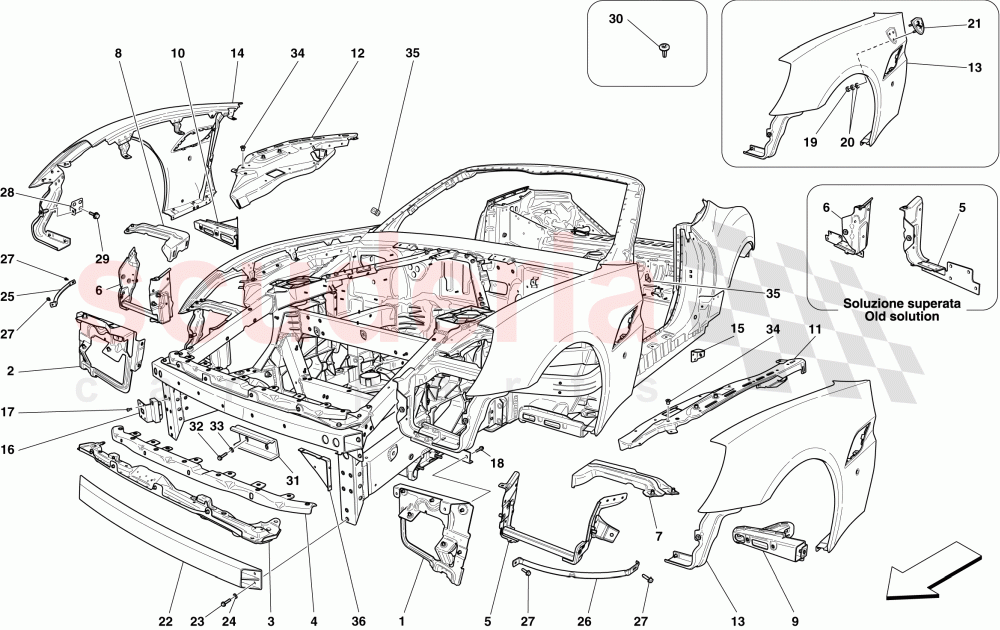

BODYSHELL AND EXTERNAL FRONT TRIM of Ferrari Ferrari California (2012-2014) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 80857200
L.H. BRAKE AIR INTAKE FIXING
Applicable up to Ass. No. 103178 		$946.70 (31.7% off) 1
2 80856800
R.H. Brake Air Intake Fixing
Applicable up to Ass. No. 103178 		$946.70 1
3 80356511
COMPLETE LOCK CROSS MEMBER
; Applicable up to Ass. No. 103178 		$1,132.41 1
4 80967311
BUMPER SUPPORT UPPER BRACKET
; Applicable up to Ass. No. 103178 		$449.27 1
5 82858700
COMPL. LH HEADLIGHT TUB
; Applicable up to Ass. No. 103178 		$516.03 (17.5% off) 1
6 82858600
COMPL. RH HEADLIGHT TUB
; Applicable up to Ass. No. 103178 		$516.03 1
7 80846011
COMPLETE L.H. FRONT FENDER LINKAGE BRACKET
; Applicable up to Ass. No. 103178 		$192.54 1
8 80845911
COMPLETE R.H. FRONT FENDER LINKAGE BRACKET
; Applicable up to Ass. No. 103178 		$192.54 1
11 69883511
COMPLETE L.H. FENDER SUPPORT
Applicable up to Ass. No. 103178 		$478.06 1
12 69883311
COMPLETE R.H. FENDER SUPPORT
Applicable up to Ass. No. 103178 		$625.78 1
14 80965211
CPL. RH. FRONT MODGUARD
Scuderia Ferrari shields on fenders; Applicable up to Ass. No. 103178 		$4,599.80 (24.6% off) 1
14 69874811
CPL. RH. FRONT MODGUARD
Applicable up to Ass. No. 103178 		$5,556.63 1
15 81424200
WINDSCREEN WASHER RESERVOIR FASTENER BRACKET
Applicable up to Ass. No. 103178 		$21.48 1
16 81580900
TOW HOOK BRACKET
; Not for CINA, USA, CDN, GOLFO, USA LIGHT; Applicable up to Ass. No. 103178 		$301.00 1
17 16286121
SCREW
Not for USA, CDN, GOLFO, USA LIGHT; Applicable up to Ass. No. 103178 		$0.70 (48.1% off) 6
18 16286121
SCREW
M6 X 20; Applicable up to Ass. No. 103178 		$0.70 (48.1% off) 4
19 16101714
NUT
Scuderia Ferrari shields on fenders; Applicable up to Ass. No. 103178 		- 6 Enquire
20 62769800
WASHER
Scuderia Ferrari shields on fenders; Applicable up to Ass. No. 103178 		$0.23 (23.3% off) 6
21 69750300
MOULDING FRAME "SQUADRA CORSE"
Scuderia Ferrari shields on fenders; Applicable up to Ass. No. 103178 		$732.80 (30.8% off) 2
22 69768900
BRACKET
Applicable up to Ass. No. 103178 		$1,203.43 (26.9% off) 1
23 14306424
SCREW
Applicable up to Ass. No. 103178 		$0.24 (41.5% off) 4
24 13578321
WASHER
Applicable up to Ass. No. 103178 		$0.52 4
25 82239700
RH STIFFENER CROSS MEMBER.
Applicable up to Ass. No. 103178 		$25.79 1
26 82239600
LH Stiffener Cross Member
Applicable up to Ass. No. 103178 		$25.79 (10.9% off) 1
27 16286121
SCREW
M6 X 20; Applicable up to Ass. No. 103178 		$0.70 (48.1% off) 4
28 82862600
HEADLIGHT MOUNTING BRACKET
Applicable up to Ass. No. 103178 		$7.84 4
29 880041
Allen Head Bolt M6 X 26
Applicable up to Ass. No. 103178 		$6.18 16
30 82398700
RIVET
3.9 x 5.5; Applicable up to Ass. No. 103178 		$0.49 -
30 81126900
RIVET
3.9 x 5.5; Applicable up to Ass. No. 103178 		$0.45 -
30 81126800
RIVET
3.9 x 5.5; Applicable up to Ass. No. 103178 		$0.41 -
30 81126700
RIVET
3.9 x 5.5; Applicable up to Ass. No. 103178 		$0.34 -
30 81126600
RIVET
3.9 x 5.5; Applicable up to Ass. No. 103178 		$0.36 -
30 81126500
RIVET
3.9 x 5.5; Applicable up to Ass. No. 103178 		$0.29 -
31 80102500
CENTRAL ABSORBER BRACKET
Applicable up to Ass. No. 103178 		$160.44 2
32 16287127
SCREW
Applicable up to Ass. No. 103178 		$0.50 4
33 13578305
WASHER
Applicable up to Ass. No. 103178 		$0.10 4
34 256799
BUSHING
Applicable up to Ass. No. 103178 		$5.92 6
35 82130200
BRACKET
Applicable up to Ass. No. 103178 		$8.49 2
36 81231300
RH CROSS MEMBER REINFORCEMENT BRACKET 		$126.75 1
36 81231100
LH CROSS MEMBER REINFORCEMENT BRACKET 		$126.75 1
