TRANSMISSION HOUSING of Ferrari Ferrari California T

View All

Ferrari California T - TRANSMISSION HOUSING

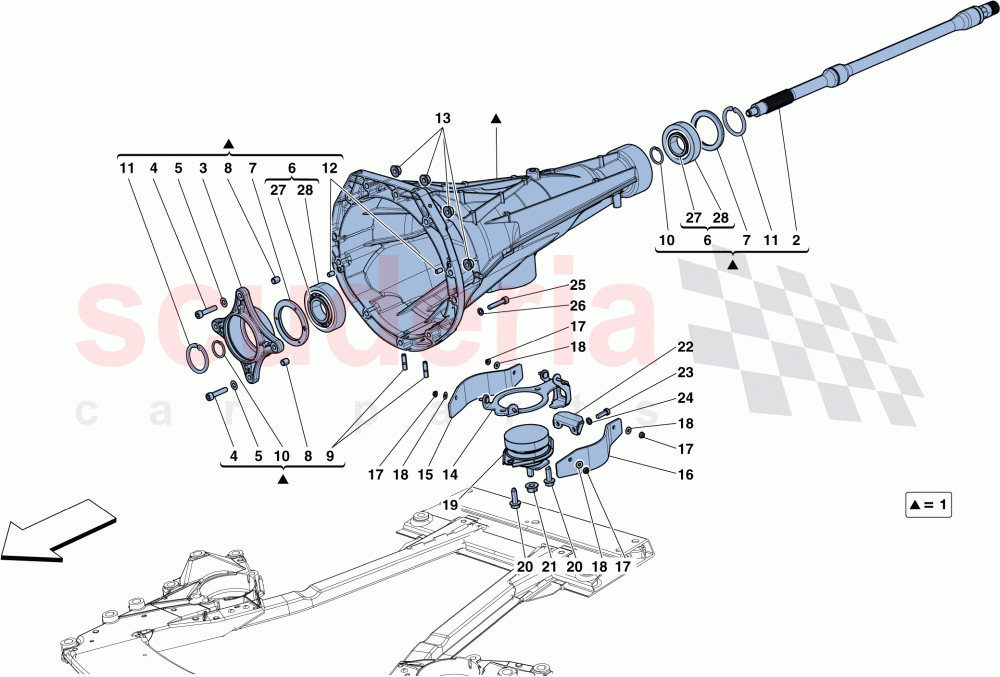

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	322527	COMPL. TRANSMISSION HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	298690	FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12602479	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253629	COMPLETE BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253627	RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102704	ALIGNMENT DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11068874	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11062474	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13807821	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059421	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299596	COMPL. BUSH TRAVEL LIMITER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299538	RH TRANSMISSION HOUSING BUSHING HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299539	LH TRANSMISSION HOUSING BUSHING HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059114	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270812	Elastic Bushing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	18754324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277822	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277524	BUSHING TRAVEL STOP BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13028734	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14499421	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306731	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14499421	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	252524	COMPL. BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318975	SNAP RING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	322527	COMPL. TRANSMISSION HOUSING	322527 COMPL. TRANSMISSION HOUSING	-	1	Enquire
3	298690	FLANGE	298690 FLANGE	-	1	Enquire
4	14306624	SCREW	14306624 SCREW	-	4	Enquire
5	12602479	WASHER	12602479 WASHER	-	4	Enquire
6	253629	COMPLETE BEARING	253629 COMPLETE BEARING No longer supplied	-	2	Enquire
7	253627	RING	253627 RING	-	2	Enquire
8	102704	ALIGNMENT DOWEL	102704 ALIGNMENT DOWEL	-	2	Enquire
9	13543124	STUD BOLT	13543124 STUD BOLT	-	2	Enquire
10	11068874	SEEGER RING	11068874 SEEGER RING	-	2	Enquire
11	11062474	SNAP RING	11062474 SNAP RING	-	2	Enquire
12	13807821	SCREW	13807821 SCREW	-	2	Enquire
13	14059421	NUT	14059421 NUT	-	10	Enquire
14	299596	COMPL. BUSH TRAVEL LIMITER BRACKET	299596 COMPL. BUSH TRAVEL LIMITER BRACKET	-	1	Enquire
15	299538	RH TRANSMISSION HOUSING BUSHING HEAT SHIELD	299538 RH TRANSMISSION HOUSING BUSHING HEAT SHIELD	-	1	Enquire
16	299539	LH TRANSMISSION HOUSING BUSHING HEAT SHIELD	299539 LH TRANSMISSION HOUSING BUSHING HEAT SHIELD	-	1	Enquire
17	14059114	NUT	14059114 NUT	-	4	Enquire
18	12638124	WASHER	12638124 WASHER	-	4	Enquire
19	270812	Elastic Bushing	270812 Elastic Bushing	-	1	Enquire
20	18754324	SCREW	18754324 SCREW	-	2	Enquire
21	277822	NUT	277822 NUT	-	1	Enquire
22	277524	BUSHING TRAVEL STOP BRACKET	277524 BUSHING TRAVEL STOP BRACKET	-	1	Enquire
23	13028734	SCREW	13028734 SCREW	-	2	Enquire
24	14499421	WASHER	14499421 WASHER	-	2	Enquire
25	14306731	SCREW	14306731 SCREW	-	1	Enquire
26	14499421	WASHER	14499421 WASHER	-	1	Enquire
27	252524	COMPL. BEARING	252524 COMPL. BEARING	-	2	Enquire
28	318975	SNAP RING	318975 SNAP RING	-	2	Enquire
