LUBRICATION: PUMP AND FILTER of Ferrari Ferrari California T

View All

Ferrari California T - LUBRICATION: PUMP AND FILTER

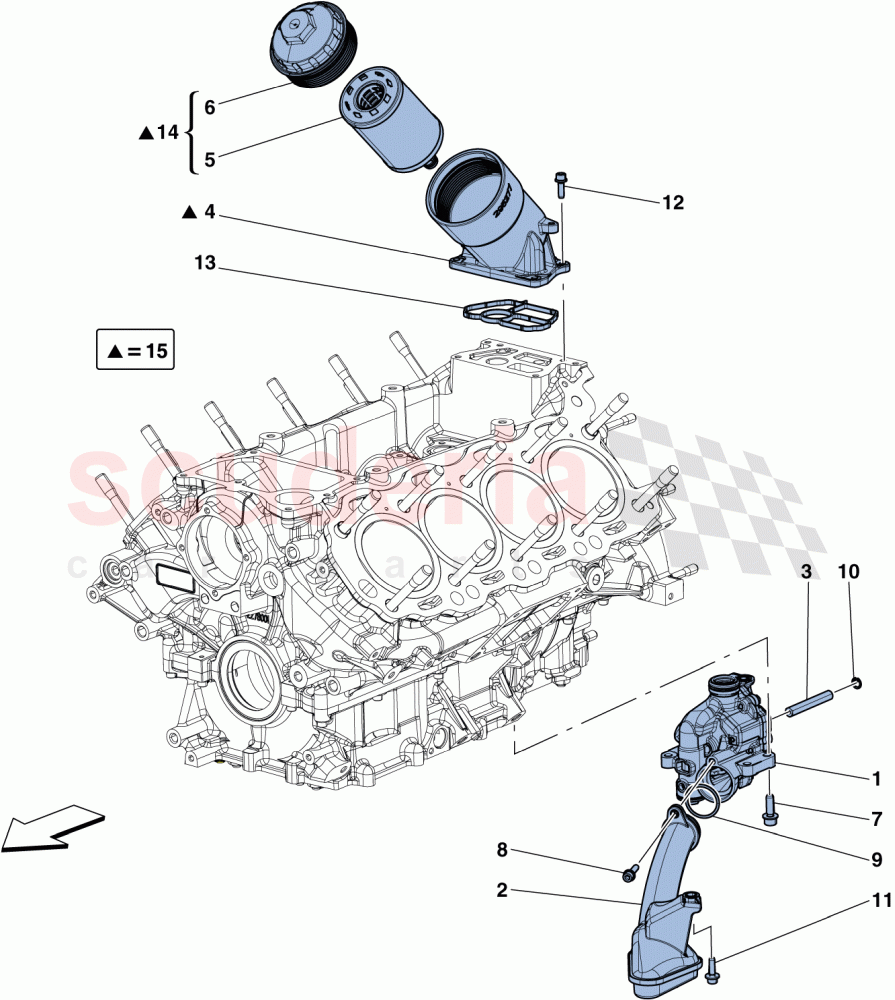

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	749795	OIL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292493	OIL PUMP PICKUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288129	OIL PUMP DRIVE ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295950	COMPL. OIL FILTER MOUNT	Enquire	To Order
	295277	OIL FILTER MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	280901	Oil Filter	Enquire	To Order
	295948	OIL FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286244	OIL FILTER CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282409	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282397	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271463	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11057076	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	301493	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270805	OIL FILTER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295943	OIL FILTER	Enquire	To Order
	280877	PIPE FROM UNDERBODY PIPE TO FIREWALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295950	COMPL. OIL FILTER MOUNT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	749795	OIL PUMP	749795 OIL PUMP	-	1	Enquire
2	292493	OIL PUMP PICKUP	292493 OIL PUMP PICKUP	-	1	Enquire
3	288129	OIL PUMP DRIVE ROD	288129 OIL PUMP DRIVE ROD	-	1	Enquire
4	295950	COMPL. OIL FILTER MOUNT	295950 COMPL. OIL FILTER MOUNT Order mount 295277 + filter compl. with cap 295943 ref. 14; Applicable up to engine No. 276757; No longer supplied	-	1	Enquire
4	295277	OIL FILTER MOUNT	295277 OIL FILTER MOUNT Applicable from engine No. 276758	-	1	Enquire

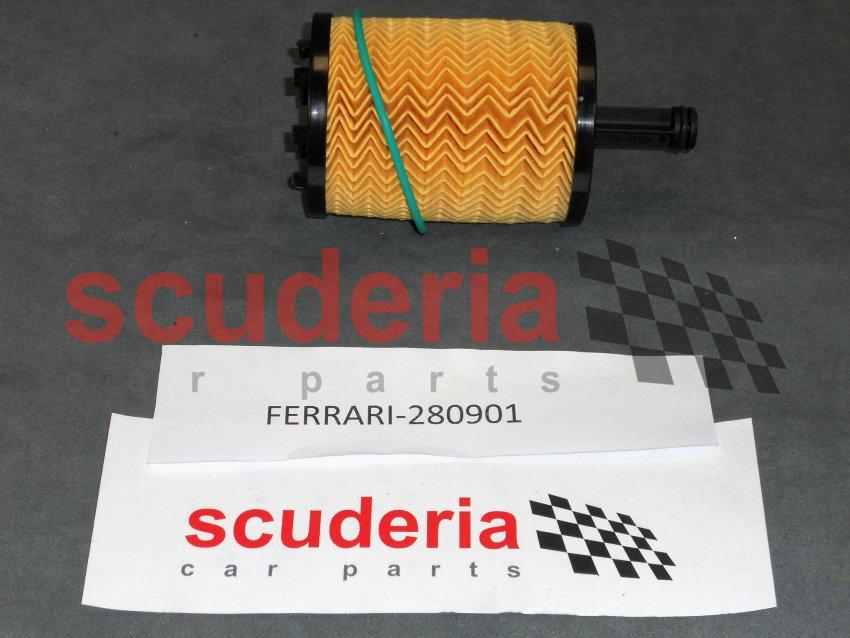

5	280901	Oil Filter	280901 Oil Filter Applicable up to engine No. 276757	-	1	Enquire
5	295948	OIL FILTER	295948 OIL FILTER Applicable from engine No. 276758	-	1	Enquire
6	286244	OIL FILTER CAP	286244 OIL FILTER CAP After depletion order compl. filter ref. 14; Applicable until depletion	-	1	Enquire
7	282409	SCREW	282409 SCREW	-	3	Enquire
8	282397	SCREW	282397 SCREW	-	1	Enquire
9	271463	O-RING	271463 O-RING No longer supplied	-	1	Enquire
10	11057076	SEEGER RING	11057076 SEEGER RING	-	1	Enquire
11	301493	SCREW	301493 SCREW	-	1	Enquire
12	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20	-	4	Enquire
13	270805	OIL FILTER GASKET	270805 OIL FILTER GASKET	-	1	Enquire
14	295943	OIL FILTER	295943 OIL FILTER Applicable from engine No. 276758	-	1	Enquire
14	280877	PIPE FROM UNDERBODY PIPE TO FIREWALL	280877 PIPE FROM UNDERBODY PIPE TO FIREWALL Applicable up to engine No. 276757	-	1	Enquire
15	295950	COMPL. OIL FILTER MOUNT	295950 COMPL. OIL FILTER MOUNT Applicable from engine No. 276758; No longer supplied	-	1	Enquire
