INTAKE MANIFOLD of Ferrari Ferrari California T

View All

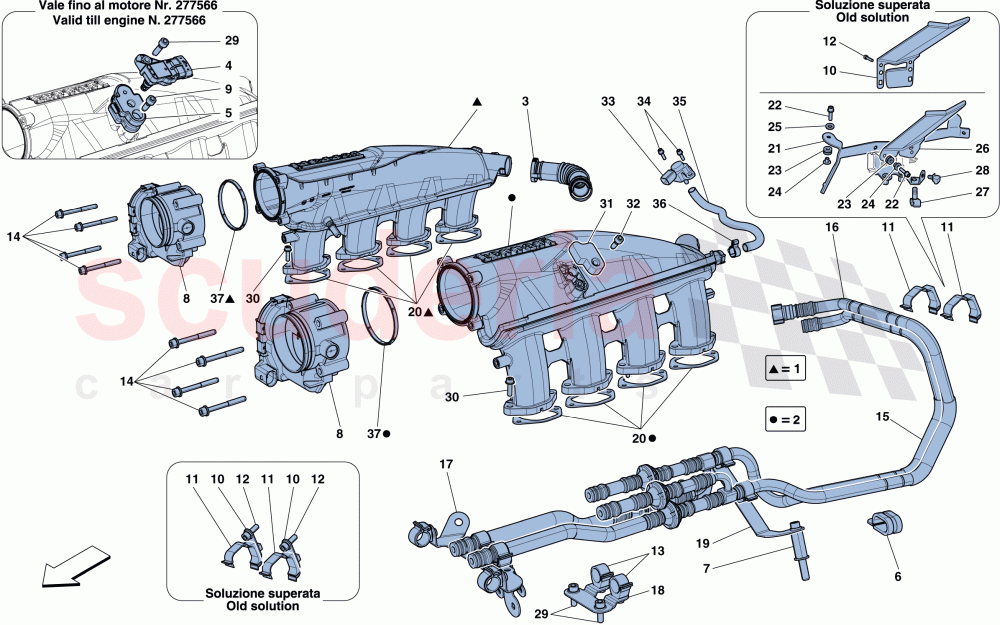

Ferrari California T - INTAKE MANIFOLD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	806887	COMPL. RH INTAKE DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	806888	COMPL. LH INTAKE DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277295	CENTRAL COMPENSATOR BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272880	PRESSURE AND TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	312217	COMPL. DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253512	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294005	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	313266	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238156	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198253	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255494	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303336	RH FLUSH PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303337	LH FLUSH PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307173	COMPL. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303697	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303698	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	309025	V8 Airbox Intake Manifold Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314465	FLUSH PIPE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86778500	ENGINE COMPARTMENT SPLASH GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250318	SNAP CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303438	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	312155	COSMETIC CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13027224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	309966	AIR PRESSURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311608	AIR PRESSURE SENSOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13125170	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	309026	V6 Airbox Intake Manifold Connection Gasket	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	806887	COMPL. RH INTAKE DUCT	806887 COMPL. RH INTAKE DUCT	-	1	Enquire
2	806888	COMPL. LH INTAKE DUCT	806888 COMPL. LH INTAKE DUCT	-	1	Enquire
3	277295	CENTRAL COMPENSATOR BODY	277295 CENTRAL COMPENSATOR BODY	-	1	Enquire
4	272880	PRESSURE AND TEMPERATURE SENSOR	272880 PRESSURE AND TEMPERATURE SENSOR Applicable up to engine No. 277566	-	2	Enquire
5	312217	COMPL. DAMPER	312217 COMPL. DAMPER Applicable up to engine No. 277566	-	2	Enquire
6	253512	BRACKET	253512 BRACKET	-	1	Enquire
7	294005	STUD BOLT	294005 STUD BOLT	-	2	Enquire
9	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14; Applicable up to engine No. 277566	-	2	Enquire
10	313266	BRACKET	313266 BRACKET Applicable up to engine No. 272034	-	1	Enquire
11	238156	CLIP	238156 CLIP	-	2	Enquire
12	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18; Applicable up to engine No. 272034	-	4	Enquire
13	198253	CLIP	198253 CLIP	-	2	Enquire
14	255494	SCREW	255494 SCREW	-	8	Enquire
15	303336	RH FLUSH PIPE	303336 RH FLUSH PIPE	-	1	Enquire
16	303337	LH FLUSH PIPE	303337 LH FLUSH PIPE	-	1	Enquire
17	307173	COMPL. BRACKET	307173 COMPL. BRACKET	-	1	Enquire
18	303697	BRACKET	303697 BRACKET	-	1	Enquire
19	303698	BRACKET	303698 BRACKET	-	1	Enquire
20	309025	V8 Airbox Intake Manifold Gasket	309025 V8 Airbox Intake Manifold Gasket	-	8	Enquire
21	314465	FLUSH PIPE BRACKET	314465 FLUSH PIPE BRACKET Applicable from engine No. 271892	-	1	Enquire
22	231620	SCREW	231620 SCREW M6 X 30; Applicable from engine No. 271892	-	4	Enquire
23	812273	CABLE GROMMET	812273 CABLE GROMMET Applicable from engine No. 271892	-	4	Enquire
24	149707	SPACER	149707 SPACER Applicable from engine No. 271892	-	4	Enquire
25	12643724	WASHER	12643724 WASHER Applicable from engine No. 271892	-	2	Enquire
26	86778500	ENGINE COMPARTMENT SPLASH GUARD	86778500 ENGINE COMPARTMENT SPLASH GUARD Applicable from engine No. 271892	-	1	Enquire
27	250318	SNAP CLIP	250318 SNAP CLIP Applicable from engine No. 271892	-	1	Enquire
28	303438	CLIP	303438 CLIP Applicable from engine No. 271892	-	1	Enquire
29	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18; Applicable up to engine No. 277566	-	4	Enquire
30	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	16	Enquire
31	312155	COSMETIC CAP	312155 COSMETIC CAP Applicable from engine No. 277567	-	2	Enquire
32	13027224	SCREW	13027224 SCREW Applicable from engine No. 277567	-	2	Enquire
33	309966	AIR PRESSURE SENSOR	309966 AIR PRESSURE SENSOR Applicable from engine No. 277567	-	1	Enquire
34	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16; Applicable from engine No. 277567	-	2	Enquire
35	311608	AIR PRESSURE SENSOR PIPE	311608 AIR PRESSURE SENSOR PIPE Applicable from engine No. 277567	-	1	Enquire
36	13125170	CLAMP	13125170 CLAMP Applicable from engine No. 277567	-	1	Enquire
37	309026	V6 Airbox Intake Manifold Connection Gasket	309026 V6 Airbox Intake Manifold Connection Gasket	-	2	Enquire
