Find Your Part

LUGGAGE COMPARTMENT MATS of Ferrari Ferrari California T

View All

Ferrari California T - LUGGAGE COMPARTMENT MATS

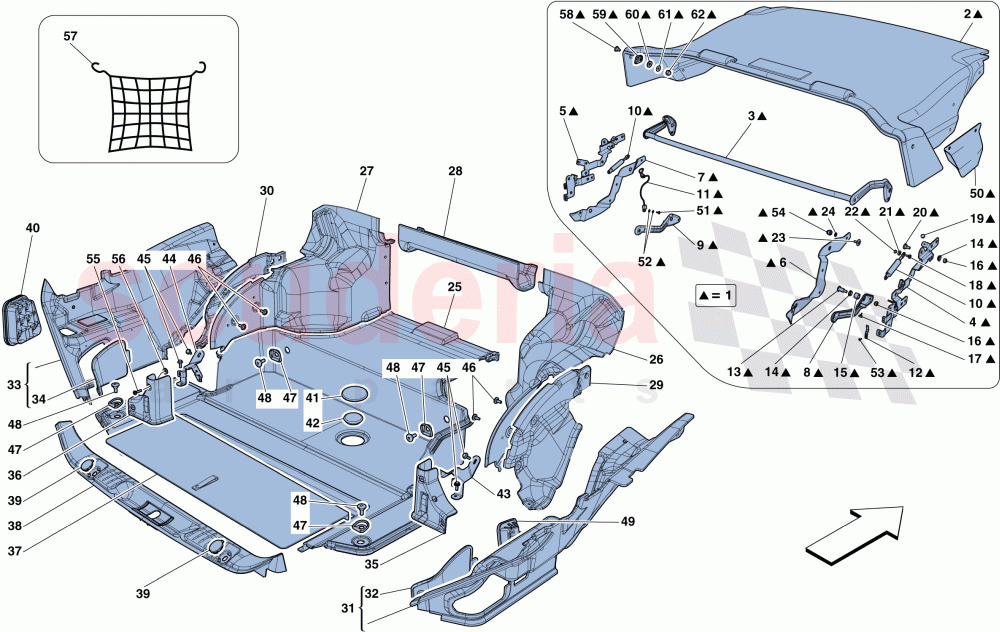

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	88515800	COMPL. SEPARATOR PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82885900	REINFORCEMENT TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82884700	RH LOWER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82885100	LH LOWER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82885300	RH UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82885400	LH UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82884300	RH REAR ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82884400	LH REAR ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82884500	STABILUS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80847800	PROXIMITY SENSOR SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81501900	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82883500	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82882500	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82882800	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82883400	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82898300	METAL BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82883300	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81977900	UPPER RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82883600	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82882900	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82885700	SELF FASTENING STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82889500	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86062300	RH LATERAL LUGGAGE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86062200	LH LATERAL LUGGAGE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86060400	FRONT TRIM PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86062500	RH GUIDE TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86062400	LH GUIDE TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86061600	RH LATERAL LUGGAGE COMPARTMENT	Enquire	To Order
	86083800	RH LATERAL LUGGAGE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86061800	RH COVER	Enquire	To Order
	86084000	RH COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86061300	LH LATERAL LUGGAGE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86061500	LH DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85825300	RH SEPARATOR HOOK COVER	Enquire	To Order
	86342300	RH SEPARATOR HOOK COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85825200	LH SEPARATOR HOOK COVER	Enquire	To Order
	86342400	LH SEPARATOR HOOK COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86611700	LUGGAGE COMPARTMENT FLOOR TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85379100	LUGGAGE COMPARTMENT INNER SILL TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85895100	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69763100	AIR VENT GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86062100	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14507287	COVER CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81789400	R.H. OUTER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81789300	L.H. OUTER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11625824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85199200	FIXING BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81916700	COMPL. PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81916800	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239455	LUGGAGE COMPARTMENT LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86269600	RH LATERAL SURROUND	Enquire	To Order
	86269700	LH LATERAL SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15687270	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14497704	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14641297	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14054077	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87236000	LUGGAGE RETAINER NET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88513600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81916700	COMPL. PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81916900	ANTI-ABRASION WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14054077	NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	88515800	COMPL. SEPARATOR PANEL	88515800 COMPL. SEPARATOR PANEL Applicable up to Ass. No. 139288	-	1	Enquire
3	82885900	REINFORCEMENT TUBE	82885900 REINFORCEMENT TUBE	-	1	Enquire
4	82884700	RH LOWER BRACKET	82884700 RH LOWER BRACKET	-	1	Enquire
5	82885100	LH LOWER BRACKET	82885100 LH LOWER BRACKET	-	1	Enquire
6	82885300	RH UPPER BRACKET	82885300 RH UPPER BRACKET	-	1	Enquire
7	82885400	LH UPPER BRACKET	82885400 LH UPPER BRACKET	-	1	Enquire
8	82884300	RH REAR ARM	82884300 RH REAR ARM	-	1	Enquire
9	82884400	LH REAR ARM	82884400 LH REAR ARM	-	1	Enquire
10	82884500	STABILUS	82884500 STABILUS	-	2	Enquire
11	80847800	PROXIMITY SENSOR SWITCH	80847800 PROXIMITY SENSOR SWITCH	-	1	Enquire
12	81501900	CLIP	81501900 CLIP	-	1	Enquire
13	82883500	PIN	82883500 PIN	-	2	Enquire
14	82882500	BUSHING	82882500 BUSHING	-	8	Enquire
15	82882800	SHIM	82882800 SHIM	-	2	Enquire
16	82883400	NUT	82883400 NUT	-	16	Enquire
17	82898300	METAL BUTTON	82898300 METAL BUTTON	-	1	Enquire
18	82883300	PIN	82883300 PIN	-	4	Enquire
19	81977900	UPPER RETAINER	81977900 UPPER RETAINER	-	4	Enquire
20	82883600	PIN	82883600 PIN	-	6	Enquire
21	82882900	SHIM	82882900 SHIM	-	4	Enquire
22	82885700	SELF FASTENING STUD	82885700 SELF FASTENING STUD	-	4	Enquire
23	82889500	SCREW	82889500 SCREW	-	8	Enquire
24	62769800	WASHER	62769800 WASHER	-	8	Enquire
26	86062300	RH LATERAL LUGGAGE COMPARTMENT	86062300 RH LATERAL LUGGAGE COMPARTMENT	-	1	Enquire
27	86062200	LH LATERAL LUGGAGE COMPARTMENT	86062200 LH LATERAL LUGGAGE COMPARTMENT	-	1	Enquire
28	86060400	FRONT TRIM PANEL	86060400 FRONT TRIM PANEL	-	1	Enquire
29	86062500	RH GUIDE TRIM	86062500 RH GUIDE TRIM	-	1	Enquire
30	86062400	LH GUIDE TRIM	86062400 LH GUIDE TRIM	-	1	Enquire
31	86061600	RH LATERAL LUGGAGE COMPARTMENT	86061600 RH LATERAL LUGGAGE COMPARTMENT	-	1	Enquire
31	86083800	RH LATERAL LUGGAGE COMPARTMENT	86083800 RH LATERAL LUGGAGE COMPARTMENT High power Hi-Fi version	-	1	Enquire
32	86061800	RH COVER	86061800 RH COVER	-	1	Enquire
32	86084000	RH COVER	86084000 RH COVER High power Hi-Fi version	-	1	Enquire
33	86061300	LH LATERAL LUGGAGE COMPARTMENT	86061300 LH LATERAL LUGGAGE COMPARTMENT	-	1	Enquire
34	86061500	LH DOOR	86061500 LH DOOR	-	1	Enquire
35	85825300	RH SEPARATOR HOOK COVER	85825300 RH SEPARATOR HOOK COVER Not for AUS	-	1	Enquire
35	86342300	RH SEPARATOR HOOK COVER	86342300 RH SEPARATOR HOOK COVER Version with folding rear seats	-	1	Enquire
36	85825200	LH SEPARATOR HOOK COVER	85825200 LH SEPARATOR HOOK COVER Not for AUS	-	1	Enquire
36	86342400	LH SEPARATOR HOOK COVER	86342400 LH SEPARATOR HOOK COVER Version with folding rear seats	-	1	Enquire
37	86611700	LUGGAGE COMPARTMENT FLOOR TRIM	86611700 LUGGAGE COMPARTMENT FLOOR TRIM	-	1	Enquire
38	85379100	LUGGAGE COMPARTMENT INNER SILL TRIM	85379100 LUGGAGE COMPARTMENT INNER SILL TRIM	-	1	Enquire
39	85895100	PLATE	85895100 PLATE	-	2	Enquire
40	69763100	AIR VENT GRILLE	69763100 AIR VENT GRILLE	-	1	Enquire
41	86062100	CAP	86062100 CAP	-	1	Enquire
42	14507287	COVER CAP	14507287 COVER CAP	-	1	Enquire
43	81789400	R.H. OUTER BRACKET	81789400 R.H. OUTER BRACKET	-	1	Enquire
44	81789300	L.H. OUTER BRACKET	81789300 L.H. OUTER BRACKET	-	1	Enquire
45	11625824	SCREW	11625824 SCREW	-	2	Enquire
46	85199200	FIXING BUTTON	85199200 FIXING BUTTON	-	4	Enquire
47	81916700	COMPL. PLATE	81916700 COMPL. PLATE	-	5	Enquire
48	81916800	SCREW	81916800 SCREW	-	5	Enquire
49	239455	LUGGAGE COMPARTMENT LIGHT	239455 LUGGAGE COMPARTMENT LIGHT	-	1	Enquire
50	86269600	RH LATERAL SURROUND	86269600 RH LATERAL SURROUND	-	1	Enquire
50	86269700	LH LATERAL SURROUND	86269700 LH LATERAL SURROUND	-	1	Enquire
51	15687270	SCREW	15687270 SCREW	-	1	Enquire
52	14497704	WASHER	14497704 WASHER	-	2	Enquire
53	14641297	RIVET	14641297 RIVET	-	2	Enquire
54	14054077	NUT	14054077 NUT No longer supplied	-	8	Enquire
55	81591700	SCREW	81591700 SCREW	-	4	Enquire
56	62769800	WASHER	62769800 WASHER	-	4	Enquire
57	87236000	LUGGAGE RETAINER NET	87236000 LUGGAGE RETAINER NET	-	1	Enquire
58	88513600	SCREW	88513600 SCREW Applicable from Ass. No. 139289	-	2	Enquire
59	81916700	COMPL. PLATE	81916700 COMPL. PLATE Applicable from Ass. No. 139289	-	2	Enquire
60	81916900	ANTI-ABRASION WASHER	81916900 ANTI-ABRASION WASHER Applicable from Ass. No. 139289	-	2	Enquire
61	12643724	WASHER	12643724 WASHER Applicable from Ass. No. 139289	-	2	Enquire
62	14054077	NUT	14054077 NUT Applicable from Ass. No. 139289; No longer supplied	-	2	Enquire
