Ferrari California T - AC SYSTEM - WATER AND FREON

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
326560 PIPE FROM CONDENSER DISCONNECTOR UNION TO HVAC $415.69 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.41 To Order
Photo Part No Description Price (each) Stock
298580 CLIP $3.71 To Order
298580 CLIP $3.71 To Order
Photo Part No Description Price (each) Stock
81649300 CLIP $7.03 To Order
Photo Part No Description Price (each) Stock
299050 FLEXIBLE HOSE FROM EXPANSION VALVE TO COMPRESSOR $208.42 To Order
Photo Part No Description Price (each) Stock
326562 PIPE FROM COMPRESSOR TO DISCONNECTOR UNION $229.33 To Order
299051 PIPE FROM COMPRESSOR TO DISCONNECTOR UNION $240.67 To Order
Photo Part No Description Price (each) Stock
14306724 SCREW $0.92 To Order
Photo Part No Description Price (each) Stock
299052 PIPE FROM COMPRESSOR DISCONNECTOR UNION TO CONDENSER $109.10 To Order
Photo Part No Description Price (each) Stock
299053 PIPE FROM CONDENSER TO DISCONNECTOR UNION $117.12 To Order
Photo Part No Description Price (each) Stock
13837017 SCREW $3.71 To Order
Photo Part No Description Price (each) Stock
14040614 NUT $0.15 To Order
Photo Part No Description Price (each) Stock
294693 CLIP $4.10 To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.65 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.17 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 To Order
Photo Part No Description Price (each) Stock
303329 PIPE FROM PUMP TO AC UNIT $401.34 To Order
Photo Part No Description Price (each) Stock
303649 PIPE TO RH TGK VALVE $415.69 To Order
Photo Part No Description Price (each) Stock
297927 PIPE TO LH TGK VALVE $417.18 To Order
Photo Part No Description Price (each) Stock
81895900 AC WATER PIPE SEAL $10.05 To Order
Photo Part No Description Price (each) Stock
81970900 AC WATER PIPE SEAL $10.44 To Order
Photo Part No Description Price (each) Stock
262271 CLAMP $3.03 To Order
Photo Part No Description Price (each) Stock
303385 CLIP $0.31 To Order
Photo Part No Description Price (each) Stock
308714 TGK VALVE MOUNTING BRACKET $30.08 To Order
Photo Part No Description Price (each) Stock
257273 CLIP $1.26 To Order
Photo Part No Description Price (each) Stock
67635900 RH TGK VALVE $224.63 To Order
Photo Part No Description Price (each) Stock
67444900 LH TGK VALVE $240.67 To Order
Photo Part No Description Price (each) Stock
292306 TGK VALVE OUTLET UNION $41.56 To Order
Photo Part No Description Price (each) Stock
252473 CLIP $1.77 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.60 To Order
Photo Part No Description Price (each) Stock
315352 CLIP $1.26 To Order
Photo Part No Description Price (each) Stock
67933600 TGK VALVE FASTENER ROD $1.78 To Order
Photo Part No Description Price (each) Stock
748925 RUBBER CABLE GROMMET $2.56 To Order
Photo Part No Description Price (each) Stock
291283 CLIP $0.58 To Order
Photo Part No Description Price (each) Stock
80874400 CLIP $1.10 To Order
Photo Part No Description Price (each) Stock
302790 ENGINE COMPARTMENT WATER RETURN PIPE $433.23 To Order
Photo Part No Description Price (each) Stock
291349 WATER RECIRCULATION PUMP $3,679.96 To Order
Photo Part No Description Price (each) Stock
303331 RECIRCULATION PUMP MOUNTING BRACKET $25.79 To Order
Photo Part No Description Price (each) Stock
291645 CLIP $4.10 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.60 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
257980 BRACKET WITH SHEATH $3.03 To Order
Photo Part No Description Price (each) Stock
302486 RADIATOR SIDE COOLING SYSTEM FILLER PIPE $43.31 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.60 To Order
Photo Part No Description Price (each) Stock
303568 COMPL. RECIRCULATION PUMP $628.81 To Order
Photo Part No Description Price (each) Stock
318123 PIPE FROM HVAC TO COMPRESSOR $786.24 To Order
Photo Part No Description Price (each) Stock
14450483 GASKET $7.28 To Order
Photo Part No Description Price (each) Stock
10318884 GASKET $7.28 To Order
Photo Part No Description Price (each) Stock
10319184 GASKET $7.28 To Order
Photo Part No Description Price (each) Stock
14450683 GASKET $7.28 To Order
Photo Part No Description Price (each) Stock
11084284 GASKET $7.28 To Order
Photo Part No Description Price (each) Stock
11084083 GASKET $7.28 To Order
Photo Part No Description Price (each) Stock
82068300 O.R. GASKET $37.21 To Order
Photo Part No Description Price (each) Stock
326569 IHX GAS PIPE $759.72 To Order
Photo Part No Description Price (each) Stock
326561 FLEXIBLE HOSE FROM EXPANSION VALVE TO COMPRESSOR $272.34 To Order
Photo Part No Description Price (each) Stock
14059114 NUT $0.13 To Order
View All

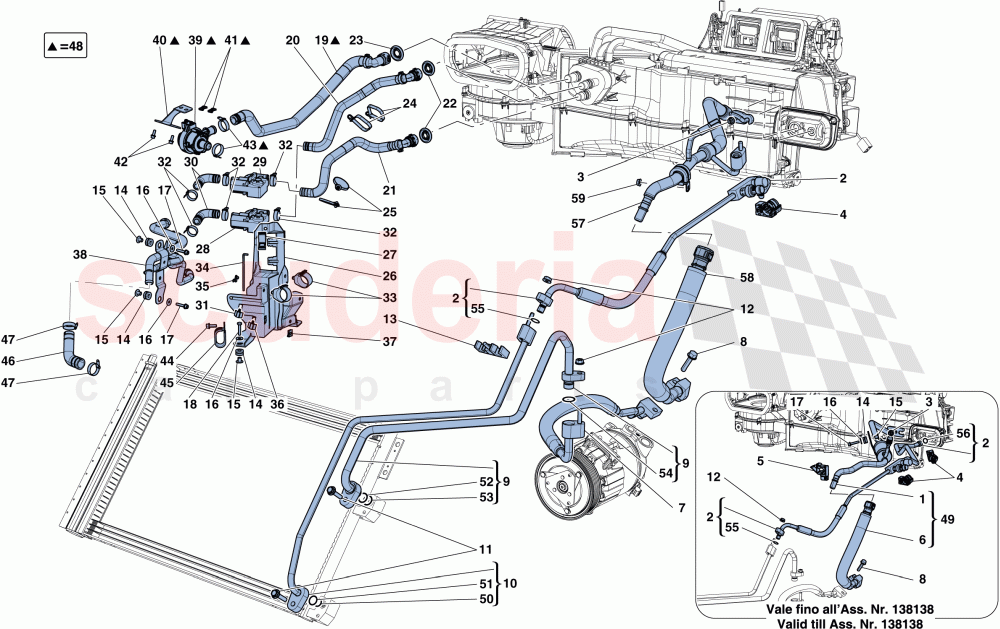

AC SYSTEM - WATER AND FREON of Ferrari Ferrari California T Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2 326560
PIPE FROM CONDENSER DISCONNECTOR UNION TO HVAC
Applicable from Ass. No. 138139 		$415.69 1
3 14040711
NUT 		$0.41 1
4 298580
CLIP
Applicable from Ass. No. 138139 		$3.71 1
4 298580
CLIP
Applicable up to Ass. No. 138138 		$3.71 2
5 81649300
CLIP
Applicable up to Ass. No. 138138 		$7.03 1
6 299050
FLEXIBLE HOSE FROM EXPANSION VALVE TO COMPRESSOR
After depletion order compl. pipe ref. 49; Applicable until depletion 		$208.42 1
7 326562
PIPE FROM COMPRESSOR TO DISCONNECTOR UNION
Applicable from Ass. No. 138139 		$229.33 1
7 299051
PIPE FROM COMPRESSOR TO DISCONNECTOR UNION
Applicable up to Ass. No. 138138 		$240.67 1
8 14306724
SCREW 		$0.92 1
9 299052
PIPE FROM COMPRESSOR DISCONNECTOR UNION TO CONDENSER 		$109.10 1
10 299053
PIPE FROM CONDENSER TO DISCONNECTOR UNION 		$117.12 1
11 13837017
SCREW 		$3.71 2
12 14040614
NUT 		$0.15 1
13 294693
CLIP 		$4.10 1
14 812273
CABLE GROMMET 		$1.65 7
15 149707
SPACER 		$1.17 (33.1% off) 7
16 12643724
WASHER 		$0.06 (88% off) 7
17 231620
SCREW
M6 X 30 		$0.32 (8.6% off) 4
18 231620
SCREW
M6 X 30 		$0.32 (8.6% off) 3
19 303329
PIPE FROM PUMP TO AC UNIT 		$401.34 1
20 303649
PIPE TO RH TGK VALVE 		$415.69 1
21 297927
PIPE TO LH TGK VALVE 		$417.18 1
22 81895900
AC WATER PIPE SEAL 		$10.05 2
23 81970900
AC WATER PIPE SEAL 		$10.44 1
24 262271
CLAMP 		$3.03 2
25 303385
CLIP 		$0.31 2
26 308714
TGK VALVE MOUNTING BRACKET
Applicable from Ass. No. 123720 		$30.08 1
27 257273
CLIP 		$1.26 1
28 67635900
RH TGK VALVE 		$224.63 (21.7% off) 1
29 67444900
LH TGK VALVE 		$240.67 (16.4% off) 1
30 292306
TGK VALVE OUTLET UNION 		$41.56 2
31 252473
CLIP 		$1.77 1
32 262111
JUBILEE CLAMP 		$1.60 6
33 315352
CLIP 		$1.26 2
34 67933600
TGK VALVE FASTENER ROD 		$1.78 1
35 748925
RUBBER CABLE GROMMET 		$2.56 1
36 291283
CLIP 		$0.58 1
37 80874400
CLIP 		$1.10 1
38 302790
ENGINE COMPARTMENT WATER RETURN PIPE 		$433.23 1
39 291349
WATER RECIRCULATION PUMP 		$3,679.96 1
40 303331
RECIRCULATION PUMP MOUNTING BRACKET 		$25.79 1
41 291645
CLIP 		$4.10 2
42 248334
SCREW
M6 X 16 		$0.68 2
43 262111
JUBILEE CLAMP 		$1.60 2
44 231619
SCREW
M6 X 18 		$0.31 1
45 257980
BRACKET WITH SHEATH 		$3.03 1
46 302486
RADIATOR SIDE COOLING SYSTEM FILLER PIPE 		$43.31 1
47 262111
JUBILEE CLAMP 		$1.60 2
48 303568
COMPL. RECIRCULATION PUMP
After depletion, order loose components; Applicable until depletion 		$628.81 1
49 318123
PIPE FROM HVAC TO COMPRESSOR
Applicable after depletion of two pipes 309864 ref. 1 and 299050 ref. 6; Applicable up to Ass. No. 138138 		$786.24 1
50 14450483
GASKET 		$7.28 1
51 10318884
GASKET 		$7.28 1
52 10319184
GASKET 		$7.28 1
53 14450683
GASKET 		$7.28 1
54 11084284
GASKET 		$7.28 1
55 11084083
GASKET 		$7.28 1
56 82068300
O.R. GASKET 		$37.21 1
57 326569
IHX GAS PIPE
Applicable from Ass. No. 138139 		$759.72 1
58 326561
FLEXIBLE HOSE FROM EXPANSION VALVE TO COMPRESSOR
Applicable from Ass. No. 138139 		$272.34 1
59 14059114
NUT
Applicable from Ass. No. 138139 		$0.13 1
