DASHBOARD - TRIM of Ferrari Ferrari California T

View All

Ferrari California T - DASHBOARD - TRIM

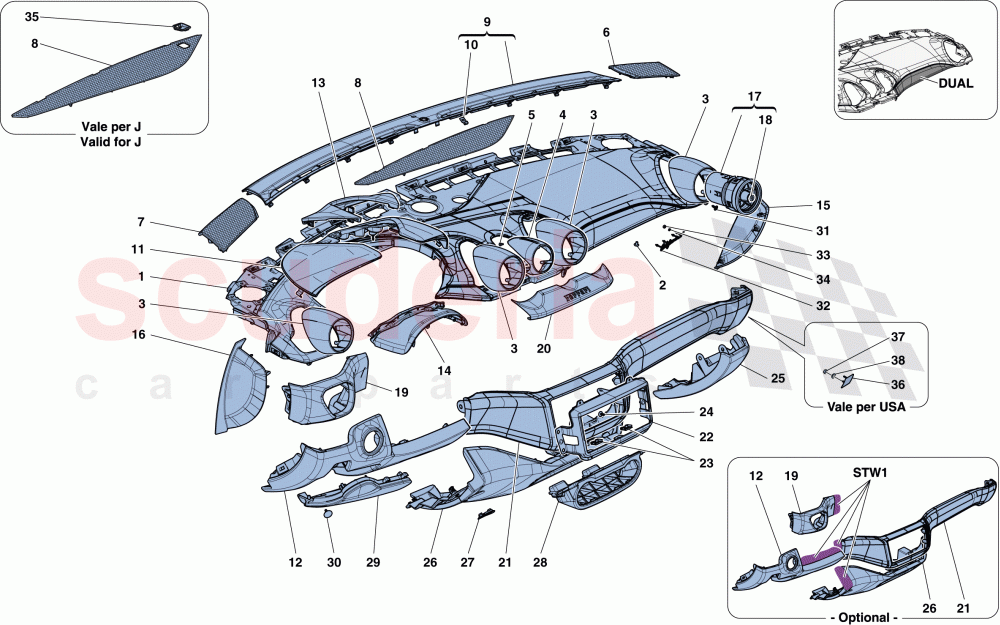

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	86341100	UPPER PART OF DASHBOARD.	Enquire	To Order
	86340400	UPPER PART OF DASHBOARD.	Enquire	To Order
	85909412	UPPEER DASHBOARD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85845000	AIR VENT TUBE	Enquire	To Order
	87297500	AIR VENT TUBE	Enquire	To Order
	86303400	AIR VENT TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86460800	TURBO PRESSURE GAUGE TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85348812	RH GRILL SPEAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85348712	LH GRILL SPEAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86757400	CENTRE GRILLE	Enquire	To Order
	86757100	CENTRE GRILLE	Enquire	To Order
	85909512	CENTRAL GRILL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	86490000	DEFROSTER SURROUND	Enquire	To Order
	85371300	DEFROSTER CONTROL SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86341900	FASTENER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85332012	UPPER BINNACLE TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87201000	DRIVER SIDE UNDERDASHBOARD TRIM PANEL	Enquire	To Order
	86304800	DRIVER SIDE UNDERDASHBOARD TRIM PANEL	Enquire	To Order
	87215900	DRIVER SIDE UNDERDASHBOARD TRIM PANEL	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	85375612	CENTRE BINNACLE TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85798812	DASHBOARD BELLOWS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87218200	LH LATERAL END PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86520400	AIR VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	769346	VENT BADGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86305100	RH LATERAL CONTROLS TRIM	Enquire	To Order
	86104800	LH LATERAL CONTROLS TRIM	Enquire	To Order
	85910700	RH LATERAL CONTROLS TRIM	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	86296400	'FERRARI' CENTRE INSERT	Enquire	To Order
	86461100	'FERRARI' CENTRE INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86304200	CENTRE PART OF DASHBOARD	Enquire	To Order
	86468300	CENTRE PART OF DASHBOARD	Enquire	To Order
	86104000	CENTRE PART OF DASHBOARD	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	86295900	COSMETIC NIT BEZEL	Enquire	To Order
	85844900	COSMETIC NIT BEZEL	Enquire	To Order
	86127500	COSMETIC NIT BEZEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15538701	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86305800	LATERAL GLOVE COMPARTMENT LID LINING	Enquire	To Order
	86111800	LATERAL GLOVE COMPARTMENT LID LINING	Enquire	To Order
	85907500	LATERAL GLOVE COMPARTMENT LID LINING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	86306100	CENTRAL LOWER PART OF DASHBOARD	Enquire	To Order
	87222200	CENTRAL LOWER PART OF DASHBOARD	Enquire	To Order
	86303800	CENTRAL LOWER PART OF DASHBOARD	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	80886312	Sensor Grid	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86493300	AC CONTROLS MOUNT	Enquire	To Order
	85610300	AC CONTROLS MOUNT	Enquire	To Order
	87270700	A/C CONTROLS MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86304500	FUSE BOX COVER	Enquire	To Order
	86104200	FUSE BOX COVER	Enquire	To Order
	85906012	FUSE BOX COVER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	85199200	FIXING BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86466400	CALIFORNIA T LOGO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16101714	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639401	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86747600	VICS 5.8 GHz ANTENNA SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86458000	60 YEARS BADGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16101714	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639401	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	86341100	UPPER PART OF DASHBOARD.	86341100 UPPER PART OF DASHBOARD. DUAL; STC1; STC2; GD version; Applicable for J	-	1	Enquire
1	86340400	UPPER PART OF DASHBOARD.	86340400 UPPER PART OF DASHBOARD. DUAL; STC1; STC2; GS version; Applicable for J	-	1	Enquire
1	85909412	UPPEER DASHBOARD	85909412 UPPEER DASHBOARD DUAL; STC1; STC2; Applicable for AUS, UK	-	1	Enquire
1	86085712	UPPER DASHBOARD	86085712 UPPER DASHBOARD DUAL; STC1; STC2; Not for J, GD	-	1	Enquire
2	85833700	SCREW	85833700 SCREW M5 X 8	-	4	Enquire
3	85845000	AIR VENT TUBE	85845000 AIR VENT TUBE Carbon version	-	1	Enquire
3	87297500	AIR VENT TUBE	87297500 AIR VENT TUBE Alcantara; Applicable after depletion of 863034..	-	1	Enquire
3	86303400	AIR VENT TUBE	86303400 AIR VENT TUBE Alcantara; Applicable until depletion	-	1	Enquire
4	86460800	TURBO PRESSURE GAUGE TUBE	86460800 TURBO PRESSURE GAUGE TUBE	-	1	Enquire
5	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM	-	3	Enquire
6	85348812	RH GRILL SPEAKER	85348812 RH GRILL SPEAKER	-	1	Enquire
7	85348712	LH GRILL SPEAKER	85348712 LH GRILL SPEAKER	-	1	Enquire
8	86757400	CENTRE GRILLE	86757400 CENTRE GRILLE GD version; Applicable for J	-	1	Enquire
8	86757100	CENTRE GRILLE	86757100 CENTRE GRILLE GS version; Applicable for J	-	1	Enquire
8	85909512	CENTRAL GRILL	85909512 CENTRAL GRILL Applicable for AUS, UK	-	1	Enquire
8	85328812	CENTRAL GRILL	85328812 CENTRAL GRILL Not for J, GD	-	1	Enquire
9	86490000	DEFROSTER SURROUND	86490000 DEFROSTER SURROUND Painted in vehicle interior colour; Order 85371300 for black	-	1	Enquire
9	85371300	DEFROSTER CONTROL SURROUND	85371300 DEFROSTER CONTROL SURROUND Black embossed	-	1	Enquire
10	86341900	FASTENER CLIP	86341900 FASTENER CLIP	-	8	Enquire
11	85332012	UPPER BINNACLE TRIM	85332012 UPPER BINNACLE TRIM Leather; STC1; STC2	-	1	Enquire
12	87201000	DRIVER SIDE UNDERDASHBOARD TRIM PANEL	87201000 DRIVER SIDE UNDERDASHBOARD TRIM PANEL Alcantara; STW1; Applicable for GD; Applicable from Ass. No. 126319; Applicable after depletion of 863048..	-	1	Enquire
12	86304800	DRIVER SIDE UNDERDASHBOARD TRIM PANEL	86304800 DRIVER SIDE UNDERDASHBOARD TRIM PANEL Alcantara; STW1; Applicable for GD; Applicable up to Ass. No. 126318; Applicable until depletion	-	1	Enquire
12	87215900	DRIVER SIDE UNDERDASHBOARD TRIM PANEL	87215900 DRIVER SIDE UNDERDASHBOARD TRIM PANEL INTA; Alcantara; Applicable for electric steering column; STW1; Not for GD; Applicable from Ass. No. 126319	-	1	Enquire
12	87215400	DRIVER SIDE UNDERDASHBOARD TRIM PANEL	87215400 DRIVER SIDE UNDERDASHBOARD TRIM PANEL Alcantara; Applicable for mechanical steering column; STW1; Not for GD; Applicable from Ass. No. 126319	-	1	Enquire
12	87200300	DRIVER SIDE UNDERDASHBOARD TRIM PANEL	87200300 DRIVER SIDE UNDERDASHBOARD TRIM PANEL Alcantara; Applicable for mechanical steering column; STW1; Not for GD; Applicable from Ass. No. 126319; Applicable after depletion of 861045..; No longer supplied; Replaced by 872154..	-	1	Enquire
12	86104500	DRIVER SIDE UNDERDASHBOARD TRIM PANEL	86104500 DRIVER SIDE UNDERDASHBOARD TRIM PANEL Alcantara; STW1; Not for GD; Applicable up to Ass. No. 126318; Applicable until depletion	-	1	Enquire
12	87200600	DRIVER SIDE UNDERDASHBOARD TRIM PANEL	87200600 DRIVER SIDE UNDERDASHBOARD TRIM PANEL Leather; STW1; Applicable for GD; Applicable from Ass. No. 126319; Applicable after depletion of 859102..	-	1	Enquire
12	85910200	DRIVER SIDE UNDERDASHBOARD TRIM PANEL	85910200 DRIVER SIDE UNDERDASHBOARD TRIM PANEL Leather; STW1; Applicable for GD; Applicable up to Ass. No. 126318; Applicable until depletion	-	1	Enquire
12	87215600	DRIVER SIDE UNDERDASHBOARD TRIM PANEL	87215600 DRIVER SIDE UNDERDASHBOARD TRIM PANEL INTP; Leather; Applicable for electric steering column; STW1; Not for GD; Applicable from Ass. No. 126319; Applicable after depletion of 853316..	-	1	Enquire
12	87215100	DRIVER SIDE UNDERDASHBOARD TRIM PANEL	87215100 DRIVER SIDE UNDERDASHBOARD TRIM PANEL Leather; Applicable for mechanical steering column; STW1; Not for GD; Applicable from Ass. No. 126319	-	1	Enquire
12	87170712	DRIVER SIDE UNDERDASHBOARD TRIM PANEL	87170712 DRIVER SIDE UNDERDASHBOARD TRIM PANEL Leather; Applicable for mechanical steering column; STW1; Not for GD; Applicable from Ass. No. 126319; Applicable after depletion of 853316..; No longer supplied; Replaced by 872151..	-	1	Enquire
12	85331600	DRIVER SIDE UNDERDASHBOARD TRIM PANEL	85331600 DRIVER SIDE UNDERDASHBOARD TRIM PANEL Leather; Applicable for electric steering column; STW1; Not for GD; Applicable up to Ass. No. 126318; Applicable until depletion	-	1	Enquire
13	85375612	CENTRE BINNACLE TRIM	85375612 CENTRE BINNACLE TRIM Leather	-	1	Enquire
14	85798812	DASHBOARD BELLOWS	85798812 DASHBOARD BELLOWS Leather	-	1	Enquire
15	87218200	LH LATERAL END PANEL	87218200 LH LATERAL END PANEL	-	1	Enquire
17	86520400	AIR VENT	86520400 AIR VENT	-	4	Enquire
18	769346	VENT BADGE	769346 VENT BADGE	-	4	Enquire
19	86305100	RH LATERAL CONTROLS TRIM	86305100 RH LATERAL CONTROLS TRIM Alcantara; STW1; Applicable for GD	-	1	Enquire
19	86104800	LH LATERAL CONTROLS TRIM	86104800 LH LATERAL CONTROLS TRIM Alcantara; STW1; Not for GD	-	1	Enquire
19	85910700	RH LATERAL CONTROLS TRIM	85910700 RH LATERAL CONTROLS TRIM Leather; STW1; Applicable for GD	-	1	Enquire
19	86086600	LH LATERAL CONTROLS TRIM	86086600 LH LATERAL CONTROLS TRIM Leather; STW1; Not for GD	-	1	Enquire
20	86296400	'FERRARI' CENTRE INSERT	86296400 'FERRARI' CENTRE INSERT Carbon version	-	1	Enquire
20	86461100	'FERRARI' CENTRE INSERT	86461100 'FERRARI' CENTRE INSERT Aluminium	-	1	Enquire
21	86304200	CENTRE PART OF DASHBOARD	86304200 CENTRE PART OF DASHBOARD Alcantara; STC1; STC2; STW1; Applicable for GD	-	1	Enquire
21	86468300	CENTRE PART OF DASHBOARD	86468300 CENTRE PART OF DASHBOARD Alcantara; STC1; STC2; STW1; Applicable for USA; Applicable up to Ass. No. 126192	-	1	Enquire
21	86104000	CENTRE PART OF DASHBOARD	86104000 CENTRE PART OF DASHBOARD Alcantara; STC1; STC2; STW1; Not for GD; Applicable from Ass. No. 126193	-	1	Enquire
21	86104000	CENTRE PART OF DASHBOARD	86104000 CENTRE PART OF DASHBOARD Alcantara; STC1; STC2; STW1; Not for USA, GD; Applicable up to Ass. No. 126192	-	1	Enquire
21	85909800	CENTRE PART OF DASHBOARD	85909800 CENTRE PART OF DASHBOARD Leather; STC1; STC2; STW1; Applicable for GD	-	1	Enquire
21	86468200	CENTRE PART OF DASHBOARD	86468200 CENTRE PART OF DASHBOARD Leather; STC1; STC2; STW1; Applicable for USA; Applicable up to Ass. No. 126192	-	1	Enquire
21	86565312	CENTRAL DASHBOARD	86565312 CENTRAL DASHBOARD Leather; STC1; STC2; STW1; Not for GD; Applicable from Ass. No. 126193	-	1	Enquire
21	86565312	CENTRAL DASHBOARD	86565312 CENTRAL DASHBOARD Leather; STC1; STC2; STW1; Not for USA, GD; Applicable up to Ass. No. 126192	-	1	Enquire
22	86295900	COSMETIC NIT BEZEL	86295900 COSMETIC NIT BEZEL Carbon version; Applicable for GD	-	1	Enquire
22	85844900	COSMETIC NIT BEZEL	85844900 COSMETIC NIT BEZEL Carbon version; Not for GD	-	1	Enquire
22	86127500	COSMETIC NIT BEZEL	86127500 COSMETIC NIT BEZEL Aluminium; Applicable for GD	-	1	Enquire
22	86460900	COSMETIC NIT BEZEL	86460900 COSMETIC NIT BEZEL Aluminium; Not for GD	-	1	Enquire
23	68700800	CLIP	68700800 CLIP	-	2	Enquire
24	15538701	SCREW	15538701 SCREW	-	4	Enquire
25	86305800	LATERAL GLOVE COMPARTMENT LID LINING	86305800 LATERAL GLOVE COMPARTMENT LID LINING Alcantara; Applicable for GD	-	1	Enquire
25	86111800	LATERAL GLOVE COMPARTMENT LID LINING	86111800 LATERAL GLOVE COMPARTMENT LID LINING Alcantara; Not for GD	-	1	Enquire
25	85907500	LATERAL GLOVE COMPARTMENT LID LINING	85907500 LATERAL GLOVE COMPARTMENT LID LINING Leather; Applicable for GD	-	1	Enquire
25	85329412	LATERAL GLOVE COMPARTMENT LID LINING	85329412 LATERAL GLOVE COMPARTMENT LID LINING Leather; Not for GD	-	1	Enquire
26	86306100	CENTRAL LOWER PART OF DASHBOARD	86306100 CENTRAL LOWER PART OF DASHBOARD Alcantara; Version with camera; STW1; Applicable for GD	-	1	Enquire
26	87222200	CENTRAL LOWER PART OF DASHBOARD	87222200 CENTRAL LOWER PART OF DASHBOARD Alcantara; Version with camera; STW1; Not for GD; Applicable from Ass. No. 126969	-	1	Enquire
26	86303800	CENTRAL LOWER PART OF DASHBOARD	86303800 CENTRAL LOWER PART OF DASHBOARD Alcantara; Version with camera; STW1; Not for GD; Applicable up to Ass. No. 126968	-	1	Enquire
26	86318800	CENTRAL LOWER PART OF DASHBOARD	86318800 CENTRAL LOWER PART OF DASHBOARD Alcantara; STW1; Applicable for GD	-	1	Enquire
26	87221500	CENTRAL LOWER PART OF DASHBOARD	87221500 CENTRAL LOWER PART OF DASHBOARD Alcantara; STW1; Not for GD; Applicable from Ass. No. 126969	-	1	Enquire
26	86112100	CENTRAL LOWER PART OF DASHBOARD	86112100 CENTRAL LOWER PART OF DASHBOARD Alcantara; STW1; Not for GD; Applicable up to Ass. No. 126968	-	1	Enquire
26	86227812	CENTRAL LOWER PART OF DASHBOARD	86227812 CENTRAL LOWER PART OF DASHBOARD Leather; Version with camera; STW1; Applicable for GD	-	1	Enquire
26	87221912	CENTRAL LOWER PART OF DASHBOARD	87221912 CENTRAL LOWER PART OF DASHBOARD Leather; Version with camera; STW1; Not for GD; Applicable from Ass. No. 126969	-	1	Enquire
26	86135900	CENTRAL LOWER PART OF DASHBOARD	86135900 CENTRAL LOWER PART OF DASHBOARD Leather; Version with camera; STW1; Not for GD; Applicable up to Ass. No. 126968	-	1	Enquire
26	85913200	CENTRAL LOWER PART OF DASHBOARD	85913200 CENTRAL LOWER PART OF DASHBOARD Leather; STW1; Applicable for GD	-	1	Enquire
26	87219300	CENTRAL LOWER PART OF DASHBOARD	87219300 CENTRAL LOWER PART OF DASHBOARD Leather; STW1; Not for GD; Applicable from Ass. No. 126969	-	1	Enquire
26	85984100	CENTRAL LOWER PART OF DASHBOARD	85984100 CENTRAL LOWER PART OF DASHBOARD Leather; STW1; Not for GD; Applicable up to Ass. No. 126968	-	1	Enquire
27	80886312	Sensor Grid	80886312 Sensor Grid Leather	-	1	Enquire
28	86493300	AC CONTROLS MOUNT	86493300 AC CONTROLS MOUNT Alcantara	-	1	Enquire
28	85610300	AC CONTROLS MOUNT	85610300 AC CONTROLS MOUNT Leather	-	1	Enquire
28	87270700	A/C CONTROLS MOUNT	87270700 A/C CONTROLS MOUNT Painted Black	-	1	Enquire
29	86304500	FUSE BOX COVER	86304500 FUSE BOX COVER Alcantara; Applicable for GD	-	1	Enquire
29	86104200	FUSE BOX COVER	86104200 FUSE BOX COVER Alcantara; Not for GD	-	1	Enquire
29	85906012	FUSE BOX COVER	85906012 FUSE BOX COVER Leather; Applicable for GD	-	1	Enquire
29	85372712	COVER	85372712 COVER Leather; Not for GD	-	1	Enquire
30	85199200	FIXING BUTTON	85199200 FIXING BUTTON	-	2	Enquire
31	85833700	SCREW	85833700 SCREW M5 X 8	-	-	Enquire
32	86466400	CALIFORNIA T LOGO	86466400 CALIFORNIA T LOGO	-	1	Enquire
33	16101714	NUT	16101714 NUT	-	3	Enquire
34	12639401	WASHER	12639401 WASHER	-	3	Enquire
35	86747600	VICS 5.8 GHz ANTENNA SURROUND	86747600 VICS 5.8 GHz ANTENNA SURROUND Applicable for J	-	1	Enquire
36	86458000	60 YEARS BADGE	86458000 60 YEARS BADGE Applicable for USA; Applicable up to Ass. No. 126192	-	1	Enquire
37	16101714	NUT	16101714 NUT Applicable for USA; Applicable up to Ass. No. 126192	-	2	Enquire
38	12639401	WASHER	12639401 WASHER Applicable for USA; Applicable up to Ass. No. 126192	-	2	Enquire
