Name: HYDRAULIC BRAKE CONTROL PIPES -APPLICABLE FOR RHD-
Rating: 5.0 (1 reviews)

HYDRAULIC BRAKE CONTROL PIPES -APPLICABLE FOR RHD- of Ferrari Ferrari 812 Competizione A Europe RH

View All

Ferrari 812 Competizione A Europe RH - HYDRAULIC BRAKE CONTROL PIPES -APPLICABLE FOR RHD-

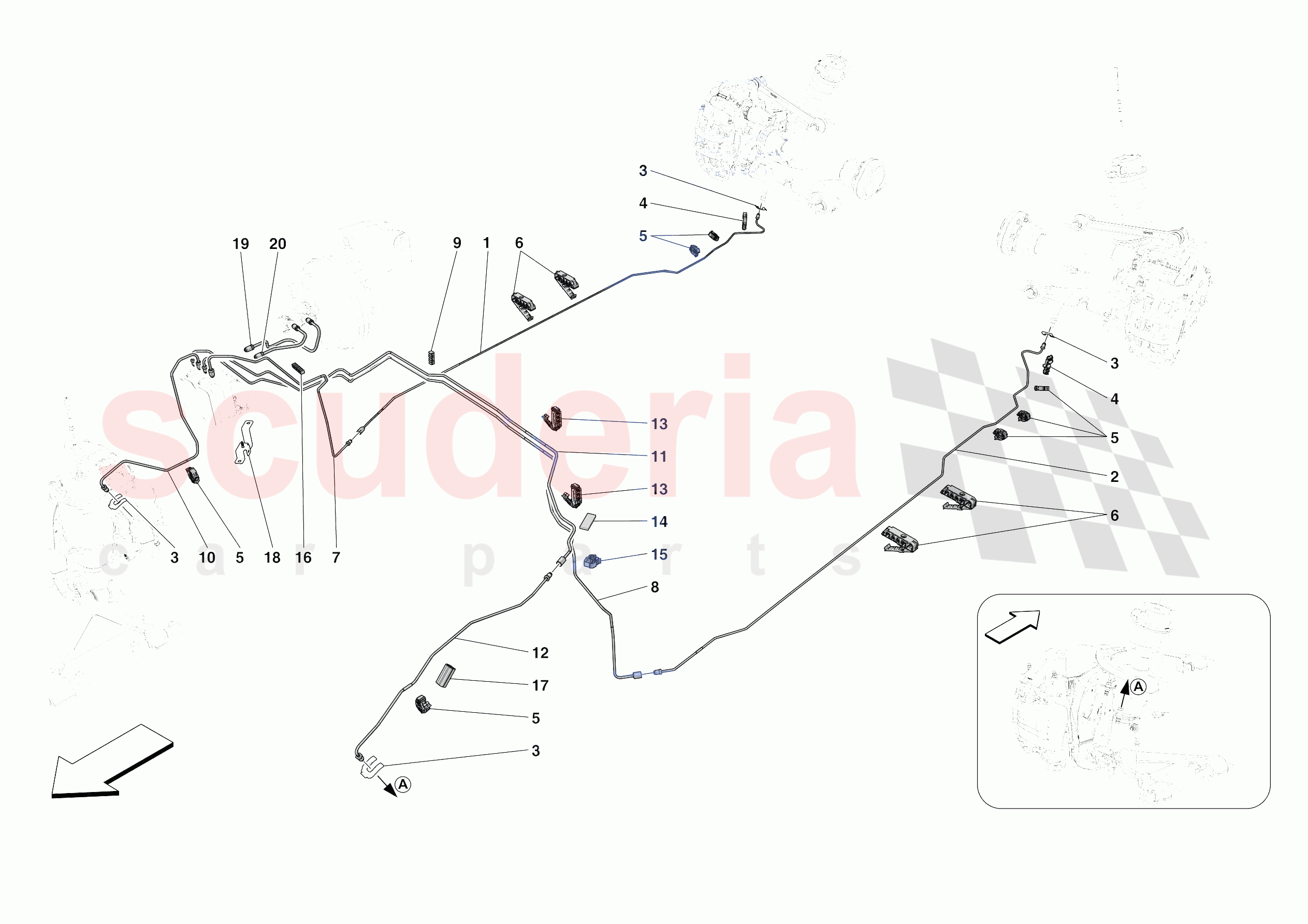

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	284627	PIPE FROM SECTION TO LH REAR WHEEL	$74.52	To Order

Photo	Part No	Description	Price (each)	Stock
	284624	PIPE FROM SECTION TO LH REAR WHEEL	$75.95	To Order

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	$2.51	To Order

Photo	Part No	Description	Price (each)	Stock
	284622	CLIP	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	234285	CLIP	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	241118	CLIP	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	324554	PIPE FROM ECU TO RH REAR WHEEL SECTION	$59.35	To Order

Photo	Part No	Description	Price (each)	Stock
	324555	PIPE FROM ECU TO LH REAR WHEEL SECTION	$123.54	To Order

Photo	Part No	Description	Price (each)	Stock
	291250	CLIP	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	324556	PIPE FROM ECU TO RH FRONT WHEEL SECTION	$57.75	To Order

Photo	Part No	Description	Price (each)	Stock
	324553	PIPE FROM ECU TO LH FRONT WHEEL	$99.47	To Order

Photo	Part No	Description	Price (each)	Stock
	287846	PIPE FROM DISCONNECTOR TO RH FRONT WHEEL	$57.33	To Order

Photo	Part No	Description	Price (each)	Stock
	234286	CLIP	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	217156	RUBBER SHIM	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	234284	CLIP	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	291251	CLIP	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	262737	RUBBER RETAINER	$6.56	To Order

Photo	Part No	Description	Price (each)	Stock
	296332	BRAKE PIPE MOUNTING BRACKET	$54.54	To Order

Photo	Part No	Description	Price (each)	Stock
	324551	PIPE FROM MASTER CYLINDER TO UNIT PRIMARY INLET	$59.35	To Order

Photo	Part No	Description	Price (each)	Stock
	324552	PIPE FROM MASTER CYLINDER TO UNIT SECONDARY INLET	$56.14	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	284627	PIPE FROM SECTION TO LH REAR WHEEL	284627 PIPE FROM SECTION TO LH REAR WHEEL	$74.52	1
0002	284624	PIPE FROM SECTION TO LH REAR WHEEL	284624 PIPE FROM SECTION TO LH REAR WHEEL	$75.95	1
0003	116374	CLIP	116374 CLIP	$2.51 MSRP: ~~3.50~~ (28.3% off)	4
0004	284622	CLIP	284622 CLIP 3 compartments	$1.85	2
0005	234285	CLIP	234285 CLIP 2 compartments	$0.70	11
0006	241118	CLIP	241118 CLIP 5 compartments	$1.46	10
0007	324554	PIPE FROM ECU TO RH REAR WHEEL SECTION	324554 PIPE FROM ECU TO RH REAR WHEEL SECTION	$59.35	1
0008	324555	PIPE FROM ECU TO LH REAR WHEEL SECTION	324555 PIPE FROM ECU TO LH REAR WHEEL SECTION	$123.54	1
0009	291250	CLIP	291250 CLIP	$0.78	1
0010	324556	PIPE FROM ECU TO RH FRONT WHEEL SECTION	324556 PIPE FROM ECU TO RH FRONT WHEEL SECTION	$57.75	1
0011	324553	PIPE FROM ECU TO LH FRONT WHEEL	324553 PIPE FROM ECU TO LH FRONT WHEEL	$99.47	1
0012	287846	PIPE FROM DISCONNECTOR TO RH FRONT WHEEL	287846 PIPE FROM DISCONNECTOR TO RH FRONT WHEEL	$57.33	1
0013	234286	CLIP	234286 CLIP 4 compartments	$1.56	3
0014	217156	RUBBER SHIM	217156 RUBBER SHIM	$0.79	1
0015	234284	CLIP	234284 CLIP 1 compartment-	$0.63	1
0016	291251	CLIP	291251 CLIP	$0.78	1
0017	262737	RUBBER RETAINER	262737 RUBBER RETAINER	$6.56	2
0018	296332	BRAKE PIPE MOUNTING BRACKET	296332 BRAKE PIPE MOUNTING BRACKET	$54.54	1
0019	324551	PIPE FROM MASTER CYLINDER TO UNIT PRIMARY INLET	324551 PIPE FROM MASTER CYLINDER TO UNIT PRIMARY INLET	$59.35	1
0020	324552	PIPE FROM MASTER CYLINDER TO UNIT SECONDARY INLET	324552 PIPE FROM MASTER CYLINDER TO UNIT SECONDARY INLET	$56.14	1
