FRONT SUSPENSION - ARMS of Ferrari Ferrari 812 Competizione A Europe RH

View All

Ferrari 812 Competizione A Europe RH - FRONT SUSPENSION - ARMS

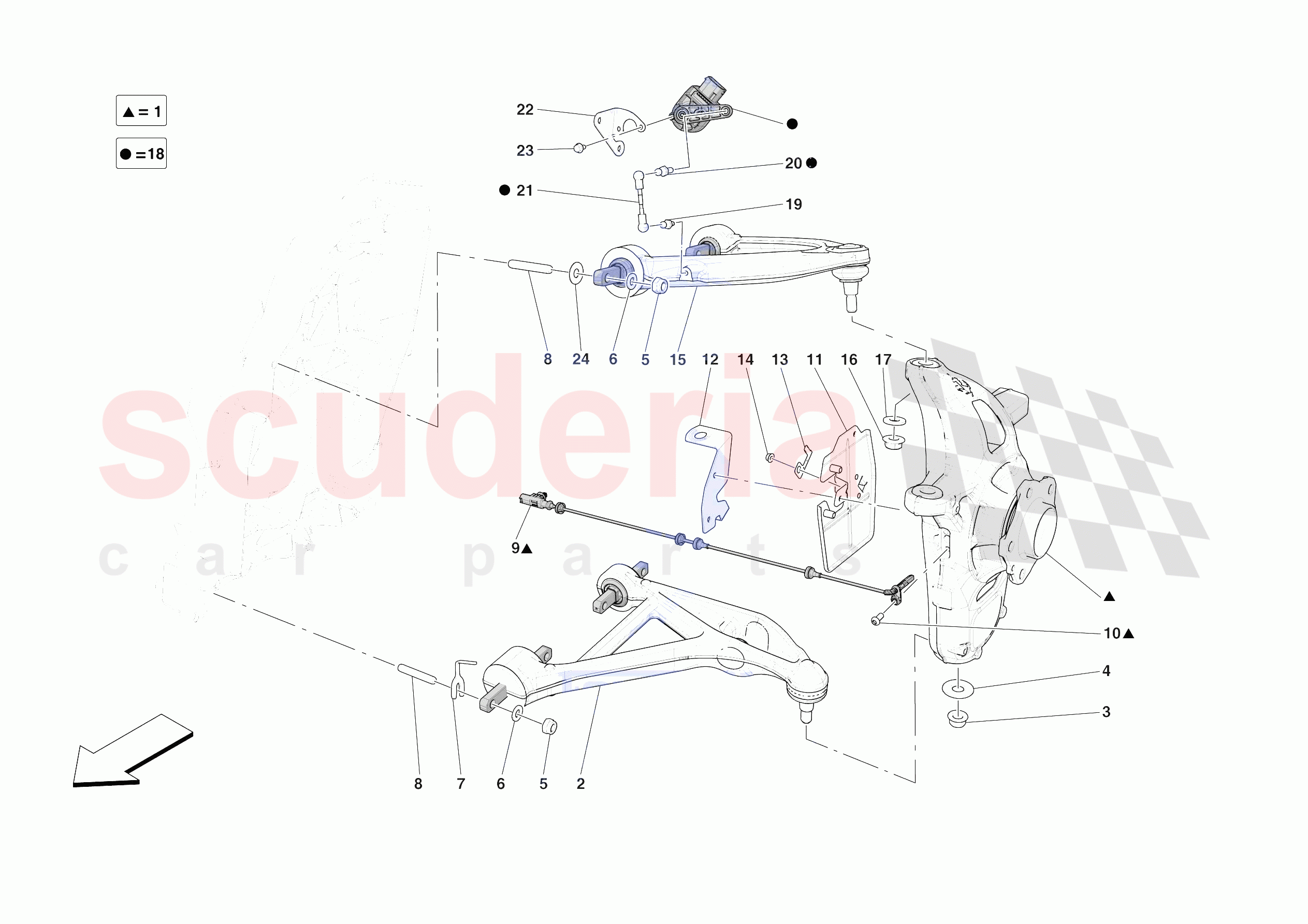

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985489	COMPL. LH FRONT HUB CARRIER	Enquire	To Order
	985490	COMPL. RH FRONT HUB CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268896	LH FRONT LOWER ARM	Enquire	To Order
	268897	COMPL. RH FRONT LOWER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203795	NUT M14 x 1.5	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	241689	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104114	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496624	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238692	ADJUSTMENT SHIM	Enquire	To Order
	238693	ADJUSTMENT SHIM	Enquire	To Order
	238881	CAMBER SPACER 1.5MM	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	264528	THREADED ROD 10 X 1.25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	338963	ABS SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	830076	LH FRONT FASTENER BRACKET	Enquire	To Order
	830077	RH FRONT FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	897163	LH FRONT REMOVABLE BRACKET	Enquire	To Order
	897197	RH FRONT REMOVABLE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162606	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248758	LH Front Upper Arm	Enquire	To Order
	248760	RH Front Upper Arm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149807	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646921	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	934265	COMPL. TRAVEL SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216973	BALL JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	340273	BALL JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	984041	POTENTIOMETER LINK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	912341	FRONT LH TRAVEL SENSOR BRACKET	Enquire	To Order
	912479	FRONT RH TRAVEL SENSOR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16284934	FLANGED SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	312826	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	985489	COMPL. LH FRONT HUB CARRIER	985489 COMPL. LH FRONT HUB CARRIER	-	1	Enquire
0001	985490	COMPL. RH FRONT HUB CARRIER	985490 COMPL. RH FRONT HUB CARRIER	-	1	Enquire
0002	268896	LH FRONT LOWER ARM	268896 LH FRONT LOWER ARM	-	1	Enquire
0002	268897	COMPL. RH FRONT LOWER ARM	268897 COMPL. RH FRONT LOWER ARM	-	1	Enquire
0003	203795	NUT M14 x 1.5 ARRIVING SOON	203795 NUT M14 x 1.5 ARRIVING SOON	-	2	Enquire
0004	241689	WASHER	241689 WASHER	-	2	Enquire
0005	104114	NUT	104114 NUT	-	16	Enquire
0006	14496624	WASHER	14496624 WASHER D. 10.5-21 X 2	-	16	Enquire
0007	238692	ADJUSTMENT SHIM	238692 ADJUSTMENT SHIM Th. 0.5 mm	-	8	Enquire
0007	238693	ADJUSTMENT SHIM	238693 ADJUSTMENT SHIM Th. 1 mm	-	8	Enquire
0007	238881	CAMBER SPACER 1.5MM	238881 CAMBER SPACER 1.5MM Th. 1.5 mm	-	8	Enquire
0007	238694	ADJUSTMENT SHIM	238694 ADJUSTMENT SHIM Th. 2 mm	-	8	Enquire
0007	238882	ADJUSTMENT SHIM	238882 ADJUSTMENT SHIM Th. 2.5 mm	-	8	Enquire
0007	238883	ADJUSTMENT SHIM	238883 ADJUSTMENT SHIM Th. 3 mm	-	8	Enquire
0007	238884	ADJUSTMENT SHIM	238884 ADJUSTMENT SHIM Th. 3.5 mm	-	8	Enquire
0007	238885	CAMBER SPACER 4MM	238885 CAMBER SPACER 4MM Th. 4 mm	-	8	Enquire
0008	264528	THREADED ROD 10 X 1.25	264528 THREADED ROD 10 X 1.25	-	16	Enquire
0009	338963	ABS SENSOR	338963 ABS SENSOR	-	2	Enquire
0011	830076	LH FRONT FASTENER BRACKET	830076 LH FRONT FASTENER BRACKET	-	1	Enquire
0011	830077	RH FRONT FASTENER BRACKET	830077 RH FRONT FASTENER BRACKET	-	1	Enquire
0012	897163	LH FRONT REMOVABLE BRACKET	897163 LH FRONT REMOVABLE BRACKET	-	1	Enquire
0012	897197	RH FRONT REMOVABLE BRACKET	897197 RH FRONT REMOVABLE BRACKET	-	1	Enquire
0013	162606	CLIP	162606 CLIP	-	2	Enquire
0014	13046011	NUT	13046011 NUT	-	4	Enquire
0015	248758	LH Front Upper Arm	248758 LH Front Upper Arm	-	1	Enquire
0015	248760	RH Front Upper Arm	248760 RH Front Upper Arm	-	1	Enquire
0016	149807	NUT	149807 NUT	-	2	Enquire
0017	12646921	WASHER	12646921 WASHER	-	2	Enquire
0018	934265	COMPL. TRAVEL SENSOR	934265 COMPL. TRAVEL SENSOR	-	2	Enquire
0019	216973	BALL JOINT	216973 BALL JOINT	-	2	Enquire
0020	340273	BALL JOINT	340273 BALL JOINT	-	2	Enquire
0021	984041	POTENTIOMETER LINK	984041 POTENTIOMETER LINK L. 63.7 mm	-	2	Enquire
0022	912341	FRONT LH TRAVEL SENSOR BRACKET	912341 FRONT LH TRAVEL SENSOR BRACKET	-	1	Enquire
0022	912479	FRONT RH TRAVEL SENSOR BRACKET	912479 FRONT RH TRAVEL SENSOR BRACKET	-	1	Enquire
0023	16284934	FLANGED SCREW	16284934 FLANGED SCREW M5 X 10	-	4	Enquire
0024	312826	WASHER	312826 WASHER	-	8	Enquire
