Find Your Part

View All

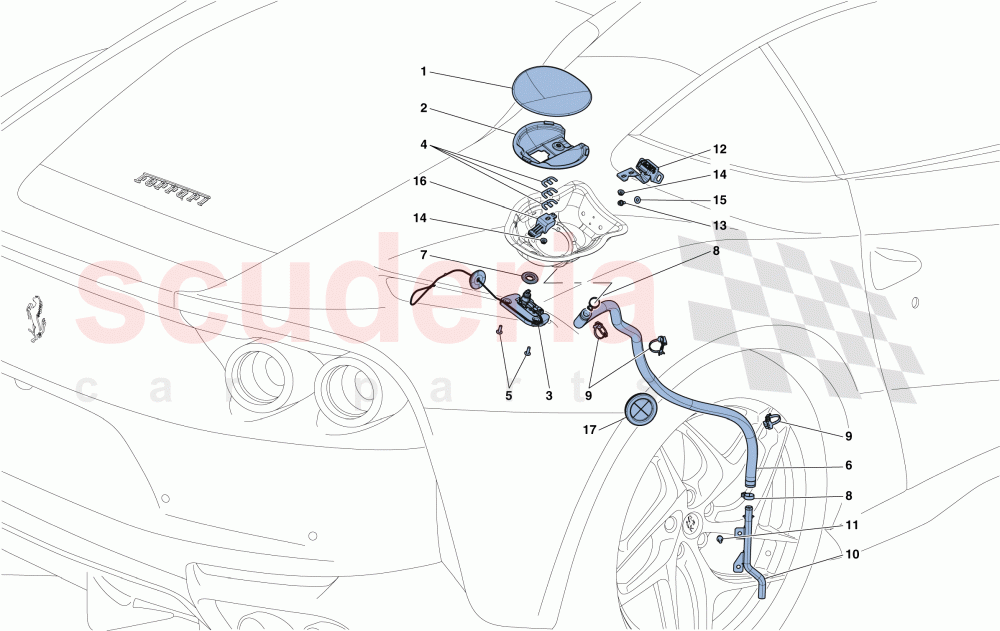

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985807826	COMPL. FUEL FILLER FLAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	807842	COMPLETE CARPET SERIES FOR TRUNK COMPARTMENT -Valid for USA and CDN-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88436300	COMPL. ACTUATOR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84046900	SHIM PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84716500	DRAIN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89180500	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13433570	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177553	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84741100	RIGID DRAIN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83993700	COMPL. HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	14059114	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81535200	GROMMET WITH MEMBRANE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	985807826	COMPL. FUEL FILLER FLAP	985807826 COMPL. FUEL FILLER FLAP	-	1	Enquire
2	807842	COMPLETE CARPET SERIES FOR TRUNK COMPARTMENT -Valid for USA and CDN-	807842 COMPLETE CARPET SERIES FOR TRUNK COMPARTMENT -Valid for USA and CDN-	-	1	Enquire
3	88436300	COMPL. ACTUATOR BRACKET	88436300 COMPL. ACTUATOR BRACKET	-	1	Enquire
4	84046900	SHIM PLATE	84046900 SHIM PLATE	-	3	Enquire
5	85833700	SCREW	85833700 SCREW M5 X 16	-	2	Enquire
6	84716500	DRAIN PIPE	84716500 DRAIN PIPE	-	1	Enquire
7	89180500	GASKET	89180500 GASKET	-	1	Enquire
8	13433570	HOSE COLLAR	13433570 HOSE COLLAR	-	2	Enquire
9	177553	CLAMP	177553 CLAMP	-	5	Enquire
10	84741100	RIGID DRAIN PIPE	84741100 RIGID DRAIN PIPE	-	1	Enquire
11	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	2	Enquire
12	83993700	COMPL. HINGE	83993700 COMPL. HINGE	-	1	Enquire
13	11566227	SCREW ARRIVING SOON	11566227 SCREW ARRIVING SOON	-	2	Enquire
14	14059114	NUT	14059114 NUT	-	3	Enquire
15	12638124	WASHER	12638124 WASHER	-	2	Enquire
17	81535200	GROMMET WITH MEMBRANE	81535200 GROMMET WITH MEMBRANE	-	1	Enquire
