DOORS - OPENING MECHANISMS AND HINGES of Ferrari Ferrari 812 Superfast/GTS

View All

Ferrari 812 Superfast/GTS - DOORS - OPENING MECHANISMS AND HINGES

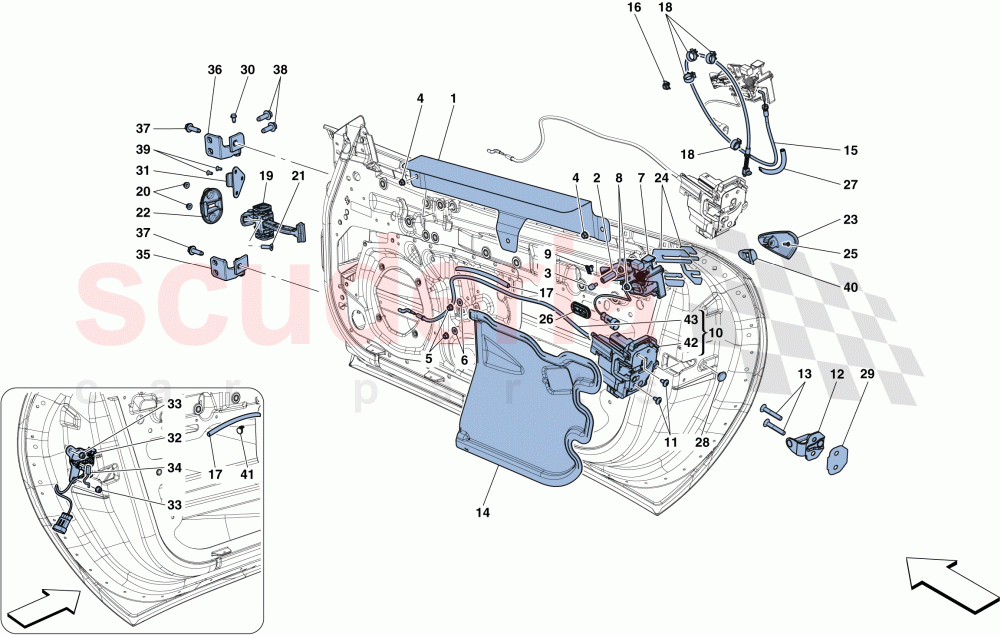

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	824440	FOIL FLAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87940300	HEXAGONAL PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65361300	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87290700	RH OUTER DOOR HANDLE MODULE	Enquire	To Order
	80821800	LH OUTER DOOR HANDLE MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	771086	COMPL. RH LOCK UNIT	Enquire	To Order
	88312100	COMPL. LH LOCK UNIT	Enquire	To Order
	771085	COMPL. LH LOCK UNIT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	46401657	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85052500	DOOR LOCK STRIKER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85052700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88157900	RH DOOR WATERPROOF MEMBRANE	Enquire	To Order
	88157800	LH DOOR WATERPROOF MEMBRANE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69877100	BOWDEN CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248061	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82936500	PROTECTIVE SHEATH FOR INTERNAL HANDLE BOWDEN CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14570180	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83965500	DOOR CHECK STRAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84872900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83897000	DOOR CHECK STRAP SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69978900	RH EXTERNAL DOOR HANDLE	Enquire	To Order
	69979100	LH EXTERNAL DOOR HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80821900	EXTERNAL DOOR HANDLE SPACER	Enquire	To Order
	88007300	EXTERNAL DOOR HANDLE SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82007000	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	898656	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82936400	SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14506587	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85052600	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85133600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81916400	DOOR SAFETY HOOK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89388600	RH DOOR LOCK LATCH LEVER	Enquire	To Order
	89385200	LH DOOR LOCK LATCH LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88063400	COMPL. LH DOOR LOCK LATCH LEVER	Enquire	To Order
	89296600	COMPL. RH DOOR LOCK LATCH LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83856000	LOWER RH DOOR HINGE	Enquire	To Order
	83864900	LOWER LH DOOR HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83856100	UPPER RH DOOR HINGE	Enquire	To Order
	83865100	UPPER LH DOOR HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81267100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	18754324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14441234	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81328000	RH GASKET	Enquire	To Order
	81327900	LH GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MC43254	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	785971	RH DOOR LOCK	Enquire	To Order
	785970	LH DOOR LOCK	Enquire	To Order
	785975	RH DOOR LOCK	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	895642	INNER DOOR HANDLE BOWDEN CABLE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	824440	FOIL FLAP	824440 FOIL FLAP	-	2	Enquire
2	87940300	HEXAGONAL PILLAR	87940300 HEXAGONAL PILLAR	-	4	Enquire
3	65361300	PIN	65361300 PIN	-	4	Enquire
4	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
5	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	6	Enquire
6	14498801	WASHER	14498801 WASHER	-	6	Enquire
7	87290700	RH OUTER DOOR HANDLE MODULE	87290700 RH OUTER DOOR HANDLE MODULE	-	1	Enquire
7	80821800	LH OUTER DOOR HANDLE MODULE	80821800 LH OUTER DOOR HANDLE MODULE	-	1	Enquire
8	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	8	Enquire
9	303385	CLIP	303385 CLIP	-	3	Enquire
10	771086	COMPL. RH LOCK UNIT	771086 COMPL. RH LOCK UNIT After depletion, order loose components; Applicable for GD; Applicable until depletion	-	1	Enquire
10	88312100	COMPL. LH LOCK UNIT	88312100 COMPL. LH LOCK UNIT After depletion, order loose components; Not for GD; Applicable until depletion	-	1	Enquire
10	771085	COMPL. LH LOCK UNIT	771085 COMPL. LH LOCK UNIT After depletion, order loose components; Applicable for GD; Applicable until depletion	-	1	Enquire
10	88312200	COMPL. RH LOCK UNIT	88312200 COMPL. RH LOCK UNIT After depletion, order loose components; Not for GD; Applicable until depletion	-	1	Enquire
11	46401657	SCREW	46401657 SCREW M6 X 12	-	6	Enquire
12	85052500	DOOR LOCK STRIKER PLATE	85052500 DOOR LOCK STRIKER PLATE Grey	-	2	Enquire
13	85052700	SCREW	85052700 SCREW M8 X 45; Grey	-	4	Enquire
14	88157900	RH DOOR WATERPROOF MEMBRANE	88157900 RH DOOR WATERPROOF MEMBRANE	-	1	Enquire
14	88157800	LH DOOR WATERPROOF MEMBRANE	88157800 LH DOOR WATERPROOF MEMBRANE	-	1	Enquire
15	69877100	BOWDEN CABLE	69877100 BOWDEN CABLE	-	2	Enquire
16	248061	CLIP	248061 CLIP	-	2	Enquire
17	82936500	PROTECTIVE SHEATH FOR INTERNAL HANDLE BOWDEN CABLE	82936500 PROTECTIVE SHEATH FOR INTERNAL HANDLE BOWDEN CABLE	-	2	Enquire
18	14570180	CLIP	14570180 CLIP	-	8	Enquire
19	83965500	DOOR CHECK STRAP	83965500 DOOR CHECK STRAP	-	2	Enquire
20	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
21	84872900	SCREW	84872900 SCREW M8 X 25	-	2	Enquire
22	83897000	DOOR CHECK STRAP SEAL	83897000 DOOR CHECK STRAP SEAL	-	2	Enquire
23	69978900	RH EXTERNAL DOOR HANDLE	69978900 RH EXTERNAL DOOR HANDLE	-	1	Enquire
23	69979100	LH EXTERNAL DOOR HANDLE	69979100 LH EXTERNAL DOOR HANDLE	-	1	Enquire
24	80821900	EXTERNAL DOOR HANDLE SPACER	80821900 EXTERNAL DOOR HANDLE SPACER	-	2	Enquire
24	88007300	EXTERNAL DOOR HANDLE SPACER	88007300 EXTERNAL DOOR HANDLE SPACER	-	2	Enquire
25	82007000	SCREW	82007000 SCREW M4 X 12	-	2	Enquire
26	898656	CABLE GROMMET	898656 CABLE GROMMET	-	2	Enquire
27	82936400	SHEATH	82936400 SHEATH	-	2	Enquire
28	14506587	PLUG	14506587 PLUG	-	1	Enquire
29	85052600	SHIM	85052600 SHIM Grey	-	2	Enquire
30	85133600	SCREW	85133600 SCREW M8 X 15	-	4	Enquire
31	81916400	DOOR SAFETY HOOK	81916400 DOOR SAFETY HOOK	-	2	Enquire
32	89388600	RH DOOR LOCK LATCH LEVER	89388600 RH DOOR LOCK LATCH LEVER Applicable for GD	-	1	Enquire
32	89385200	LH DOOR LOCK LATCH LEVER	89385200 LH DOOR LOCK LATCH LEVER Not for GD	-	1	Enquire
33	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
34	88063400	COMPL. LH DOOR LOCK LATCH LEVER	88063400 COMPL. LH DOOR LOCK LATCH LEVER Not for GD	-	1	Enquire
34	89296600	COMPL. RH DOOR LOCK LATCH LEVER	89296600 COMPL. RH DOOR LOCK LATCH LEVER Applicable for GD	-	1	Enquire
35	83856000	LOWER RH DOOR HINGE	83856000 LOWER RH DOOR HINGE	-	1	Enquire
35	83864900	LOWER LH DOOR HINGE	83864900 LOWER LH DOOR HINGE	-	1	Enquire
36	83856100	UPPER RH DOOR HINGE	83856100 UPPER RH DOOR HINGE	-	1	Enquire
36	83865100	UPPER LH DOOR HINGE	83865100 UPPER LH DOOR HINGE	-	1	Enquire
37	81267100	SCREW	81267100 SCREW M10 X 30	-	4	Enquire
38	18754324	SCREW	18754324 SCREW	-	8	Enquire
39	14441234	SCREW	14441234 SCREW M6 X 12	-	6	Enquire
40	81328000	RH GASKET	81328000 RH GASKET	-	1	Enquire
40	81327900	LH GASKET	81327900 LH GASKET	-	1	Enquire
41	MC43254	CLAMP	MC43254 CLAMP Not for GD	-	1	Enquire
42	785971	RH DOOR LOCK	785971 RH DOOR LOCK Not for GD	-	1	Enquire
42	785970	LH DOOR LOCK	785970 LH DOOR LOCK Not for GD	-	1	Enquire
42	785975	RH DOOR LOCK	785975 RH DOOR LOCK Applicable for GD	-	1	Enquire
42	785974	LH DOOR LOCK	785974 LH DOOR LOCK Applicable for GD	-	1	Enquire
43	895642	INNER DOOR HANDLE BOWDEN CABLE	895642 INNER DOOR HANDLE BOWDEN CABLE	-	2	Enquire
