REAR ACTIVE AERO of Ferrari Ferrari 812 Superfast/GTS

View All

Ferrari 812 Superfast/GTS - REAR ACTIVE AERO

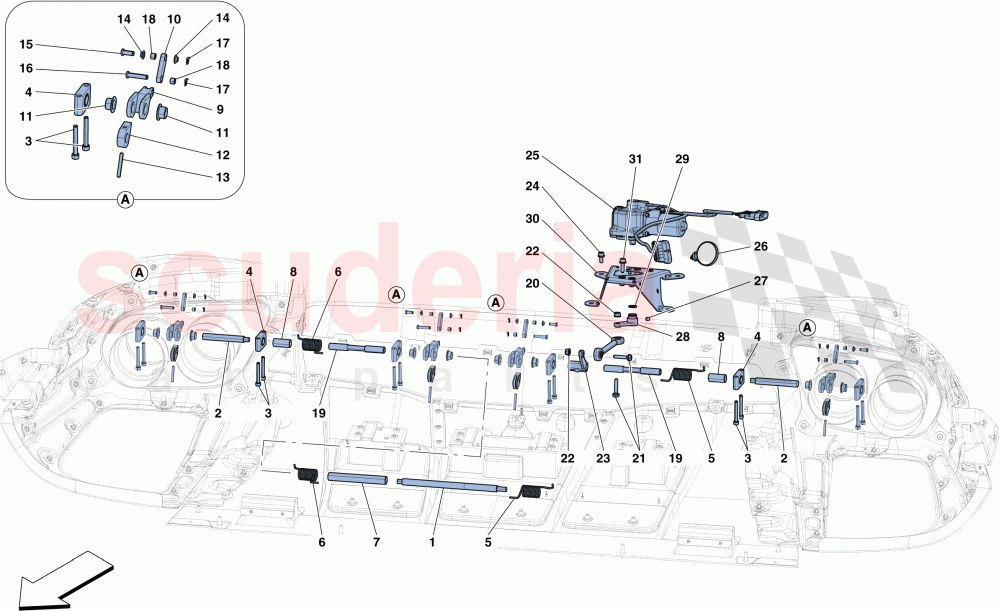

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	87341500	ACTIVE AERO CENTRE SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85708800	LATERAL SHAFT SECTION	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	301785	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	85708900	SHAFT MOUNT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	310109	RH RETURN SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310110	LH RETURN SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87341700	ACTIVE AERO CENTRE SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85709400	LATERAL SPACER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	318981	HATCH ACTUATOR LINK	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	85709700	LATERAL LINK	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	85711700	BUSH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	328330	CONTROL CAM	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	85711800	DRIVE PIN	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	87804600	BUSH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	306757	UPPER LINK PIN	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	85712100	LOWER LINK PINS	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	306350	SAFETY CLIP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	85712200	BUSH FOR LINK PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	329318	FLEXIBLE SHAFT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	326022	COMPL. ACTIVE AERO CONTROL TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216568	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	301909	SELF-LOCKING NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	335394	ACTIVE AERO CONTROL SHAFT LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320323	ELECTRIC ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	301918	GRUB SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318985	ACTUATOR CONTROL LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14453181	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	87342200	ACTIVE AERO ACTUATOR MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	87341500	ACTIVE AERO CENTRE SHAFT	87341500 ACTIVE AERO CENTRE SHAFT	-	1	Enquire
2	85708800	LATERAL SHAFT SECTION IN STOCK	85708800 LATERAL SHAFT SECTION IN STOCK	-	2	Enquire
3	301785	SCREW IN STOCK	301785 SCREW M5 X 40 IN STOCK	-	12	Enquire
4	85708900	SHAFT MOUNT IN STOCK	85708900 SHAFT MOUNT IN STOCK	-	6	Enquire
5	310109	RH RETURN SPRING	310109 RH RETURN SPRING	-	2	Enquire
6	310110	LH RETURN SPRING	310110 LH RETURN SPRING	-	2	Enquire
7	87341700	ACTIVE AERO CENTRE SPACER	87341700 ACTIVE AERO CENTRE SPACER	-	1	Enquire
8	85709400	LATERAL SPACER IN STOCK	85709400 LATERAL SPACER IN STOCK	-	2	Enquire
9	318981	HATCH ACTUATOR LINK IN STOCK	318981 HATCH ACTUATOR LINK IN STOCK	-	4	Enquire
10	85709700	LATERAL LINK IN STOCK	85709700 LATERAL LINK IN STOCK	-	4	Enquire
11	85711700	BUSH IN STOCK	85711700 BUSH IN STOCK	-	8	Enquire
12	328330	CONTROL CAM IN STOCK	328330 CONTROL CAM IN STOCK	-	4	Enquire
13	85711800	DRIVE PIN IN STOCK	85711800 DRIVE PIN IN STOCK	-	4	Enquire
14	87804600	BUSH IN STOCK	87804600 BUSH IN STOCK	-	8	Enquire
15	306757	UPPER LINK PIN IN STOCK	306757 UPPER LINK PIN IN STOCK	-	4	Enquire
16	85712100	LOWER LINK PINS IN STOCK	85712100 LOWER LINK PINS IN STOCK	-	4	Enquire
17	306350	SAFETY CLIP IN STOCK	306350 SAFETY CLIP IN STOCK	-	8	Enquire
18	85712200	BUSH FOR LINK PIN	85712200 BUSH FOR LINK PIN	-	8	Enquire
19	329318	FLEXIBLE SHAFT IN STOCK	329318 FLEXIBLE SHAFT IN STOCK	-	2	Enquire
20	326022	COMPL. ACTIVE AERO CONTROL TIE-ROD	326022 COMPL. ACTIVE AERO CONTROL TIE-ROD	-	1	Enquire
21	216568	SCREW	216568 SCREW M6 X 30	-	2	Enquire
22	301909	SELF-LOCKING NUT IN STOCK	301909 SELF-LOCKING NUT IN STOCK	-	2	Enquire
23	335394	ACTIVE AERO CONTROL SHAFT LEVER	335394 ACTIVE AERO CONTROL SHAFT LEVER	-	1	Enquire
24	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	4	Enquire
25	320323	ELECTRIC ACTUATOR	320323 ELECTRIC ACTUATOR	-	1	Enquire
26	303385	CLIP IN STOCK	303385 CLIP IN STOCK	-	1	Enquire
27	301918	GRUB SCREW	301918 GRUB SCREW	-	1	Enquire
28	318985	ACTUATOR CONTROL LEVER	318985 ACTUATOR CONTROL LEVER	-	1	Enquire
29	14453181	GASKET IN STOCK	14453181 GASKET IN STOCK	-	1	Enquire
30	87342200	ACTIVE AERO ACTUATOR MOUNTING BRACKET	87342200 ACTIVE AERO ACTUATOR MOUNTING BRACKET	-	1	Enquire
31	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20 IN STOCK	-	4	Enquire
