WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS of Ferrari Ferrari 812 Superfast/GTS

View All

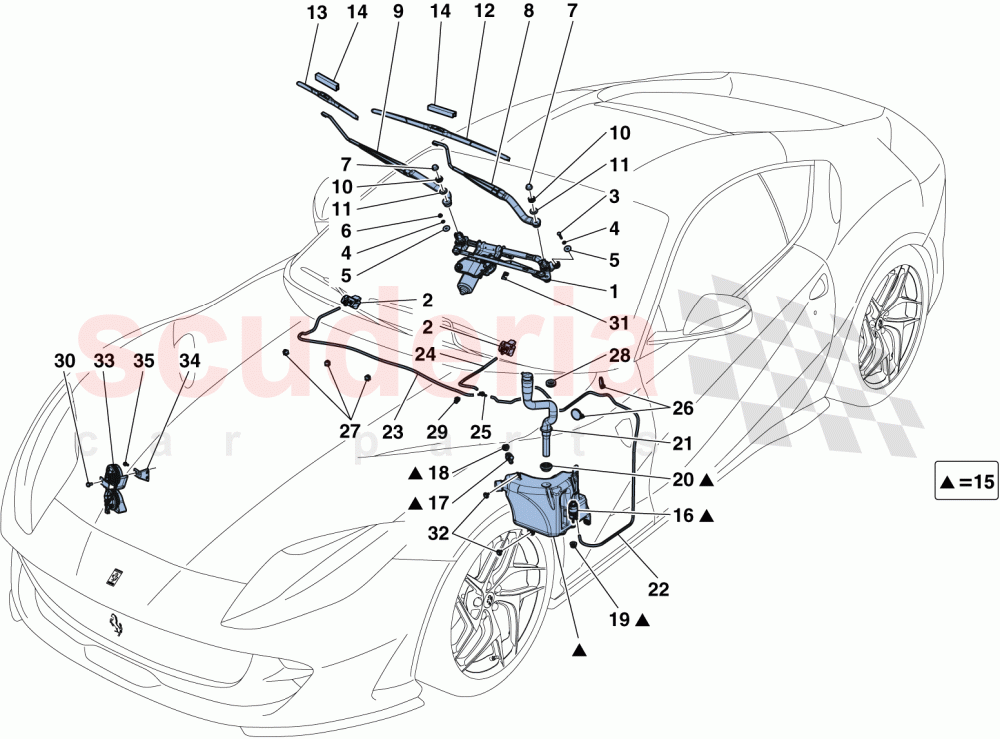

Ferrari 812 Superfast/GTS - WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	83736600	WINDSCREEN WIPER WITH MOTOR AND LINKAGES	Enquire	To Order
	85033900	WINDSCREEN WIPER WITH MOTOR AND LINKAGES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84019400	SPRAY NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85554200	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15811787	PROTECTIVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83736800	DRIVER SIDE WINDSCREEN WIPER ARM	Enquire	To Order
	85033700	DRIVER SIDE WINDSCREEN WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85033800	PASSENGER SIDE WINDSCREEN WIPER ARM	Enquire	To Order
	83736700	PASSENGER SIDE WINDSCREEN WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10791011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82196700	DRIVER SIDE WINDSCREEN WIPER BLADE	Enquire	To Order
	83994600	DRIVER SIDE WINDSCREEN WIPER BLADE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82196500	PASSENGER SIDE WINDSCREEN WIPER BLADE	Enquire	To Order
	83994700	PASSENGER SIDE WINDSCREEN WIPER BLADE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65328600	GUARD FOR WIPER BLADES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88301600	COMPL. WINDSCREEN/HEADLIGHT WASHER FLUID RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81632900	WINDSCREEN WASHER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81633100	FLUID LEVEL SENSOR	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	81633200	LEVEL SENSOR SEAL	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	65775100	GASKET FOR WASHER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82198600	FILLER PIPE SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89037300	COMPL. WINDSCREEN/HEADLIGHT WASHER FLUID RESERVOIR FILLING PIPE.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84491600	PIPE FROM ELECTRIC PUMP TO CHECK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84491700	PIPE FROM VALVE TO RH NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84491800	PIPE FROM VALVE TO LH NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81061000	COMPLETE WINDSCREEN WASHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14501087	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308092	NITTO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81097300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13839224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289644	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	785918	HORN	Enquire	To Order
	340072	HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	336474	HORN FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	83736600	WINDSCREEN WIPER WITH MOTOR AND LINKAGES	83736600 WINDSCREEN WIPER WITH MOTOR AND LINKAGES Not for GD	-	1	Enquire
1	85033900	WINDSCREEN WIPER WITH MOTOR AND LINKAGES	85033900 WINDSCREEN WIPER WITH MOTOR AND LINKAGES Applicable for GD	-	1	Enquire
2	84019400	SPRAY NOZZLE	84019400 SPRAY NOZZLE	-	2	Enquire
3	231620	SCREW	231620 SCREW M6 X 30	-	2	Enquire
4	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
5	12648925	WASHER	12648925 WASHER	-	3	Enquire
6	85554200	NUT	85554200 NUT	-	1	Enquire
7	15811787	PROTECTIVE CAP	15811787 PROTECTIVE CAP	-	2	Enquire
8	83736800	DRIVER SIDE WINDSCREEN WIPER ARM	83736800 DRIVER SIDE WINDSCREEN WIPER ARM Not for GD	-	1	Enquire
8	85033700	DRIVER SIDE WINDSCREEN WIPER ARM	85033700 DRIVER SIDE WINDSCREEN WIPER ARM Applicable for GD	-	1	Enquire
9	85033800	PASSENGER SIDE WINDSCREEN WIPER ARM	85033800 PASSENGER SIDE WINDSCREEN WIPER ARM Applicable for GD	-	1	Enquire
9	83736700	PASSENGER SIDE WINDSCREEN WIPER ARM	83736700 PASSENGER SIDE WINDSCREEN WIPER ARM Not for GD	-	1	Enquire
10	10791011	NUT	10791011 NUT	-	2	Enquire
11	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	2	Enquire
12	82196700	DRIVER SIDE WINDSCREEN WIPER BLADE	82196700 DRIVER SIDE WINDSCREEN WIPER BLADE Not for GD	-	1	Enquire
12	83994600	DRIVER SIDE WINDSCREEN WIPER BLADE	83994600 DRIVER SIDE WINDSCREEN WIPER BLADE Applicable for GD	-	1	Enquire
13	82196500	PASSENGER SIDE WINDSCREEN WIPER BLADE	82196500 PASSENGER SIDE WINDSCREEN WIPER BLADE Not for GD	-	1	Enquire
13	83994700	PASSENGER SIDE WINDSCREEN WIPER BLADE	83994700 PASSENGER SIDE WINDSCREEN WIPER BLADE Applicable for GD	-	1	Enquire
14	65328600	GUARD FOR WIPER BLADES	65328600 GUARD FOR WIPER BLADES No longer supplied	-	2	Enquire
15	88301600	COMPL. WINDSCREEN/HEADLIGHT WASHER FLUID RESERVOIR	88301600 COMPL. WINDSCREEN/HEADLIGHT WASHER FLUID RESERVOIR	-	1	Enquire
16	81632900	WINDSCREEN WASHER PUMP	81632900 WINDSCREEN WASHER PUMP	-	1	Enquire
17	81633100	FLUID LEVEL SENSOR ARRIVING SOON	81633100 FLUID LEVEL SENSOR ARRIVING SOON	-	1	Enquire
18	81633200	LEVEL SENSOR SEAL ARRIVING SOON	81633200 LEVEL SENSOR SEAL ARRIVING SOON	-	1	Enquire
19	65775100	GASKET FOR WASHER PUMP	65775100 GASKET FOR WASHER PUMP	-	1	Enquire
20	82198600	FILLER PIPE SEAL	82198600 FILLER PIPE SEAL	-	1	Enquire
21	89037300	COMPL. WINDSCREEN/HEADLIGHT WASHER FLUID RESERVOIR FILLING PIPE.	89037300 COMPL. WINDSCREEN/HEADLIGHT WASHER FLUID RESERVOIR FILLING PIPE.	-	1	Enquire
22	84491600	PIPE FROM ELECTRIC PUMP TO CHECK VALVE	84491600 PIPE FROM ELECTRIC PUMP TO CHECK VALVE	-	1	Enquire
23	84491700	PIPE FROM VALVE TO RH NOZZLE	84491700 PIPE FROM VALVE TO RH NOZZLE	-	1	Enquire
24	84491800	PIPE FROM VALVE TO LH NOZZLE	84491800 PIPE FROM VALVE TO LH NOZZLE	-	1	Enquire
25	81061000	COMPLETE WINDSCREEN WASHER PIPE	81061000 COMPLETE WINDSCREEN WASHER PIPE	-	1	Enquire
26	303385	CLIP	303385 CLIP	-	3	Enquire
27	14501087	CLIP	14501087 CLIP	-	5	Enquire
28	308092	NITTO	308092 NITTO	-	1	Enquire
29	81097300	CLIP	81097300 CLIP	-	1	Enquire
30	13839224	SCREW	13839224 SCREW M8 X 16	-	1	Enquire
31	289644	CLIP	289644 CLIP	-	1	Enquire
32	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 20 X 22	-	3	Enquire
33	785918	HORN	785918 HORN Applicable for USA, CDN, USA LIGHT	-	1	Enquire
33	340072	HORN	340072 HORN Not for USA, CDN, USA LIGHT	-	1	Enquire
34	336474	HORN FASTENER BRACKET	336474 HORN FASTENER BRACKET	-	1	Enquire
35	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM M6 X 14	-	2	Enquire
