FRONT SEAT - TRIM AND ACCESSORIES of Ferrari Ferrari 812 Superfast/GTS

View All

Ferrari 812 Superfast/GTS - FRONT SEAT - TRIM AND ACCESSORIES

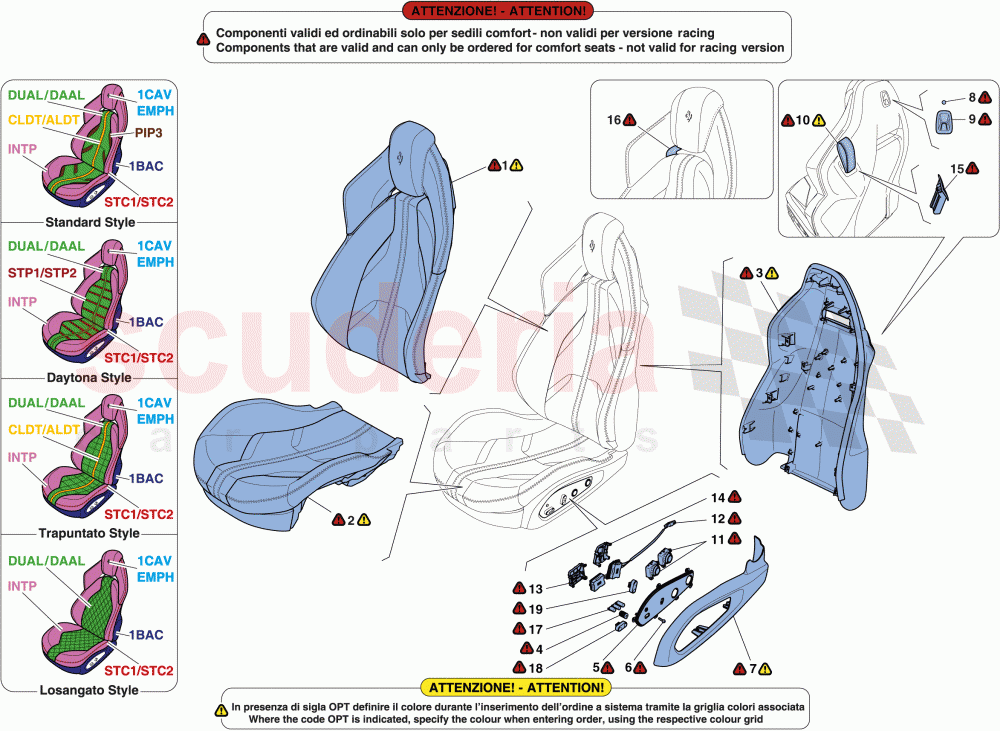

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	787113	BACKREST UPHOLSTERY	Enquire	To Order
	787114	BACKREST UPHOLSTERY	Enquire	To Order
	787115	BACKREST UPHOLSTERY	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	787127	CUSHION UPHOLSTERY	Enquire	To Order
	787135	CUSHION UPHOLSTERY	Enquire	To Order
	787123	CUSHION UPHOLSTERY	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	787136	LH BACKREST BACKING SHELL	Enquire	To Order
	787138	RH BACKREST BACKING SHELL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89396400	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	787139	LH BUTTON MOUNTING PANEL	Enquire	To Order
	89396800	LH BUTTON PANEL	Enquire	To Order
	787140	RH BUTTON MOUNTING PANEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	80180000	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83478800	OUTER LATERAL LH SEAT BASE COVER PANEL	Enquire	To Order
	83478700	OUTER LATERAL RH SEAT BASE COVER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84852300	GARMENT HOOK PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84852200	GARMENT HOOK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82593700	RH LUMBAR SUPPORT ADJUSTMENT JOYSTICK	Enquire	To Order
	82593600	LH LUMBAR SUPPORT ADJUSTMENT JOYSTICK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145094	LH CUSHION/BACKREST ADJUSTMENT JOYSTICK	Enquire	To Order
	980145093	RH CUSHION/BACKREST ADJUSTMENT JOYSTICK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145101	LH CUSHION JOYSTICK HOUSING	Enquire	To Order
	980145099	RH CUSHION JOYSTICK HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145097	RH BACKREST JOYSTICK HOUSING	Enquire	To Order
	980145098	LH BACKREST JOYSTICK HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86760200	LH RELEASE LEVER SURROUND	Enquire	To Order
	86760300	RH RELEASE LEVER SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	787150	APT LOWER SURROUND	Enquire	To Order
	787153	APT LOWER SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89397600	HEATER BUTTONS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145096	SEAT CUSHION ADJUSTMENT BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82593500	ADJUSTMENT BUTTON	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	787113	BACKREST UPHOLSTERY	787113 BACKREST UPHOLSTERY Daytona; Heated; INTP; STP1; STP2; DUAL; Daal; EMPH; 1CAV; STC1; STC2	-	2	Enquire
1	787114	BACKREST UPHOLSTERY	787114 BACKREST UPHOLSTERY Diamond style pattern; Heated; INTP; DUAL; Daal; EMPH; 1CAV; STC1; STC2	-	2	Enquire
1	787115	BACKREST UPHOLSTERY	787115 BACKREST UPHOLSTERY Quilted; Heated; INTP; DUAL; Daal; CLDT; ALDT; EMPH; 1CAV; STC1; STC2	-	2	Enquire
1	787099	BACKREST UPHOLSTERY	787099 BACKREST UPHOLSTERY Quilted; Base; INTP; DUAL; Daal; CLDT; ALDT; EMPH; 1CAV; STC1; STC2	-	2	Enquire
1	787106	BACKREST UPHOLSTERY	787106 BACKREST UPHOLSTERY Standard; Heated; INTP; DUAL; Daal; CLDT; ALDT; PIP3; EMPH; 1CAV; STC1; STC2	-	2	Enquire
1	787096	BACKREST UPHOLSTERY	787096 BACKREST UPHOLSTERY Daytona; Base; INTP; STP1; STP2; DUAL; Daal; EMPH; 1CAV; STC1; STC2	-	2	Enquire
1	787098	BACKREST UPHOLSTERY	787098 BACKREST UPHOLSTERY Diamond style pattern; Base; INTP; DUAL; Daal; EMPH; 1CAV; STC1; STC2	-	2	Enquire
1	787089	BACKREST UPHOLSTERY	787089 BACKREST UPHOLSTERY Standard; Base; INTP; DUAL; Daal; CLDT; ALDT; PIP3; EMPH; 1CAV; STC1; STC2	-	2	Enquire
2	787127	CUSHION UPHOLSTERY	787127 CUSHION UPHOLSTERY Diamond style pattern; Heated; INTP; DUAL; Daal; STC1; STC2	-	2	Enquire
2	787135	CUSHION UPHOLSTERY	787135 CUSHION UPHOLSTERY Quilted; Heated; INTP; DUAL; Daal; CLDT; ALDT; STC1; STC2	-	2	Enquire
2	787123	CUSHION UPHOLSTERY	787123 CUSHION UPHOLSTERY Standard; Heated; INTP; DUAL; Daal; CLDT; ALDT; PIP3; STC1; STC2	-	2	Enquire
2	787125	CUSHION UPHOLSTERY	787125 CUSHION UPHOLSTERY Daytona; Heated; INTP; STP1; STP2; DUAL; Daal; STC1; STC2	-	2	Enquire
2	787121	CUSHION UPHOLSTERY	787121 CUSHION UPHOLSTERY Diamond style pattern; Base; INTP; DUAL; Daal; STC1; STC2	-	2	Enquire
2	787122	CUSHION UPHOLSTERY	787122 CUSHION UPHOLSTERY Quilted; Base; INTP; DUAL; Daal; CLDT; ALDT; STC1; STC2	-	2	Enquire
2	787116	CUSHION UPHOLSTERY	787116 CUSHION UPHOLSTERY Standard; Base; INTP; DUAL; Daal; CLDT; ALDT; PIP3; STC1; STC2	-	2	Enquire
2	787119	CUSHION UPHOLSTERY	787119 CUSHION UPHOLSTERY Daytona; Base; INTP; STP1; STP2; DUAL; Daal; STC1; STC2	-	2	Enquire
3	787136	LH BACKREST BACKING SHELL	787136 LH BACKREST BACKING SHELL 1BAC for seat back panel colour selection	-	1	Enquire
3	787138	RH BACKREST BACKING SHELL	787138 RH BACKREST BACKING SHELL 1BAC for seat back panel colour selection	-	1	Enquire
4	89396400	SPRING	89396400 SPRING	-	6	Enquire
5	787139	LH BUTTON MOUNTING PANEL	787139 LH BUTTON MOUNTING PANEL Base	-	1	Enquire
5	89396800	LH BUTTON PANEL	89396800 LH BUTTON PANEL Full electric	-	1	Enquire
5	787140	RH BUTTON MOUNTING PANEL	787140 RH BUTTON MOUNTING PANEL Base	-	1	Enquire
5	89396900	RH BUTTON PANEL	89396900 RH BUTTON PANEL Full electric	-	1	Enquire
6	80180000	SCREW	80180000 SCREW	-	12	Enquire
7	83478800	OUTER LATERAL LH SEAT BASE COVER PANEL	83478800 OUTER LATERAL LH SEAT BASE COVER PANEL Leather	-	1	Enquire
7	83478700	OUTER LATERAL RH SEAT BASE COVER PANEL	83478700 OUTER LATERAL RH SEAT BASE COVER PANEL Leather	-	1	Enquire
8	84852300	GARMENT HOOK PLUG	84852300 GARMENT HOOK PLUG Black	-	2	Enquire
9	84852200	GARMENT HOOK	84852200 GARMENT HOOK Black	-	2	Enquire
11	82593700	RH LUMBAR SUPPORT ADJUSTMENT JOYSTICK	82593700 RH LUMBAR SUPPORT ADJUSTMENT JOYSTICK Full electric	-	2	Enquire
11	82593600	LH LUMBAR SUPPORT ADJUSTMENT JOYSTICK	82593600 LH LUMBAR SUPPORT ADJUSTMENT JOYSTICK Full electric	-	2	Enquire
12	980145094	LH CUSHION/BACKREST ADJUSTMENT JOYSTICK	980145094 LH CUSHION/BACKREST ADJUSTMENT JOYSTICK	-	2	Enquire
12	980145093	RH CUSHION/BACKREST ADJUSTMENT JOYSTICK	980145093 RH CUSHION/BACKREST ADJUSTMENT JOYSTICK	-	2	Enquire
13	980145101	LH CUSHION JOYSTICK HOUSING	980145101 LH CUSHION JOYSTICK HOUSING	-	2	Enquire
13	980145099	RH CUSHION JOYSTICK HOUSING	980145099 RH CUSHION JOYSTICK HOUSING	-	2	Enquire
14	980145097	RH BACKREST JOYSTICK HOUSING	980145097 RH BACKREST JOYSTICK HOUSING	-	2	Enquire
14	980145098	LH BACKREST JOYSTICK HOUSING	980145098 LH BACKREST JOYSTICK HOUSING	-	2	Enquire
15	86760200	LH RELEASE LEVER SURROUND	86760200 LH RELEASE LEVER SURROUND	-	1	Enquire
15	86760300	RH RELEASE LEVER SURROUND	86760300 RH RELEASE LEVER SURROUND	-	1	Enquire
16	787150	APT LOWER SURROUND	787150 APT LOWER SURROUND NART grey; Daytona; Diamond style pattern; Quilted	-	2	Enquire
16	787153	APT LOWER SURROUND	787153 APT LOWER SURROUND Black; Standard	-	2	Enquire
17	89397600	HEATER BUTTONS	89397600 HEATER BUTTONS Heated	-	2	Enquire
18	980145096	SEAT CUSHION ADJUSTMENT BUTTON	980145096 SEAT CUSHION ADJUSTMENT BUTTON	-	2	Enquire
19	82593500	ADJUSTMENT BUTTON	82593500 ADJUSTMENT BUTTON	-	2	Enquire
