PASSENGER COMPARTMENT MATS of Ferrari Ferrari 812 Superfast/GTS

View All

Ferrari 812 Superfast/GTS - PASSENGER COMPARTMENT MATS

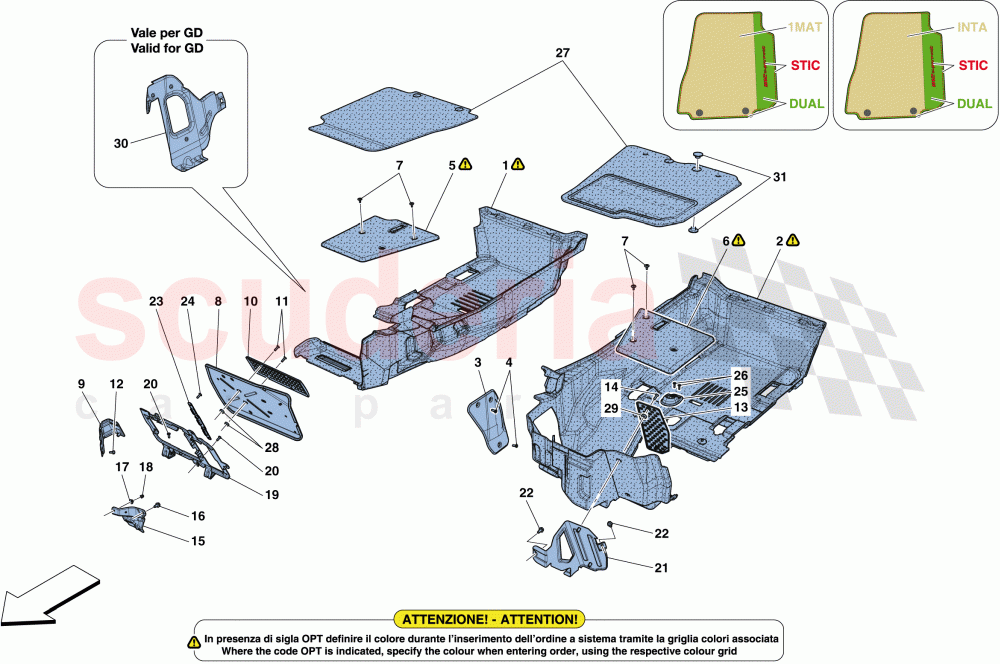

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	829270	COMPL. RH MAT	Enquire	To Order
	89208200	COMPL. RH MAT	Enquire	To Order
	829268	COMPL. RH MAT	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	89207600	COMPL. LH MAT	Enquire	To Order
	88761200	COMPL. LH MAT	Enquire	To Order
	782281	COMPL. LH MAT	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	85305600	COMPL. ACCELERATOR PEDAL SHIELD	Enquire	To Order
	81243100	ACCELERATOR PEDAL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84232100	COMPL. RH FRONT CENTRAL COMPARTMENT LID	Enquire	To Order
	84990000	COMPL. RH FRONT CENTRAL COMPARTMENT LID	Enquire	To Order
	84232000	COMPL. RH FRONT CENTRAL COMPARTMENT LID	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	84276900	COMPL. LH FRONT CENTRAL COMPARTMENT LID	Enquire	To Order
	83942700	COMPL. LH FRONT CENTRAL COMPARTMENT LID	Enquire	To Order
	84981400	COMPL. LH FRONT CENTRAL COMPARTMENT LID	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	85824800	SCREW M5 X 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83479500	PASSENGER SIDE FOOT REST	Enquire	To Order
	83549000	PASSENGER SIDE FOOT REST	Enquire	To Order
	83133500	MPL. PASSENGER SIDE FOOTREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84562500	COMPL. UPPER BRACKET	Enquire	To Order
	81004400	COMPL. UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66122200	FOOT REST TRIM RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82388200	LH FOOT REST ALUMINIUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82277800	COMPL. INNER UPPER BRACKET	Enquire	To Order
	84044600	COMPL. INNER UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14054511	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85459700	COMPL. PASSENGER FOOTREST STRUCTURE	Enquire	To Order
	84558900	FOOTREST STRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81911600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83388800	COMPL. DRIVER SIDE FOOTREST	Enquire	To Order
	85462600	COMPL. DRIVER SIDE FOOTREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84558600	BRACKET FOR FOOTREST TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81911600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89024000	INERTIA SWITCH SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	803610	REMOVABLE MAT KIT	Enquire	To Order
	803052	REMOVABLE MAT KIT	Enquire	To Order
	85970800	REMOVABLE MAT KIT	Enquire	To Order

...and 17 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	65708600	SPACER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65708600	SPACER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81264200	ACCELERATOR PEDAL SHIELD MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85970400	FASTENER BUTTON	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	829270	COMPL. RH MAT	829270 COMPL. RH MAT INTA; Alcantara; Not for GD; Applicable after depletion of 88760000	-	1	Enquire
1	89208200	COMPL. RH MAT	89208200 COMPL. RH MAT INTA; Alcantara; Applicable for GD	-	1	Enquire
1	829268	COMPL. RH MAT	829268 COMPL. RH MAT 1MAT; Mat; Not for GD; Applicable after depletion of 88294400	-	1	Enquire
1	89207800	COMPL. RH MAT	89207800 COMPL. RH MAT 1MAT; Mat; Applicable for GD	-	1	Enquire
1	88760000	COMPL. RH MAT	88760000 COMPL. RH MAT INTA; Alcantara; Not for GD; Applicable until depletion	-	1	Enquire
1	88294400	COMPL. RH MAT	88294400 COMPL. RH MAT 1MAT; Mat; Not for GD; Applicable until depletion	-	1	Enquire
2	89207600	COMPL. LH MAT	89207600 COMPL. LH MAT 1MAT; Mat; Applicable for GD	-	1	Enquire
2	88761200	COMPL. LH MAT	88761200 COMPL. LH MAT INTA; Alcantara; Not for Russia; Not for GD	-	1	Enquire
2	782281	COMPL. LH MAT	782281 COMPL. LH MAT INTA; Alcantara; Applicable for Russia	-	1	Enquire
2	89208000	COMPL. LH MAT	89208000 COMPL. LH MAT INTA; Alcantara; Applicable for GD	-	1	Enquire
2	88294300	COMPL. LH MAT	88294300 COMPL. LH MAT 1MAT; Mat; Not for Russia; Not for GD	-	1	Enquire
2	782277	COMPL. LH MAT	782277 COMPL. LH MAT 1MAT; Mat; Applicable for Russia	-	1	Enquire
3	85305600	COMPL. ACCELERATOR PEDAL SHIELD	85305600 COMPL. ACCELERATOR PEDAL SHIELD Not for GD	-	1	Enquire
3	81243100	ACCELERATOR PEDAL PLATE	81243100 ACCELERATOR PEDAL PLATE Applicable for GD	-	1	Enquire
4	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20 M6 X 20	-	3	Enquire
5	84232100	COMPL. RH FRONT CENTRAL COMPARTMENT LID	84232100 COMPL. RH FRONT CENTRAL COMPARTMENT LID Alcantara; Not for GD	-	1	Enquire
5	84990000	COMPL. RH FRONT CENTRAL COMPARTMENT LID	84990000 COMPL. RH FRONT CENTRAL COMPARTMENT LID Alcantara; Applicable for GD	-	1	Enquire
5	84232000	COMPL. RH FRONT CENTRAL COMPARTMENT LID	84232000 COMPL. RH FRONT CENTRAL COMPARTMENT LID Alcantara; Version with fire extinguisher; Not for GD	-	1	Enquire
5	84281700	COMPL. RH FRONT CENTRAL COMPARTMENT LID	84281700 COMPL. RH FRONT CENTRAL COMPARTMENT LID Mat; Not for GD	-	1	Enquire
5	84989900	COMPL. RH FRONT CENTRAL COMPARTMENT LID	84989900 COMPL. RH FRONT CENTRAL COMPARTMENT LID Mat; Applicable for GD	-	1	Enquire
5	83992100	COMPL. RH FRONT CENTRAL COMPARTMENT LID	83992100 COMPL. RH FRONT CENTRAL COMPARTMENT LID Mat; Version with fire extinguisher; Not for GD	-	1	Enquire
6	84276900	COMPL. LH FRONT CENTRAL COMPARTMENT LID	84276900 COMPL. LH FRONT CENTRAL COMPARTMENT LID Alcantara; Version with fire extinguisher; Applicable for GD	-	1	Enquire
6	83942700	COMPL. LH FRONT CENTRAL COMPARTMENT LID	83942700 COMPL. LH FRONT CENTRAL COMPARTMENT LID Mat; Applicable for GD	-	1	Enquire
6	84981400	COMPL. LH FRONT CENTRAL COMPARTMENT LID	84981400 COMPL. LH FRONT CENTRAL COMPARTMENT LID Alcantara; Not for GD	-	1	Enquire
6	84277000	COMPL. LH FRONT CENTRAL COMPARTMENT LID	84277000 COMPL. LH FRONT CENTRAL COMPARTMENT LID Alcantara; Applicable for GD	-	1	Enquire
6	83993200	COMPL. LH FRONT CENTRAL COMPARTMENT LID	83993200 COMPL. LH FRONT CENTRAL COMPARTMENT LID Mat; Version with fire extinguisher; Applicable for GD	-	1	Enquire
6	83388500	COMPL. LH FRONT CENTRAL COMPARTMENT LID	83388500 COMPL. LH FRONT CENTRAL COMPARTMENT LID Mat; Not for GD	-	1	Enquire
7	85824800	SCREW M5 X 16	85824800 SCREW M5 X 16 M5 X 16	-	6	Enquire
8	83479500	PASSENGER SIDE FOOT REST	83479500 PASSENGER SIDE FOOT REST Mat; Applicable for GD	-	1	Enquire
8	83549000	PASSENGER SIDE FOOT REST	83549000 PASSENGER SIDE FOOT REST Alcantara; Applicable for GD	-	1	Enquire
8	83133500	MPL. PASSENGER SIDE FOOTREST	83133500 MPL. PASSENGER SIDE FOOTREST Mat; Not for GD	-	1	Enquire
9	84562500	COMPL. UPPER BRACKET	84562500 COMPL. UPPER BRACKET Applicable for GD	-	1	Enquire
9	81004400	COMPL. UPPER BRACKET	81004400 COMPL. UPPER BRACKET Not for GD	-	1	Enquire
10	66122200	FOOT REST TRIM RHD	66122200 FOOT REST TRIM RHD	-	1	Enquire
11	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20 M6 X 22	-	4	Enquire
12	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM M6 X 14	-	2	Enquire
13	82388200	LH FOOT REST ALUMINIUM	82388200 LH FOOT REST ALUMINIUM	-	1	Enquire
14	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20 M6 X 20	-	2	Enquire
15	82277800	COMPL. INNER UPPER BRACKET	82277800 COMPL. INNER UPPER BRACKET Not for GD	-	1	Enquire
15	84044600	COMPL. INNER UPPER BRACKET	84044600 COMPL. INNER UPPER BRACKET Applicable for GD	-	1	Enquire
16	16286124	SCREW	16286124 SCREW M8 X 18	-	1	Enquire
17	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
18	14054511	NUT	14054511 NUT	-	1	Enquire
19	85459700	COMPL. PASSENGER FOOTREST STRUCTURE	85459700 COMPL. PASSENGER FOOTREST STRUCTURE Not for GD	-	1	Enquire
19	84558900	FOOTREST STRUCTURE	84558900 FOOTREST STRUCTURE Applicable for GD	-	1	Enquire
20	81911600	SCREW	81911600 SCREW M6 X 1 X 18	-	4	Enquire
21	83388800	COMPL. DRIVER SIDE FOOTREST	83388800 COMPL. DRIVER SIDE FOOTREST Not for GD	-	1	Enquire
21	85462600	COMPL. DRIVER SIDE FOOTREST	85462600 COMPL. DRIVER SIDE FOOTREST Applicable for GD	-	1	Enquire
22	16286124	SCREW	16286124 SCREW M8 X 18	-	3	Enquire
23	84558600	BRACKET FOR FOOTREST TRIM	84558600 BRACKET FOR FOOTREST TRIM	-	1	Enquire
24	81911600	SCREW	81911600 SCREW M6 X 1 X 18	-	2	Enquire
25	89024000	INERTIA SWITCH SHIELD	89024000 INERTIA SWITCH SHIELD	-	1	Enquire
26	81591700	SCREW	81591700 SCREW M5 X 20	-	2	Enquire
27	803610	REMOVABLE MAT KIT	803610 REMOVABLE MAT KIT INTA; Alcantara; Version with logo; Version with fire extinguisher; DUAL; STIC; INTA for Alcantara colour selection, DUAL for colour of piping and edge insert, and STIC for colour of perimeter and logo stitching (see image); Consisting of 790968 and 791745; Applicable for GD	-	1	Enquire
27	803052	REMOVABLE MAT KIT	803052 REMOVABLE MAT KIT INTA; Alcantara; Version with logo; Version with fire extinguisher; DUAL; STIC; INTA for Alcantara colour selection, DUAL for colour of piping and edge insert, and STIC for colour of perimeter and logo stitching (see image); Consisting of 790950 and 791744; Not for GD	-	1	Enquire
27	85970800	REMOVABLE MAT KIT	85970800 REMOVABLE MAT KIT Alcantara; Version with fire extinguisher; Consisting of 85150800 and 85151000; Not for GD	-	1	Enquire
27	87655000	REMOVABLE MAT KIT	87655000 REMOVABLE MAT KIT Alcantara; Version with fire extinguisher; Consisting of 85961100 and 85960700; Applicable for GD	-	1	Enquire
27	803609	REMOVABLE MAT KIT	803609 REMOVABLE MAT KIT INTA; Alcantara; Version with logo; DUAL; STIC; INTA for Alcantara colour selection, DUAL for colour of piping and edge insert, and STIC for colour of perimeter and logo stitching (see image); Consisting of 790968 and 790966; Applicable for GD	-	1	Enquire
27	87654700	REMOVABLE MAT KIT	87654700 REMOVABLE MAT KIT Alcantara; Consisting of 85960500 and 85961100; Applicable for GD	-	1	Enquire
27	803051	REMOVABLE MAT KIT	803051 REMOVABLE MAT KIT INTA; Alcantara; Version with logo; DUAL; STIC; INTA for Alcantara colour selection, DUAL for colour of piping and edge insert, and STIC for colour of perimeter and logo stitching (see image); Consisting of 790950 and 790928; Not for GD	-	1	Enquire
27	85970600	REMOVABLE MAT KIT	85970600 REMOVABLE MAT KIT Alcantara; Consisting of 85150600 and 85151000; Not for GD	-	1	Enquire
27	803608	REMOVABLE MAT KIT	803608 REMOVABLE MAT KIT 1MAT; Mat; Version with logo; Version with fire extinguisher; DUAL; STIC; 1MAT for mat colour selection, DUAL for colour of piping and edge insert, and STIC for colour of perimeter logo stitching (see image); Consisting of 790967 and 790965; Applicable for GD	-	1	Enquire
27	803050	REMOVABLE MAT KIT	803050 REMOVABLE MAT KIT 1MAT; Mat; Version with logo; Version with fire extinguisher; DUAL; STIC; 1MAT for mat colour selection, DUAL for colour of piping and edge insert, and STIC for colour of perimeter logo stitching (see image); Consisting of 790949 and 790927; Not for GD	-	1	Enquire
27	823825	REMOVABLE MAT KIT	823825 REMOVABLE MAT KIT 1MAT; Mat; Version with fire extinguisher; Consisting of 809209 and 85960600; Applicable for GD; Applicable from Ass. No. 151663; Applicable after depletion of 876549..	-	1	Enquire
27	823823	REMOVABLE MAT KIT	823823 REMOVABLE MAT KIT 1MAT; Mat; Version with fire extinguisher; Consisting of 809207 and 85150700; Not for GD; Applicable from Ass. No. 151663; Applicable after depletion of 859707..	-	1	Enquire
27	87654900	REMOVABLE MAT KIT	87654900 REMOVABLE MAT KIT Mat; Version with fire extinguisher; Consisting of 85961200 and 85960600; Applicable for GD; Applicable up to Ass. No. 151662; Applicable until depletion	-	1	Enquire
27	85970700	REMOVABLE MAT KIT	85970700 REMOVABLE MAT KIT Mat; Version with fire extinguisher; Consisting of 85150900 and 85150700; Not for GD; Applicable up to Ass. No. 151662; Applicable until depletion	-	1	Enquire
27	803607	REMOVABLE MAT KIT	803607 REMOVABLE MAT KIT 1MAT; Mat; Version with logo; DUAL; STIC; 1MAT for mat colour selection, DUAL for colour of piping and edge insert, and STIC for colour of perimeter logo stitching (see image); Consisting of 790967 and 790959; Applicable for GD	-	1	Enquire
27	803042	REMOVABLE MAT KIT	803042 REMOVABLE MAT KIT 1MAT; Mat; Version with logo; DUAL; STIC; 1MAT for mat colour selection, DUAL for colour of piping and edge insert, and STIC for colour of perimeter logo stitching (see image); Consisting of 790949 and 790926; Not for GD	-	1	Enquire
27	87654800	REMOVABLE MAT KIT	87654800 REMOVABLE MAT KIT Mat; Consisting of 85961200 and 85961000; Applicable for GD; Applicable up to Ass. No. 151662; Applicable until depletion	-	1	Enquire
27	823824	REMOVABLE MAT KIT	823824 REMOVABLE MAT KIT 1MAT; Mat; Consisting of 809209 and 85961000; Applicable for GD; Applicable from Ass. No. 151663; Applicable after depletion of 876548..	-	1	Enquire
27	85970500	REMOVABLE MAT KIT	85970500 REMOVABLE MAT KIT Mat; Consisting of 85150300 and 85150900; Not for GD; Applicable up to Ass. No. 151662; Applicable until depletion	-	1	Enquire
27	823822	Removeable Mat Kit	823822 Removeable Mat Kit 1MAT; Mat; Consisting of 809207 and 85150300; Not for GD; Applicable from Ass. No. 151663; Applicable after depletion of 859705..	-	1	Enquire
28	65708600	SPACER BUSHING	65708600 SPACER BUSHING	-	4	Enquire
29	65708600	SPACER BUSHING	65708600 SPACER BUSHING	-	2	Enquire
30	81264200	ACCELERATOR PEDAL SHIELD MOUNTING BRACKET	81264200 ACCELERATOR PEDAL SHIELD MOUNTING BRACKET Applicable for GD	-	1	Enquire
31	85970400	FASTENER BUTTON	85970400 FASTENER BUTTON Panted in same colour as mats	-	4	Enquire
