TUNNEL - SUBSTRUCTURE AND ACCESSORIES -Applicable for "OTO"- of Ferrari Ferrari 612 Sessanta

View All

Ferrari 612 Sessanta - TUNNEL - SUBSTRUCTURE AND ACCESSORIES -Applicable for "OTO"-

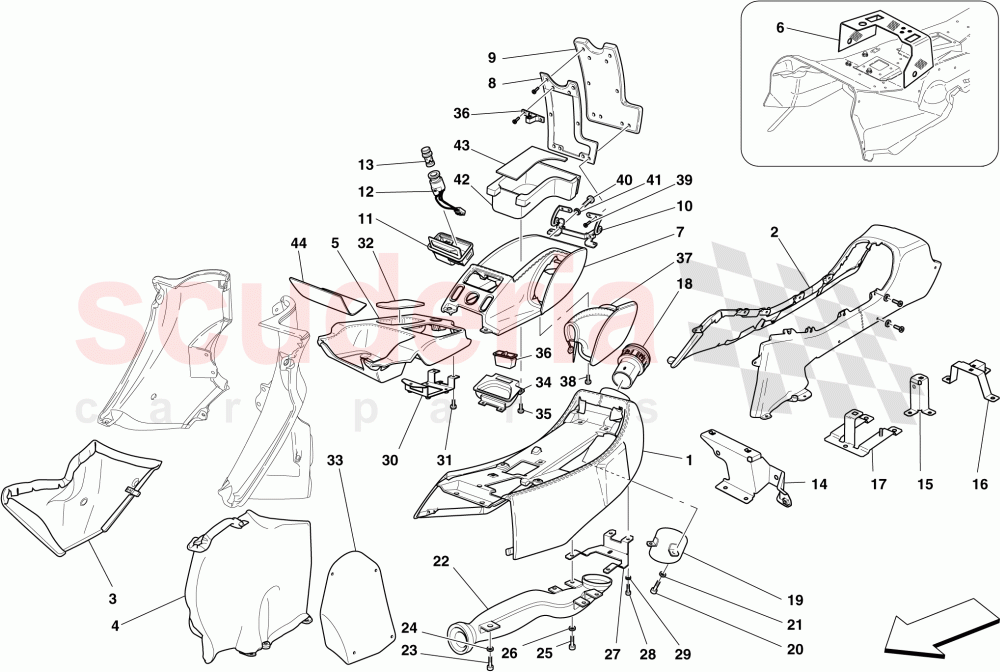

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	80539300	CENTRE CONSOLE UNIT SUBSTRUCTURE	Enquire	To Order
	80539700	CENTRE CONSOLE UNIT SUBSTRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69552400	SUBSTRUCTURE FOR REAR PART OF CENTRE TUNNEL TRIM	Enquire	To Order
	81160800	SUBSTRUCTURE FOR REAR PART OF CENTRE TUNNEL TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81160900	SUBSTRUCTURE FOR RH FRONT PART OF CENTRE TUNNEL TRIM	Enquire	To Order
	81166400	SUBSTRUCTURE FOR RH FRONT PART OF CENTRE TUNNEL TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81161000	SUBSTRUCTURE FOR LH FRONT PART OF CENTRE TUNNEL TRIM	Enquire	To Order
	81166500	SUBSTRUCTURE FOR LH FRONT PART OF CENTRE TUNNEL TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80280800	SUBSTRUCTURE FOR UPPER PART OF CENTRE TUNNEL TRIM	Enquire	To Order
	81161500	SUBSTRUCTURE FOR UPPER PART OF CENTRE TUNNEL TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80278400	TUNNEL INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81161900	UPPER REAR CENTRE TUNNEL CONSOLE LINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81162700	GLOVE COMPARTMENT LID BACKING SUBSTRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81162300	GLOVE COMPARTMENT SUBSTRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67004700	COMPL. LID HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66976100	ASHTRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183271	CIGARETTE LIGHTER SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66704500	CIGARETTE LIGHTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67326300	FRONT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67325300	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67325400	REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67170300	YAW SENSOR FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66853800	AIR VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68316600	PIPE CONNECTOR	Enquire	To Order
	67924900	PIPE CONNECTOR	Enquire	To Order
	69542600	PIPE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13273911	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66854000	REAR AIR DUCT	Enquire	To Order
	68119500	REAR AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15526501	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550078	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13274114	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67003900	AIR VENT FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13273911	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67628600	ECU FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13271814	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67004100	BASE	Enquire	To Order
	81161400	FRONT BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69353600	ACCELERATOR PEDAL SHIELD	Enquire	To Order
	67932500	ACCELERATOR PEDAL SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81162800	LOCK LINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15957701	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67004800	LID LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80540500	PARKING BRAKE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15901501	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15915701	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15526501	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639901	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81161800	GLOVE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81190000	BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80276300	FRONT BASE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	80539300	CENTRE CONSOLE UNIT SUBSTRUCTURE	80539300 CENTRE CONSOLE UNIT SUBSTRUCTURE Not for GD	-	1	Enquire
1	80539700	CENTRE CONSOLE UNIT SUBSTRUCTURE	80539700 CENTRE CONSOLE UNIT SUBSTRUCTURE Applicable for GD	-	1	Enquire
2	69552400	SUBSTRUCTURE FOR REAR PART OF CENTRE TUNNEL TRIM	69552400 SUBSTRUCTURE FOR REAR PART OF CENTRE TUNNEL TRIM	-	1	Enquire
2	81160800	SUBSTRUCTURE FOR REAR PART OF CENTRE TUNNEL TRIM	81160800 SUBSTRUCTURE FOR REAR PART OF CENTRE TUNNEL TRIM	-	1	Enquire
3	81160900	SUBSTRUCTURE FOR RH FRONT PART OF CENTRE TUNNEL TRIM	81160900 SUBSTRUCTURE FOR RH FRONT PART OF CENTRE TUNNEL TRIM Not for GD	-	1	Enquire
3	81166400	SUBSTRUCTURE FOR RH FRONT PART OF CENTRE TUNNEL TRIM	81166400 SUBSTRUCTURE FOR RH FRONT PART OF CENTRE TUNNEL TRIM Applicable for GD	-	1	Enquire
4	81161000	SUBSTRUCTURE FOR LH FRONT PART OF CENTRE TUNNEL TRIM	81161000 SUBSTRUCTURE FOR LH FRONT PART OF CENTRE TUNNEL TRIM Not for GD	-	1	Enquire
4	81166500	SUBSTRUCTURE FOR LH FRONT PART OF CENTRE TUNNEL TRIM	81166500 SUBSTRUCTURE FOR LH FRONT PART OF CENTRE TUNNEL TRIM Applicable for GD	-	1	Enquire
5	80280800	SUBSTRUCTURE FOR UPPER PART OF CENTRE TUNNEL TRIM	80280800 SUBSTRUCTURE FOR UPPER PART OF CENTRE TUNNEL TRIM Not for front parking sensors; Applicable for GD	-	1	Enquire
5	81161500	SUBSTRUCTURE FOR UPPER PART OF CENTRE TUNNEL TRIM	81161500 SUBSTRUCTURE FOR UPPER PART OF CENTRE TUNNEL TRIM Not for GD	-	1	Enquire
6	80278400	TUNNEL INSULATION	80278400 TUNNEL INSULATION	-	1	Enquire
7	81161900	UPPER REAR CENTRE TUNNEL CONSOLE LINING	81161900 UPPER REAR CENTRE TUNNEL CONSOLE LINING	-	1	Enquire
8	81162700	GLOVE COMPARTMENT LID BACKING SUBSTRUCTURE	81162700 GLOVE COMPARTMENT LID BACKING SUBSTRUCTURE	-	1	Enquire
9	81162300	GLOVE COMPARTMENT SUBSTRUCTURE	81162300 GLOVE COMPARTMENT SUBSTRUCTURE	-	1	Enquire
10	67004700	COMPL. LID HINGE	67004700 COMPL. LID HINGE	-	1	Enquire
11	66976100	ASHTRAY	66976100 ASHTRAY	-	1	Enquire
12	183271	CIGARETTE LIGHTER SOCKET	183271 CIGARETTE LIGHTER SOCKET	-	1	Enquire
13	66704500	CIGARETTE LIGHTER	66704500 CIGARETTE LIGHTER	-	1	Enquire
14	67326300	FRONT BRACKET	67326300 FRONT BRACKET	-	1	Enquire
15	67325300	RH BRACKET	67325300 RH BRACKET	-	1	Enquire
16	67325400	REAR BRACKET	67325400 REAR BRACKET	-	1	Enquire
17	67170300	YAW SENSOR FASTENER BRACKET	67170300 YAW SENSOR FASTENER BRACKET	-	1	Enquire
18	66853800	AIR VENT	66853800 AIR VENT	-	1	Enquire
19	68316600	PIPE CONNECTOR	68316600 PIPE CONNECTOR Painted	-	1	Enquire
19	67924900	PIPE CONNECTOR	67924900 PIPE CONNECTOR DARK; Painted; Optional	-	1	Enquire
19	69542600	PIPE CONNECTOR	69542600 PIPE CONNECTOR Carbon version; Optional	-	1	Enquire
20	13273911	SCREW	13273911 SCREW	-	3	Enquire
21	12637824	WASHER	12637824 WASHER	-	3	Enquire
22	66854000	REAR AIR DUCT	66854000 REAR AIR DUCT Not for GD	-	1	Enquire
22	68119500	REAR AIR DUCT	68119500 REAR AIR DUCT Applicable for GD	-	1	Enquire
23	15526501	SCREW	15526501 SCREW	-	1	Enquire
24	13550078	WASHER	13550078 WASHER	-	1	Enquire
25	13274114	SCREW	13274114 SCREW	-	2	Enquire
26	12637824	WASHER	12637824 WASHER	-	2	Enquire
27	67003900	AIR VENT FASTENER BRACKET	67003900 AIR VENT FASTENER BRACKET	-	1	Enquire
28	13273911	SCREW	13273911 SCREW	-	2	Enquire
29	12637824	WASHER	12637824 WASHER	-	2	Enquire
30	67628600	ECU FASTENER BRACKET	67628600 ECU FASTENER BRACKET Applicable for F1 gearbox	-	1	Enquire
31	13271814	SCREW	13271814 SCREW	-	3	Enquire
32	67004100	BASE	67004100 BASE	-	1	Enquire
32	81161400	FRONT BASE	81161400 FRONT BASE Not for GD	-	1	Enquire
33	69353600	ACCELERATOR PEDAL SHIELD	69353600 ACCELERATOR PEDAL SHIELD Not for GD	-	1	Enquire
33	67932500	ACCELERATOR PEDAL SHIELD	67932500 ACCELERATOR PEDAL SHIELD Applicable for GD	-	1	Enquire
34	81162800	LOCK LINER	81162800 LOCK LINER	-	1	Enquire
35	15957701	SCREW	15957701 SCREW	-	4	Enquire
36	67004800	LID LATCH	67004800 LID LATCH	-	1	Enquire
37	80540500	PARKING BRAKE COVER	80540500 PARKING BRAKE COVER	-	1	Enquire
38	15901501	SCREW	15901501 SCREW	-	5	Enquire
39	15915701	SCREW	15915701 SCREW	-	4	Enquire
40	15526501	SCREW	15526501 SCREW	-	2	Enquire
41	12639901	WASHER	12639901 WASHER	-	2	Enquire
42	81161800	GLOVE COMPARTMENT	81161800 GLOVE COMPARTMENT	-	1	Enquire
43	81190000	BASE	81190000 BASE	-	1	Enquire
44	80276300	FRONT BASE	80276300 FRONT BASE	-	1	Enquire
