PASSENGER COMPARTMENT INSULATION of Ferrari Ferrari 612 Sessanta

View All

Ferrari 612 Sessanta - PASSENGER COMPARTMENT INSULATION

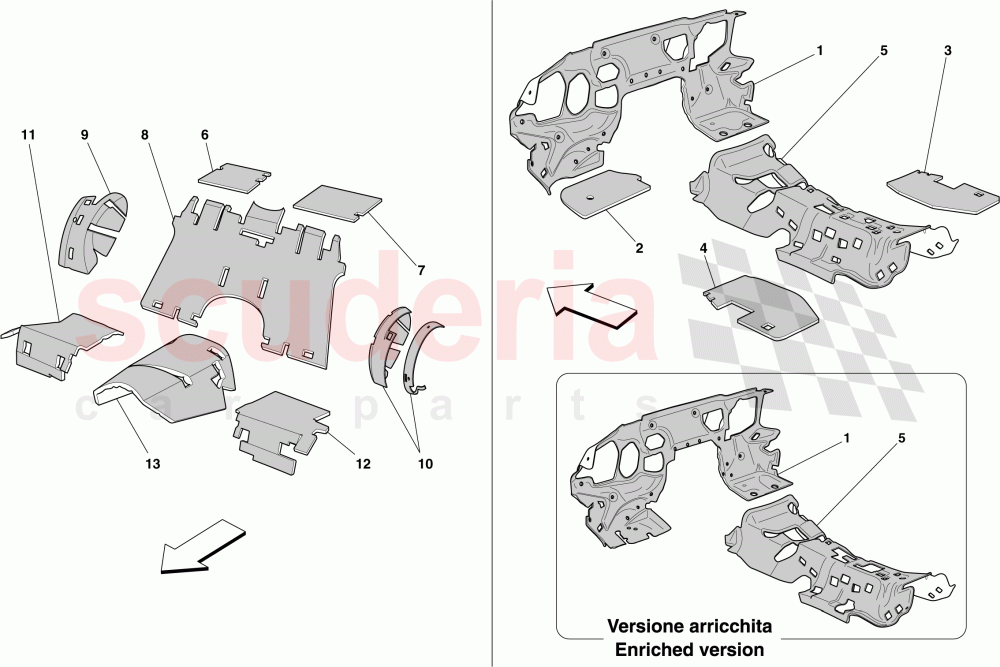

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	80014700	FIREWALL INSULATION	Enquire	To Order
	80014700	FIREWALL INSULATION	Enquire	To Order
	80206100	FIREWALL INSULATION	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	67794500	LH FRONT FLOOR INSULATION	Enquire	To Order
	68101000	LH FRONT FLOOR INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67156400	RH REAR FLOOR INSULATION	Enquire	To Order
	67156400	RH REAR FLOOR INSULATION	Enquire	To Order
	68300300	RH REAR FLOOR INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67156500	LH REAR FLOOR INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67156600	FRONT INSULATION FOR CENTRE TUNNEL	Enquire	To Order
	67156600	FRONT INSULATION FOR CENTRE TUNNEL	Enquire	To Order
	68309100	FRONT INSULATION FOR CENTRE TUNNEL	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	67156800	RH REAR SCREEN INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67156900	LH REAR SCREEN INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67157000	BACKREST INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67851800	RH REAR WHEELHOUSE SOUNDPROOFING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67851900	LH REAR WHEELHOUSE SOUNDPROOFING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67157100	RH REAR SEAT CUSHION INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67157200	LH REAR SEAT CUSHION INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67156700	REAR TUNNEL INSULATION	Enquire	To Order
	80912000	REAR TUNNEL INSULATION	Enquire	To Order
	69555400	REAR TUNNEL INSULATION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	80014700	FIREWALL INSULATION	80014700 FIREWALL INSULATION Not for GD	-	1	Enquire
1	80014700	FIREWALL INSULATION	80014700 FIREWALL INSULATION Enhanced version; Not for GD	-	1	Enquire
1	80206100	FIREWALL INSULATION	80206100 FIREWALL INSULATION Applicable for GD	-	1	Enquire
1	80206100	FIREWALL INSULATION	80206100 FIREWALL INSULATION Enhanced version; Applicable for GD	-	1	Enquire
2	67794500	LH FRONT FLOOR INSULATION	67794500 LH FRONT FLOOR INSULATION Not for GD	-	1	Enquire
2	68101000	LH FRONT FLOOR INSULATION	68101000 LH FRONT FLOOR INSULATION Applicable for GD	-	1	Enquire
3	67156400	RH REAR FLOOR INSULATION	67156400 RH REAR FLOOR INSULATION Not for USA, CDN	-	1	Enquire
3	67156400	RH REAR FLOOR INSULATION	67156400 RH REAR FLOOR INSULATION Applicable for USA, CDN; Applicable up to Ass. No. 66086	-	1	Enquire
3	68300300	RH REAR FLOOR INSULATION	68300300 RH REAR FLOOR INSULATION Weight sensors; Applicable for USA, CDN; Applicable from Ass. No. 66087	-	1	Enquire
4	67156500	LH REAR FLOOR INSULATION	67156500 LH REAR FLOOR INSULATION	-	1	Enquire
5	67156600	FRONT INSULATION FOR CENTRE TUNNEL	67156600 FRONT INSULATION FOR CENTRE TUNNEL Not for USA, CDN	-	1	Enquire
5	67156600	FRONT INSULATION FOR CENTRE TUNNEL	67156600 FRONT INSULATION FOR CENTRE TUNNEL Applicable for USA, CDN; Applicable up to Ass. No. 66086	-	1	Enquire
5	68309100	FRONT INSULATION FOR CENTRE TUNNEL	68309100 FRONT INSULATION FOR CENTRE TUNNEL Weight sensors; Applicable for USA, CDN; Applicable from Ass. No. 66087	-	1	Enquire
5	69555200	FRONT INSULATION FOR CENTRE TUNNEL	69555200 FRONT INSULATION FOR CENTRE TUNNEL Applicable for CINA; No longer supplied	-	1	Enquire
5	80014800	FRONT INSULATION FOR CENTRE TUNNEL	80014800 FRONT INSULATION FOR CENTRE TUNNEL Enhanced version; Not for USA, CDN, J	-	1	Enquire
5	80276200	FRONT INSULATION FOR CENTRE TUNNEL	80276200 FRONT INSULATION FOR CENTRE TUNNEL Enhanced version; Weight sensors; Applicable for USA, CDN	-	1	Enquire
5	80276100	FRONT INSULATION FOR CENTRE TUNNEL	80276100 FRONT INSULATION FOR CENTRE TUNNEL Enhanced version; Applicable for J	-	1	Enquire
6	67156800	RH REAR SCREEN INSULATION	67156800 RH REAR SCREEN INSULATION	-	1	Enquire
7	67156900	LH REAR SCREEN INSULATION	67156900 LH REAR SCREEN INSULATION	-	1	Enquire
8	67157000	BACKREST INSULATION	67157000 BACKREST INSULATION	-	1	Enquire
9	67851800	RH REAR WHEELHOUSE SOUNDPROOFING	67851800 RH REAR WHEELHOUSE SOUNDPROOFING	-	1	Enquire
10	67851900	LH REAR WHEELHOUSE SOUNDPROOFING	67851900 LH REAR WHEELHOUSE SOUNDPROOFING	-	1	Enquire
11	67157100	RH REAR SEAT CUSHION INSULATION	67157100 RH REAR SEAT CUSHION INSULATION	-	1	Enquire
12	67157200	LH REAR SEAT CUSHION INSULATION	67157200 LH REAR SEAT CUSHION INSULATION	-	1	Enquire
13	67156700	REAR TUNNEL INSULATION	67156700 REAR TUNNEL INSULATION Not for "60°anniversario"	-	1	Enquire
13	80912000	REAR TUNNEL INSULATION	80912000 REAR TUNNEL INSULATION Applicable for "60°anniversario"	-	1	Enquire
13	69555400	REAR TUNNEL INSULATION	69555400 REAR TUNNEL INSULATION Applicable for CINA; No longer supplied	-	1	Enquire
