Name: PEDAL BOARD
Rating: 4.4 (1 reviews)

PEDAL BOARD of Ferrari Ferrari 612 Sessanta

View All

Ferrari 612 Sessanta - PEDAL BOARD

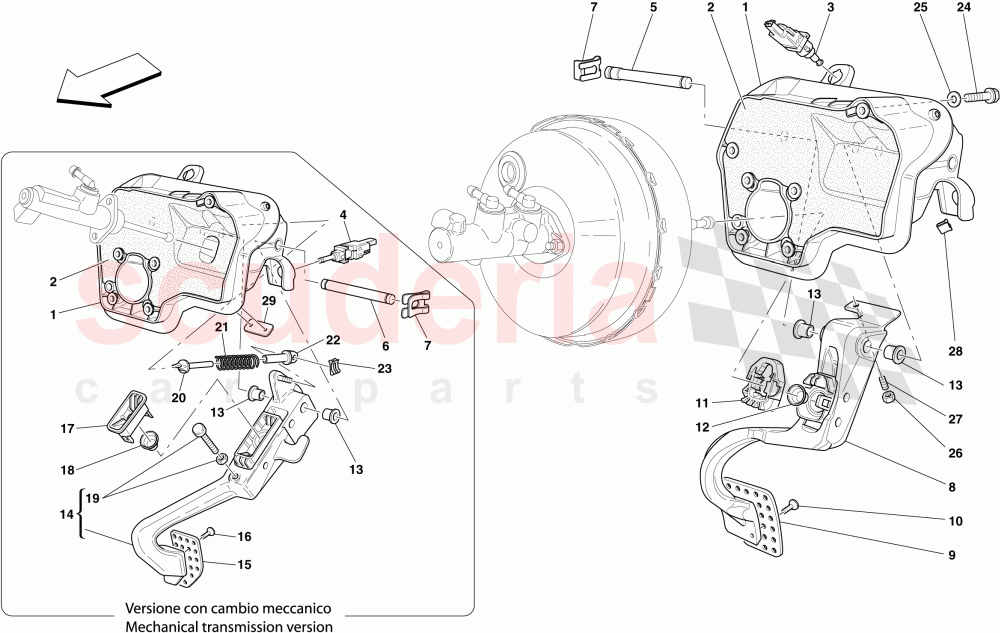

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	204192	PEDAL BOARD MOUNTING	$657.87	To Order

Photo	Part No	Description	Price (each)	Stock
	193886	SOUNDPROOFING	$123.54	To Order

Photo	Part No	Description	Price (each)	Stock
	958694	PUSH-BUTTON SWITCH	$32.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	189870	PIN	$78.61	To Order

Photo	Part No	Description	Price (each)	Stock
	189871	PIN	$93.05	To Order

Photo	Part No	Description	Price (each)	Stock
	11064474	CLIP	Enquire	To Order
	11064474	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191805	BRAKE PEDAL	$1,203.43	To Order
	201376	BRAKE PEDAL	$857.24	To Order
	190376	BRAKE PEDAL	$962.74	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	191401	DRILLED PLATE	$333.58	To Order
	188722	DRILLED PLATE	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	$1.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	189863	BRAKE PEDAL RETAINER	$30.47	To Order

Photo	Part No	Description	Price (each)	Stock
	189864	STOP CAP	$36.89	To Order

Photo	Part No	Description	Price (each)	Stock
	189869	BUSHING	$46.47	To Order
	189869	BUSHING	$46.47	To Order

Photo	Part No	Description	Price (each)	Stock
	190377	CLUTCH PEDAL	$2,506.48	To Order
	201324	CLUTCH PEDAL	$470.52	To Order

Photo	Part No	Description	Price (each)	Stock
	188723	DRILLED PLATE	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	$1.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	189865	CLUTCH PEDAL RETAINER	$44.91	To Order

Photo	Part No	Description	Price (each)	Stock
	189866	STOP CAP	$54.54	To Order

Photo	Part No	Description	Price (each)	Stock
	213361	PEDAL ADJUSTER SCREW	$40.10	To Order

Photo	Part No	Description	Price (each)	Stock
	189872	UPPER SERVO SPRING	$57.75	To Order

Photo	Part No	Description	Price (each)	Stock
	189874	SPRING	$14.59	To Order

Photo	Part No	Description	Price (each)	Stock
	189873	LOWER SERVO SPRING	$17.63	To Order

Photo	Part No	Description	Price (each)	Stock
	11064071	CLIP	$15.02	To Order

Photo	Part No	Description	Price (each)	Stock
	16287524	SCREW	$1.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13808031	DOWEL	$4.99	To Order

Photo	Part No	Description	Price (each)	Stock
	14186271	CLIP	$3.45	To Order

Photo	Part No	Description	Price (each)	Stock
	199701	CLUTCH PEDAL END STOP	$80.21	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	204192	PEDAL BOARD MOUNTING	204192 PEDAL BOARD MOUNTING Applicable for GD	$657.87	1
2	193886	SOUNDPROOFING	193886 SOUNDPROOFING	$123.54	1
3	958694	PUSH-BUTTON SWITCH IN STOCK	958694 PUSH-BUTTON SWITCH IN STOCK	$32.08	1
5	189870	PIN	189870 PIN	$78.61	1
6	189871	PIN	189871 PIN Not for F1 gearbox	$93.05	1
7	11064474	CLIP	11064474 CLIP Not for Mechanical gearbox	-	2	Enquire
7	11064474	CLIP	11064474 CLIP Applicable for Mechanical gearbox	-	4	Enquire
8	191805	BRAKE PEDAL	191805 BRAKE PEDAL Not for GD; Applicable for F1 gearbox	$1,203.43	1
8	201376	BRAKE PEDAL	201376 BRAKE PEDAL Applicable for GD; Applicable for F1 gearbox	$857.24	1
8	190376	BRAKE PEDAL	190376 BRAKE PEDAL Not for GD; Not for F1 gearbox	$962.74	1
8	201323	BRAKE PEDAL	201323 BRAKE PEDAL Applicable for GD; Not for F1 gearbox	$1,508.31	1
9	191401	DRILLED PLATE	191401 DRILLED PLATE Applicable for F1 gearbox	$333.58	1
9	188722	DRILLED PLATE	188722 DRILLED PLATE Not for F1 gearbox	$224.63	1
10	62797600	Allen Bolt Countersunk M6 x 20 IN STOCK	62797600 Allen Bolt Countersunk M6 x 20 IN STOCK	$1.02 MSRP: ~~1.45~~ (29.7% off)	2
11	189863	BRAKE PEDAL RETAINER	189863 BRAKE PEDAL RETAINER	$30.47	1
12	189864	STOP CAP	189864 STOP CAP	$36.89	1
13	189869	BUSHING	189869 BUSHING Not for Mechanical gearbox	$46.47	2
13	189869	BUSHING	189869 BUSHING Applicable for Mechanical gearbox	$46.47	4
14	190377	CLUTCH PEDAL	190377 CLUTCH PEDAL Not for GD; Not for F1 gearbox	$2,506.48	1
14	201324	CLUTCH PEDAL	201324 CLUTCH PEDAL Applicable for GD; Not for F1 gearbox	$470.52	1
15	188723	DRILLED PLATE	188723 DRILLED PLATE Not for F1 gearbox	$240.67	1
16	62797600	Allen Bolt Countersunk M6 x 20 IN STOCK	62797600 Allen Bolt Countersunk M6 x 20 Not for F1 gearbox IN STOCK	$1.02 MSRP: ~~1.45~~ (29.7% off)	2
17	189865	CLUTCH PEDAL RETAINER	189865 CLUTCH PEDAL RETAINER Not for F1 gearbox	$44.91	1
18	189866	STOP CAP	189866 STOP CAP Not for F1 gearbox	$54.54	1
19	213361	PEDAL ADJUSTER SCREW	213361 PEDAL ADJUSTER SCREW	$40.10	1
20	189872	UPPER SERVO SPRING	189872 UPPER SERVO SPRING Not for F1 gearbox	$57.75	1
21	189874	SPRING	189874 SPRING Not for F1 gearbox	$14.59	1
22	189873	LOWER SERVO SPRING	189873 LOWER SERVO SPRING Not for F1 gearbox	$17.63	1
23	11064071	CLIP	11064071 CLIP Not for F1 gearbox	$15.02	1
24	16287524	SCREW IN STOCK	16287524 SCREW IN STOCK	$1.38	2
25	12601374	WASHER IN STOCK	12601374 WASHER IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	2
26	14040711	NUT IN STOCK	14040711 NUT IN STOCK	$0.42	1
27	13808031	DOWEL	13808031 DOWEL	$4.99	1
28	14186271	CLIP	14186271 CLIP	$3.45	1
29	199701	CLUTCH PEDAL END STOP	199701 CLUTCH PEDAL END STOP	$80.21	1

Pedal Board

Ferrari 612 Sessanta

Ferrari 612 Sessanta - PEDAL BOARD
