TIMING SYSTEM - DRIVE of Ferrari Ferrari 612 Sessanta

View All

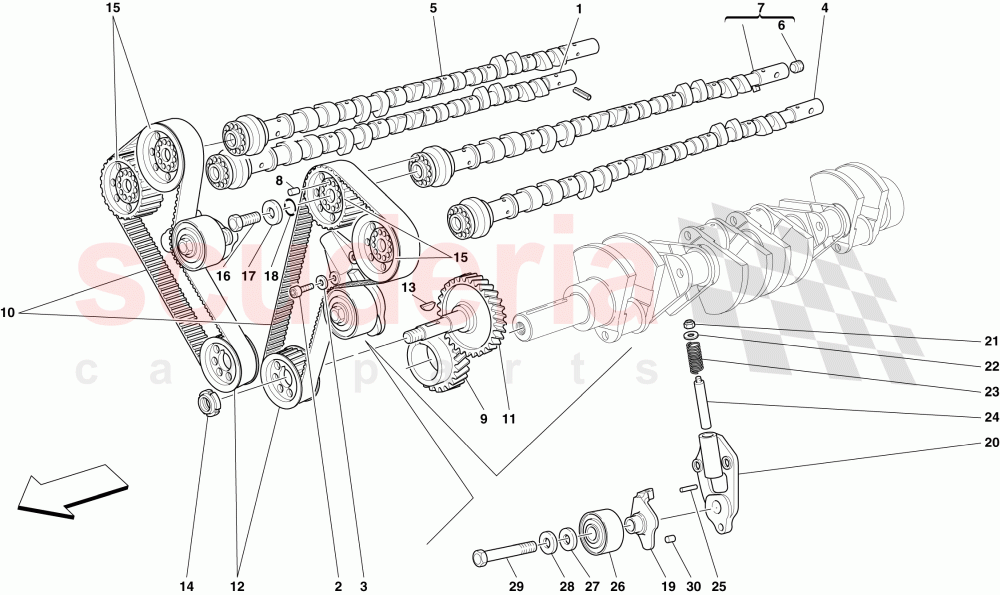

Ferrari 612 Sessanta - TIMING SYSTEM - DRIVE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	208371	COMPL. RH EXHAUST CAMSHAFT	Enquire	To Order
	208371	COMPL. RH EXHAUST CAMSHAFT	Enquire	To Order
	213462	COMPL. RH EXHAUST CAMSHAFT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	208373	COMPL. LH EXHAUST CAMSHAFT	Enquire	To Order
	208373	COMPL. LH EXHAUST CAMSHAFT	Enquire	To Order
	213464	COMPL. LH EXHAUST CAMSHAFT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	208369	COMPL. RH INTAKE CAMSHAFT	Enquire	To Order
	208369	COMPL. RH INTAKE CAMSHAFT	Enquire	To Order
	213461	COMPL. RH INTAKE CAMSHAFT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	10269550	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	208372	COMPL. LH INTAKE CAMSHAFT	Enquire	To Order
	208372	COMPL. LH INTAKE CAMSHAFT	Enquire	To Order
	213463	COMPL. LH INTAKE CAMSHAFT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	114803	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000876	PINION KIT GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187744	Timing Belt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000876	PINION KIT GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149928	TIMING GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10206320	DISC TAB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104919	RING LOCK NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159382	DRIVEN GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	146540	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114802	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114808	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171060	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149346	BELT TENSIONER BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121558	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121249	SPRING FOR BELT TENSIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121047	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13933570	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171057	Cam Belt Tensioner Pulley	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	111460	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149461	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125717	CENTRING DOWEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	208371	COMPL. RH EXHAUST CAMSHAFT	208371 COMPL. RH EXHAUST CAMSHAFT Not for USA, CDN; Applicable up to Ass. No. 69518	-	1	Enquire
1	208371	COMPL. RH EXHAUST CAMSHAFT	208371 COMPL. RH EXHAUST CAMSHAFT Applicable for USA, CDN; Applicable up to Ass. No. 69400	-	1	Enquire
1	213462	COMPL. RH EXHAUST CAMSHAFT	213462 COMPL. RH EXHAUST CAMSHAFT Not for USA, CDN; Applicable from Ass. No. 69519	-	1	Enquire
1	213462	COMPL. RH EXHAUST CAMSHAFT	213462 COMPL. RH EXHAUST CAMSHAFT Applicable for USA, CDN; Applicable from Ass. No. 69401	-	1	Enquire
2	14306424	SCREW	14306424 SCREW	-	4	Enquire
3	11193874	WASHER	11193874 WASHER	-	4	Enquire
4	208373	COMPL. LH EXHAUST CAMSHAFT	208373 COMPL. LH EXHAUST CAMSHAFT Not for USA, CDN; Applicable up to Ass. No. 69518	-	1	Enquire
4	208373	COMPL. LH EXHAUST CAMSHAFT	208373 COMPL. LH EXHAUST CAMSHAFT Applicable for USA, CDN; Applicable up to Ass. No. 69400	-	1	Enquire
4	213464	COMPL. LH EXHAUST CAMSHAFT	213464 COMPL. LH EXHAUST CAMSHAFT Not for USA, CDN; Applicable from Ass. No. 69519	-	1	Enquire
4	213464	COMPL. LH EXHAUST CAMSHAFT	213464 COMPL. LH EXHAUST CAMSHAFT Applicable for USA, CDN; Applicable from Ass. No. 69401	-	1	Enquire
5	208369	COMPL. RH INTAKE CAMSHAFT	208369 COMPL. RH INTAKE CAMSHAFT Not for USA, CDN; Applicable up to Ass. No. 69518	-	1	Enquire
5	208369	COMPL. RH INTAKE CAMSHAFT	208369 COMPL. RH INTAKE CAMSHAFT Applicable for USA, CDN; Applicable up to Ass. No. 69400	-	1	Enquire
5	213461	COMPL. RH INTAKE CAMSHAFT	213461 COMPL. RH INTAKE CAMSHAFT Not for USA, CDN; Applicable from Ass. No. 69519	-	1	Enquire
5	213461	COMPL. RH INTAKE CAMSHAFT	213461 COMPL. RH INTAKE CAMSHAFT Applicable for USA, CDN; Applicable from Ass. No. 69401	-	1	Enquire
6	10269550	THREADED PLUG	10269550 THREADED PLUG	-	3	Enquire
7	208372	COMPL. LH INTAKE CAMSHAFT	208372 COMPL. LH INTAKE CAMSHAFT Not for USA, CDN; Applicable up to Ass. No. 69518	-	1	Enquire
7	208372	COMPL. LH INTAKE CAMSHAFT	208372 COMPL. LH INTAKE CAMSHAFT Applicable for USA, CDN; Applicable up to Ass. No. 69400	-	1	Enquire
7	213463	COMPL. LH INTAKE CAMSHAFT	213463 COMPL. LH INTAKE CAMSHAFT Not for USA, CDN; Applicable from Ass. No. 69519	-	1	Enquire
7	213463	COMPL. LH INTAKE CAMSHAFT	213463 COMPL. LH INTAKE CAMSHAFT Applicable for USA, CDN; Applicable from Ass. No. 69401	-	1	Enquire
8	114803	DOWEL	114803 DOWEL	-	4	Enquire
9	70000876	PINION KIT GEAR	70000876 PINION KIT GEAR	-	1	Enquire
10	187744	Timing Belt	187744 Timing Belt	-	2	Enquire
11	70000876	PINION KIT GEAR	70000876 PINION KIT GEAR	-	2	Enquire
12	149928	TIMING GEAR	149928 TIMING GEAR	-	2	Enquire
13	10206320	DISC TAB	10206320 DISC TAB	-	2	Enquire
14	104919	RING LOCK NUT	104919 RING LOCK NUT	-	2	Enquire
15	159382	DRIVEN GEAR	159382 DRIVEN GEAR	-	4	Enquire
16	146540	SCREW	146540 SCREW	-	4	Enquire
17	114802	WASHER	114802 WASHER	-	4	Enquire
18	114808	O-Ring	114808 O-Ring	-	4	Enquire
19	171060	PLATE	171060 PLATE	-	2	Enquire
20	149346	BELT TENSIONER BODY	149346 BELT TENSIONER BODY	-	2	Enquire
21	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
22	121558	WASHER	121558 WASHER	-	2	Enquire
23	121249	SPRING FOR BELT TENSIONER	121249 SPRING FOR BELT TENSIONER	-	2	Enquire
24	121047	PIN	121047 PIN	-	2	Enquire
25	13933570	PIN	13933570 PIN	-	2	Enquire
26	171057	Cam Belt Tensioner Pulley ARRIVING SOON	171057 Cam Belt Tensioner Pulley ARRIVING SOON	-	2	Enquire
27	111460	SHIM	111460 SHIM	-	2	Enquire
28	102824	WASHER	102824 WASHER	-	2	Enquire
29	149461	SCREW	149461 SCREW	-	2	Enquire
30	125717	CENTRING DOWEL	125717 CENTRING DOWEL	-	2	Enquire
