ENGINE/GEARBOX CONNECTOR PIPE AND INSULATION

Find Your Part

Ferrari 612 Sessanta - ENGINE/GEARBOX CONNECTOR PIPE AND INSULATION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
68120900 COMPLETE TUNNEL HEAT SHIELD $2,141.62 To Order
68120900 COMPLETE TUNNEL HEAT SHIELD $2,141.62 To Order
80988600 COMPLETE TUNNEL HEAT SHIELD $802.28 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
10902380 SCREW $2.25 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 To Order
Photo Part No Description Price (each) Stock
12648978 WASHER $0.55 To Order
Photo Part No Description Price (each) Stock
198483 ENGINE-GEARBOX CONNECTOR PIPE $5,865.73 To Order
205804 ENGINE-GEARBOX CONNECTOR PIPE $6,300.50 To Order
227907 ENGINE-GEARBOX CONNECTOR PIPE Enquire To Order
Photo Part No Description Price (each) Stock
14059421 NUT $0.52 To Order
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH $0.55 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
66965500 PIPE SHIELD $866.47 To Order
69555100 PIPE SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
67663900 REAR UNDERSHIELD $240.67 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
12648978 WASHER $0.55 To Order
Photo Part No Description Price (each) Stock
144443 SHIM $3.91 To Order
Photo Part No Description Price (each) Stock
80987100 UPPER TUNNEL HEAT SHIELD $336.95 To Order
Photo Part No Description Price (each) Stock
80987200 FRONT TUNNEL HEAT SHIELD $97.86 To Order
Photo Part No Description Price (each) Stock
80987300 RH TUNNEL HEAT SHIELD $240.67 To Order
Photo Part No Description Price (each) Stock
80987500 LH TUNNEL HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
80987400 RH REAR TUNNEL HEAT SHIELD $57.33 To Order
Photo Part No Description Price (each) Stock
80987600 LH REAR TUNNEL HEAT SHIELD $336.95 To Order
View All

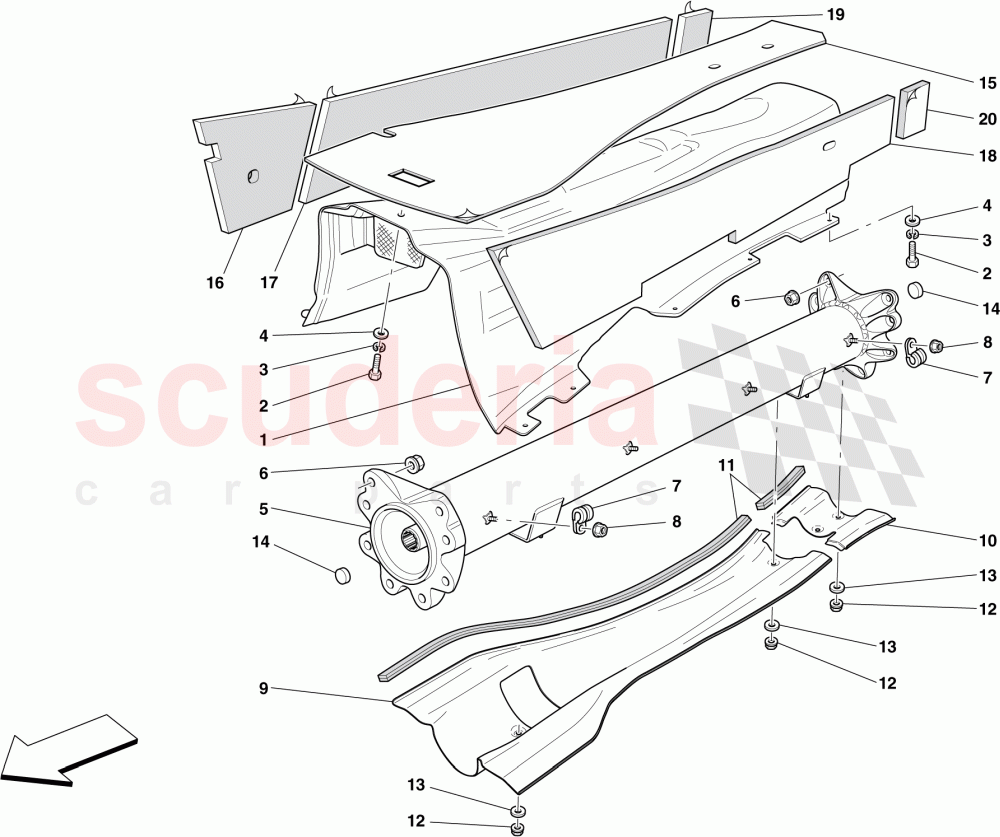

ENGINE/GEARBOX CONNECTOR PIPE AND INSULATION of Ferrari Ferrari 612 Sessanta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 68120900
COMPLETE TUNNEL HEAT SHIELD
Applicable for "60°anniversario"; Applicable up to Ass. No. 74052; Applicable for F1 gearbox 		$2,141.62 1
1 68120900
COMPLETE TUNNEL HEAT SHIELD
Applicable for enhanced and "OTO" versions; Applicable up to Ass. No. 77381; Applicable for F1 gearbox 		$2,141.62 1
1 80988600
COMPLETE TUNNEL HEAT SHIELD
Applicable for "60°anniversario"; Applicable from Ass. No. 74053; Applicable for F1 gearbox 		$802.28 1
1 80988600
COMPLETE TUNNEL HEAT SHIELD
Applicable for enhanced and "OTO" versions; Applicable from Ass. No. 77382; Applicable for F1 gearbox 		$802.28 1
1 68120800
COMPLETE TUNNEL HEAT SHIELD
Not for enhanced version; Not for F1 gearbox 		$2,450.21 1
1 68120800
COMPLETE TUNNEL HEAT SHIELD
Applicable for enhanced version; Applicable up to Ass. No. 77381; Not for F1 gearbox 		$2,450.21 1
1 81192300
COMPLETE TUNNEL HEAT SHIELD
Applicable for enhanced version; Applicable from Ass. No. 77382; Not for F1 gearbox 		- 1 Enquire
2 10902380
SCREW 		$2.25 11
3 127494
WASHER 		$0.08 (88.2% off) 11
4 12648978
WASHER 		$0.55 11
5 198483
ENGINE-GEARBOX CONNECTOR PIPE
Applicable for F1 gearbox 		$5,865.73 1
5 205804
ENGINE-GEARBOX CONNECTOR PIPE
Not for F1 gearbox 		$6,300.50 1
5 227907
ENGINE-GEARBOX CONNECTOR PIPE
Applicable for Taiwan 		- 1 Enquire
6 14059421
NUT 		$0.52 16
7 10441590
BRACKET WITH SHEATH 		$0.55 4
8 14059290
FLANGED NUT M6 		$1.51 4
9 66965500
PIPE SHIELD 		$866.47 1
9 69555100
PIPE SHIELD
Applicable for CINA; No longer supplied 		- 1 Enquire
10 67663900
REAR UNDERSHIELD 		$240.67 1
12 14059290
FLANGED NUT M6 		$1.51 4
13 12648978
WASHER 		$0.55 4
14 144443
SHIM 		$3.91 2
15 80987100
UPPER TUNNEL HEAT SHIELD 		$336.95 1
16 80987200
FRONT TUNNEL HEAT SHIELD 		$97.86 1
17 80987300
RH TUNNEL HEAT SHIELD 		$240.67 1
18 80987500
LH TUNNEL HEAT SHIELD 		- 1 Enquire
19 80987400
RH REAR TUNNEL HEAT SHIELD 		$57.33 1
20 80987600
LH REAR TUNNEL HEAT SHIELD 		$336.95 1
