Primary Gearbox Shaft Gears And Gearbox Oil Pump

Ferrari 612 Sessanta

Find Your Part

Ferrari 612 Sessanta - PRIMARY GEARBOX SHAFT GEARS AND GEARBOX OIL PUMP

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
144502 PRIMARY SHAFT BEARING, OIL PUMP SIDE $176.23 To Order
Photo Part No Description Price (each) Stock
144444 MOUNTING RING $70.63 To Order
Photo Part No Description Price (each) Stock
13839224 SCREW $2.82 To Order
Photo Part No Description Price (each) Stock
195991 PAD FOR SYNCHRONIZER/BALL/ Enquire To Order
Photo Part No Description Price (each) Stock
10269550 THREADED PLUG $2.95 IN STOCK
Photo Part No Description Price (each) Stock
14452981 O-RING $1.38 To Order
Photo Part No Description Price (each) Stock
197563 5th SPEED GEAR $1,124.22 To Order
Photo Part No Description Price (each) Stock
189689 COMPLETE 5th AND 6th SPEED SYNCHRONISER $785.41 To Order
Photo Part No Description Price (each) Stock
189657 COMPLETE 3rd AND 4th SPEED SYNCHRONISER $1,658.64 To Order
Photo Part No Description Price (each) Stock
204984 OIL RETURN PIPE $48.12 To Order
Photo Part No Description Price (each) Stock
204983 OIL DELIVERY PIPE $48.12 To Order
Photo Part No Description Price (each) Stock
195810 RING $28.96 To Order
Photo Part No Description Price (each) Stock
189700 RING $43.45 To Order
Photo Part No Description Price (each) Stock
189693 6th SPEED GEAR $815.15 To Order
Photo Part No Description Price (each) Stock
189573 CAP $5.48 To Order
Photo Part No Description Price (each) Stock
228055 ROLLER BEARING $164.48 To Order
Photo Part No Description Price (each) Stock
210495 PRIMARY GEARBOX SHAFT $3,994.91 To Order
210495 PRIMARY GEARBOX SHAFT $3,994.91 To Order
Photo Part No Description Price (each) Stock
14601270 SPRING PIN $0.16 To Order
Photo Part No Description Price (each) Stock
109724 O-RING $1.33 IN STOCK
Photo Part No Description Price (each) Stock
163684 RING NUT $19.04 To Order
Photo Part No Description Price (each) Stock
196155 COMPLETE OIL PUMP BODY $545.55 To Order
196155 COMPLETE OIL PUMP BODY $545.55 To Order
Photo Part No Description Price (each) Stock
16044321 SCREW $0.55 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
163684 RING NUT $19.04 To Order
Photo Part No Description Price (each) Stock
102704 ALIGNMENT DOWEL $2.95 IN STOCK
Photo Part No Description Price (each) Stock
14326150 CAP $0.55 IN STOCK
Photo Part No Description Price (each) Stock
14303521 SCREW $0.39 To Order
Photo Part No Description Price (each) Stock
10571379 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
185458 COMPLETE GEARBOX OIL PUMP $1,283.66 To Order
Photo Part No Description Price (each) Stock
137192 O-RING $0.36 IN STOCK
Photo Part No Description Price (each) Stock
135770 BALL $0.70 To Order
Photo Part No Description Price (each) Stock
171889 SPRING $4.52 To Order
Photo Part No Description Price (each) Stock
162315 CAP $1.91 To Order
Photo Part No Description Price (each) Stock
11057576 SEEGER RING $0.05 To Order
Photo Part No Description Price (each) Stock
150577 CONNECTOR $19.26 To Order
Photo Part No Description Price (each) Stock
10261460 COPPER WASHER 16 X 24 X 1.5 $0.36 IN STOCK
Photo Part No Description Price (each) Stock
137192 O-RING $0.36 IN STOCK
Photo Part No Description Price (each) Stock
14453281 O-RING $1.43 IN STOCK
Photo Part No Description Price (each) Stock
189570 REVERSE IDLER GEAR $1,091.89 To Order
210496 REVERSE IDLER GEAR $2,260.80 To Order
Photo Part No Description Price (each) Stock
189707 RING NUT $51.23 To Order
Photo Part No Description Price (each) Stock
189708 RING NUT $73.34 To Order
Photo Part No Description Price (each) Stock
189704 SHIM $38.96 To Order
189709 SHIM $38.02 To Order
Photo Part No Description Price (each) Stock
109002 ROLLER BEARING CAGE $31.70 IN STOCK
Photo Part No Description Price (each) Stock
189705 BUSHING $72.43 To Order
Photo Part No Description Price (each) Stock
109002 ROLLER BEARING CAGE $31.70 IN STOCK
Photo Part No Description Price (each) Stock
195809 BUSHING $130.41 To Order
Photo Part No Description Price (each) Stock
109002 ROLLER BEARING CAGE $31.70 IN STOCK
Photo Part No Description Price (each) Stock
195809 BUSHING $130.41 To Order
Photo Part No Description Price (each) Stock
109002 ROLLER BEARING CAGE $31.70 IN STOCK
Photo Part No Description Price (each) Stock
189656 BUSHING $75.45 To Order
Photo Part No Description Price (each) Stock
197562 4th SPEED GEAR $1,946.62 To Order
Photo Part No Description Price (each) Stock
189659 3rd SPEED GEAR $815.15 To Order
Photo Part No Description Price (each) Stock
211960 PIN $108.68 To Order
211960 PIN $108.68 To Order
Photo Part No Description Price (each) Stock
158272 SNAP RING $0.44 To Order
211962 SNAP RING $2.66 To Order
Photo Part No Description Price (each) Stock
193891 SHIM WASHER $28.59 To Order
193891 SHIM WASHER $28.59 To Order
193892 SHIM WASHER $28.59 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
104256 Roller Bearing Cage $11.04 To Order
Photo Part No Description Price (each) Stock
228054 ROLLER BEARING $196.15 IN STOCK
Photo Part No Description Price (each) Stock
144511 STOP RING $0.79 To Order
Photo Part No Description Price (each) Stock
211961 SPACER BUSHING $25.35 To Order
View All

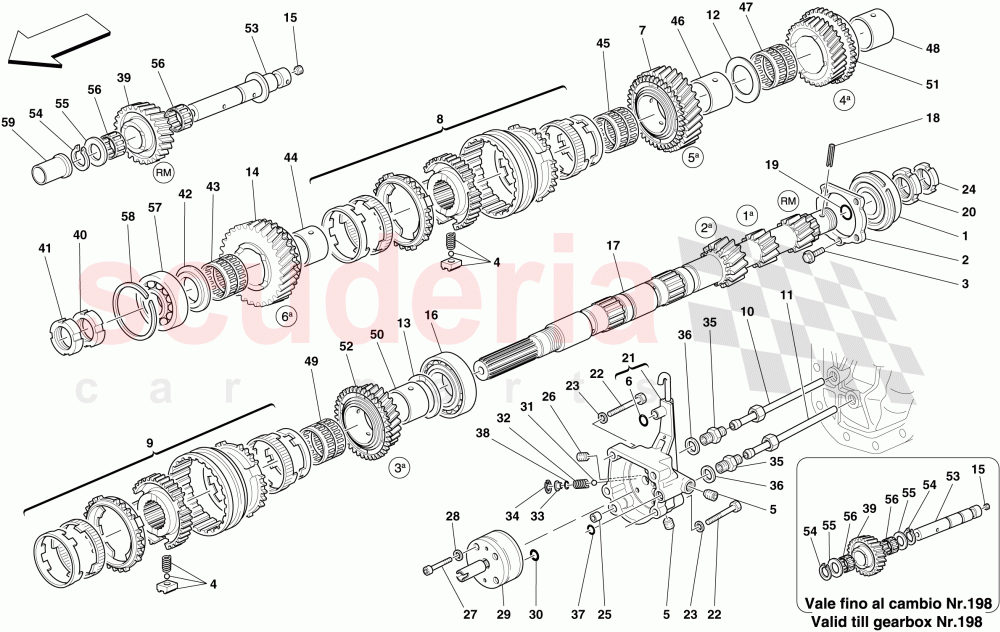

PRIMARY GEARBOX SHAFT GEARS AND GEARBOX OIL PUMP of Ferrari Ferrari 612 Sessanta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 144502
PRIMARY SHAFT BEARING, OIL PUMP SIDE 		$176.23 1
2 144444
MOUNTING RING 		$70.63 1
3 13839224
SCREW 		$2.82 1
4 195991
PAD FOR SYNCHRONIZER/BALL/ 		- 2 Enquire
5 10269550
THREADED PLUG
IN STOCK 		$2.95 2
6 14452981
O-RING 		$1.38 1
7 197563
5th SPEED GEAR 		$1,124.22 1
8 189689
COMPLETE 5th AND 6th SPEED SYNCHRONISER 		$785.41 1
9 189657
COMPLETE 3rd AND 4th SPEED SYNCHRONISER 		$1,658.64 1
10 204984
OIL RETURN PIPE 		$48.12 1
11 204983
OIL DELIVERY PIPE 		$48.12 1
12 195810
RING 		$28.96 1
13 189700
RING 		$43.45 1
14 189693
6th SPEED GEAR 		$815.15 1
15 189573
CAP 		$5.48 1
16 228055
ROLLER BEARING 		$164.48 (12.1% off) 1
17 210495
PRIMARY GEARBOX SHAFT
Applicable up to gearbox No. 197; Applicable up to engine No. 90177 		$3,994.91 1
17 210495
PRIMARY GEARBOX SHAFT
Applicable from gearbox No. 3; Applicable from engine No. 90178 		$3,994.91 1
18 14601270
SPRING PIN 		$0.16 1
19 109724
O-RING
IN STOCK 		$1.33 (33.5% off) 1
20 163684
RING NUT 		$19.04 1
21 196155
COMPLETE OIL PUMP BODY 		$545.55 1
21 196155
COMPLETE OIL PUMP BODY
With complete oil pump body 		$545.55 1
22 16044321
SCREW
IN STOCK 		$0.55 (59.3% off) 4
23 12601374
WASHER
IN STOCK 		$0.02 (92% off) 4
24 163684
RING NUT 		$19.04 1
25 102704
ALIGNMENT DOWEL
IN STOCK 		$2.95 1
26 14326150
CAP
IN STOCK 		$0.55 (63.3% off) 1
27 14303521
SCREW 		$0.39 4
28 10571379
WASHER 		$0.06 4
29 185458
COMPLETE GEARBOX OIL PUMP 		$1,283.66 1
30 137192
O-RING
IN STOCK 		$0.36 (28% off) 1
31 135770
BALL 		$0.70 1
32 171889
SPRING 		$4.52 1
33 162315
CAP 		$1.91 1
34 11057576
SEEGER RING 		$0.05 1
35 150577
CONNECTOR 		$19.26 2
36 10261460
COPPER WASHER 16 X 24 X 1.5
IN STOCK 		$0.36 (64% off) 2
37 137192
O-RING
IN STOCK 		$0.36 (28% off) 1
38 14453281
O-RING
IN STOCK 		$1.43 1
39 189570
REVERSE IDLER GEAR
Applicable up to gearbox No. 197; Applicable up to engine No. 90177 		$1,091.89 1
39 210496
REVERSE IDLER GEAR
Applicable from gearbox No. 3; Applicable from engine No. 90178 		$2,260.80 1
40 189707
RING NUT 		$51.23 1
41 189708
RING NUT 		$73.34 1
42 189704
SHIM
Th. 3.9 mm 		$38.96 1
42 189709
SHIM
Th. 4.15 mm 		$38.02 1
43 109002
ROLLER BEARING CAGE
IN STOCK 		$31.70 1
44 189705
BUSHING 		$72.43 1
45 109002
ROLLER BEARING CAGE
IN STOCK 		$31.70 1
46 195809
BUSHING 		$130.41 1
47 109002
ROLLER BEARING CAGE
IN STOCK 		$31.70 1
48 195809
BUSHING 		$130.41 1
49 109002
ROLLER BEARING CAGE
IN STOCK 		$31.70 1
50 189656
BUSHING 		$75.45 1
51 197562
4th SPEED GEAR 		$1,946.62 1
52 189659
3rd SPEED GEAR 		$815.15 1
53 211960
PIN
Applicable up to gearbox No. 198 		$108.68 1
53 211960
PIN
Applicable from gearbox No. 199 		$108.68 1
54 158272
SNAP RING
Applicable up to gearbox No. 198 		$0.44 2
54 211962
SNAP RING
Applicable from gearbox No. 199 		$2.66 1
55 193891
SHIM WASHER
Th. 4 mm; Applicable up to gearbox No. 198 		$28.59 2
55 193891
SHIM WASHER
Th. 4 mm; Applicable from gearbox No. 199 		$28.59 1
55 193892
SHIM WASHER
Th. 4.1 mm; Applicable up to gearbox No. 198 		$28.59 2
55 193892
SHIM WASHER
Th. 4.1 mm; Applicable from gearbox No. 199 		$28.59 1
55 193893
SHIM WASHER
Th. 3.9 mm; Applicable up to gearbox No. 198 		$28.59 2
55 193893
SHIM WASHER
Th. 3.9 mm; Applicable from gearbox No. 199 		$28.59 1
56 104256
Roller Bearing Cage 		$11.04 (38.3% off) 2
57 228054
ROLLER BEARING
IN STOCK 		$196.15 1
58 144511
STOP RING 		$0.79 1
59 211961
SPACER BUSHING
Applicable from gearbox No. 199 		$25.35 1
