Ferrari 599 SA Aperta - COOLING SYSTEM - RADIATOR AND HEADER TANK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
227454 WATER RADIATOR Enquire IN STOCK
Photo Part No Description Price (each) Stock
213499 ENGINE OIL RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
307674 RADIATOR MOUNTING BUSH Enquire IN STOCK
Photo Part No Description Price (each) Stock
213559 BRACKET Enquire IN STOCK
Photo Part No Description Price (each) Stock
220330 COWL FOR ELECTRIC FANS Enquire IN STOCK
Photo Part No Description Price (each) Stock
212730 ELECTRIC FAN Enquire To Order
Photo Part No Description Price (each) Stock
83243900 WATER RADIATOR DUCT Enquire To Order
83244000 WATER RADIATOR DUCT Enquire To Order
Photo Part No Description Price (each) Stock
69012000 LID Enquire To Order
Photo Part No Description Price (each) Stock
85833700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
235263 HEADER TANK Enquire To Order
Photo Part No Description Price (each) Stock
195999 HEADER TANK CAP Enquire To Order
Photo Part No Description Price (each) Stock
102947 VIBRATION DAMPER Enquire IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
250802 PIPE FROM RADIATOR TO HEADER TANK Enquire To Order
Photo Part No Description Price (each) Stock
250802 PIPE FROM RADIATOR TO HEADER TANK Enquire To Order
Photo Part No Description Price (each) Stock
177995 CLAMP Enquire IN STOCK
Photo Part No Description Price (each) Stock
227431 Bushing Enquire IN STOCK
Photo Part No Description Price (each) Stock
227430 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath Enquire IN STOCK
Photo Part No Description Price (each) Stock
86574700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
220821 WATER DRAIN PIPE Enquire To Order
Photo Part No Description Price (each) Stock
211847 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
10260160 Copper Washer D. 10 - 14 x 1 Enquire IN STOCK
Photo Part No Description Price (each) Stock
266456 PIPE FROM CONNECTOR TO HEADER TANK Enquire To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP Enquire IN STOCK
Photo Part No Description Price (each) Stock
67944600 FOUR-WAY UNION Enquire To Order
Photo Part No Description Price (each) Stock
260570 PRESHAPED PIPE -Valid after stock exhaustion of 202612- Enquire To Order
Photo Part No Description Price (each) Stock
13000490 Screw Collar Enquire IN STOCK
Photo Part No Description Price (each) Stock
10441790 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM Enquire IN STOCK
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire IN STOCK
Photo Part No Description Price (each) Stock
248423 RH CYLINDER HEAD WATER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
239553 LH CYLINDER HEAD WATER PIPE Enquire IN STOCK
Photo Part No Description Price (each) Stock
235080 RUBBER SLEEVE - D.14,5 x 26,5 75- Enquire IN STOCK
Photo Part No Description Price (each) Stock
13433370 Screw Collar Enquire IN STOCK
Photo Part No Description Price (each) Stock
203787 PIPE UNION Enquire To Order
Photo Part No Description Price (each) Stock
10259960 Copper Washer 18 - 24 x 1.5 Enquire IN STOCK
Photo Part No Description Price (each) Stock
217759 RUBBER SHIM Enquire To Order
217760 RUBBER SHIM Enquire To Order
225467 RUBBER SHIM Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
69250700 UPPER GASKET Enquire To Order
69250800 LOWER SEAL Enquire To Order
69250900 LATERAL SEAL Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11568124 SCREW Enquire IN STOCK
Photo Part No Description Price (each) Stock
82242400 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12638124 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
849234 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14058519 FLANGED NUT M8 X 8 Enquire IN STOCK
Photo Part No Description Price (each) Stock
13839224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
80783800 UPPER GASKET Enquire To Order
80784000 GASKET Enquire To Order
80784100 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
80783900 LOWER SEAL Enquire To Order
Photo Part No Description Price (each) Stock
251426 WATER DELIVERY PIPE Enquire To Order
Photo Part No Description Price (each) Stock
209972 WATER RETURN PIPE Enquire To Order
Photo Part No Description Price (each) Stock
13000790 SCREW COLLAR Enquire IN STOCK
Photo Part No Description Price (each) Stock
226317 HOSE UNION MOUNT Enquire To Order
Photo Part No Description Price (each) Stock
226394 MOUNT COVER Enquire To Order
Photo Part No Description Price (each) Stock
11568124 SCREW Enquire IN STOCK
Photo Part No Description Price (each) Stock
14498801 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
180137 TEMPERATURE SENSOR Enquire IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
223456 PLATE Enquire To Order
Photo Part No Description Price (each) Stock
296781 COLLAR 30-45MM Enquire IN STOCK
Photo Part No Description Price (each) Stock
68574500 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14507387 CAP Enquire To Order
Photo Part No Description Price (each) Stock
61081400 CLIP Enquire To Order
View All

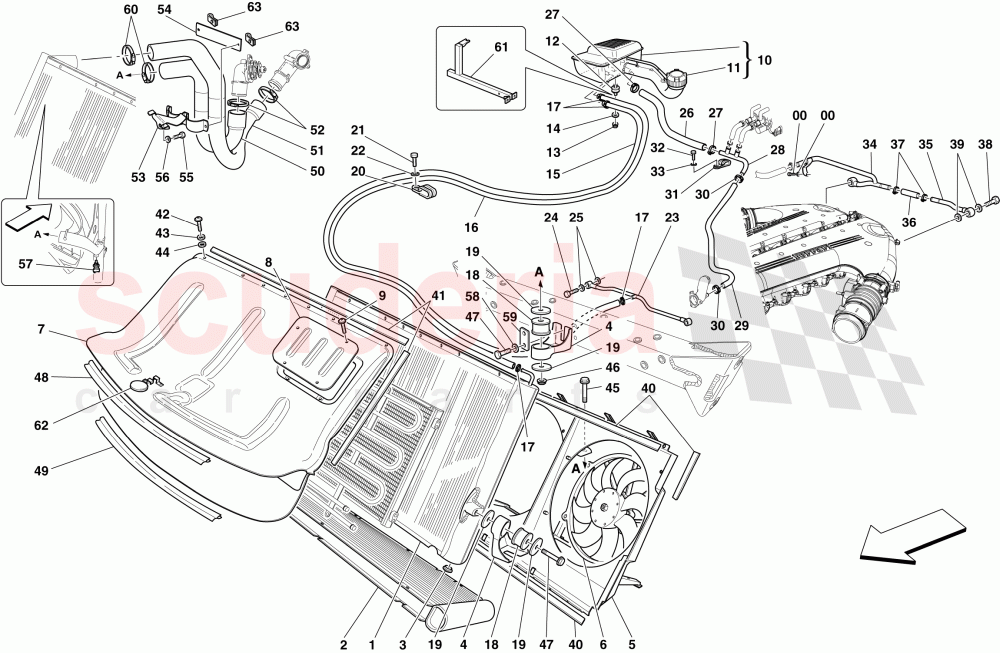

COOLING SYSTEM - RADIATOR AND HEADER TANK of Ferrari Ferrari 599 SA Aperta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 227454
WATER RADIATOR
IN STOCK 		- 1 Enquire
2 213499
ENGINE OIL RADIATOR 		- 1 Enquire
3 307674
RADIATOR MOUNTING BUSH
IN STOCK 		- 2 Enquire
4 213559
BRACKET
IN STOCK 		- 3 Enquire
5 220330
COWL FOR ELECTRIC FANS
IN STOCK 		- 1 Enquire
6 212730
ELECTRIC FAN 		- 2 Enquire
7 83243900
WATER RADIATOR DUCT
Not for USA, CDN 		- 1 Enquire
7 83244000
WATER RADIATOR DUCT
Applicable for USA, CDN 		- 1 Enquire
8 69012000
LID 		- 1 Enquire
9 85833700
SCREW 		- 4 Enquire
10 235263
HEADER TANK 		- 1 Enquire
11 195999
HEADER TANK CAP 		- 1 Enquire
12 102947
VIBRATION DAMPER
IN STOCK 		- 3 Enquire
13 14059290
FLANGED NUT M6
IN STOCK 		- 1 Enquire
14 127494
WASHER
IN STOCK 		- 1 Enquire
15 250802
PIPE FROM RADIATOR TO HEADER TANK 		- 1 Enquire
16 250802
PIPE FROM RADIATOR TO HEADER TANK 		- 1 Enquire
17 177995
CLAMP
IN STOCK 		- 4 Enquire
18 227431
Bushing
IN STOCK 		- 3 Enquire
19 227430
WASHER 		- 6 Enquire
20 291225
P clip Bracket With Sheath
IN STOCK 		- 1 Enquire
21 86574700
SCREW 		- 1 Enquire
22 12643724
WASHER
IN STOCK 		- 1 Enquire
23 220821
WATER DRAIN PIPE 		- 1 Enquire
24 211847
HOSE 		- 2 Enquire
25 10260160
Copper Washer D. 10 - 14 x 1
IN STOCK 		- 4 Enquire
26 266456
PIPE FROM CONNECTOR TO HEADER TANK 		- 1 Enquire
27 262111
JUBILEE CLAMP
IN STOCK 		- 2 Enquire
28 67944600
FOUR-WAY UNION 		- 1 Enquire
29 260570
PRESHAPED PIPE -Valid after stock exhaustion of 202612- 		- 1 Enquire
30 13000490
Screw Collar
IN STOCK 		- 2 Enquire
31 10441790
BRACKET WITH SHEATH 		- 1 Enquire
32 16296934
SCREW 6 X 14MM
IN STOCK 		- 1 Enquire
33 11197774
WAVY WASHER D.6.4 X 12 X 1.2
IN STOCK 		- 1 Enquire
34 248423
RH CYLINDER HEAD WATER PIPE 		- 1 Enquire
35 239553
LH CYLINDER HEAD WATER PIPE
IN STOCK 		- 1 Enquire
36 235080
RUBBER SLEEVE - D.14,5 x 26,5 75-
D. 14.5 X 26.5 X 75
IN STOCK 		- 1 Enquire
37 13433370
Screw Collar
IN STOCK 		- 2 Enquire
38 203787
PIPE UNION 		- 2 Enquire
39 10259960
Copper Washer 18 - 24 x 1.5
IN STOCK 		- 4 Enquire
40 217759
RUBBER SHIM
100 X 10 X 3 mm 		- 3 Enquire
40 217760
RUBBER SHIM
40 X 10 X 3 mm 		- 2 Enquire
40 225467
RUBBER SHIM
410 X 10 X 3 mm 		- 4 Enquire
40 225468
RUBBER SHIM
200 X 10 X 3 mm 		- 3 Enquire
41 69250700
UPPER GASKET 		- 2 Enquire
41 69250800
LOWER SEAL 		- 2 Enquire
41 69250900
LATERAL SEAL 		- 2 Enquire
41 69850200
CENTRAL SEAL 		- 2 Enquire
42 11568124
SCREW
IN STOCK 		- 6 Enquire
43 82242400
WASHER 		- 6 Enquire
44 12638124
WASHER
IN STOCK 		- 6 Enquire
45 849234
SCREW 		- 3 Enquire
46 14058519
FLANGED NUT M8 X 8
IN STOCK 		- 1 Enquire
47 13839224
SCREW 		- 3 Enquire
48 80783800
UPPER GASKET
Not for USA, CDN, GOLFO 		- 1 Enquire
48 80784000
GASKET
L. 338 mm; Applicable for USA, CDN, GOLFO 		- 1 Enquire
48 80784100
GASKET
L. 518 mm; Applicable for USA, CDN, GOLFO 		- 1 Enquire
49 80783900
LOWER SEAL 		- 1 Enquire
50 251426
WATER DELIVERY PIPE 		- 1 Enquire
51 209972
WATER RETURN PIPE 		- 1 Enquire
52 13000790
SCREW COLLAR
IN STOCK 		- 2 Enquire
53 226317
HOSE UNION MOUNT 		- 1 Enquire
54 226394
MOUNT COVER 		- 1 Enquire
55 11568124
SCREW
IN STOCK 		- 2 Enquire
56 14498801
WASHER
IN STOCK 		- 2 Enquire
57 180137
TEMPERATURE SENSOR
IN STOCK 		- 1 Enquire
58 12601374
WASHER
IN STOCK 		- 2 Enquire
59 223456
PLATE 		- 3 Enquire
60 296781
COLLAR 30-45MM
IN STOCK 		- 2 Enquire
61 68574500
BRACKET 		- 1 Enquire
62 14507387
CAP 		- 1 Enquire
63 61081400
CLIP 		- 2 Enquire
