Ferrari 599 SA Aperta - AC SYSTEM - WATER PIPES

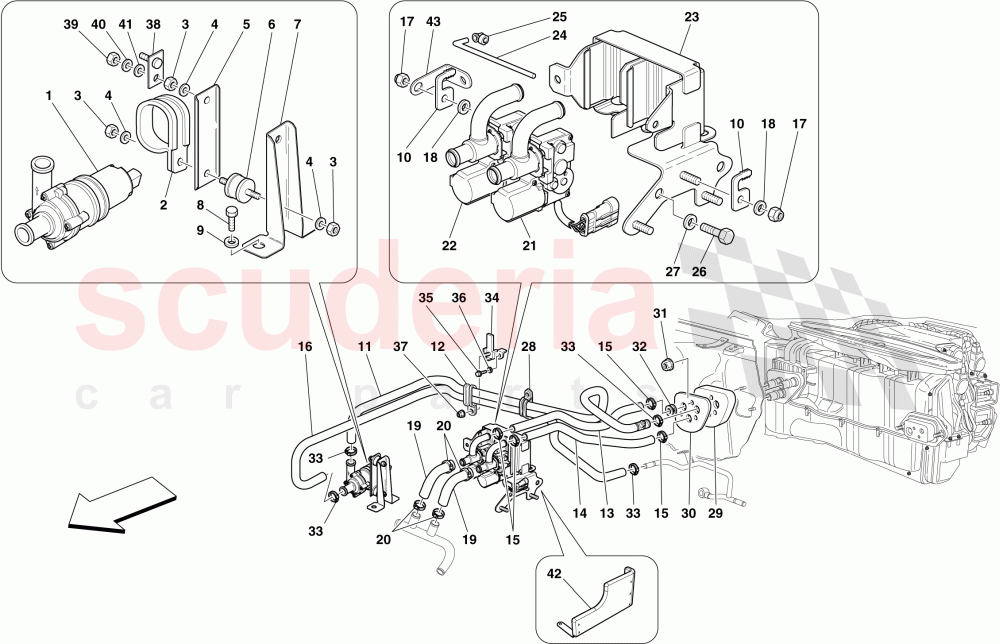

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	65460300	COMPLETE WATER PUMP	$465.32	To Order

Photo	Part No	Description	Price (each)	Stock
	107002	BRACKET WITH SHEATH	$27.42	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	69966100	PUMP FASTENER BRACKET	$304.86	To Order

Photo	Part No	Description	Price (each)	Stock
	897379	RUBBER BUSHING	$11.59	To Order

Photo	Part No	Description	Price (each)	Stock
	67925600	PUMP MOUNTING BRACKET	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	68040000	WASHER	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	162606	CLIP	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	255291	DELIVERY PIPE FROM PUMP TO HEATER	$286.67	To Order
	262468	DELIVERY PIPE FROM PUMP TO HEATER	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	$5.12	To Order
	80201900	BRACKET WITH SHEATH	$54.46	To Order

Photo	Part No	Description	Price (each)	Stock
	251561	PIPE FROM HEATER TO RH TGK	$75.40	To Order
	251562	PIPE FROM HEATER TO RH TGK	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	251559	PIPE FROM HEATER TO LH TGK	$70.59	To Order
	251560	PIPE FROM HEATER TO LH TGK	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	241896	DELIVERY PIPE	$256.72	To Order
	262467	DELIVERY PIPE	$150.82	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	67944500	RUBBER PIPE	$11.70	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	67444900	LH TGK VALVE	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	67635900	RH TGK VALVE	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	67944400	TGK VALVE MOUNTING BRACKET	$97.86	To Order

Photo	Part No	Description	Price (each)	Stock
	67933600	TGK VALVE FASTENER ROD	$1.78	To Order

Photo	Part No	Description	Price (each)	Stock
	748925	RUBBER CABLE GROMMET	$2.56	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	61712600	BRACKET WITH SHEATH	$1.78	To Order

Photo	Part No	Description	Price (each)	Stock
	67628400	PIPE SEAL	$6.03	To Order

Photo	Part No	Description	Price (each)	Stock
	67628500	PLATE	$8.93	To Order

Photo	Part No	Description	Price (each)	Stock
	14054511	NUT	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	67628300	SHIM	$3.32	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.60	To Order
	13000490	Screw Collar	$0.83	To Order

Photo	Part No	Description	Price (each)	Stock
	68568400	BRACKET	$27.26	To Order

Photo	Part No	Description	Price (each)	Stock
	86574700	SCREW	$0.71	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	159386	PLATE	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	269079	TGK VALVE SHIELD	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	219946	BRACKET	$4.47	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	65460300	COMPLETE WATER PUMP	65460300 COMPLETE WATER PUMP	$465.32	1
2	107002	BRACKET WITH SHEATH	107002 BRACKET WITH SHEATH	$27.42 MSRP: ~~35.41~~ (22.6% off)	1
3	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	5
4	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	5
5	69966100	PUMP FASTENER BRACKET	69966100 PUMP FASTENER BRACKET	$304.86	1
6	897379	RUBBER BUSHING	897379 RUBBER BUSHING	$11.59	2
7	67925600	PUMP MOUNTING BRACKET	67925600 PUMP MOUNTING BRACKET	$33.68	1
8	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM	$0.47	2
9	68040000	WASHER	68040000 WASHER	$0.15	2
10	162606	CLIP	162606 CLIP	$1.36 MSRP: ~~1.47~~ (7.5% off)	2
11	255291	DELIVERY PIPE FROM PUMP TO HEATER	255291 DELIVERY PIPE FROM PUMP TO HEATER Not for GD	$286.67	1
11	262468	DELIVERY PIPE FROM PUMP TO HEATER	262468 DELIVERY PIPE FROM PUMP TO HEATER Applicable for GD	$208.58	1
12	291225	P clip Bracket With Sheath	291225 P clip Bracket With Sheath Not for GD	$5.12	1
12	80201900	BRACKET WITH SHEATH	80201900 BRACKET WITH SHEATH Applicable for GD	$54.46	1
13	251561	PIPE FROM HEATER TO RH TGK	251561 PIPE FROM HEATER TO RH TGK Not for GD	$75.40	1
13	251562	PIPE FROM HEATER TO RH TGK	251562 PIPE FROM HEATER TO RH TGK Applicable for GD	$72.19	1
14	251559	PIPE FROM HEATER TO LH TGK	251559 PIPE FROM HEATER TO LH TGK Not for GD	$70.59	1
14	251560	PIPE FROM HEATER TO LH TGK	251560 PIPE FROM HEATER TO LH TGK Applicable for GD	$72.19	1
15	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	$1.60	4
16	241896	DELIVERY PIPE	241896 DELIVERY PIPE Not for GD	$256.72	1
16	262467	DELIVERY PIPE	262467 DELIVERY PIPE Applicable for GD	$150.82	1
17	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
18	10519424	WASHER	10519424 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	2
19	67944500	RUBBER PIPE	67944500 RUBBER PIPE	$11.70	2
20	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	$1.60	4
21	67444900	LH TGK VALVE	67444900 LH TGK VALVE	$240.67 MSRP: ~~288.01~~ (16.4% off)	1
22	67635900	RH TGK VALVE	67635900 RH TGK VALVE	$224.63 MSRP: ~~286.88~~ (21.7% off)	1
23	67944400	TGK VALVE MOUNTING BRACKET	67944400 TGK VALVE MOUNTING BRACKET	$97.86	1
24	67933600	TGK VALVE FASTENER ROD	67933600 TGK VALVE FASTENER ROD	$1.78	1
25	748925	RUBBER CABLE GROMMET	748925 RUBBER CABLE GROMMET	$2.56	1
26	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM	$0.47	3
27	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	3
28	61712600	BRACKET WITH SHEATH	61712600 BRACKET WITH SHEATH	$1.78	1
29	67628400	PIPE SEAL	67628400 PIPE SEAL	$6.03	1
30	67628500	PLATE	67628500 PLATE	$8.93	1
31	14054511	NUT	14054511 NUT	$1.30	3
32	67628300	SHIM	67628300 SHIM	$3.32	3
33	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	$1.60	4
33	13000490	Screw Collar	13000490 Screw Collar	$0.83 MSRP: ~~1.90~~ (56.3% off)	1
34	68568400	BRACKET	68568400 BRACKET	$27.26	1
35	86574700	SCREW	86574700 SCREW	$0.71	1
36	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	1
37	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
38	159386	PLATE	159386 PLATE	$2.25	1
39	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
40	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	1
41	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	1
42	269079	TGK VALVE SHIELD	269079 TGK VALVE SHIELD	$286.67	1
43	219946	BRACKET	219946 BRACKET	$4.47 MSRP: ~~6.50~~ (31.2% off)	1
