Ferrari 599 SA Aperta - AC SYSTEM - FREON PIPES

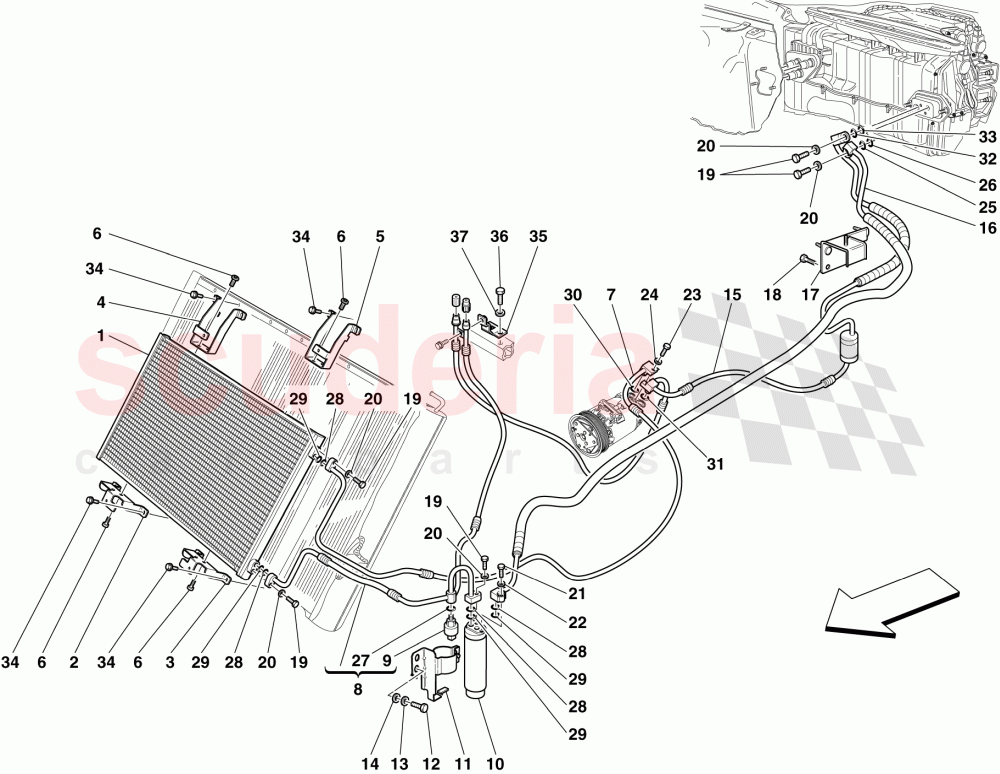

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	202285	AC CONDENSER	$1,069.81	To Order

Photo	Part No	Description	Price (each)	Stock
	217745	RH LOWER BRACKET	$131.56	To Order

Photo	Part No	Description	Price (each)	Stock
	217746	LH LOWER BRACKET	$131.56	To Order

Photo	Part No	Description	Price (each)	Stock
	217747	RH UPPER BRACKET	$137.98	To Order

Photo	Part No	Description	Price (each)	Stock
	217748	LH UPPER BRACKET	$137.98	To Order

Photo	Part No	Description	Price (each)	Stock
	226135	SCREW	$0.49	To Order

Photo	Part No	Description	Price (each)	Stock
	67949800	GAS PIPE FROM COMPRESSOR TO CONDENSER	$272.77	To Order

Photo	Part No	Description	Price (each)	Stock
	67949600	GAS PIPE FROM CONDENSER TO FILTER	$1,089.41	To Order

Photo	Part No	Description	Price (each)	Stock
	66374400	PRESSURE SWITCH	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	67085100	GAS FILTER	$57.59	To Order

Photo	Part No	Description	Price (each)	Stock
	67950000	DEHYDRATOR FILTER MOUNTING BRACKET	$81.82	To Order

Photo	Part No	Description	Price (each)	Stock
	13836971	SCREW	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	67949900	COMPRESSOR INLET PIPE	$946.70	To Order

Photo	Part No	Description	Price (each)	Stock
	67949700	GAS PIPE FROM FILTER TO EVAPORATOR	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	69246600	TUBE FASTENING BRACKET	$41.70	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW	$7.60	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	11193274	WASHER	$0.03	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	16044024	SCREW	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock

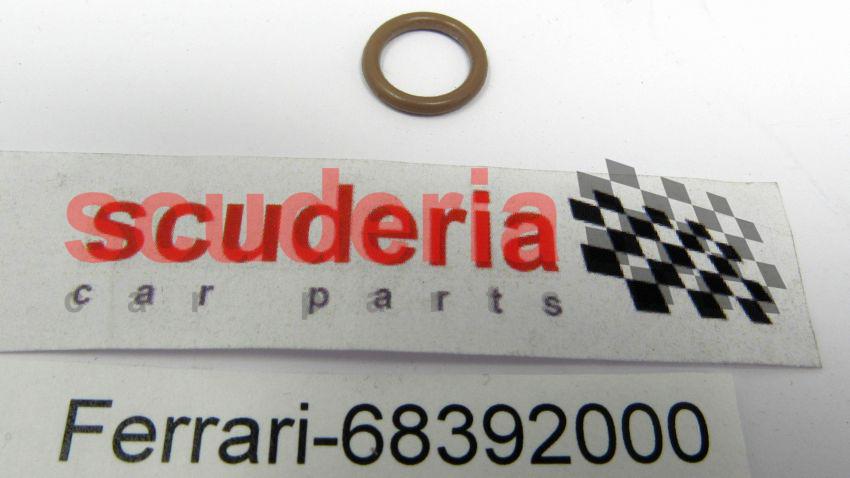

	68392000	O-RING	$13.14	To Order

Photo	Part No	Description	Price (each)	Stock
	68392100	O-RING	$6.68	To Order

Photo	Part No	Description	Price (each)	Stock

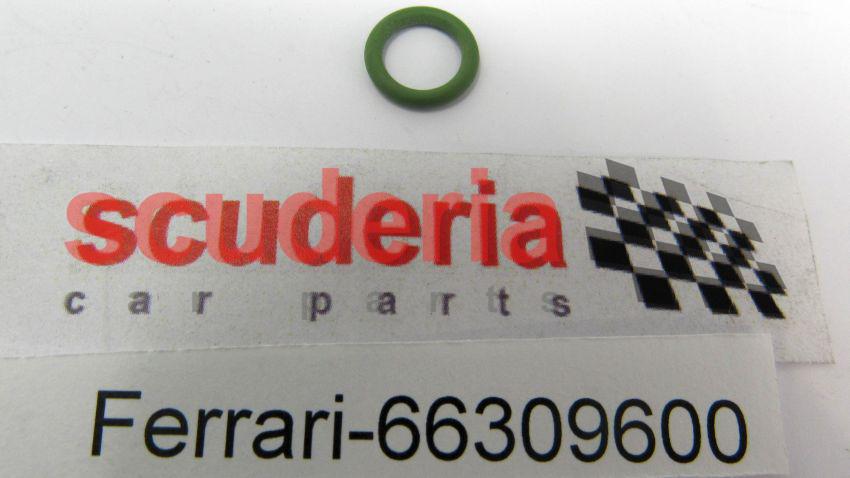

	66309600	O-RING	$2.06	To Order

Photo	Part No	Description	Price (each)	Stock

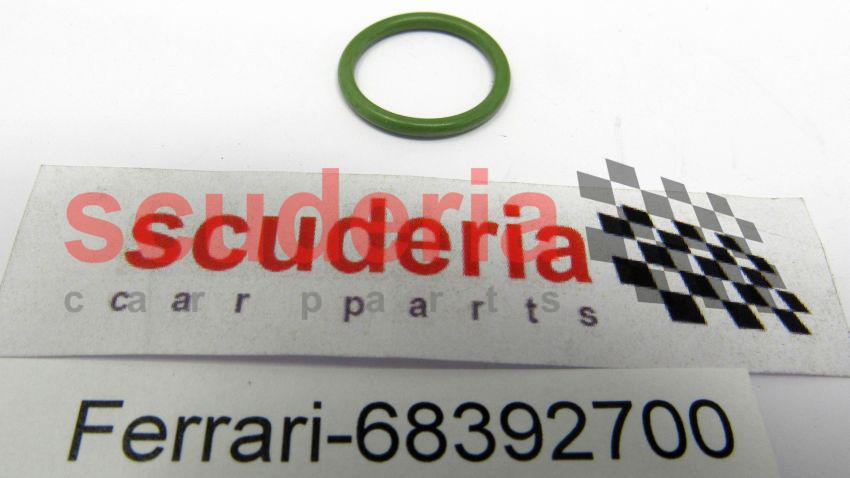

	68392700	O-RING	$5.66	To Order

Photo	Part No	Description	Price (each)	Stock
	66309700	O-RING	$11.73	To Order

Photo	Part No	Description	Price (each)	Stock
	66309400	O-RING A/C SYSTEM	$18.20	To Order

Photo	Part No	Description	Price (each)	Stock
	66309500	O-RING	$18.20	To Order

Photo	Part No	Description	Price (each)	Stock
	66309800	O-RING	$4.52	To Order

Photo	Part No	Description	Price (each)	Stock
	68392800	O-RING	$2.06	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock
	68570700	TUBE FASTENING BRACKET	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	13833614	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	$0.05	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	202285	AC CONDENSER	202285 AC CONDENSER	$1,069.81	1
2	217745	RH LOWER BRACKET	217745 RH LOWER BRACKET	$131.56	1
3	217746	LH LOWER BRACKET	217746 LH LOWER BRACKET	$131.56	1
4	217747	RH UPPER BRACKET	217747 RH UPPER BRACKET	$137.98	1
5	217748	LH UPPER BRACKET	217748 LH UPPER BRACKET	$137.98	1
6	226135	SCREW	226135 SCREW	$0.49	8
7	67949800	GAS PIPE FROM COMPRESSOR TO CONDENSER	67949800 GAS PIPE FROM COMPRESSOR TO CONDENSER	$272.77	1
8	67949600	GAS PIPE FROM CONDENSER TO FILTER	67949600 GAS PIPE FROM CONDENSER TO FILTER	$1,089.41	1
9	66374400	PRESSURE SWITCH	66374400 PRESSURE SWITCH	$240.67	1
10	67085100	GAS FILTER	67085100 GAS FILTER	$57.59 MSRP: ~~71.89~~ (19.9% off)	1
11	67950000	DEHYDRATOR FILTER MOUNTING BRACKET	67950000 DEHYDRATOR FILTER MOUNTING BRACKET	$81.82	1
12	13836971	SCREW	13836971 SCREW	$0.55 MSRP: ~~1.30~~ (57.7% off)	2
13	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
14	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	2
15	67949900	COMPRESSOR INLET PIPE	67949900 COMPRESSOR INLET PIPE	$946.70	1
16	67949700	GAS PIPE FROM FILTER TO EVAPORATOR	67949700 GAS PIPE FROM FILTER TO EVAPORATOR	$320.90	1
17	69246600	TUBE FASTENING BRACKET	69246600 TUBE FASTENING BRACKET	$41.70	1
18	250657	SCREW	250657 SCREW	$7.60	2
19	231625	SCREW	231625 SCREW	$0.65	5
20	11193274	WASHER	11193274 WASHER	$0.03	5
21	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM	$0.47	1
22	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	1
23	16044024	SCREW	16044024 SCREW	$0.37 MSRP: ~~0.87~~ (57.5% off)	1
24	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	1
25	68392000	O-RING	68392000 O-RING	$13.14	4
26	68392100	O-RING	68392100 O-RING	$6.68 MSRP: ~~6.99~~ (4.4% off)	4
27	66309600	O-RING	66309600 O-RING	$2.06	1
28	68392700	O-RING	68392700 O-RING	$5.66	1
29	66309700	O-RING	66309700 O-RING	$11.73 MSRP: ~~12.15~~ (3.5% off)	1
30	66309400	O-RING A/C SYSTEM	66309400 O-RING A/C SYSTEM	$18.20	1
31	66309500	O-RING	66309500 O-RING	$18.20	1
32	66309800	O-RING	66309800 O-RING	$4.52 MSRP: ~~5.23~~ (13.6% off)	1
33	68392800	O-RING	68392800 O-RING	$2.06	1
34	11568124	SCREW	11568124 SCREW	$0.94	8
35	68570700	TUBE FASTENING BRACKET	68570700 TUBE FASTENING BRACKET Applicable for GD	$286.67	1
36	13833614	SCREW	13833614 SCREW Applicable for GD	$1.36	1
37	12638124	WASHER	12638124 WASHER Applicable for GD	$0.05 MSRP: ~~0.70~~ (92.9% off)	1
