PASSENGER COMPARTMENT TRIM AND MATS of Ferrari Ferrari 599 GTO

View All

Ferrari 599 GTO - PASSENGER COMPARTMENT TRIM AND MATS

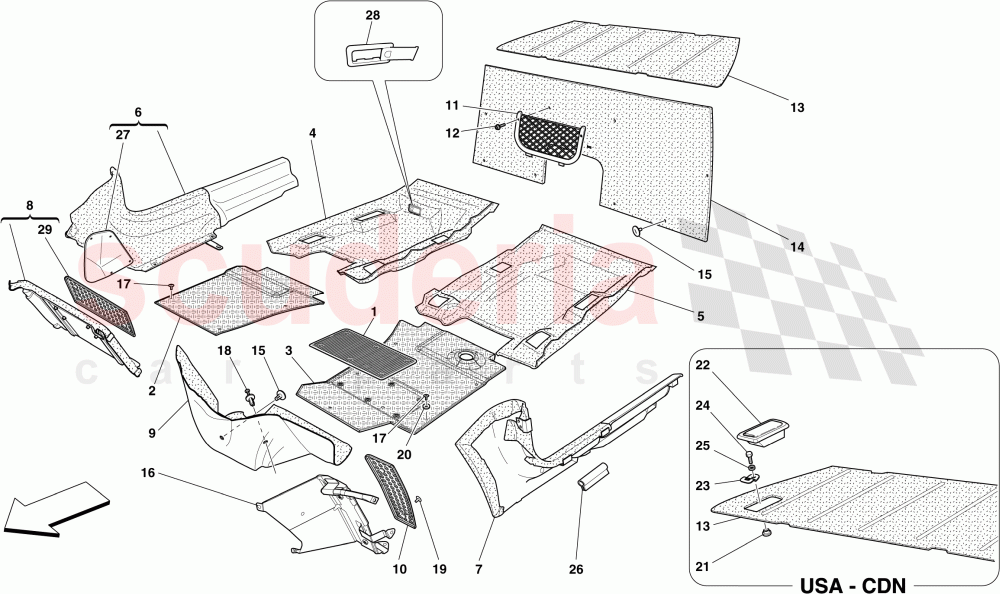

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	82926200	DRIVER SIDE MAT INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82728700	FRONT RH ENDPIECE	Enquire	To Order
	83066100	FRONT RH ENDPIECE	Enquire	To Order
	83263200	FRONT RH ENDPIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82728900	FRONT LH ENDPIECE	Enquire	To Order
	83066200	FRONT LH ENDPIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82711600	RH PREFORMED MAT	Enquire	To Order
	81709900	RH PREFORMED MAT	Enquire	To Order
	81710000	RH PREFORMED MAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82711700	LH PREFORMED MAT	Enquire	To Order
	81157000	LH PREFORMED MAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82779500	RH SILL TRIM	Enquire	To Order
	83209700	RH SILL TRIM	Enquire	To Order
	83156700	RH SILL TRIM	Enquire	To Order

...and 10 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	82779700	LH SILL TRIM	Enquire	To Order
	83209300	LH SILL TRIM	Enquire	To Order
	83209200	LH SILL TRIM	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	82753000	PASSENGER SIDE FOOTREST	Enquire	To Order
	83209800	PASSENGER SIDE FOOTREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82712000	FRONT LH PREFORMED MAT	Enquire	To Order
	83209900	FRONT RH PREFORMED MAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82926100	DRIVER SIDE FOOTREST	Enquire	To Order
	83206900	DRIVER SIDE FOOTREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81706800	REAR NET POCKET	Enquire	To Order
	69865700	REAR NET POCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	218200	Screw M5 x 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81705700	LUGGAGE SHELF	Enquire	To Order
	81706100	LUGGAGE SHELF	Enquire	To Order
	68555700	LUGGAGE SHELF	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	81706300	BACKREST TRIM	Enquire	To Order
	81706500	BACKREST TRIM	Enquire	To Order
	69360800	BACKREST TRIM	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	66252500	BUTTON FASTENER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67433100	DRIVER FOOTREST	Enquire	To Order
	67845400	DRIVER FOOTREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266368	SCREW	Enquire	To Order
	267559	SCREW	Enquire	To Order
	69952500	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68808600	BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65847800	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263276	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66485200	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69363400	ISOFIX SURROUND	Enquire	To Order
	81153400	ISOFIX SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69953400	BELT FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66535800	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67681200	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67932500	ACCELERATOR PEDAL SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84325300	VIN INSPECTION COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80635600	COVER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	82926200	DRIVER SIDE MAT INSERT	82926200 DRIVER SIDE MAT INSERT	-	1	Enquire
2	82728700	FRONT RH ENDPIECE	82728700 FRONT RH ENDPIECE Not for USA, CDN, GD	-	1	Enquire
2	83066100	FRONT RH ENDPIECE	83066100 FRONT RH ENDPIECE Applicable for GD	-	1	Enquire
2	83263200	FRONT RH ENDPIECE	83263200 FRONT RH ENDPIECE Applicable for USA, CDN	-	1	Enquire
3	82728900	FRONT LH ENDPIECE	82728900 FRONT LH ENDPIECE Not for GD	-	1	Enquire
3	83066200	FRONT LH ENDPIECE	83066200 FRONT LH ENDPIECE Applicable for GD	-	1	Enquire
4	82711600	RH PREFORMED MAT	82711600 RH PREFORMED MAT Alcantara; For Sabelt seats (Standard); Not for USA, CDN	-	1	Enquire
4	81709900	RH PREFORMED MAT	81709900 RH PREFORMED MAT Alcantara; For Recaro seats (Optional); Not for USA, CDN	-	1	Enquire
4	81710000	RH PREFORMED MAT	81710000 RH PREFORMED MAT Alcantara; Applicable for USA, CDN	-	1	Enquire
5	82711700	LH PREFORMED MAT	82711700 LH PREFORMED MAT Alcantara; For Sabelt seats (Standard); Not for USA, CDN	-	1	Enquire
5	81157000	LH PREFORMED MAT	81157000 LH PREFORMED MAT Alcantara; For Recaro seats (Optional)	-	1	Enquire
6	82779500	RH SILL TRIM	82779500 RH SILL TRIM Formula 1 technical fabric; STC1; STC2; Not for GD	-	1	Enquire
6	83209700	RH SILL TRIM	83209700 RH SILL TRIM Formula 1 technical fabric; STC1; STC2; Applicable for GD	-	1	Enquire
6	83156700	RH SILL TRIM	83156700 RH SILL TRIM Formula 1 technical fabric; With fire extinguisher; STC1; STC2; Not for GD	-	1	Enquire
6	82926400	RH SILL TRIM	82926400 RH SILL TRIM Carbon version; Not for GD	-	1	Enquire
6	83209400	RH SILL TRIM	83209400 RH SILL TRIM Carbon version; Applicable for GD	-	1	Enquire
6	83548900	RH SILL TRIM	83548900 RH SILL TRIM Carbon version; Applicable for GD	-	1	Enquire
6	83030600	RH SILL TRIM	83030600 RH SILL TRIM Carbon version; With fire extinguisher; Not for GD	-	1	Enquire
6	83155700	RH SILL TRIM	83155700 RH SILL TRIM Leather; STC1; STC2; Not for GD	-	1	Enquire
6	83209500	RH SILL TRIM	83209500 RH SILL TRIM Leather; STC1; STC2; Applicable for GD	-	1	Enquire
6	83155900	RH SILL TRIM	83155900 RH SILL TRIM Leather; With fire extinguisher; STC1; STC2; Not for GD	-	1	Enquire
6	83155800	RH SILL TRIM	83155800 RH SILL TRIM Alcantara; STC1; STC2; Not for GD	-	1	Enquire
6	83209600	RH SILL TRIM	83209600 RH SILL TRIM Alcantara; STC1; STC2; Applicable for GD	-	1	Enquire
6	83156000	RH SILL TRIM	83156000 RH SILL TRIM Alcantara; With fire extinguisher; STC1; STC2; Not for GD	-	1	Enquire
7	82779700	LH SILL TRIM	82779700 LH SILL TRIM Formula 1 technical fabric; STC1; STC2; Not for GD	-	1	Enquire
7	83209300	LH SILL TRIM	83209300 LH SILL TRIM Formula 1 technical fabric; STC1; STC2; Applicable for GD	-	1	Enquire
7	83209200	LH SILL TRIM	83209200 LH SILL TRIM Formula 1 technical fabric; With fire extinguisher; STC1; STC2; Applicable for GD	-	1	Enquire
7	82926300	LH SILL TRIM	82926300 LH SILL TRIM Carbon version; Not for GD	-	1	Enquire
7	83208600	LH SILL TRIM	83208600 LH SILL TRIM Carbon version; Applicable for GD	-	1	Enquire
7	83208700	LH SILL TRIM	83208700 LH SILL TRIM Carbon version; With fire extinguisher; Applicable for GD	-	1	Enquire
7	83156100	LH SILL TRIM	83156100 LH SILL TRIM Leather; STC1; STC2; Not for GD	-	1	Enquire
7	83208800	LH SILL TRIM	83208800 LH SILL TRIM Leather; STC1; STC2; Applicable for GD	-	1	Enquire
7	83209000	LH SILL TRIM	83209000 LH SILL TRIM Leather; With fire extinguisher; STC1; STC2; Applicable for GD	-	1	Enquire
7	83156200	LH SILL TRIM	83156200 LH SILL TRIM Alcantara; STC1; STC2; Not for GD	-	1	Enquire
7	83208900	LH SILL TRIM	83208900 LH SILL TRIM Alcantara; STC1; STC2; Applicable for GD	-	1	Enquire
7	83209100	LH SILL TRIM	83209100 LH SILL TRIM Alcantara; With fire extinguisher; STC1; STC2; Applicable for GD	-	1	Enquire
8	82753000	PASSENGER SIDE FOOTREST	82753000 PASSENGER SIDE FOOTREST Formula 1 technical fabric; Not for GD	-	1	Enquire
8	83209800	PASSENGER SIDE FOOTREST	83209800 PASSENGER SIDE FOOTREST Formula 1 technical fabric; Applicable for GD	-	1	Enquire
9	82712000	FRONT LH PREFORMED MAT	82712000 FRONT LH PREFORMED MAT Alcantara; Not for GD	-	1	Enquire
9	83209900	FRONT RH PREFORMED MAT	83209900 FRONT RH PREFORMED MAT Alcantara; Applicable for GD	-	1	Enquire
10	82926100	DRIVER SIDE FOOTREST	82926100 DRIVER SIDE FOOTREST Not for GD	-	1	Enquire
10	83206900	DRIVER SIDE FOOTREST	83206900 DRIVER SIDE FOOTREST Applicable for GD	-	1	Enquire
11	81706800	REAR NET POCKET	81706800 REAR NET POCKET Alcantara	-	1	Enquire
11	69865700	REAR NET POCKET	69865700 REAR NET POCKET Leather	-	1	Enquire
12	218200	Screw M5 x 30	218200 Screw M5 x 30	-	2	Enquire
13	81705700	LUGGAGE SHELF	81705700 LUGGAGE SHELF Alcantara; Not for USA, CDN	-	1	Enquire
13	81706100	LUGGAGE SHELF	81706100 LUGGAGE SHELF Alcantara; Applicable for USA, CDN	-	1	Enquire
13	68555700	LUGGAGE SHELF	68555700 LUGGAGE SHELF Leather; Not for USA, CDN	-	1	Enquire
13	69128800	LUGGAGE SHELF	69128800 LUGGAGE SHELF Leather; Applicable for USA, CDN	-	1	Enquire
13	81705900	LUGGAGE SHELF	81705900 LUGGAGE SHELF Version with roll bar; Not for AUS, USA, CDN	-	1	Enquire
13	69254400	LUGGAGE SHELF	69254400 LUGGAGE SHELF Leather + roll bar; Not for AUS, USA, CDN	-	1	Enquire
14	81706300	BACKREST TRIM	81706300 BACKREST TRIM Alcantara; Not for USA, CDN	-	1	Enquire
14	81706500	BACKREST TRIM	81706500 BACKREST TRIM Alcantara; Applicable for USA, CDN	-	1	Enquire
14	69360800	BACKREST TRIM	69360800 BACKREST TRIM Leather; Not for USA, CDN	-	1	Enquire
14	69952900	BACKREST TRIM	69952900 BACKREST TRIM Leather; Applicable for USA, CDN	-	1	Enquire
15	66252500	BUTTON FASTENER	66252500 BUTTON FASTENER	-	5	Enquire
16	67433100	DRIVER FOOTREST	67433100 DRIVER FOOTREST Not for GD	-	1	Enquire
16	67845400	DRIVER FOOTREST	67845400 DRIVER FOOTREST Applicable for GD	-	1	Enquire
17	266368	SCREW	266368 SCREW	-	5	Enquire
17	267559	SCREW	267559 SCREW	-	4	Enquire
17	69952500	SCREW	69952500 SCREW	-	1	Enquire
18	68808600	BUTTON	68808600 BUTTON	-	1	Enquire
19	65847800	SCREW	65847800 SCREW	-	2	Enquire
20	263276	WASHER	263276 WASHER	-	10	Enquire
21	66485200	SHIM	66485200 SHIM Applicable for USA, CDN	-	1	Enquire
22	69363400	ISOFIX SURROUND	69363400 ISOFIX SURROUND Not for version in leather; Applicable for USA, CDN	-	1	Enquire
22	81153400	ISOFIX SURROUND	81153400 ISOFIX SURROUND Applicable for version in leather; Applicable for USA, CDN	-	1	Enquire
23	69953400	BELT FASTENER BRACKET	69953400 BELT FASTENER BRACKET Applicable for USA, CDN	-	1	Enquire
24	66535800	SCREW	66535800 SCREW Applicable for USA, CDN	-	1	Enquire
25	12601374	WASHER	12601374 WASHER Applicable for USA, CDN	-	1	Enquire
26	67681200	GASKET	67681200 GASKET	-	4	Enquire
27	67932500	ACCELERATOR PEDAL SHIELD	67932500 ACCELERATOR PEDAL SHIELD Applicable for GD	-	1	Enquire
28	84325300	VIN INSPECTION COVER	84325300 VIN INSPECTION COVER	-	1	Enquire
29	80635600	COVER	80635600 COVER	-	1	Enquire
