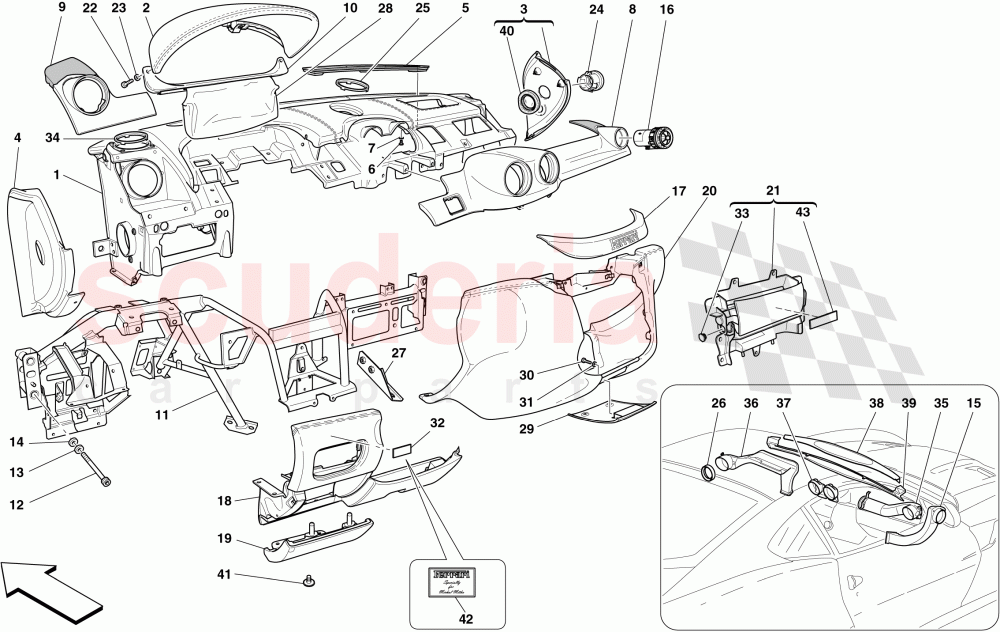

Ferrari 599 GTO - DASHBOARD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	69156400	UPPER DASHBOARD SUBSTRUCTURE	Enquire	To Order
	69130600	UPPER DASHBOARD SUBSTRUCTURE	Enquire	To Order
	69137112	UPPER DASHBOARD FRAMEWORK -Optional- -Hi	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	82776912	BINNACLE	Enquire	To Order
	85849300	BINNACLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82774612	RH DASH END PANEL	Enquire	To Order
	83160012	RH DASH END PANEL	Enquire	To Order
	66851600	RH DASHBOARD END PANEL	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	82774812	LH DASH END PANEL	Enquire	To Order
	66851700	LH DASHBOARD END PANEL	Enquire	To Order
	83300900	LH DASHBOARD END PANEL	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	80464800	RH UNDER WINDSCREEN TRAY	Enquire	To Order
	80464900	LH UNDER WINDSCREEN TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15526501	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12642821	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83284300	PASSENGER SIDE MOULDING	Enquire	To Order
	83284800	PASSENGER SIDE MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83284400	DRIVER SIDE MOULDING	Enquire	To Order
	83284900	DRIVER SIDE MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83286400	LOWER BINNACLE MOULDING	Enquire	To Order
	69257900	LOWER BINNACLE MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83188900	DASHBOARD MOUNTING CROSS-MEMBER	Enquire	To Order
	83227700	DASHBOARD MOUNTING CROSS-MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14307224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66853100	AIR DUCT TO RH DASH END PANEL	Enquire	To Order
	66853200	AIR DUCT TO LH DASH END PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81602500	AIR VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83284600	CENTRE LIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82774712	LH LOWER LATERAL SUBSTRUCTURE	Enquire	To Order
	83223700	RH LATERAL LOWER SUBSTRUCTURE	Enquire	To Order
	83298400	LH LOWER LATERAL SUBSTRUCTURE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	82774912	COMPL. BODY COMPUTER COVER PANEL	Enquire	To Order
	83254000	COMPL. BODY COMPUTER COVER	Enquire	To Order
	83207300	COMPL. BODY COMPUTER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82774512	HANG-DOWN SECTION FLANKS	Enquire	To Order
	85849400	DASH CENTRE CONSOLE SURROUND	Enquire	To Order
	85849500	DASH CENTRE CONSOLE SURROUND	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	83284700	RADIO SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13273977	SCREW	Enquire	To Order
	10977887	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68126800	AIR VENT SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69707100	CENTRE TWIDDLER SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81152300	LATERAL AIR DUCT SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67003000	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68576600	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83284500	LOWER CENTRAL MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83125600	CAMPIONI DEL MONDO 2010 LABEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	261198	DUMPER KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69711100	SURROUND FOR RH TWIDDLER	Enquire	To Order
	69711100	SURROUND FOR RH TWIDDLER	Enquire	To Order
	69711200	SURROUND FOR LH TWIDDLER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	81155900	AIR DUCT TO RH LATERAL VENT	Enquire	To Order
	81601300	AIR DUCT TO RH LATERAL VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81156200	AIR DUCT TO LH LATERAL VENT	Enquire	To Order
	81601500	AIR DUCT TO LH LATERAL VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81156500	CENTRAL AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67184300	FRONT SECTION OF DEFROSTER DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67184400	REAR SECTION OF DEFROSTER DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67324900	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85199200	FIXING BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85138200	SPECIAL LIMITED EDITION PLAQUE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83444100	'599 LIMITED' BADGE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	69156400	UPPER DASHBOARD SUBSTRUCTURE	69156400 UPPER DASHBOARD SUBSTRUCTURE Leather; Standard; STC1; STC2; Not for GD	-	1	Enquire
1	69130600	UPPER DASHBOARD SUBSTRUCTURE	69130600 UPPER DASHBOARD SUBSTRUCTURE Leather; Standard; STC1; STC2; Applicable for GD	-	1	Enquire
1	69137112	UPPER DASHBOARD FRAMEWORK -Optional- -Hi	69137112 UPPER DASHBOARD FRAMEWORK -Optional- -Hi Leather; Hi-Fi version; STC1; STC2; Not for GD	-	1	Enquire
1	69137600	UPPER DASHBOARD SUBSTRUCTURE	69137600 UPPER DASHBOARD SUBSTRUCTURE Leather; Hi-Fi version; STC1; STC2; Applicable for GD	-	1	Enquire
1	83161700	UPPER DASHBOARD SUBSTRUCTURE	83161700 UPPER DASHBOARD SUBSTRUCTURE Formula 1 technical fabric; Standard; STC1; STC2; Not for GD	-	1	Enquire
1	83223900	UPPER DASHBOARD SUBSTRUCTURE	83223900 UPPER DASHBOARD SUBSTRUCTURE Formula 1 technical fabric; Standard; STC1; STC2; Applicable for GD	-	1	Enquire
1	82707300	UPPER DASHBOARD SUBSTRUCTURE	82707300 UPPER DASHBOARD SUBSTRUCTURE Formula 1 technical fabric; Hi-Fi version; STC1; STC2; Not for GD	-	1	Enquire
1	83225300	UPPER DASHBOARD SUBSTRUCTURE	83225300 UPPER DASHBOARD SUBSTRUCTURE Formula 1 technical fabric; Hi-Fi version; STC1; STC2; Applicable for GD	-	1	Enquire
2	82776912	BINNACLE	82776912 BINNACLE Formula 1 technical fabric; STC1; STC2	-	1	Enquire
2	85849300	BINNACLE	85849300 BINNACLE Leather; STC1; STC2	-	1	Enquire
3	82774612	RH DASH END PANEL	82774612 RH DASH END PANEL Formula 1 technical fabric; Not for GD	-	1	Enquire
3	83160012	RH DASH END PANEL	83160012 RH DASH END PANEL Formula 1 technical fabric; Applicable for vehicles with passenger side airbag deactivation; Not for USA, CDN, J, GD	-	1	Enquire
3	66851600	RH DASHBOARD END PANEL	66851600 RH DASHBOARD END PANEL Leather; Not for GD	-	1	Enquire
3	67445500	RH DASHBOARD END PANEL	67445500 RH DASHBOARD END PANEL Leather; Applicable for vehicles with passenger side airbag deactivation; Not for USA, CDN, J, GD	-	1	Enquire
3	83300500	RH DASHBOARD END PANEL	83300500 RH DASHBOARD END PANEL Alcantara; Applicable for vehicles with passenger side airbag deactivation; Not for USA, CDN, J, GD	-	1	Enquire
3	83300700	RH DASHBOARD END PANEL	83300700 RH DASHBOARD END PANEL Alcantara; Not for GD	-	1	Enquire
3	83347200	RH DASHBOARD END PANEL	83347200 RH DASHBOARD END PANEL Carbon; Not for GD	-	1	Enquire
3	83347300	RH DASHBOARD END PANEL	83347300 RH DASHBOARD END PANEL Carbon; Applicable for vehicles with passenger side airbag deactivation; Not for USA, CDN, J, GD	-	1	Enquire
3	83207000	RH DASHBOARD END PANEL	83207000 RH DASHBOARD END PANEL Formula 1 technical fabric; Applicable for GD	-	1	Enquire
3	67455900	RH DASHBOARD END PANEL	67455900 RH DASHBOARD END PANEL Leather; Applicable for GD	-	1	Enquire
3	83301400	RH DASHBOARD END PANEL	83301400 RH DASHBOARD END PANEL Alcantara; Applicable for GD	-	1	Enquire
3	83347500	RH DASHBOARD END PANEL	83347500 RH DASHBOARD END PANEL Carbon; Applicable for GD	-	1	Enquire
4	82774812	LH DASH END PANEL	82774812 LH DASH END PANEL Formula 1 technical fabric; Not for GD	-	1	Enquire
4	66851700	LH DASHBOARD END PANEL	66851700 LH DASHBOARD END PANEL Leather; Not for GD	-	1	Enquire
4	83300900	LH DASHBOARD END PANEL	83300900 LH DASHBOARD END PANEL Alcantara; Not for GD	-	1	Enquire
4	83347400	LH DASHBOARD END PANEL	83347400 LH DASHBOARD END PANEL Carbon; Not for GD	-	1	Enquire
4	83207100	LH DASHBOARD END PANEL	83207100 LH DASHBOARD END PANEL Formula 1 technical fabric; Applicable for GD	-	1	Enquire
4	83207200	LH DASHBOARD END PANEL	83207200 LH DASHBOARD END PANEL Formula 1 technical fabric; Applicable for vehicles with passenger side airbag deactivation; Applicable for UK	-	1	Enquire
4	67456000	LH DASHBOARD END PANEL	67456000 LH DASHBOARD END PANEL Leather; Applicable for GD	-	1	Enquire
4	67841600	LH DASHBOARD END PANEL	67841600 LH DASHBOARD END PANEL Leather; Applicable for vehicles with passenger side airbag deactivation; Applicable for UK	-	1	Enquire
4	83301600	LH DASHBOARD END PANEL	83301600 LH DASHBOARD END PANEL Alcantara; Applicable for GD	-	1	Enquire
4	83301700	LH DASHBOARD END PANEL	83301700 LH DASHBOARD END PANEL Alcantara; Applicable for vehicles with passenger side airbag deactivation; Applicable for UK	-	1	Enquire
4	83347600	LH DASHBOARD END PANEL	83347600 LH DASHBOARD END PANEL Carbon; Applicable for GD	-	1	Enquire
4	83347700	LH DASHBOARD END PANEL	83347700 LH DASHBOARD END PANEL Carbon; Applicable for vehicles with passenger side airbag deactivation; Applicable for UK	-	1	Enquire
5	80464800	RH UNDER WINDSCREEN TRAY	80464800 RH UNDER WINDSCREEN TRAY Leather; Version in colour matching vehicle interior	-	1	Enquire
5	80464900	LH UNDER WINDSCREEN TRAY	80464900 LH UNDER WINDSCREEN TRAY Leather; Version in colour matching vehicle interior	-	1	Enquire
6	15526501	SCREW	15526501 SCREW	-	6	Enquire
7	12642821	WASHER	12642821 WASHER	-	6	Enquire
8	83284300	PASSENGER SIDE MOULDING	83284300 PASSENGER SIDE MOULDING Carbon with grille in same colour as dashboard; Not for GD	-	1	Enquire
8	83284800	PASSENGER SIDE MOULDING	83284800 PASSENGER SIDE MOULDING Carbon with grille in same colour as dashboard; Applicable for GD	-	1	Enquire
9	83284400	DRIVER SIDE MOULDING	83284400 DRIVER SIDE MOULDING Carbon with grille in same colour as dashboard; Not for GD	-	1	Enquire
9	83284900	DRIVER SIDE MOULDING	83284900 DRIVER SIDE MOULDING Carbon with grille in same colour as dashboard; Applicable for GD	-	1	Enquire
10	83286400	LOWER BINNACLE MOULDING	83286400 LOWER BINNACLE MOULDING Standard	-	1	Enquire
10	69257900	LOWER BINNACLE MOULDING	69257900 LOWER BINNACLE MOULDING Version in leather	-	1	Enquire
11	83188900	DASHBOARD MOUNTING CROSS-MEMBER	83188900 DASHBOARD MOUNTING CROSS-MEMBER Not for GD	-	1	Enquire
11	83227700	DASHBOARD MOUNTING CROSS-MEMBER	83227700 DASHBOARD MOUNTING CROSS-MEMBER Applicable for GD	-	1	Enquire
12	14307224	SCREW	14307224 SCREW	-	4	Enquire
13	12647021	WASHER	12647021 WASHER	-	4	Enquire
14	127496	WASHER	127496 WASHER	-	4	Enquire
15	66853100	AIR DUCT TO RH DASH END PANEL	66853100 AIR DUCT TO RH DASH END PANEL	-	1	Enquire
15	66853200	AIR DUCT TO LH DASH END PANEL	66853200 AIR DUCT TO LH DASH END PANEL	-	1	Enquire
16	81602500	AIR VENT	81602500 AIR VENT	-	4	Enquire
17	83284600	CENTRE LIP	83284600 CENTRE LIP	-	1	Enquire
18	82774712	LH LOWER LATERAL SUBSTRUCTURE	82774712 LH LOWER LATERAL SUBSTRUCTURE Formula 1 technical fabric; STC1; STC2; Not for GD	-	1	Enquire
18	83223700	RH LATERAL LOWER SUBSTRUCTURE	83223700 RH LATERAL LOWER SUBSTRUCTURE Formula 1 technical fabric; STC1; STC2; Applicable for GD	-	1	Enquire
18	83298400	LH LOWER LATERAL SUBSTRUCTURE	83298400 LH LOWER LATERAL SUBSTRUCTURE Leather; STC1; STC2; Not for GD	-	1	Enquire
18	83299100	RH LOWER LATERAL SUBSTRUCTURE	83299100 RH LOWER LATERAL SUBSTRUCTURE Leather; STC1; STC2; Applicable for GD	-	1	Enquire
18	83298500	LH LOWER LATERAL SUBSTRUCTURE	83298500 LH LOWER LATERAL SUBSTRUCTURE Alcantara; STC1; STC2; Not for GD	-	1	Enquire
18	83299300	RH LOWER LATERAL SUBSTRUCTURE	83299300 RH LOWER LATERAL SUBSTRUCTURE Alcantara; STC1; STC2; Applicable for GD	-	1	Enquire
19	82774912	COMPL. BODY COMPUTER COVER PANEL	82774912 COMPL. BODY COMPUTER COVER PANEL Formula 1 technical fabric; Not for USA, CDN, GD	-	1	Enquire
19	83254000	COMPL. BODY COMPUTER COVER	83254000 COMPL. BODY COMPUTER COVER Formula 1 technical fabric; Applicable for USA, CDN	-	1	Enquire
19	83207300	COMPL. BODY COMPUTER COVER	83207300 COMPL. BODY COMPUTER COVER Formula 1 technical fabric; Applicable for GD	-	1	Enquire
20	82774512	HANG-DOWN SECTION FLANKS	82774512 HANG-DOWN SECTION FLANKS Formula 1 technical fabric; STC1; STC2; Not for GD	-	1	Enquire
20	85849400	DASH CENTRE CONSOLE SURROUND	85849400 DASH CENTRE CONSOLE SURROUND Leather; STC1; STC2; Not for GD	-	1	Enquire
20	85849500	DASH CENTRE CONSOLE SURROUND	85849500 DASH CENTRE CONSOLE SURROUND Alcantara; STC1; STC2; Not for GD	-	1	Enquire
20	83058512	HANG-DOWN SECTION FLANKS	83058512 HANG-DOWN SECTION FLANKS Formula 1 technical fabric; STC1; STC2; Applicable for GD	-	1	Enquire
20	85849600	DASH CENTRE CONSOLE SURROUND	85849600 DASH CENTRE CONSOLE SURROUND Leather; STC1; STC2; Applicable for GD	-	1	Enquire
20	85826700	DASH CENTRE CONSOLE SURROUND	85826700 DASH CENTRE CONSOLE SURROUND Alcantara; STC1; STC2; Applicable for GD	-	1	Enquire
21	83284700	RADIO SURROUND	83284700 RADIO SURROUND	-	1	Enquire
22	13273977	SCREW	13273977 SCREW Carbon version	-	2	Enquire
22	10977887	SCREW	10977887 SCREW Version in leather	-	2	Enquire
23	12637824	WASHER	12637824 WASHER	-	2	Enquire
24	68126800	AIR VENT SURROUND	68126800 AIR VENT SURROUND	-	2	Enquire
25	69707100	CENTRE TWIDDLER SURROUND	69707100 CENTRE TWIDDLER SURROUND Version in colour matching vehicle interior; Hi-Fi version	-	1	Enquire
26	81152300	LATERAL AIR DUCT SEAL	81152300 LATERAL AIR DUCT SEAL	-	4	Enquire
27	67003000	RH BRACKET	67003000 RH BRACKET Not for GD	-	1	Enquire
28	68576600	COVER	68576600 COVER	-	1	Enquire
29	83284500	LOWER CENTRAL MOULDING	83284500 LOWER CENTRAL MOULDING	-	1	Enquire
30	85833700	SCREW	85833700 SCREW	-	2	Enquire
31	12637824	WASHER	12637824 WASHER	-	2	Enquire
32	83125600	CAMPIONI DEL MONDO 2010 LABEL	83125600 CAMPIONI DEL MONDO 2010 LABEL	-	1	Enquire
33	261198	DUMPER KIT	261198 DUMPER KIT	-	1	Enquire
34	69711100	SURROUND FOR RH TWIDDLER	69711100 SURROUND FOR RH TWIDDLER Soft touch black version	-	1	Enquire
34	69711100	SURROUND FOR RH TWIDDLER	69711100 SURROUND FOR RH TWIDDLER Version in colour matching vehicle interior	-	1	Enquire
34	69711200	SURROUND FOR LH TWIDDLER	69711200 SURROUND FOR LH TWIDDLER Soft touch black version	-	1	Enquire
34	69711200	SURROUND FOR LH TWIDDLER	69711200 SURROUND FOR LH TWIDDLER Version in colour matching vehicle interior	-	1	Enquire
35	81155900	AIR DUCT TO RH LATERAL VENT	81155900 AIR DUCT TO RH LATERAL VENT Not for GD	-	1	Enquire
35	81601300	AIR DUCT TO RH LATERAL VENT	81601300 AIR DUCT TO RH LATERAL VENT Applicable for GD	-	1	Enquire
36	81156200	AIR DUCT TO LH LATERAL VENT	81156200 AIR DUCT TO LH LATERAL VENT Not for GD	-	1	Enquire
36	81601500	AIR DUCT TO LH LATERAL VENT	81601500 AIR DUCT TO LH LATERAL VENT Applicable for GD	-	1	Enquire
37	81156500	CENTRAL AIR DUCT	81156500 CENTRAL AIR DUCT	-	1	Enquire
38	67184300	FRONT SECTION OF DEFROSTER DUCT	67184300 FRONT SECTION OF DEFROSTER DUCT	-	1	Enquire
39	67184400	REAR SECTION OF DEFROSTER DUCT	67184400 REAR SECTION OF DEFROSTER DUCT	-	1	Enquire
40	67324900	GASKET	67324900 GASKET Order separately for carbon version	-	2	Enquire
41	85199200	FIXING BUTTON	85199200 FIXING BUTTON	-	2	Enquire
42	85138200	SPECIAL LIMITED EDITION PLAQUE	85138200 SPECIAL LIMITED EDITION PLAQUE	-	1	Enquire
43	83444100	'599 LIMITED' BADGE	83444100 '599 LIMITED' BADGE	-	1	Enquire
