FRONT SEAT - TRIM AND INTERNAL COMPONENTS of Ferrari Ferrari 599 GTO

View All

Ferrari 599 GTO - FRONT SEAT - TRIM AND INTERNAL COMPONENTS

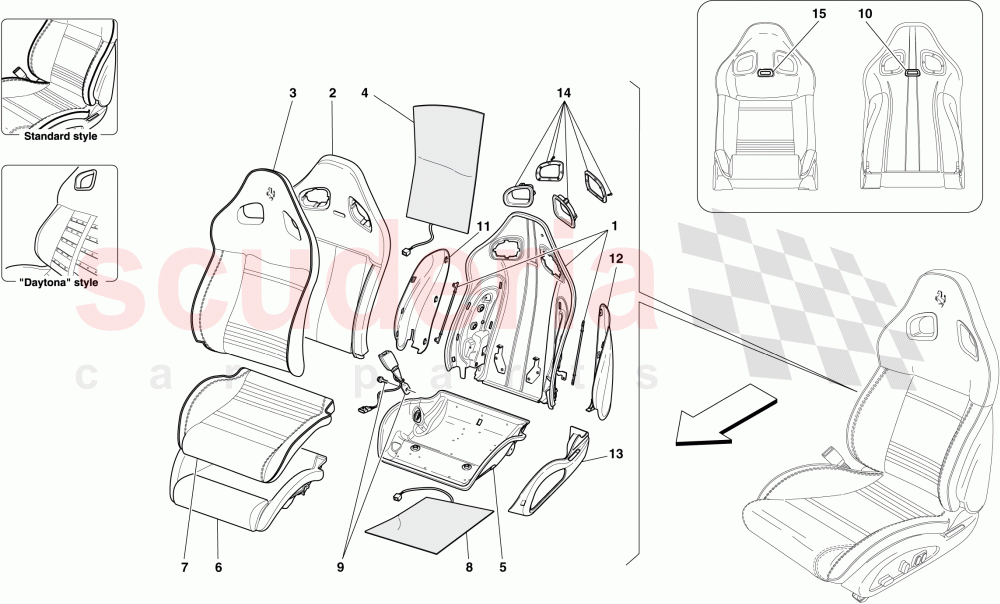

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	83632500	RH BACKREST STRUCTURE WITH BARS	Enquire	To Order
	83632600	RH BACKREST STRUCTURE WITH BARS	Enquire	To Order
	83632400	LH BACKREST STRUCTURE WITH BARS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80998800	BACKREST PADDING	Enquire	To Order
	80999200	BACKREST PADDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83629400	BACKREST UPHOLSTERY	Enquire	To Order
	83630000	BACKREST UPHOLSTERY	Enquire	To Order
	83629700	BACKREST UPHOLSTERY	Enquire	To Order

...and 12 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	223018	BACKREST HEATING PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66220300	CUSHION STRUCTURE	Enquire	To Order
	65962800	CUSHION STRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66220400	CUSHION PADDING	Enquire	To Order
	65962900	CUSHION PADDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83630600	CUSHION UPHOLSTERY	Enquire	To Order
	83631200	CUSHION UPHOLSTERY	Enquire	To Order
	83630900	CUSHION UPHOLSTERY	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	223019	CUSHION HEATING PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80217600	SEAT BELT BUCKLE STALK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81602700	REAR SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83632200	RH CUSHION SIDE PANEL WITH CLIPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83632100	LH CUSHION SIDE PANEL WITH CLIPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83631800	RH CUSHION SIDE PANEL	Enquire	To Order
	83631700	LH CUSHION SIDE PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83632300	BELT GUIDE HOLE KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81602800	LOWER SURROUND	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	83632500	RH BACKREST STRUCTURE WITH BARS	83632500 RH BACKREST STRUCTURE WITH BARS Not for USA, CDN	-	1	Enquire
1	83632600	RH BACKREST STRUCTURE WITH BARS	83632600 RH BACKREST STRUCTURE WITH BARS Top tether; Applicable for USA, CDN	-	1	Enquire
1	83632400	LH BACKREST STRUCTURE WITH BARS	83632400 LH BACKREST STRUCTURE WITH BARS	-	1	Enquire
2	80998800	BACKREST PADDING	80998800 BACKREST PADDING LH seat	-	1	Enquire
2	80999200	BACKREST PADDING	80999200 BACKREST PADDING RH seat	-	1	Enquire
3	83629400	BACKREST UPHOLSTERY	83629400 BACKREST UPHOLSTERY F1 fabric + 3D fabric; RH seat; T3D1; STC1; STC2; ALPT; Not for USA, CDN	-	1	Enquire
3	83630000	BACKREST UPHOLSTERY	83630000 BACKREST UPHOLSTERY Alcantara + 3D fabric; RH seat; INTA; T3D1; STC1; STC2; ALPT; Not for USA, CDN	-	1	Enquire
3	83629700	BACKREST UPHOLSTERY	83629700 BACKREST UPHOLSTERY Leather + 3D fabric; RH seat; INTP; T3D1; STC1; STC2; ALPT; Not for USA, CDN	-	1	Enquire
3	83630300	BACKREST UPHOLSTERY	83630300 BACKREST UPHOLSTERY Leather + Alcantara; RH seat; INTP; T3D1; ELEG; STC1; STC2; ALPT; Not for USA, CDN	-	1	Enquire
3	80219500	BACKREST LINING	80219500 BACKREST LINING Leather; RH seat; Daytona; DAY1; T3D1; STC1; STC2; STP1; STP2; Not for USA, CDN	-	1	Enquire
3	83629500	BACKREST UPHOLSTERY	83629500 BACKREST UPHOLSTERY F1 fabric + 3D fabric; Top tether; RH seat; T3D1; STC1; STC2; ALPT; Applicable for USA, CDN	-	1	Enquire
3	83630100	BACKREST UPHOLSTERY	83630100 BACKREST UPHOLSTERY Alcantara + 3D fabric; Top tether; RH seat; INTA; T3D1; STC1; STC2; ALPT; Applicable for USA, CDN	-	1	Enquire
3	83629800	BACKREST UPHOLSTERY	83629800 BACKREST UPHOLSTERY Leather + 3D fabric; Top tether; RH seat; INTP; T3D1; STC1; STC2; ALPT; Applicable for USA, CDN	-	1	Enquire
3	83630400	BACKREST UPHOLSTERY	83630400 BACKREST UPHOLSTERY Leather + Alcantara; Top tether; RH seat; INTP; T3D1; ELEG; STC1; STC2; ALPT; Applicable for USA, CDN	-	1	Enquire
3	80984000	BACKREST LINING	80984000 BACKREST LINING Leather; RH seat; Daytona; Top tether; DAY1; T3D1; STC1; STC2; STP1; STP2; Applicable for USA, CDN	-	1	Enquire
3	83629300	BACKREST UPHOLSTERY	83629300 BACKREST UPHOLSTERY F1 fabric + 3D fabric; LH seat; T3D1; STC1; STC2; ALPT	-	1	Enquire
3	83629900	BACKREST UPHOLSTERY	83629900 BACKREST UPHOLSTERY Alcantara + 3D fabric; LH seat; INTA; T3D1; STC1; STC2; ALPT	-	1	Enquire
3	83629600	BACKREST UPHOLSTERY	83629600 BACKREST UPHOLSTERY Leather + 3D fabric; LH seat; INTP; T3D1; STC1; STC2; ALPT	-	1	Enquire
3	83630200	BACKREST UPHOLSTERY	83630200 BACKREST UPHOLSTERY Leather + Alcantara; LH seat; INTP; T3D1; ELEG; STC1; STC2; ALPT	-	1	Enquire
3	80997500	BACKREST LINING	80997500 BACKREST LINING Leather; LH seat; Daytona; DAY1; T3D1; STC1; STC2; STP1; STP2	-	1	Enquire
4	223018	BACKREST HEATING PAD	223018 BACKREST HEATING PAD Full electric	-	2	Enquire
5	66220300	CUSHION STRUCTURE	66220300 CUSHION STRUCTURE RH seat	-	1	Enquire
5	65962800	CUSHION STRUCTURE	65962800 CUSHION STRUCTURE LH seat	-	1	Enquire
6	66220400	CUSHION PADDING	66220400 CUSHION PADDING RH seat	-	1	Enquire
6	65962900	CUSHION PADDING	65962900 CUSHION PADDING LH seat	-	1	Enquire
7	83630600	CUSHION UPHOLSTERY	83630600 CUSHION UPHOLSTERY F1 fabric + 3D fabric; RH seat; T3D1; STC1; STC2; ALPT	-	1	Enquire
7	83631200	CUSHION UPHOLSTERY	83631200 CUSHION UPHOLSTERY Alcantara + 3D fabric; RH seat; INTA; T3D1; STC1; STC2; ALPT	-	1	Enquire
7	83630900	CUSHION UPHOLSTERY	83630900 CUSHION UPHOLSTERY Leather + 3D fabric; RH seat; INTP; T3D1; STC1; STC2; ALPT	-	1	Enquire
7	83631500	CUSHION UPHOLSTERY	83631500 CUSHION UPHOLSTERY Leather + Alcantara; RH seat; INTP; T3D1; ELEG; STC1; STC2; ALPT	-	1	Enquire
7	80219600	CUSHION COVER	80219600 CUSHION COVER Leather; RH seat; Daytona; DAY1; T3D1; STC1; STC2; STP1; STP2	-	1	Enquire
7	83630500	CUSHION UPHOLSTERY	83630500 CUSHION UPHOLSTERY F1 fabric + 3D fabric; LH seat; T3D1; STC1; STC2; ALPT	-	1	Enquire
7	83631100	CUSHION UPHOLSTERY	83631100 CUSHION UPHOLSTERY Alcantara + 3D fabric; LH seat; INTA; T3D1; STC1; STC2; ALPT	-	1	Enquire
7	83630800	CUSHION UPHOLSTERY	83630800 CUSHION UPHOLSTERY Leather + 3D fabric; LH seat; INTP; T3D1; STC1; STC2; ALPT	-	1	Enquire
7	83631400	CUSHION UPHOLSTERY	83631400 CUSHION UPHOLSTERY Leather + Alcantara; LH seat; INTP; T3D1; ELEG; STC1; STC2; ALPT	-	1	Enquire
7	80997600	CUSHION COVER	80997600 CUSHION COVER Leather; LH seat; Daytona; DAY1; T3D1; STC1; STC2; STP1; STP2	-	1	Enquire
8	223019	CUSHION HEATING PAD	223019 CUSHION HEATING PAD Full electric	-	2	Enquire
9	80217600	SEAT BELT BUCKLE STALK	80217600 SEAT BELT BUCKLE STALK	-	2	Enquire
10	81602700	REAR SURROUND	81602700 REAR SURROUND	-	1	Enquire
11	83632200	RH CUSHION SIDE PANEL WITH CLIPS	83632200 RH CUSHION SIDE PANEL WITH CLIPS	-	2	Enquire
12	83632100	LH CUSHION SIDE PANEL WITH CLIPS	83632100 LH CUSHION SIDE PANEL WITH CLIPS	-	2	Enquire
13	83631800	RH CUSHION SIDE PANEL	83631800 RH CUSHION SIDE PANEL	-	1	Enquire
13	83631700	LH CUSHION SIDE PANEL	83631700 LH CUSHION SIDE PANEL	-	1	Enquire
14	83632300	BELT GUIDE HOLE KIT	83632300 BELT GUIDE HOLE KIT	-	2	Enquire
15	81602800	LOWER SURROUND	81602800 LOWER SURROUND	-	1	Enquire
