BATTERY of Ferrari Ferrari 599 GTB Fiorano

View All

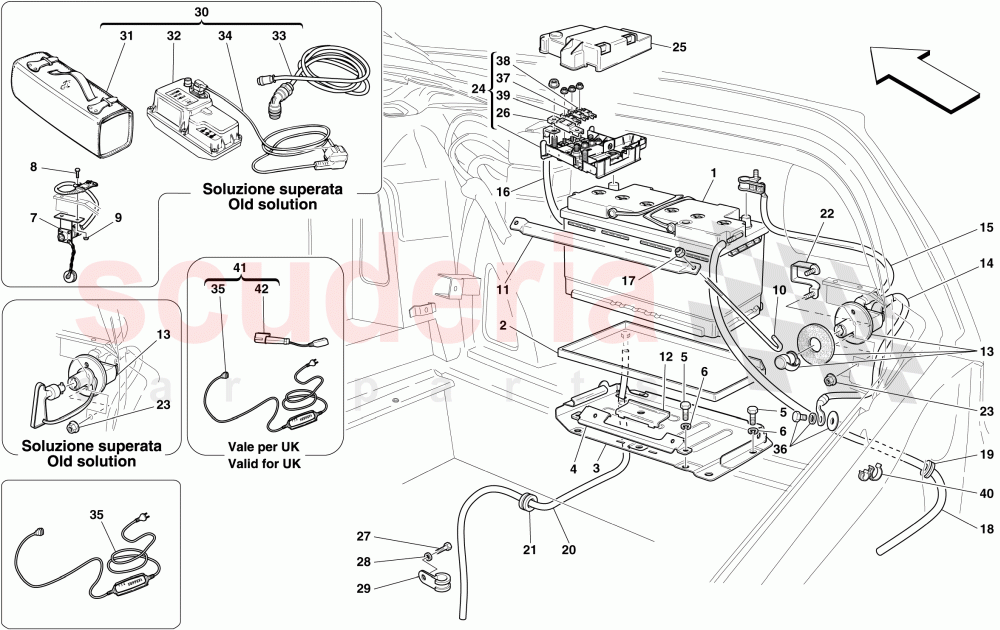

Ferrari 599 GTB Fiorano - BATTERY

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	180055	BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204767	BATTERY FLUID TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204773	BATTERY MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204772	BATTERY INSTALLATION BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200857	BATTERY CHARGER CONNECTOR WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13274114	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059114	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188272	TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	217834	CORNER PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204770	MOBILE BATTERY MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240456	BATTERY MASTER SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222041	BATTERY MASTER SWITCH-GROUND CONNECTOR BRAID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196552	BATTERY-BATTERY MASTER SWITCH CONNECTOR BRAID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204716	BATTERY POSITIVE CABLE	Enquire	To Order
	218747	BATTERY POSITIVE CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	214479	BATTERY BREATHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10396380	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204760	BATTERY BREATHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10396380	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191533	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order
	10721911	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199904	BATTERY ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

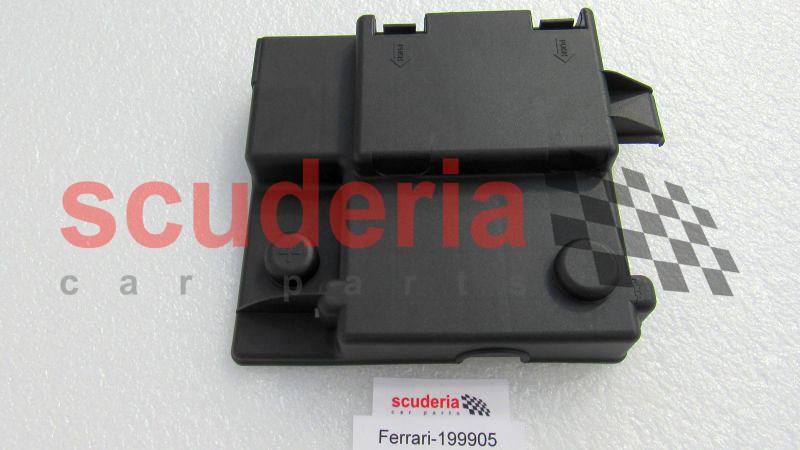

	199905	COVER FOR BATTERY ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198704	MEGA FUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70002820	BATTERY CHARGER KIT	Enquire	To Order
	803880	BATTERY CHARGER KIT	Enquire	To Order
	178685	BATTERY CHARGER KIT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	65699200	BATTERY CHARGER CASE CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177791	BATTERY CHARGER	Enquire	To Order
	177792	BATTERY CHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178676	CABLE COMPLETE WITH CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177794	POWER CABLE	Enquire	To Order
	177795	POWER CABLE	Enquire	To Order
	178294	POWER CABLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	70002820	BATTERY CHARGER KIT	Enquire	To Order
	803880	BATTERY CHARGER KIT	Enquire	To Order
	803883	BATTERY CHARGER KIT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	245870	EARTH PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980139504	50 A MIDI FUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980139505	70 A MIDI FUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980139749	100 A MIDI FUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150738	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	95998029	WALL ADAPTER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	180055	BATTERY	180055 BATTERY 12 V-74 AH-400 A	-	1	Enquire
2	204767	BATTERY FLUID TRAY	204767 BATTERY FLUID TRAY	-	1	Enquire
3	204773	BATTERY MOUNTING	204773 BATTERY MOUNTING	-	1	Enquire
4	204772	BATTERY INSTALLATION BRACKET	204772 BATTERY INSTALLATION BRACKET	-	1	Enquire
5	16043524	SCREW	16043524 SCREW	-	6	Enquire
6	14496524	WASHER	14496524 WASHER	-	6	Enquire
7	200857	BATTERY CHARGER CONNECTOR WIRING HARNESS	200857 BATTERY CHARGER CONNECTOR WIRING HARNESS	-	1	Enquire
8	13274114	SCREW	13274114 SCREW	-	2	Enquire
9	14059114	NUT	14059114 NUT	-	2	Enquire
10	188272	TIE-ROD	188272 TIE-ROD	-	2	Enquire
11	217834	CORNER PIECE	217834 CORNER PIECE	-	1	Enquire
12	204770	MOBILE BATTERY MOUNTING BRACKET	204770 MOBILE BATTERY MOUNTING BRACKET	-	1	Enquire
13	240456	BATTERY MASTER SWITCH	240456 BATTERY MASTER SWITCH	-	1	Enquire
14	222041	BATTERY MASTER SWITCH-GROUND CONNECTOR BRAID	222041 BATTERY MASTER SWITCH-GROUND CONNECTOR BRAID	-	1	Enquire
15	196552	BATTERY-BATTERY MASTER SWITCH CONNECTOR BRAID	196552 BATTERY-BATTERY MASTER SWITCH CONNECTOR BRAID	-	1	Enquire
16	204716	BATTERY POSITIVE CABLE	204716 BATTERY POSITIVE CABLE Not for GD	-	1	Enquire
16	218747	BATTERY POSITIVE CABLE	218747 BATTERY POSITIVE CABLE Applicable for GD	-	1	Enquire
17	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
18	214479	BATTERY BREATHER PIPE	214479 BATTERY BREATHER PIPE	-	1	Enquire
19	10396380	CABLE GROMMET	10396380 CABLE GROMMET	-	1	Enquire
20	204760	BATTERY BREATHER PIPE	204760 BATTERY BREATHER PIPE	-	1	Enquire
21	10396380	CABLE GROMMET	10396380 CABLE GROMMET	-	1	Enquire
22	191533	BRACKET	191533 BRACKET	-	1	Enquire
23	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 No longer supplied; Replaced by 10721911	-	2	Enquire
23	10721911	NUT	10721911 NUT	-	2	Enquire
24	199904	BATTERY ECU	199904 BATTERY ECU	-	1	Enquire
25	199905	COVER FOR BATTERY ECU	199905 COVER FOR BATTERY ECU	-	1	Enquire
26	198704	MEGA FUSE	198704 MEGA FUSE	-	1	Enquire
27	10902424	SCREW	10902424 SCREW	-	1	Enquire
28	127494	WASHER	127494 WASHER	-	1	Enquire
29	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	1	Enquire
30	70002820	BATTERY CHARGER KIT	70002820 BATTERY CHARGER KIT Not for Hong Kong; Optional; Not for AUS, USA, CDN, UK, J	-	1	Enquire
30	803880	BATTERY CHARGER KIT	803880 BATTERY CHARGER KIT Optional; Applicable for USA, CDN, J	-	1	Enquire
30	178685	BATTERY CHARGER KIT	178685 BATTERY CHARGER KIT Applicable for Hong Kong; Optional; Applicable for UK	-	1	Enquire
30	178684	BATTERY CHARGER KIT	178684 BATTERY CHARGER KIT Optional; Applicable for AUS	-	1	Enquire
31	65699200	BATTERY CHARGER CASE CONTAINER	65699200 BATTERY CHARGER CASE CONTAINER Optional	-	1	Enquire
32	177791	BATTERY CHARGER	177791 BATTERY CHARGER 230 V; Optional; Not for USA, CDN, J	-	1	Enquire
32	177792	BATTERY CHARGER	177792 BATTERY CHARGER 110 V; Optional; Applicable for USA, CDN, J	-	1	Enquire
33	178676	CABLE COMPLETE WITH CONNECTOR	178676 CABLE COMPLETE WITH CONNECTOR Optional	-	1	Enquire
34	177794	POWER CABLE	177794 POWER CABLE Applicable for Hong Kong; Optional; Not for AUS, USA, CDN, UK, J	-	1	Enquire
34	177795	POWER CABLE	177795 POWER CABLE Optional; Applicable for USA, CDN, J	-	1	Enquire
34	178294	POWER CABLE	178294 POWER CABLE Applicable for Hong Kong; Optional; Applicable for UK	-	1	Enquire
34	177796	POWER CABLE	177796 POWER CABLE Optional; Applicable for AUS	-	1	Enquire
35	70002820	BATTERY CHARGER KIT	70002820 BATTERY CHARGER KIT Not for AUS, USA, CDN, J, USA LIGHT	-	1	Enquire
35	803880	BATTERY CHARGER KIT	803880 BATTERY CHARGER KIT Applicable for USA, CDN, USA LIGHT	-	1	Enquire
35	803883	BATTERY CHARGER KIT	803883 BATTERY CHARGER KIT Applicable for J	-	1	Enquire
35	803881	BATTERY CHARGER KIT	803881 BATTERY CHARGER KIT Optional; Applicable for AUS	-	1	Enquire
36	245870	EARTH PLATE	245870 EARTH PLATE	-	1	Enquire
37	980139504	50 A MIDI FUSE	980139504 50 A MIDI FUSE	-	1	Enquire
38	980139505	70 A MIDI FUSE	980139505 70 A MIDI FUSE	-	1	Enquire
39	980139749	100 A MIDI FUSE	980139749 100 A MIDI FUSE	-	1	Enquire
40	150738	CLIP	150738 CLIP	-	2	Enquire
42	95998029	WALL ADAPTER	95998029 WALL ADAPTER Applicable for UK	-	1	Enquire
