Ferrari 599 GTB Fiorano - ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
230465 ENGINE COMPARTMENT CABLE $4,070.85 To Order
232420 ENGINE COMPARTMENT CABLE $2,469.46 To Order
230466 ENGINE COMPARTMENT CABLE $2,124.47 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
259915 RH CYLINDER BANK CONNECTOR CABLES Enquire To Order
Photo Part No Description Price (each) Stock
223253 LH CYLINDER BANK CONNECTOR CABLES $1,524.35 To Order
223255 LH CYLINDER BANK CONNECTOR CABLES $1,476.21 To Order
Photo Part No Description Price (each) Stock
204716 BATTERY POSITIVE CABLE $224.63 To Order
218747 BATTERY POSITIVE CABLE $417.18 To Order
Photo Part No Description Price (each) Stock
230467 PASSENGER COMPARTMENT CABLE $2,735.82 To Order
230469 PASSENGER COMPARTMENT CABLE $2,473.45 To Order
218659 PASSENGER COMPARTMENT CABLE $3,181.90 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
222067 LUGGAGE COMPARTMENT CABLE $1,957.59 To Order
222068 LUGGAGE COMPARTMENT CABLE $1,492.71 To Order
Photo Part No Description Price (each) Stock
225790 ELECTRONICALLY CONTROLLED GEARBOX CONNECTOR CABLES $158.84 To Order
Photo Part No Description Price (each) Stock
221710 HEATED REAR SCREEN WIRING HARNESS $11.05 To Order
Photo Part No Description Price (each) Stock
177553 CLAMP $0.44 To Order
Photo Part No Description Price (each) Stock
217823 OPEN BRACKET $7.84 To Order
Photo Part No Description Price (each) Stock
217824 CLOSED BRACKET $240.67 To Order
Photo Part No Description Price (each) Stock
69359900 BRACKET $10.89 To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.80 IN STOCK
Photo Part No Description Price (each) Stock
16297024 SCREW $0.50 To Order
Photo Part No Description Price (each) Stock
303385 CLIP $0.29 IN STOCK
Photo Part No Description Price (each) Stock
162606 CLIP $1.38 IN STOCK
View All

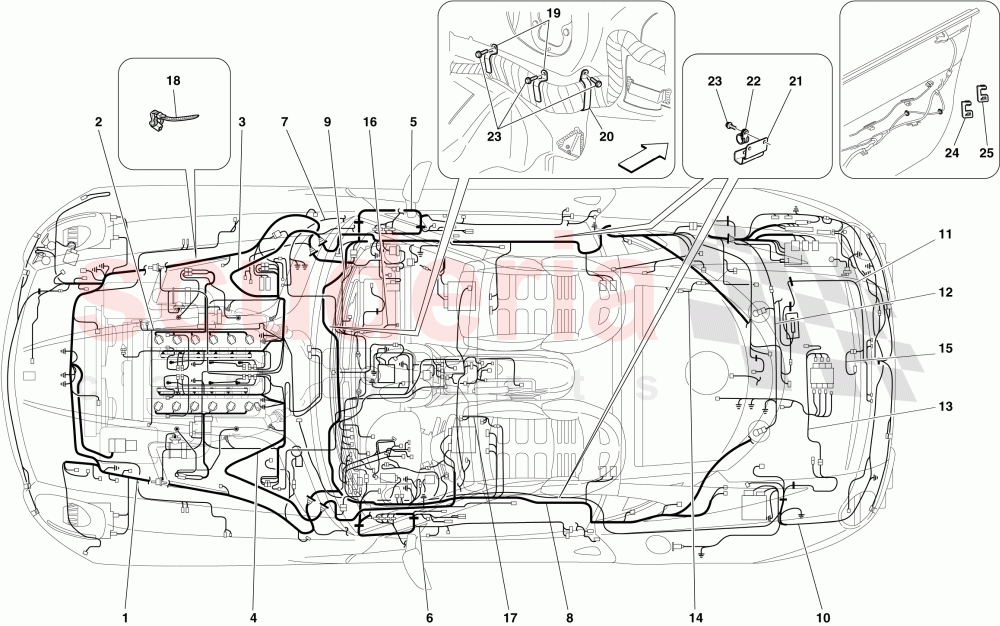

ELECTRICAL SYSTEM of Ferrari Ferrari 599 GTB Fiorano Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 230465
ENGINE COMPARTMENT CABLE
Standard; Not for USA, CDN, GD; Applicable up to Ass. No. 70359 		$4,070.85 1
1 232420
ENGINE COMPARTMENT CABLE
Standard; Not for USA, CDN, GD; Applicable from Ass. No. 70360 		$2,469.46 1
1 230466
ENGINE COMPARTMENT CABLE
Standard; Applicable for USA, CDN; Applicable up to Ass. No. 70359 		$2,124.47 1
1 232421
ENGINE COMPARTMENT CABLE
Standard; Applicable for USA, CDN; Applicable from Ass. No. 70360 		$1,801.95 1
1 218657
ENGINE COMPARTMENT CABLE
Applicable for GD; Applicable up to Ass. No. 70359 		$2,337.33 1
3 259915
RH CYLINDER BANK CONNECTOR CABLES
Applicable from MY 10; Applicable for USA, CDN; Applicable from Ass. No. 86365 		- 1 Enquire
4 223253
LH CYLINDER BANK CONNECTOR CABLES
Not for USA, CDN 		$1,524.35 1
4 223255
LH CYLINDER BANK CONNECTOR CABLES
Applicable for USA, CDN 		$1,476.21 1
7 204716
BATTERY POSITIVE CABLE
Not for GD 		$224.63 1
7 218747
BATTERY POSITIVE CABLE
Applicable for GD 		$417.18 1
8 230467
PASSENGER COMPARTMENT CABLE
Standard; Not for USA, CDN, GD 		$2,735.82 1
8 230469
PASSENGER COMPARTMENT CABLE
Standard; Applicable for USA, CDN 		$2,473.45 1
8 218659
PASSENGER COMPARTMENT CABLE
Standard; Applicable for GD; Applicable up to Ass. No. 71822 		$3,181.90 1
8 265251
PASSENGER COMPARTMENT CABLE
Standard; Applicable for GD 		$3,368.04 1
8 265233
PASSENGER COMPARTMENT CABLE
Full house; Not for Hi-Fi version; Not for GD 		$3,624.77 1
8 218660
PASSENGER COMPARTMENT CABLE
Full house; Hi-Fi version; Applicable for GD; Applicable up to Ass. No. 71822; Applicable up to engine No. 122778 		$2,917.14 1
10 222067
LUGGAGE COMPARTMENT CABLE
Applicable up to Ass. No. 71112; Applicable for F1 gearbox 		$1,957.59 1
10 222068
LUGGAGE COMPARTMENT CABLE
Applicable up to Ass. No. 71112; Not for F1 gearbox 		$1,492.71 1
13 225790
ELECTRONICALLY CONTROLLED GEARBOX CONNECTOR CABLES
Applicable for F1 gearbox 		$158.84 1
14 221710
HEATED REAR SCREEN WIRING HARNESS 		$11.05 2
18 177553
CLAMP 		$0.44 (64.8% off) 14
19 217823
OPEN BRACKET 		$7.84 2
20 217824
CLOSED BRACKET 		$240.67 1
21 69359900
BRACKET 		$10.89 2
22 291225
P clip Bracket With Sheath
IN STOCK 		$4.80 2
23 16297024
SCREW 		$0.50 7
24 303385
CLIP
IN STOCK 		$0.29 2
25 162606
CLIP
IN STOCK 		$1.38 (6.1% off) 2
