Name: ENGINE BONNET
Rating: 4.3 (1 reviews)

ENGINE BONNET of Ferrari Ferrari 575M Maranello

View All

Ferrari 575M Maranello - ENGINE BONNET

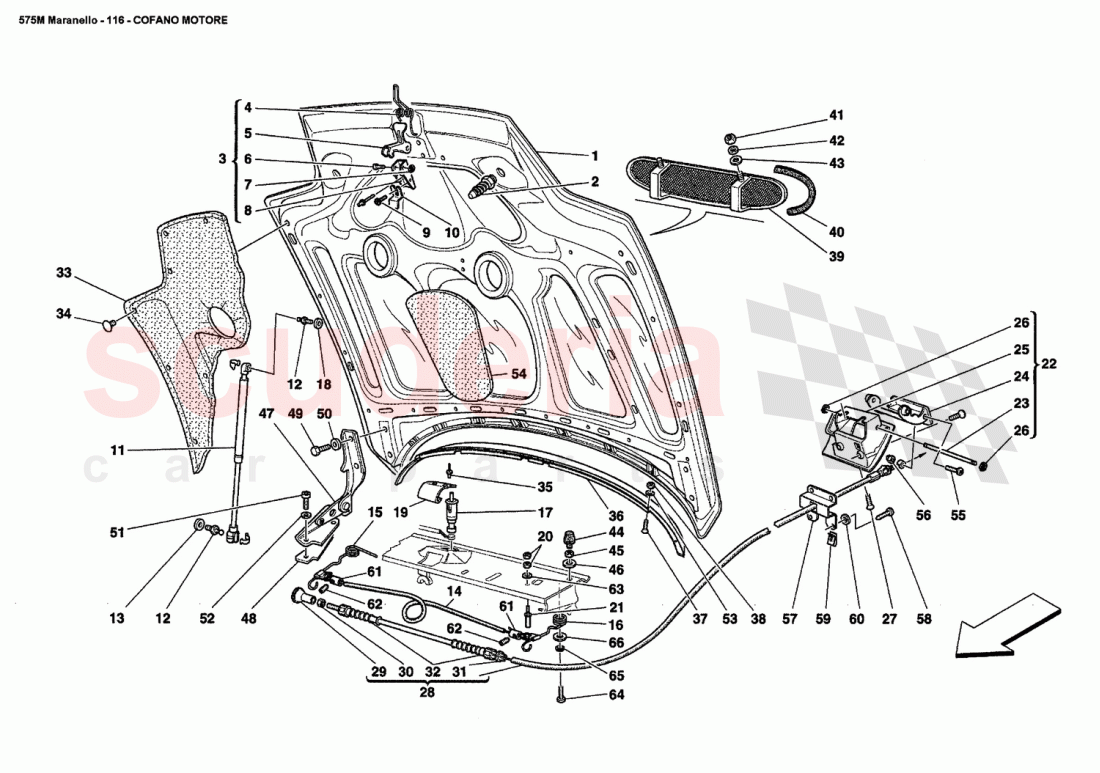

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	66080000	FRONT HOOD BONNET	$13,869.05	To Order

Photo	Part No	Description	Price (each)	Stock
	65372800	BONNET LOCK	$348.08	To Order

Photo	Part No	Description	Price (each)	Stock
	65120000	COMPLETE SAFETY HOOK FOR BONNET	$369.04	To Order

Photo	Part No	Description	Price (each)	Stock
	63219200	SPRING	$4.64	To Order

Photo	Part No	Description	Price (each)	Stock
	65120000	COMPLETE SAFETY HOOK FOR BONNET	$369.04	To Order

Photo	Part No	Description	Price (each)	Stock
	63219100	PIN	$7.52	To Order

Photo	Part No	Description	Price (each)	Stock
	11088074	FLEXIBLE RING	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	63218000	RETAINER	$8.96	To Order

Photo	Part No	Description	Price (each)	Stock
	62940900	Allen Head Screw M6 x 15	$1.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	63885000	BRACKET	$2.54	To Order

Photo	Part No	Description	Price (each)	Stock
	64577300	Bonnet Gas Strut	$43.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	65939900	PIN	$3.84	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	63883500	HOOD SAFETY CABLE	$109.78	To Order

Photo	Part No	Description	Price (each)	Stock
	63883600	R.H. SPRING	$135.37	To Order

Photo	Part No	Description	Price (each)	Stock
	63883700	L.H. SPRING	$135.37	To Order

Photo	Part No	Description	Price (each)	Stock
	179697	PILLAR SWITCH	$34.90	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	63883200	PLATE	$9.61	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	63882800	NUT FOR END OF STROKE	$6.08	To Order

Photo	Part No	Description	Price (each)	Stock
	66089000	HOOD HANDLE ASSEMBLY	$219.55	To Order

Photo	Part No	Description	Price (each)	Stock
	63726200	PIN	$3.36	To Order

Photo	Part No	Description	Price (each)	Stock
	65278000	HANDLE FOR FRONT HOOD OPENING COMPLETE	$257.51	To Order

Photo	Part No	Description	Price (each)	Stock
	66286400	HANDLE BOX	$192.52	To Order

Photo	Part No	Description	Price (each)	Stock
	11087576	Snap Ring	$4.75	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	168133	Screw M5 x 20	$0.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	65832400	INNER DEVICE FOR HOOD OPENING	$333.30	To Order

Photo	Part No	Description	Price (each)	Stock
	63206500	KNOB FOR ADJUSTMENT	$14.43	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	63206400	STOP PIN	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	63895000	RUBBER BOOT	$26.55	To Order

Photo	Part No	Description	Price (each)	Stock
	66402400	FRONT HOOD INSULATION	$1,796.03	To Order

Photo	Part No	Description	Price (each)	Stock
	62797500	Cap	$0.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	60677000	RIVET	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	64948100	WINDSHIELD WIPER COVERING MOULDING	$361.86	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	15896472	NUT	$0.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	66084000	GRILLE FOR HOOD AIR INTAKE	$70.29	To Order

Photo	Part No	Description	Price (each)	Stock
	66083900	AIR INTAKE GASKET	$32.17	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12624101	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock

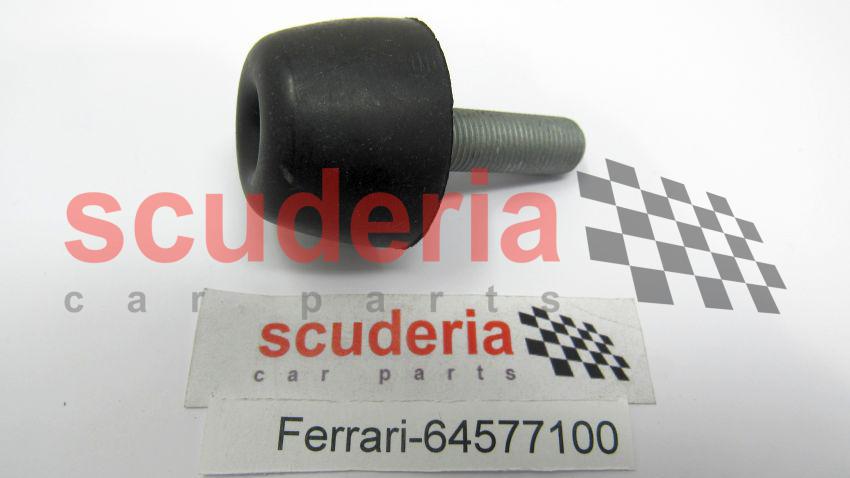

	64577100	PAD FOR HOOD LIMIT STOP	$67.38	To Order

Photo	Part No	Description	Price (each)	Stock
	15896377	NUT	$1.78	To Order

Photo	Part No	Description	Price (each)	Stock
	14496678	WASHER	$0.19	To Order

Photo	Part No	Description	Price (each)	Stock
	64578100	COMPLETE R.H. HINGE	$476.70	IN STOCK
	64578200	COMPLETE L.H. HINGE	$476.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	65217400	THICKNESS	$7.13	To Order

Photo	Part No	Description	Price (each)	Stock
	16135613	SCREW	$2.14	To Order

Photo	Part No	Description	Price (each)	Stock
	13578324	WASHER	$0.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	$2.24	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

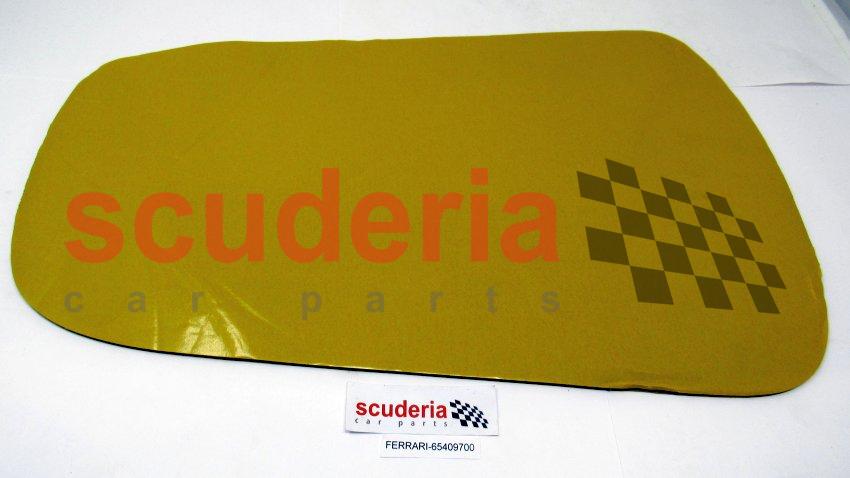

	65409700	Bi-Adhesive Insulation	$146.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13272077	SCREW	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	62790300	NUT	$0.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	64836000	BRACKET	$6.05	To Order

Photo	Part No	Description	Price (each)	Stock
	15644175	Screw	$0.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14371971	BRACKET FOR SCREW	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	$0.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	60276607	TERMINAL	$40.10	To Order

Photo	Part No	Description	Price (each)	Stock
	60276805	DOWEL	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	62797400	SCREW WITH WASHER	$0.36	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12648504	WASHER	$0.29	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	66080000	FRONT HOOD BONNET	66080000 FRONT HOOD BONNET	$13,869.05	1
2	65372800	BONNET LOCK	65372800 BONNET LOCK	$348.08 MSRP: ~~410.85~~ (15.3% off)	2
3	65120000	COMPLETE SAFETY HOOK FOR BONNET	65120000 COMPLETE SAFETY HOOK FOR BONNET	$369.04 MSRP: ~~644.79~~ (42.8% off)	1
4	63219200	SPRING	63219200 SPRING	$4.64	1
5	65120000	COMPLETE SAFETY HOOK FOR BONNET	65120000 COMPLETE SAFETY HOOK FOR BONNET	$369.04 MSRP: ~~644.79~~ (42.8% off)	1
6	63219100	PIN	63219100 PIN	$7.52	1
7	11088074	FLEXIBLE RING	11088074 FLEXIBLE RING	$1.51	1
8	63218000	RETAINER	63218000 RETAINER	$8.96	1
9	62940900	Allen Head Screw M6 x 15 IN STOCK	62940900 Allen Head Screw M6 x 15 IN STOCK	$1.47 MSRP: ~~1.75~~ (16% off)	2
10	63885000	BRACKET	63885000 BRACKET	$2.54	1
11	64577300	Bonnet Gas Strut IN STOCK	64577300 Bonnet Gas Strut IN STOCK	$43.70 MSRP: ~~56.85~~ (23.1% off)	2
12	65939900	PIN IN STOCK	65939900 PIN IN STOCK	$3.84	4
13	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	2
14	63883500	HOOD SAFETY CABLE	63883500 HOOD SAFETY CABLE	$109.78	1
15	63883600	R.H. SPRING	63883600 R.H. SPRING	$135.37	1
16	63883700	L.H. SPRING	63883700 L.H. SPRING	$135.37	1
17	179697	PILLAR SWITCH	179697 PILLAR SWITCH	$34.90 MSRP: ~~45.86~~ (23.9% off)	1
18	12601374	WASHER IN STOCK	12601374 WASHER IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	2
19	63883200	PLATE	63883200 PLATE	$9.61	1
20	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.43	2
21	63882800	NUT FOR END OF STROKE	63882800 NUT FOR END OF STROKE	$6.08	2
22	66089000	HOOD HANDLE ASSEMBLY	66089000 HOOD HANDLE ASSEMBLY	$219.55	1
23	63726200	PIN	63726200 PIN	$3.36	1
24	65278000	HANDLE FOR FRONT HOOD OPENING COMPLETE	65278000 HANDLE FOR FRONT HOOD OPENING COMPLETE ON DASHBOARD	$257.51	1
25	66286400	HANDLE BOX	66286400 HANDLE BOX	$192.52	1
26	11087576	Snap Ring IN STOCK	11087576 Snap Ring IN STOCK	$4.75 MSRP: ~~5.07~~ (6.3% off)	2
27	168133	Screw M5 x 20 IN STOCK	168133 Screw M5 x 20 IN STOCK	$0.92 MSRP: ~~1.25~~ (26.4% off)	2
28	65832400	INNER DEVICE FOR HOOD OPENING	65832400 INNER DEVICE FOR HOOD OPENING	$333.30 MSRP: ~~474.23~~ (29.7% off)	1
29	63206500	KNOB FOR ADJUSTMENT	63206500 KNOB FOR ADJUSTMENT	$14.43	1
30	15896470	NUT	15896470 NUT	$0.05 MSRP: ~~1.15~~ (95.7% off)	1
31	63206400	STOP PIN	63206400 STOP PIN	$208.58	1
32	63895000	RUBBER BOOT	63895000 RUBBER BOOT	$26.55	2
33	66402400	FRONT HOOD INSULATION	66402400 FRONT HOOD INSULATION	$1,796.03	1
34	62797500	Cap IN STOCK	62797500 Cap IN STOCK	$0.11 MSRP: ~~0.45~~ (75.6% off)	32
35	60677000	RIVET	60677000 RIVET	$0.05	2
36	64948100	WINDSHIELD WIPER COVERING MOULDING	64948100 WINDSHIELD WIPER COVERING MOULDING MOULDING	$361.86	1
37	85833900	SCREW IN STOCK	85833900 SCREW IN STOCK	$0.36	9
38	15896472	NUT IN STOCK	15896472 NUT IN STOCK	$0.44 MSRP: ~~0.50~~ (12% off)	9
39	66084000	GRILLE FOR HOOD AIR INTAKE	66084000 GRILLE FOR HOOD AIR INTAKE	$70.29	1
40	66083900	AIR INTAKE GASKET	66083900 AIR INTAKE GASKET	$32.17	1
41	15896470	NUT	15896470 NUT	$0.05 MSRP: ~~1.15~~ (95.7% off)	2
42	12604178	Washer	12604178 Washer	-	2	Enquire
43	12624101	WASHER	12624101 WASHER	$0.06	2
44	64577100	PAD FOR HOOD LIMIT STOP	64577100 PAD FOR HOOD LIMIT STOP	$67.38 MSRP: ~~90.25~~ (25.3% off)	2
45	15896377	NUT	15896377 NUT	$1.78	2
46	14496678	WASHER	14496678 WASHER	$0.19	2
47	64578100	COMPLETE R.H. HINGE IN STOCK	64578100 COMPLETE R.H. HINGE IN STOCK	$476.70 MSRP: ~~838.46~~ (43.1% off)	1
47	64578200	COMPLETE L.H. HINGE IN STOCK	64578200 COMPLETE L.H. HINGE IN STOCK	$476.70 MSRP: ~~838.46~~ (43.1% off)	1
48	65217400	THICKNESS	65217400 THICKNESS	$7.13	2
49	16135613	SCREW	16135613 SCREW	$2.14	4
50	13578324	WASHER IN STOCK	13578324 WASHER IN STOCK	$0.23	4
51	81591700	SCREW	81591700 SCREW	$2.24	4
52	10519424	WASHER IN STOCK	10519424 WASHER IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	4
53	12604178	Washer	12604178 Washer	-	9	Enquire
54	65409700	Bi-Adhesive Insulation IN STOCK	65409700 Bi-Adhesive Insulation IN STOCK	$146.00 MSRP: ~~203.73~~ (28.3% off)	1
55	13272077	SCREW IN STOCK	13272077 SCREW IN STOCK	$1.60	1
56	62790300	NUT IN STOCK	62790300 NUT IN STOCK	$0.28 MSRP: ~~0.75~~ (62.7% off)	1
57	64836000	BRACKET	64836000 BRACKET	$6.05	1
58	15644175	Screw IN STOCK	15644175 Screw IN STOCK	$0.71	4
59	14371971	BRACKET FOR SCREW	14371971 BRACKET FOR SCREW	$0.29 MSRP: ~~0.75~~ (61.3% off)	4
60	62769800	WASHER IN STOCK	62769800 WASHER IN STOCK	$0.23 MSRP: ~~0.30~~ (23.3% off)	4
61	60276607	TERMINAL	60276607 TERMINAL	$40.10 MSRP: ~~64.45~~ (37.8% off)	2
62	60276805	DOWEL	60276805 DOWEL	$0.81 MSRP: ~~1.50~~ (46% off)	2
63	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	2
64	62797400	SCREW WITH WASHER	62797400 SCREW WITH WASHER	$0.36	2
65	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	2
66	12648504	WASHER	12648504 WASHER	$0.29 MSRP: ~~1.70~~ (82.9% off)	2
