FLAT FLOOR PAN of Ferrari Ferrari 575M Maranello

View All

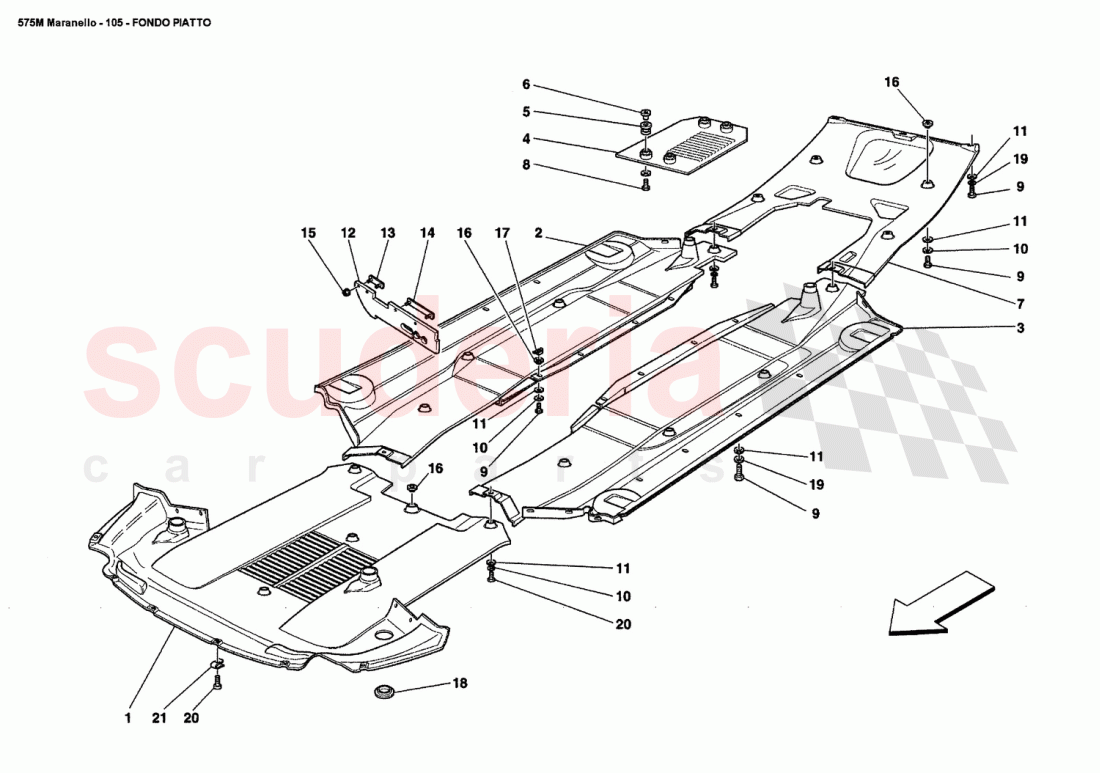

Ferrari 575M Maranello - FLAT FLOOR PAN

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	66084600	FRONT AERODYNAMIC BOTTOM	Enquire	To Order
	68595500	FRONT AEREODYNAMIC BOTTOM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64678800	RH CENTRAL AEREODYNAMIC BOTTOM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64678900	LH CENTRAL AEREODYNAMIC BOTTOM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66402800	UNDER GEARBOX AERODYNAMIC BOTTOM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64679000	REAR AEREODYNAMIC BOTTOM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order
	10902424	SCREW	Enquire	To Order
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12035674	WASHER	Enquire	To Order
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65380700	LH. INSULATION	Enquire	To Order
	65267400	R.H. INSULATION	Enquire	To Order
	65380600	R.H. INSULATION	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	65364100	SMALL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65364200	SMALL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65403300	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65774200	NUT WITH CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64783600	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15903475	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61789700	FIXING BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	66084600	FRONT AERODYNAMIC BOTTOM	66084600 FRONT AERODYNAMIC BOTTOM	-	1	Enquire
1	68595500	FRONT AEREODYNAMIC BOTTOM	68595500 FRONT AEREODYNAMIC BOTTOM CCM Version	-	1	Enquire
2	64678800	RH CENTRAL AEREODYNAMIC BOTTOM	64678800 RH CENTRAL AEREODYNAMIC BOTTOM BOTTOM	-	1	Enquire
3	64678900	LH CENTRAL AEREODYNAMIC BOTTOM	64678900 LH CENTRAL AEREODYNAMIC BOTTOM	-	1	Enquire
4	66402800	UNDER GEARBOX AERODYNAMIC BOTTOM	66402800 UNDER GEARBOX AERODYNAMIC BOTTOM	-	1	Enquire
5	812273	CABLE GROMMET	812273 CABLE GROMMET	-	4	Enquire
6	149707	SPACER	149707 SPACER	-	4	Enquire
7	64679000	REAR AEREODYNAMIC BOTTOM	64679000 REAR AEREODYNAMIC BOTTOM	-	1	Enquire
8	231625	SCREW	231625 SCREW	-	4	Enquire
9	10902224	SCREW	10902224 SCREW M6x25	-	39	Enquire
9	10902424	SCREW	10902424 SCREW M6x20	-	4	Enquire
9	10902424	SCREW	10902424 SCREW M6x18	-	4	Enquire
10	12647724	WASHER	12647724 WASHER	-	28	Enquire
11	12035674	WASHER	12035674 WASHER	-	4	Enquire
11	127494	WASHER	127494 WASHER	-	37	Enquire
12	65380700	LH. INSULATION	65380700 LH. INSULATION	-	1	Enquire
12	65267400	R.H. INSULATION	65267400 R.H. INSULATION Not for GD	-	1	Enquire
12	65380600	R.H. INSULATION	65380600 R.H. INSULATION Valid for GD	-	1	Enquire
12	65267500	L.H. INSULATION	65267500 L.H. INSULATION	-	1	Enquire
13	65364100	SMALL PLATE	65364100 SMALL PLATE	-	2	Enquire
14	65364200	SMALL PLATE	65364200 SMALL PLATE	-	2	Enquire
15	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	8	Enquire
16	65403300	SPACER	65403300 SPACER	-	13	Enquire
17	65774200	NUT WITH CAGE	65774200 NUT WITH CAGE	-	41	Enquire
18	64783600	CAP	64783600 CAP	-	1	Enquire
19	12643724	WASHER	12643724 WASHER	-	19	Enquire
20	15903475	SCREW	15903475 SCREW	-	6	Enquire
21	61789700	FIXING BRACKET	61789700 FIXING BRACKET	-	6	Enquire
