Ferrari 575M Maranello - BODY - ROOF

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
66285200 ROOF LINING FRAME $2,637.94 To Order
67124600 ROOF LINING FRAME $2,637.94 To Order
67124700 ROOF LINING FRAME $2,707.18 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
64550600 ROOF EXTERNAL TRIM $818.33 To Order
Photo Part No Description Price (each) Stock
65115700 WINDSHIELD UPPER CROSSPIECE $277.43 To Order
64555100 WINDSHIELD UPPER CROSSPIECE Enquire To Order
Photo Part No Description Price (each) Stock
65376000 WINDSHIELD UPPER CROSSPIECE FRAME $131.56 To Order
Photo Part No Description Price (each) Stock
64555300 REAR-WINDOW UPPER CROSS MEMBER $609.73 To Order
Photo Part No Description Price (each) Stock
64555400 REAR-WINDOW UPPER CROSSPIECE FRAME $609.73 To Order
Photo Part No Description Price (each) Stock
66839900 UNDER REAR CROSSPIECE FRAME WINDOW LOWER Enquire To Order
64946700 UNDER REAR-WINDOW LOWER CROSSPIECE FRAME $1,395.98 To Order
Photo Part No Description Price (each) Stock
64785000 UNDER REAR-WINDOW CROSSPIECE FRONT SEAL $385.09 To Order
Photo Part No Description Price (each) Stock
64555700 R.H. SIDE MEMBER FRAME $149.21 To Order
64555800 L.H. SIDE MEMBER FRAME $149.21 To Order
Photo Part No Description Price (each) Stock
64556400 L.H. FRONT PILLAR FRAME $224.63 To Order
64556300 R.H. FRONT PILLAR FRAME $225.31 To Order
Photo Part No Description Price (each) Stock
64555500 R.H. SIDE RAIL $192.54 To Order
64555600 L.H. SIDE RAIL $192.54 To Order
Photo Part No Description Price (each) Stock
64556500 R.H. REAR PILLAR $465.32 To Order
64556600 L.H. REAR VERTICAL ROD $465.32 To Order
Photo Part No Description Price (each) Stock
64555900 R.H. CENTRAL PILLAR FRAME $609.73 To Order
64556000 L.H. CENTRAL PILLAR FRAME $609.73 To Order
Photo Part No Description Price (each) Stock
66284200 R.H. SIDE PANEL $44.91 To Order
67122800 R.H. SIDE PANEL Enquire To Order
66284300 LH. SIDE PANEL $44.91 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
64550800 L.H. FRONT PILLAR OUTER TRIM $325.38 To Order
64550700 R.H. FRONT PILLAR OUTER TRIM $297.86 To Order
Photo Part No Description Price (each) Stock
64556100 R.H. FRONT PILLAR FRAME $109.65 To Order
64556200 L.H. FRONT PILLAR FRAME $114.41 To Order
Photo Part No Description Price (each) Stock
64562300 WINDSCREEN R.H. LOWER SEAL $336.95 To Order
64562400 WINDSCREEN L.H. LOWER SEAL $336.95 To Order
Photo Part No Description Price (each) Stock
175896 ROLL BAR UPPER CONNECTION $115.51 To Order
View All

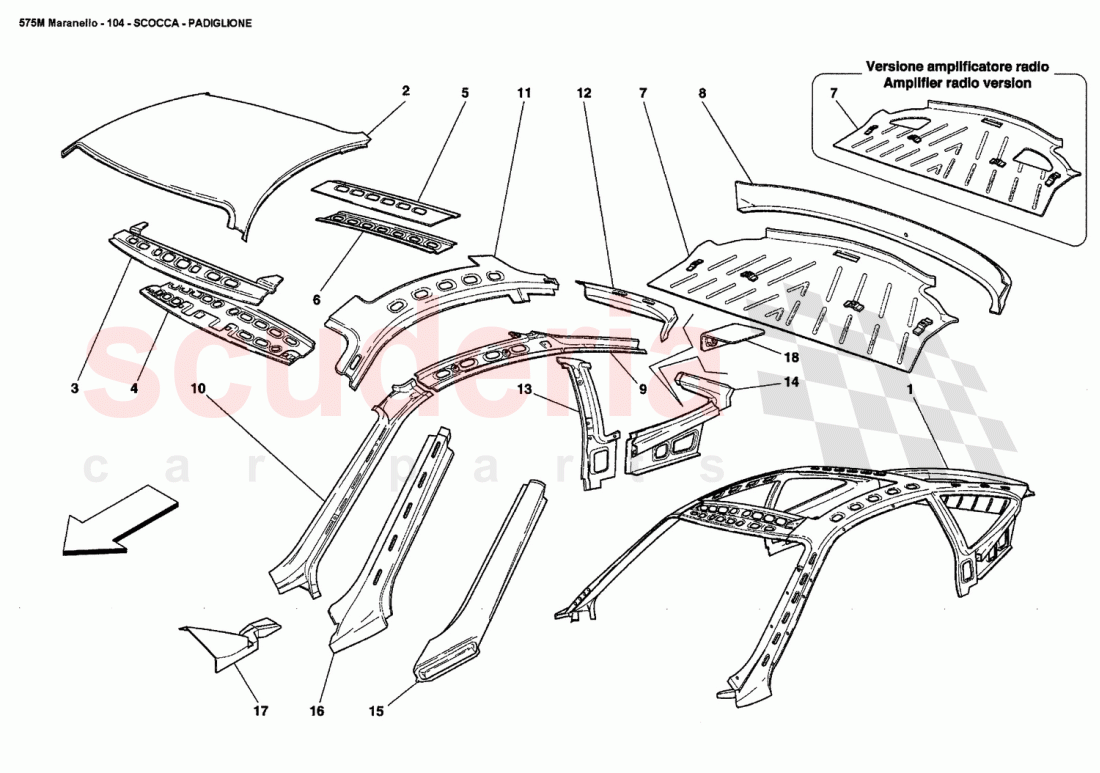

BODY - ROOF of Ferrari Ferrari 575M Maranello Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 66285200
ROOF LINING FRAME 		$2,637.94 1
1 67124600
ROOF LINING FRAME
Valid for USA and CDN 		$2,637.94 1
1 67124700
ROOF LINING FRAME 		$2,707.18 1
1 67120000
ROOF LINING FRAME
Valid for high power HI Fl / 		$2,707.18 1
1 67122700
ROOF LINING FRAME
Valid for high power HI Fl + roll bar 		$2,637.94 1
1 66285200
ROOF LINING FRAME
Not for USA and CDN 		$2,637.94 1
1 67122600
ROOF LINING FRAME
Not for USA, CDN and AUS / Valid for roll bar version / Optional 		$3,223.56 1
2 64550600
ROOF EXTERNAL TRIM 		$818.33 1
3 65115700
WINDSHIELD UPPER CROSSPIECE 		$277.43 1
3 64555100
WINDSHIELD UPPER CROSSPIECE 		- 1 Enquire
4 65376000
WINDSHIELD UPPER CROSSPIECE FRAME
FRAME 		$131.56 1
5 64555300
REAR-WINDOW UPPER CROSS MEMBER 		$609.73 1
6 64555400
REAR-WINDOW UPPER CROSSPIECE FRAME 		$609.73 1
7 66839900
UNDER REAR CROSSPIECE FRAME WINDOW LOWER 		- 1 Enquire
7 64946700
UNDER REAR-WINDOW LOWER CROSSPIECE FRAME
CROSSPIECE FRAME 		$1,395.98 1
8 64785000
UNDER REAR-WINDOW CROSSPIECE FRONT SEAL
FRONT SEAL 		$385.09 1
9 64555700
R.H. SIDE MEMBER FRAME 		$149.21 1
9 64555800
L.H. SIDE MEMBER FRAME 		$149.21 1
10 64556400
L.H. FRONT PILLAR FRAME 		$224.63 1
10 64556300
R.H. FRONT PILLAR FRAME 		$225.31 1
11 64555500
R.H. SIDE RAIL 		$192.54 1
11 64555600
L.H. SIDE RAIL 		$192.54 1
12 64556500
R.H. REAR PILLAR 		$465.32 1
12 64556600
L.H. REAR VERTICAL ROD 		$465.32 1
13 64555900
R.H. CENTRAL PILLAR FRAME 		$609.73 1
13 64556000
L.H. CENTRAL PILLAR FRAME 		$609.73 1
14 66284200
R.H. SIDE PANEL 		$44.91 1
14 67122800
R.H. SIDE PANEL 		- 1 Enquire
14 66284300
LH. SIDE PANEL 		$44.91 1
14 67123000
LH. SIDE PANEL 		- 1 Enquire
15 64550800
L.H. FRONT PILLAR OUTER TRIM 		$325.38 1
15 64550700
R.H. FRONT PILLAR OUTER TRIM 		$297.86 1
16 64556100
R.H. FRONT PILLAR FRAME 		$109.65 1
16 64556200
L.H. FRONT PILLAR FRAME 		$114.41 1
17 64562300
WINDSCREEN R.H. LOWER SEAL
SEAL 		$336.95 1
17 64562400
WINDSCREEN L.H. LOWER SEAL 		$336.95 1
18 175896
ROLL BAR UPPER CONNECTION 		$115.51 2
