Ferrari 575M Maranello - WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
65081300 COMPLETE WINDSHIELD WIPER LEVERAGE AND PINS $663.95 To Order
65081300 COMPLETE WINDSHIELD WIPER LEVERAGE AND PINS $663.95 To Order
65202600 COMPLETE WINDSHIELD WIPER LEVERAGE AND PINS $1,066.04 To Order
Photo Part No Description Price (each) Stock
63780200 WINDSCREEN WIPER MOTOR $489.89 To Order
64275500 WINDSHIELD WIPER MOTOR $545.55 To Order
Photo Part No Description Price (each) Stock
63878800 WINDSHIELD WIPER MOTOR REAR BRACKET $36.70 To Order
65206000 WINDSHIELD WIPER MOTOR REAR BRACKET $481.36 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.26 IN STOCK
Photo Part No Description Price (each) Stock
14499421 WASHER $0.21 To Order
Photo Part No Description Price (each) Stock
65454400 WINDSHIELD WIPER MOTOR FRONT BRACKET $115.51 To Order
65098800 WINDSHIELD WIPER MOTOR FRONT BRACKET $113.91 To Order
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
16043324 SCREW M8 X 18 $0.18 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
65202800 PASSENGER SIDE WINDSHIELD WIPER ARM $577.64 To Order
65081400 R.H. WINDSHIELD WIPER ARM $189.47 To Order
Photo Part No Description Price (each) Stock
65081600 PASSENGER SIDE WIPER BRUSH $216.85 To Order
Photo Part No Description Price (each) Stock
65081500 DRIVER SIDE WINDSHIELD WIPER ARM $786.24 To Order
65202700 DRIVER SIDE WINDSHIELD WIPER ARM $802.28 To Order
65849400 DRIVER SIDE WINDSCREEN WIPER ARM $834.37 To Order
Photo Part No Description Price (each) Stock
63776100A Driver Side Windscreen Wiper Blade Enquire To Order
Photo Part No Description Price (each) Stock
15811787 PROTECTIVE CAP $0.86 IN STOCK
65081700 SMALL COVER $0.58 To Order
Photo Part No Description Price (each) Stock
147985 NUT $0.15 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
13312970 SCREW $0.28 To Order
Photo Part No Description Price (each) Stock
62794700 WASHER $0.83 To Order
Photo Part No Description Price (each) Stock
65191000 SPRAY NOZZLE $3.06 IN STOCK
Photo Part No Description Price (each) Stock
65191700 BRACKET $6.19 To Order
Photo Part No Description Price (each) Stock
15957077 SCREW $0.19 IN STOCK
Photo Part No Description Price (each) Stock
10519278 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
65191400 PIPE FROM VALVE TO L.H. JET $3.36 To Order
Photo Part No Description Price (each) Stock
65191500 PIPE FROM VALVE TO R.H. JET $2.20 To Order
Photo Part No Description Price (each) Stock
81061000 COMPLETE WINDSCREEN WASHER PIPE $154.03 To Order
Photo Part No Description Price (each) Stock
65191600 PIPE FROM PUMP TO VALVE $5.45 To Order
Photo Part No Description Price (each) Stock
157990 Hose Retaining Clip D. 7 - 11 x 5 $1.96 IN STOCK
Photo Part No Description Price (each) Stock
66285600 WINDSHIELD WIPER AND HEAD LIGHT WASHER CONTAINER $353.00 To Order
66533600 WINDSHIELD WIPER CONTAINER $641.82 To Order
Photo Part No Description Price (each) Stock
65358700 WINDSCREEN WASHER PUMP $67.38 IN STOCK
Photo Part No Description Price (each) Stock
66645000 GASKET $7.13 To Order
Photo Part No Description Price (each) Stock
190048 FLUID SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
66645100 FILTER $9.29 To Order
Photo Part No Description Price (each) Stock
65374000 CAP $17.83 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.15 IN STOCK
Photo Part No Description Price (each) Stock
12648925 WASHER $0.41 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
189428 ELECTRO PNEUMATIC HORN $23.49 To Order
Photo Part No Description Price (each) Stock
60741100 3 WAYS UNION $0.60 IN STOCK
Photo Part No Description Price (each) Stock
183273 PIPE FOR COMPRESSOR $13.79 To Order
Photo Part No Description Price (each) Stock
225757 COMPLETE HORN COMPRESSOR $258.49 To Order
Photo Part No Description Price (each) Stock
60741200 BRACKET FOR ELECTRO-COMPRESSOR $1.10 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
65504100 GASKET $1.90 To Order
Photo Part No Description Price (each) Stock
15896472 NUT $0.44 IN STOCK
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
155751 CLIP $4.39 To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY $722.05 IN STOCK
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
View All

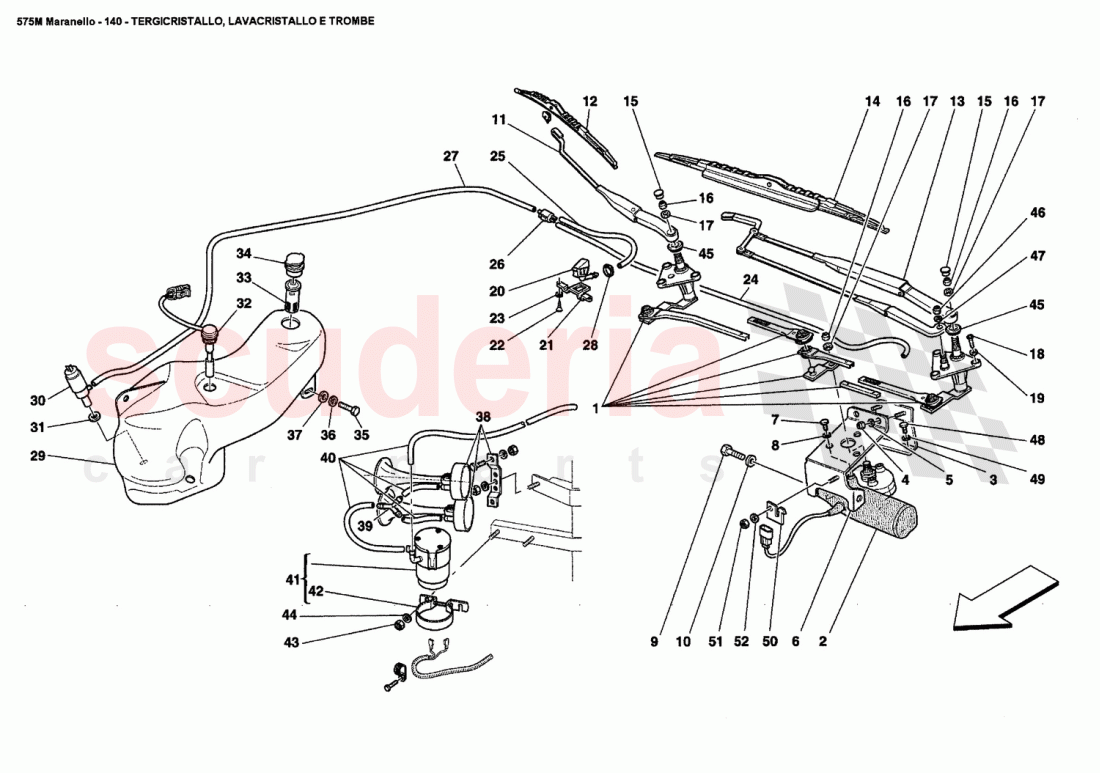

WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS of Ferrari Ferrari 575M Maranello Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 65081300
COMPLETE WINDSHIELD WIPER LEVERAGE AND PINS 		$663.95 1
1 65081300
COMPLETE WINDSHIELD WIPER LEVERAGE AND PINS
LEVERAGE / Not for GD 		$663.95 1
1 65202600
COMPLETE WINDSHIELD WIPER LEVERAGE AND PINS
Valid for GD 		$1,066.04 1
2 63780200
WINDSCREEN WIPER MOTOR 		$489.89 1
2 64275500
WINDSHIELD WIPER MOTOR 		$545.55 1
3 63878800
WINDSHIELD WIPER MOTOR REAR BRACKET
REAR BRACKET 		$36.70 1
3 65206000
WINDSHIELD WIPER MOTOR REAR BRACKET 		$481.36 1
4 104030
NUT
IN STOCK 		$0.26 (74% off) 2
5 14499421
WASHER 		$0.21 2
6 65454400
WINDSHIELD WIPER MOTOR FRONT BRACKET 		$115.51 1
6 65098800
WINDSHIELD WIPER MOTOR FRONT BRACKET
FRONT BRACKET 		$113.91 1
7 10902224
SCREW M6 X 16
IN STOCK 		$0.06 (86.7% off) 3
8 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 3
9 16043324
SCREW M8 X 18
IN STOCK 		$0.18 (82.9% off) 2
10 127496
WASHER 		$0.06 (80% off) 2
11 65202800
PASSENGER SIDE WINDSHIELD WIPER ARM 		$577.64 1
11 65081400
R.H. WINDSHIELD WIPER ARM
WIPER ARM 		$189.47 (23.7% off) 1
12 65081600
PASSENGER SIDE WIPER BRUSH 		$216.85 1
13 65081500
DRIVER SIDE WINDSHIELD WIPER ARM 		$786.24 1
13 65202700
DRIVER SIDE WINDSHIELD WIPER ARM
Not as spare part for GB 		$802.28 1
13 65849400
DRIVER SIDE WINDSCREEN WIPER ARM
Valid for GB 		$834.37 1
14 63776100A
Driver Side Windscreen Wiper Blade 		- 1 Enquire
15 15811787
PROTECTIVE CAP
IN STOCK 		$0.86 (14% off) 2
15 65081700
SMALL COVER 		$0.58 2
16 147985
NUT
IN STOCK 		$0.15 (70% off) 3
17 12601374
WASHER
IN STOCK 		$0.02 (92% off) 3
18 13312970
SCREW 		$0.28 6
19 62794700
WASHER 		$0.83 6
20 65191000
SPRAY NOZZLE
IN STOCK 		$3.06 (64% off) 2
21 65191700
BRACKET 		$6.19 2
22 15957077
SCREW
IN STOCK 		$0.19 4
23 10519278
WASHER 		$0.06 (88% off) 4
24 65191400
PIPE FROM VALVE TO L.H. JET 		$3.36 1
25 65191500
PIPE FROM VALVE TO R.H. JET 		$2.20 1
26 81061000
COMPLETE WINDSCREEN WASHER PIPE 		$154.03 1
27 65191600
PIPE FROM PUMP TO VALVE 		$5.45 1
28 157990
Hose Retaining Clip D. 7 - 11 x 5
IN STOCK 		$1.96 (21.6% off) 2
29 66285600
WINDSHIELD WIPER AND HEAD LIGHT WASHER CONTAINER
WASHER CONTAINER / Not for USA and CDN 		$353.00 1
29 66533600
WINDSHIELD WIPER CONTAINER
Valid for USA and CDN 		$641.82 (28.1% off) 1
30 65358700
WINDSCREEN WASHER PUMP
IN STOCK 		$67.38 (44.9% off) 1
31 66645000
GASKET 		$7.13 1
32 190048
FLUID SENSOR 		- 1 Enquire
33 66645100
FILTER 		$9.29 1
34 65374000
CAP 		$17.83 1
35 10902424
SCREW
IN STOCK 		$0.15 (78.6% off) 3
36 12648925
WASHER
IN STOCK 		$0.41 3
37 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 3
38 189428
ELECTRO PNEUMATIC HORN 		$23.49 (47.7% off) 1
39 60741100
3 WAYS UNION
IN STOCK 		$0.60 (25% off) 1
40 183273
PIPE FOR COMPRESSOR 		$13.79 1
41 225757
COMPLETE HORN COMPRESSOR 		$258.49 (11.8% off) 1
42 60741200
BRACKET FOR ELECTRO-COMPRESSOR 		$1.10 1
43 14059290
FLANGED NUT M6
IN STOCK 		$1.43 3
44 12644424
WASHER
IN STOCK 		$0.06 (85% off) 3
45 65504100
GASKET 		$1.90 2
46 15896472
NUT
IN STOCK 		$0.44 (12% off) 1
47 12604178
Washer 		- 1 Enquire
48 10902224
SCREW M6 X 16
IN STOCK 		$0.06 (86.7% off) 2
49 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 2
50 155751
CLIP 		$4.39 (11.3% off) 1
51 319201
FUEL FILLER PIPE ASSEMBLY
IN STOCK 		$722.05 1
52 12637824
WASHER
IN STOCK 		$0.06 (88% off) 1
