Power Unit And Tank -Valid For F1-

Ferrari 575M Maranello

Find Your Part

Ferrari 575M Maranello - POWER UNIT AND TANK -Valid for F1-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
179533 POWER UNIT Enquire To Order
Photo Part No Description Price (each) Stock
980001156 PRESSURE SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
196214 POWER UNIT SUPPORTING BRACKET Enquire To Order
185096 POWER UNIT SUPPORTING BRACKET Enquire To Order
196214 POWER UNIT SUPPORTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 Enquire To Order
Photo Part No Description Price (each) Stock
175283 Nut Enquire To Order
Photo Part No Description Price (each) Stock
14496524 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10902727 SCREW Enquire To Order
10903224 SCREW Enquire To Order
10903424 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
179636 STOP CAP Enquire To Order
192345 CUP Enquire To Order
Photo Part No Description Price (each) Stock
179639 LOWER BUSHING Enquire To Order
192337 LOWER PAD Enquire To Order
Photo Part No Description Price (each) Stock
179637 SHIM Enquire To Order
192344 SPACER FOR WICK Enquire To Order
Photo Part No Description Price (each) Stock
179638 UPPER BUSHING Enquire To Order
192339 UPPER PAD Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14446627 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
247223 ELECTRIC PUMP KIT Enquire To Order
Photo Part No Description Price (each) Stock
10902424 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
10519424 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
185092 PIPE FROM ELECTRICAL PUMP TO POWER UNIT Enquire To Order
194328 PIPE FROM ELECTRICAL PUMP TO POWER UNIT Enquire To Order
Photo Part No Description Price (each) Stock
188685 OIL TANK Enquire To Order
Photo Part No Description Price (each) Stock
179593 BRACKET FOR TANK SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
171746 SUPPORT CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
81591700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
10519424 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
183718 RUBBER GASKET Enquire To Order
Photo Part No Description Price (each) Stock
185094 PIPE FROM TANK TO PUMP Enquire To Order
194330 PIPE FROM TANK TO PUMP Enquire To Order
Photo Part No Description Price (each) Stock
184958 SWINGING UNION Enquire To Order
Photo Part No Description Price (each) Stock
277407 HOSE CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
281980 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
185095 PIPE FROM POWER UNIT TO TANK Enquire To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
184121 ANTI HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
81591700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
195187 POWER UNIT SUPPORTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
194786 PAD Enquire To Order
195372 PAD Enquire To Order
Photo Part No Description Price (each) Stock
194787 PAD Enquire To Order
897379 RUBBER BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
14058421 NUT Enquire To Order
Photo Part No Description Price (each) Stock
312592 NUT Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
162606 CLIP Enquire To Order
View All

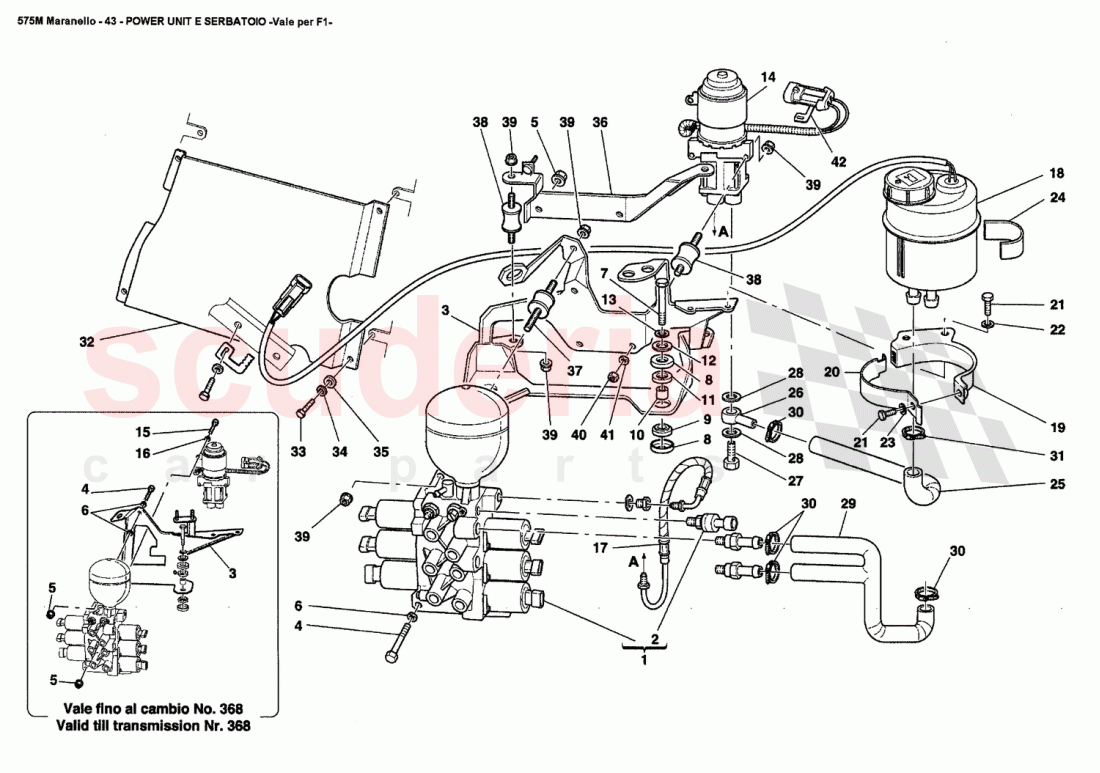

POWER UNIT AND TANK -Valid for F1- of Ferrari Ferrari 575M Maranello Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 185086
F1 CLUTCH HYDRAULIC CONT ROL 		- 1 Enquire
- 212821
F1 CLUTCH HYDRAULIC CONTROL
Valid from transmission Nr. 1891 		- 1 Enquire
- 185086
F1 CLUTCH HYDRAULIC CONT ROL
Valid till transmission Nr. 368 / 		- 1 Enquire
- 194327
F1 CLUTCH HYDRAULIC CONTROL
Valid from transmission Nr. 369 / Valid till gearbox Nr.1890 		- 1 Enquire
1 179533
POWER UNIT 		- 1 Enquire
2 980001156
PRESSURE SENSOR 		- 1 Enquire
3 196214
POWER UNIT SUPPORTING BRACKET 		- 1 Enquire
3 185096
POWER UNIT SUPPORTING BRACKET 		- 1 Enquire
3 196214
POWER UNIT SUPPORTING BRACKET 		- 1 Enquire
4 231629
SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30
(Q.ty 3 for cars with transmission till Nr. 368) 		- 2 Enquire
5 175283
Nut 		- 2 Enquire
6 14496524
WASHER
(Q.ty 6 for cars with transmission till Nr. 368) 		- 2 Enquire
7 10902727
SCREW 		- 3 Enquire
7 10903224
SCREW
Not as spare part / Replaced by 10903424 		- 3 Enquire
7 10903424
SCREW 		- 3 Enquire
8 179636
STOP CAP 		- 6 Enquire
8 192345
CUP 		- 6 Enquire
9 179639
LOWER BUSHING 		- 3 Enquire
9 192337
LOWER PAD 		- 3 Enquire
10 179637
SHIM 		- 3 Enquire
10 192344
SPACER FOR WICK 		- 3 Enquire
11 179638
UPPER BUSHING 		- 3 Enquire
11 192339
UPPER PAD 		- 3 Enquire
12 12643724
WASHER 		- 3 Enquire
13 14446627
WASHER 		- 3 Enquire
14 247223
ELECTRIC PUMP KIT 		- 1 Enquire
15 10902424
SCREW 		- 3 Enquire
16 10519424
WASHER 		- 3 Enquire
17 185092
PIPE FROM ELECTRICAL PUMP TO POWER UNIT
TO POWER UNIT 		- 1 Enquire
17 194328
PIPE FROM ELECTRICAL PUMP TO POWER UNIT 		- 1 Enquire
18 188685
OIL TANK 		- 1 Enquire
19 179593
BRACKET FOR TANK SUPPORT
SUPPORT 		- 1 Enquire
20 171746
SUPPORT CLAMP 		- 1 Enquire
21 81591700
SCREW 		- 3 Enquire
22 10519424
WASHER 		- 2 Enquire
23 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 1 Enquire
24 183718
RUBBER GASKET 		- 1 Enquire
25 185094
PIPE FROM TANK TO PUMP 		- 1 Enquire
25 194330
PIPE FROM TANK TO PUMP 		- 1 Enquire
26 184958
SWINGING UNION 		- 1 Enquire
27 277407
HOSE CONNECTOR 		- 1 Enquire
28 281980
GASKET 		- 2 Enquire
29 185095
PIPE FROM POWER UNIT TO TANK 		- 1 Enquire
30 262111
JUBILEE CLAMP 		- 4 Enquire
31 262111
JUBILEE CLAMP 		- 1 Enquire
32 184121
ANTI HEAT SHIELD 		- 1 Enquire
33 81591700
SCREW 		- 4 Enquire
34 127494
WASHER 		- 4 Enquire
35 12643724
WASHER 		- 4 Enquire
36 195187
POWER UNIT SUPPORTING BRACKET 		- 1 Enquire
37 194786
PAD
Valid for bracket 194331 ref. 3 		- 4 Enquire
37 195372
PAD
Valid for bracket 196214 ref. 3 		- 4 Enquire
38 194787
PAD 		- 2 Enquire
38 897379
RUBBER BUSHING 		- 2 Enquire
39 14058421
NUT 		- 9 Enquire
40 312592
NUT 		- 3 Enquire
41 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 3 Enquire
42 162606
CLIP 		- 1 Enquire
