FRONT AND REAR LIGHTS

Find Your Part

Ferrari 575M Maranello - FRONT AND REAR LIGHTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
672582 RH HEADLIGHT LOW/HIGH BEAM Enquire To Order
672585 RH HEADLIGHT LOW/HIGH BEAM Enquire To Order
691816 RH HEADLIGHT LOW/HIGH BEAM Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
672584 LH HEADLIGHT LOW/HIGH BEAM Enquire To Order
691818 LH HEADLIGHT LOW/HIGH BEAM Enquire To Order
672586 LH HEADLIGHT LOW/HIGH BEAM Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
65898400 PLUG FOR LIGHTS $20.84 To Order
Photo Part No Description Price (each) Stock
64559700 R.H. FRONT BRACKET $141.19 To Order
64559600 L.H. FRONT BRACKET $78.61 To Order
Photo Part No Description Price (each) Stock
64559100 R.H. BRACKET $128.35 To Order
64559000 L.H. BRACKET $128.35 To Order
Photo Part No Description Price (each) Stock
66672600 R.H. OUTER BRACKET $39.08 To Order
66672700 L.H. OUTER BRACKET $65.77 To Order
Photo Part No Description Price (each) Stock
64786600 R.H. INNER REAR BRACKET $78.61 To Order
64786500 L.H. INNER REAR BRACKET $78.61 To Order
Photo Part No Description Price (each) Stock
167958 ADDITIONAL STOP LIGHT $59.63 To Order
Photo Part No Description Price (each) Stock
15782601 SCREW $0.16 To Order
Photo Part No Description Price (each) Stock
157524 RH Rear Inner Light $559.70 To Order
157514 LH REAR INTERNAL LIGHT $559.70 To Order
157525 LH Inner Rear Light $559.70 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
157516 L.H. rear external light $541.64 To Order
157523 L.H. rear external light $527.01 To Order
157515 RH REAR OUTER EXTERNAL LIGHT $559.70 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
165558 SIDE TURN INDICATOR $35.16 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
10519424 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
11612524 SCREW $0.86 To Order
Photo Part No Description Price (each) Stock
12648925 WASHER $0.39 To Order
Photo Part No Description Price (each) Stock
66672400 R.H. UPPER BRACKET $1,004.53 To Order
66672500 L.H. UPPER BRACKET $641.82 To Order
Photo Part No Description Price (each) Stock
11612524 SCREW $0.86 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
11612424 SCREW $1.78 To Order
Photo Part No Description Price (each) Stock
12648925 WASHER $0.39 To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.47 To Order
Photo Part No Description Price (each) Stock
66672300 L.H. LOWER BRACKET $224.63 To Order
66672200 R.H. LOWER BRACKET $224.63 To Order
Photo Part No Description Price (each) Stock
16043434 HEX HEAD SCREW M8 X 20 $0.24 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER $5.75 To Order
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
65515300 LH Headlight Gasket $208.58 To Order
65515200 RH Headlight Gasket $208.58 To Order
Photo Part No Description Price (each) Stock
68740000 HEADLIGHT WASHER PUMP $272.34 To Order
68740000 HEADLIGHT WASHER PUMP $272.34 To Order
Photo Part No Description Price (each) Stock
65511700 GASKET $6.74 To Order
Photo Part No Description Price (each) Stock
66223900 TELESCOPIC SYSTEM WITH PIPES $481.44 To Order
Photo Part No Description Price (each) Stock
66224100 LH. PLUG $60.96 To Order
66224000 R.H. PLUG $60.96 To Order
Photo Part No Description Price (each) Stock
66223700 HEADLIGHT WASHER FASTENER RING $401.13 To Order
Photo Part No Description Price (each) Stock
11568124 SCREW $0.94 To Order
Photo Part No Description Price (each) Stock
67495600 JETS SET FOR WINDOW WASHING $102.61 To Order
Photo Part No Description Price (each) Stock
66223800 TOOL FOR FASTENER $118.72 To Order
Photo Part No Description Price (each) Stock
147563 FRONT SIDE MARKER LAMP $46.87 To Order
Photo Part No Description Price (each) Stock
140594 REAR SIDE-MARKER LIGHT $46.87 To Order
Photo Part No Description Price (each) Stock
14084111 NUT $0.05 To Order
Photo Part No Description Price (each) Stock
12638124 WASHER $0.05 To Order
Photo Part No Description Price (each) Stock
155751 CLIP $4.64 To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY $770.19 To Order
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
67741200 COMPLETE TUBE $172.00 To Order
Photo Part No Description Price (each) Stock
67255800 TELESCOPIC $258.00 To Order
Photo Part No Description Price (each) Stock
220442 BALLAST R.H. CONTROL STATION $802.28 To Order
View All

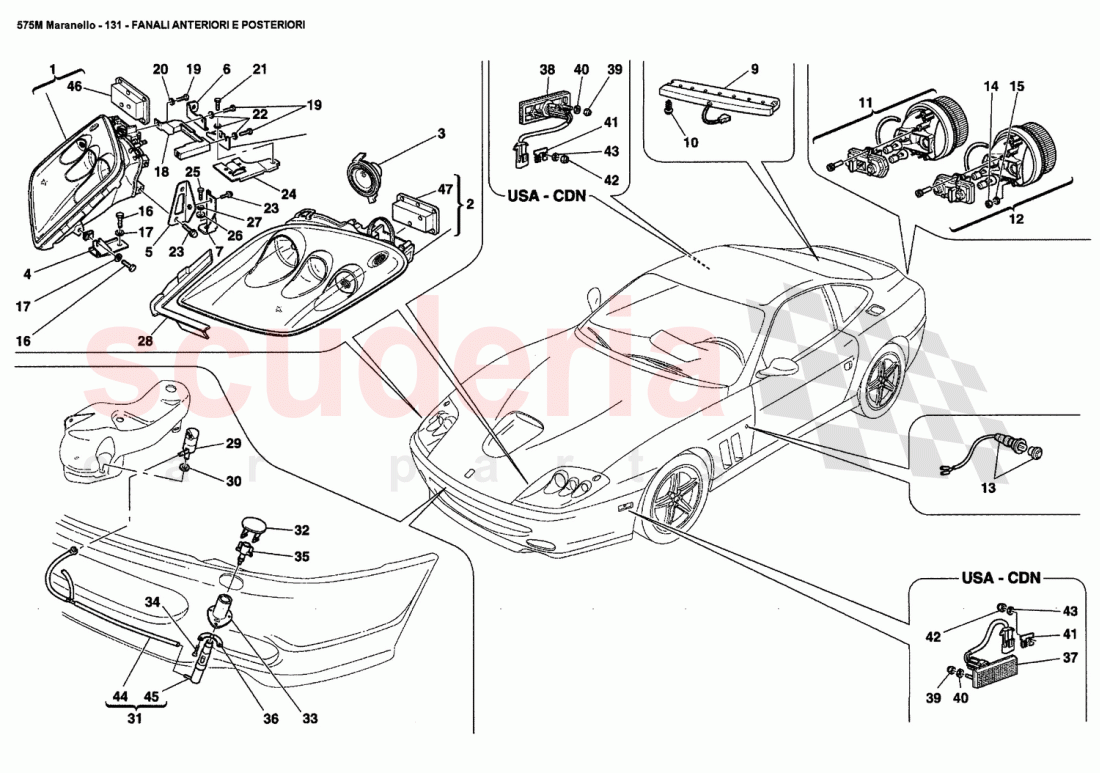

FRONT AND REAR LIGHTS of Ferrari Ferrari 575M Maranello Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 672582
RH HEADLIGHT LOW/HIGH BEAM 		- 1 Enquire
1 672585
RH HEADLIGHT LOW/HIGH BEAM
Valid for GD and J / Replaced by 691816.. 		- 1 Enquire
1 691816
RH HEADLIGHT LOW/HIGH BEAM 		- 1 Enquire
1 691814
RH HEADLIGHT LOW/HIGH BEAM 		- 1 Enquire
1 672583
RH HEADLIGHT LOW/HIGH BEAM
Valid for USA and CDN / Replaced by 691815.. / 		- 1 Enquire
1 691815
R.H. HEADLIGHT LOW/HIGH 		- 1 Enquire
2 672584
LH HEADLIGHT LOW/HIGH BEAM
Replaced by 691818.. 		- 1 Enquire
2 691818
LH HEADLIGHT LOW/HIGH BEAM 		- 1 Enquire
2 672586
LH HEADLIGHT LOW/HIGH BEAM
Replaced by 691819.. / 		- 1 Enquire
2 691819
LH HEADLIGHT LOW/HIGH BEAM 		- 1 Enquire
2 672581
LH HEADLIGHT LOW/HIGH BEAM
Replaced by 691817.. 		- 1 Enquire
2 691817
LH HEADLIGHT LOW/HIGH BEAM 		- 1 Enquire
3 65898400
PLUG FOR LIGHTS 		$20.84 (36.1% off) 2
4 64559700
R.H. FRONT BRACKET 		$141.19 (22.6% off) 1
4 64559600
L.H. FRONT BRACKET 		$78.61 1
5 64559100
R.H. BRACKET 		$128.35 (45.4% off) 1
5 64559000
L.H. BRACKET 		$128.35 1
6 66672600
R.H. OUTER BRACKET 		$39.08 (53.1% off) 1
6 66672700
L.H. OUTER BRACKET 		$65.77 1
7 64786600
R.H. INNER REAR BRACKET 		$78.61 (44.5% off) 1
7 64786500
L.H. INNER REAR BRACKET 		$78.61 1
8 66672800
R.H. INNER BRACKET 		$59.35 1
8 66672900
L.H. INNER BRACKET 		$59.35 1
9 167958
ADDITIONAL STOP LIGHT 		$59.63 (11.9% off) 1
10 15782601
SCREW 		$0.16 3
11 157524
RH Rear Inner Light 		$559.70 (22.6% off) 1
11 157514
LH REAR INTERNAL LIGHT 		$559.70 1
11 157525
LH Inner Rear Light 		$559.70 (22.6% off) 1
11 157513
R.H. rear internal light
Not for USA and CDN 		$790.52 1
12 157516
L.H. rear external light 		$541.64 1
12 157523
L.H. rear external light
Valid for USA and CON 		$527.01 (25.4% off) 1
12 157515
RH REAR OUTER EXTERNAL LIGHT 		$559.70 1
12 157522
R.H. rear external light 		$527.01 (25.4% off) 1
13 165558
SIDE TURN INDICATOR
LIGHT 		$35.16 (6.5% off) 2
14 14059290
FLANGED NUT M6 		$1.51 8
15 10519424
WASHER 		$0.02 (92% off) 8
16 11612524
SCREW 		$0.86 4
17 12648925
WASHER 		$0.39 4
18 66672400
R.H. UPPER BRACKET 		$1,004.53 1
18 66672500
L.H. UPPER BRACKET 		$641.82 1
19 11612524
SCREW 		$0.86 6
20 12643724
WASHER 		$0.06 (88% off) 2
21 11612424
SCREW 		$1.78 (57.1% off) 4
22 12648925
WASHER 		$0.39 6
23 16296934
SCREW 6 X 14MM 		$0.47 6
24 66672300
L.H. LOWER BRACKET 		$224.63 1
24 66672200
R.H. LOWER BRACKET 		$224.63 1
25 16043434
HEX HEAD SCREW M8 X 20 		$0.24 (52% off) 2
26 84653800
WASHER 		$5.75 2
27 127496
WASHER 		$0.06 (80% off) 2
28 65515300
LH Headlight Gasket 		$208.58 (8.7% off) 1
28 65515200
RH Headlight Gasket 		$208.58 (8.7% off) 1
29 68740000
HEADLIGHT WASHER PUMP 		$272.34 1
29 68740000
HEADLIGHT WASHER PUMP 		$272.34 1
30 65511700
GASKET 		$6.74 (21.4% off) 1
31 66223900
TELESCOPIC SYSTEM WITH PIPES
PIPES 		$481.44 1
32 66224100
LH. PLUG 		$60.96 1
32 66224000
R.H. PLUG 		$60.96 1
33 66223700
HEADLIGHT WASHER FASTENER RING 		$401.13 2
34 11568124
SCREW 		$0.94 6
35 67495600
JETS SET FOR WINDOW WASHING 		$102.61 1
36 66223800
TOOL FOR FASTENER
Not for USA and CON 		$118.72 2
37 147563
FRONT SIDE MARKER LAMP 		$46.87 2
38 140594
REAR SIDE-MARKER LIGHT 		$46.87 2
39 14084111
NUT 		$0.05 8
40 12638124
WASHER 		$0.05 (92.9% off) 8
41 155751
CLIP 		$4.64 (6.3% off) 2
42 319201
FUEL FILLER PIPE ASSEMBLY 		$770.19 2
43 12637824
WASHER 		$0.06 (88% off) 2
44 67741200
COMPLETE TUBE 		$172.00 1
45 67255800
TELESCOPIC 		$258.00 2
46 220442
BALLAST R.H. CONTROL STATION 		$802.28 1
