Name: WATER PUMP
Rating: 5.0 (1 reviews)

WATER PUMP of Ferrari Ferrari 575M Maranello

View All

Ferrari 575M Maranello - WATER PUMP

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	182693	WATER PUMP BODY COMPLETED WITH STUDS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183681	THERMOSTAT VALVE COVER	$115.51	To Order
	163952	THERMOSTAT VALVE COVER	$139.58	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	132349	CONNECTOR	$16.66	To Order
	130282	Connection for drain	$7.63	To Order

Photo	Part No	Description	Price (each)	Stock
	10297760	GASKET	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	149279	O-Ring	$4.75	To Order

Photo	Part No	Description	Price (each)	Stock
	950840	WATER THERMOSTAT	$99.47	To Order

Photo	Part No	Description	Price (each)	Stock
	169924	PULLEY	$2,198.90	To Order

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	10202320	Woodruff Key	$1.12	To Order

Photo	Part No	Description	Price (each)	Stock

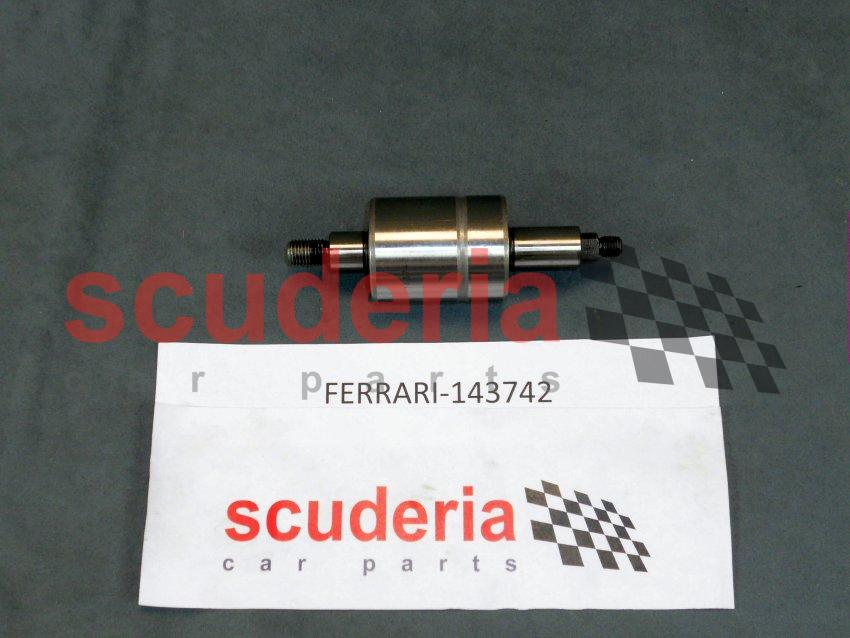

	143742	BEARING WITH SHAFT	$289.56	To Order

Photo	Part No	Description	Price (each)	Stock

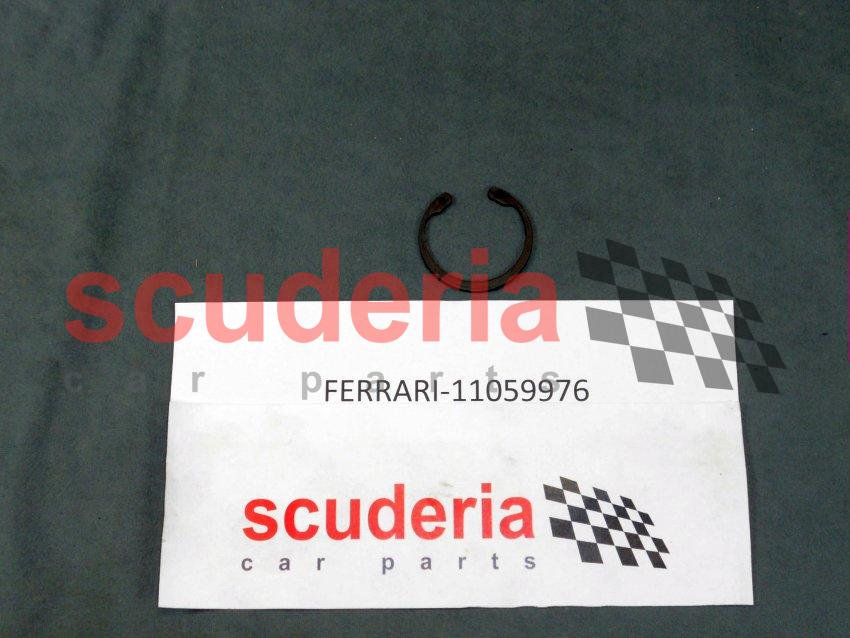

	11059976	SEEGER RING	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	137873	O-Ring	$5.28	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	$30.23	To Order

Photo	Part No	Description	Price (each)	Stock

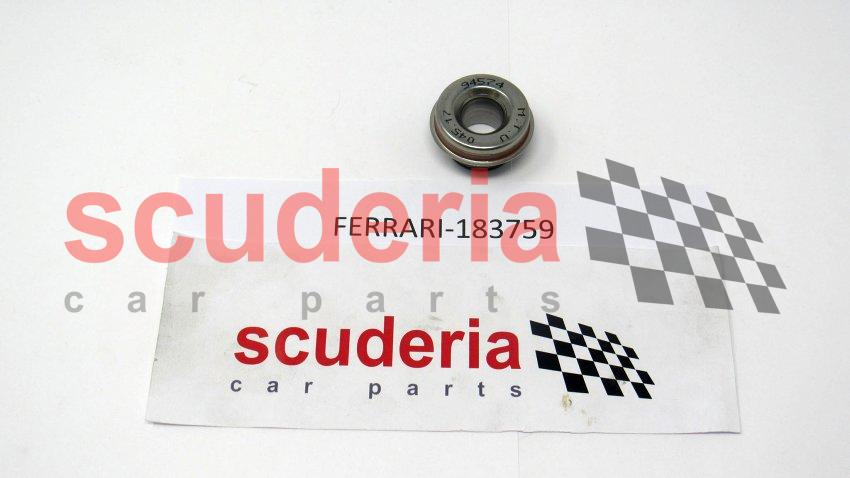

	183759	Water Pump Seal	$36.89	To Order

Photo	Part No	Description	Price (each)	Stock
	137868	O-Ring	$14.77	To Order

Photo	Part No	Description	Price (each)	Stock

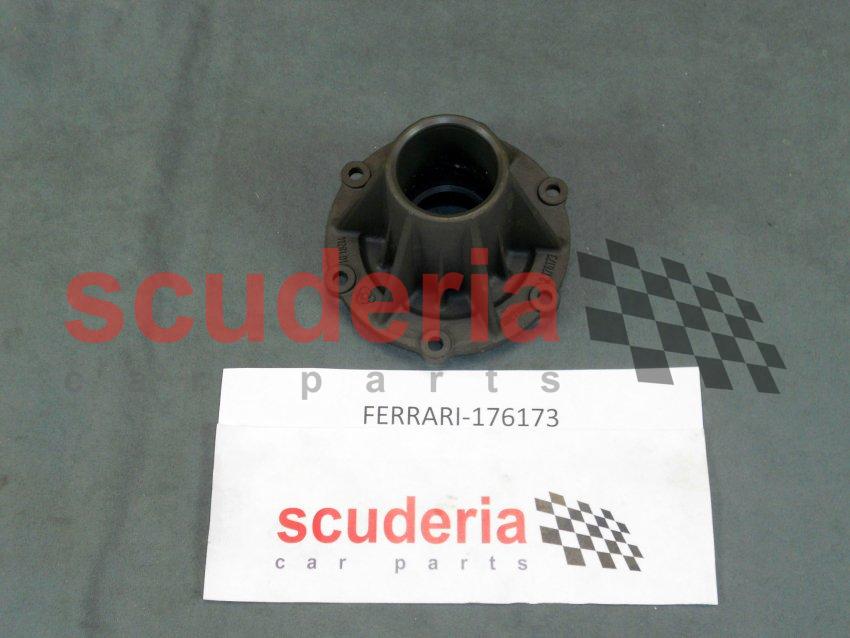

	176173	WATER PUMP COVER	$529.50	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	13540924	STUD BOLT	$39.17	To Order

Photo	Part No	Description	Price (each)	Stock
	141068	UNION	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock

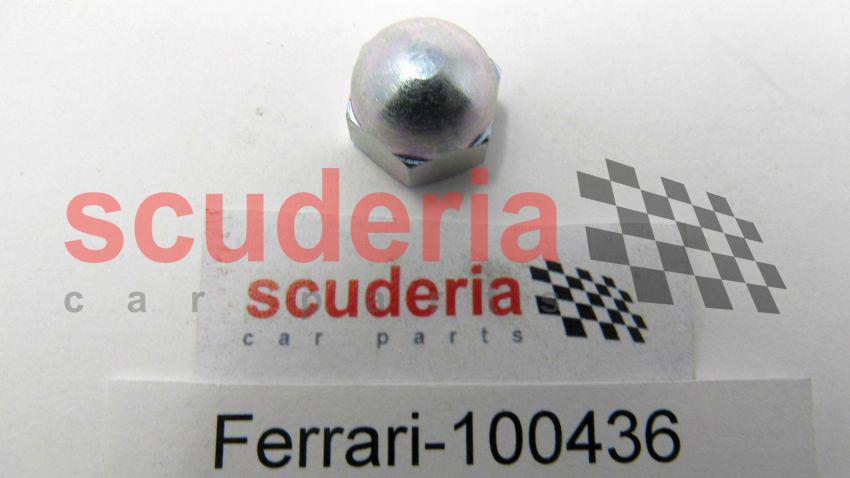

	100436	BLIND NUT	$11.20	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	$5.75	To Order

Photo	Part No	Description	Price (each)	Stock
	176045	WATER PUMP ROTOR	$150.82	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	$0.24	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	141250	O-Ring	$0.19	To Order

Photo	Part No	Description	Price (each)	Stock
	184255	HEAD WATER MANIFOLD	$706.01	To Order

Photo	Part No	Description	Price (each)	Stock
	9162535	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	$30.23	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	201456	WATER PUMP BELT	$35.98	To Order

Photo	Part No	Description	Price (each)	Stock

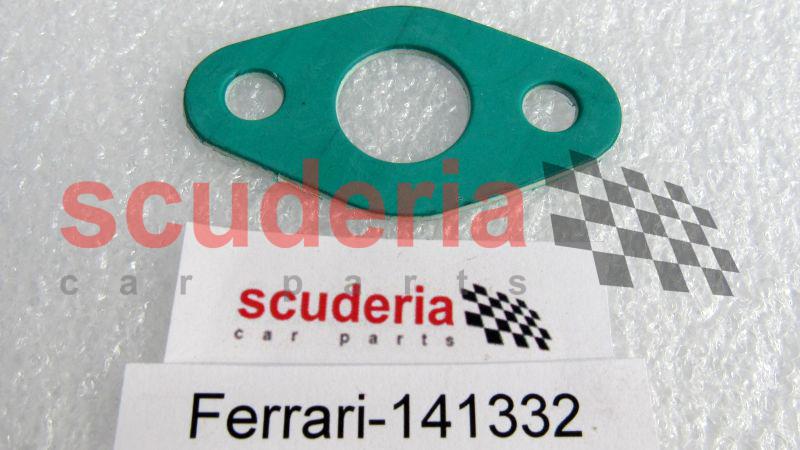

	141332	GASKET	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	155093	CONNECTOR	$15.19	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	191905	PIPE FROM DUCT	$208.58	To Order
	189984	PIPE FROM DUCT	$57.75	To Order

Photo	Part No	Description	Price (each)	Stock
	189983	BRACKET WITH SHEATH	$3.99	To Order
	145661	BRACKET WITH SHEATH	$3.79	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	145352	O.R. GASKET	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	181599	WATER HOSE BETWEEN MANIFOLD AND WATER PUMP	$336.95	To Order

Photo	Part No	Description	Price (each)	Stock
	13000790	SCREW COLLAR	$0.81	To Order
	13000490	Screw Collar	$0.83	To Order

Photo	Part No	Description	Price (each)	Stock
	13000490	Screw Collar	$0.83	To Order

Photo	Part No	Description	Price (each)	Stock
	175223	RUBBER HOSE	$9.60	To Order

Photo	Part No	Description	Price (each)	Stock
	191916	PIPE FROM WATER PUMP	$54.46	To Order
	191906	PIPE FROM WATER PUMP	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	176046	BUSHING FOR BYPASS	$32.08	To Order

Photo	Part No	Description	Price (each)	Stock
	11058376	SEEGER RING	$0.10	To Order

Photo	Part No	Description	Price (each)	Stock
	176047	SPRING FOR BYPASS	$14.18	To Order

Photo	Part No	Description	Price (each)	Stock
	176048	CAP FOR BYPASS SPRING	$15.71	To Order

Photo	Part No	Description	Price (each)	Stock

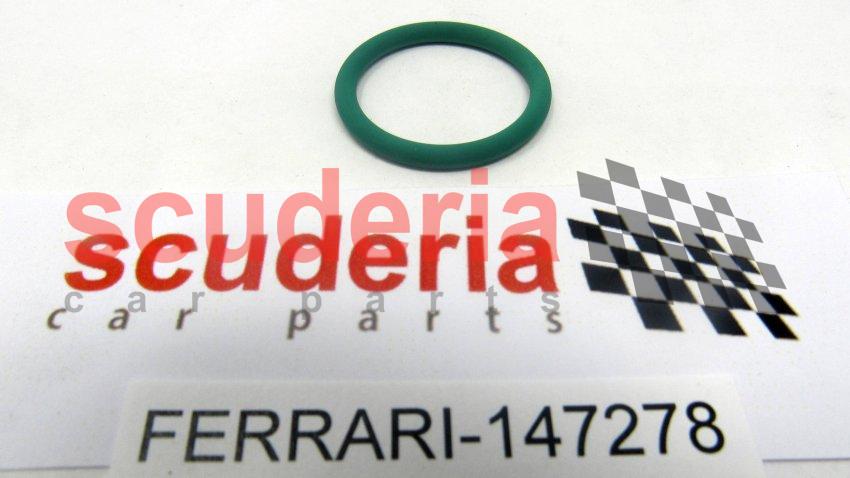

	147278	O-Ring	$0.57	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	181134	COMPLETE WATER PUMP	181134 COMPLETE WATER PUMP	$2,726.20	1
-	184038	COMPLETE WATER PUMP	184038 COMPLETE WATER PUMP Valid from engine Nr. 72331	$2,469.46	1
-	182693	WATER PUMP BODY COMPLETED WITH STUDS	182693 WATER PUMP BODY COMPLETED WITH STUDS WITH STUDS / Not as spare part / Replaced by 184002	-	1	Enquire
-	181134	COMPLETE WATER PUMP	181134 COMPLETE WATER PUMP Valid till engine Nr. 72330	$2,726.20	1
1	182693	WATER PUMP BODY COMPLETED WITH STUDS	182693 WATER PUMP BODY COMPLETED WITH STUDS	-	1	Enquire
2	183681	THERMOSTAT VALVE COVER	183681 THERMOSTAT VALVE COVER	$115.51	1

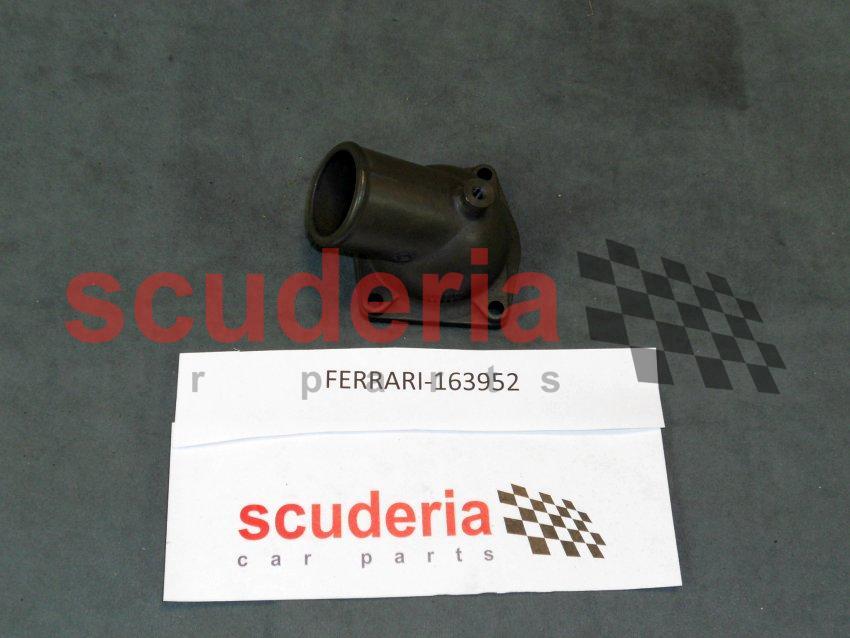

2	163952	THERMOSTAT VALVE COVER	163952 THERMOSTAT VALVE COVER	$139.58	1
3	231619	SCREW	231619 SCREW	$0.31	4
4	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	4
5	132349	CONNECTOR	132349 CONNECTOR	$16.66	1
5	130282	Connection for drain	130282 Connection for drain	$7.63 MSRP: ~~8.50~~ (10.2% off)	1

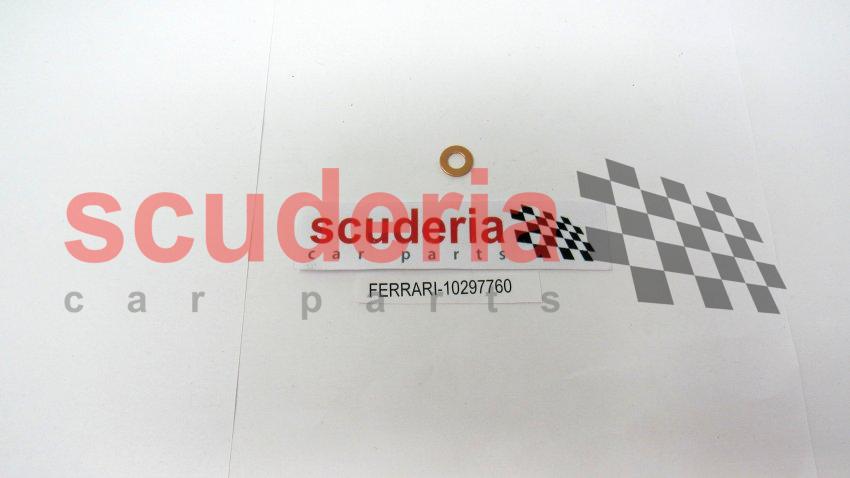

6	10297760	GASKET	10297760 GASKET	$0.41 MSRP: ~~1.00~~ (59% off)	1

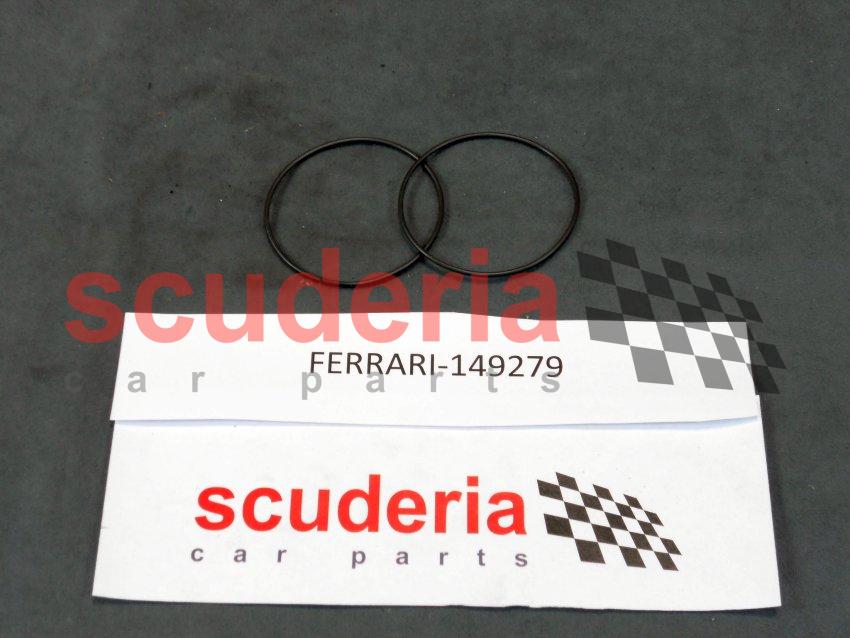

7	149279	O-Ring	149279 O-Ring	$4.75 MSRP: ~~9.75~~ (51.3% off)	1
8	950840	WATER THERMOSTAT	950840 WATER THERMOSTAT	$99.47	1
9	169924	PULLEY	169924 PULLEY	$2,198.90	1
10	102742	Nyloc Nut M10 x 1.25 x 10mm	102742 Nyloc Nut M10 x 1.25 x 10mm	$0.45 MSRP: ~~3.25~~ (86.2% off)	1
11	12647021	WASHER	12647021 WASHER	$0.32	1

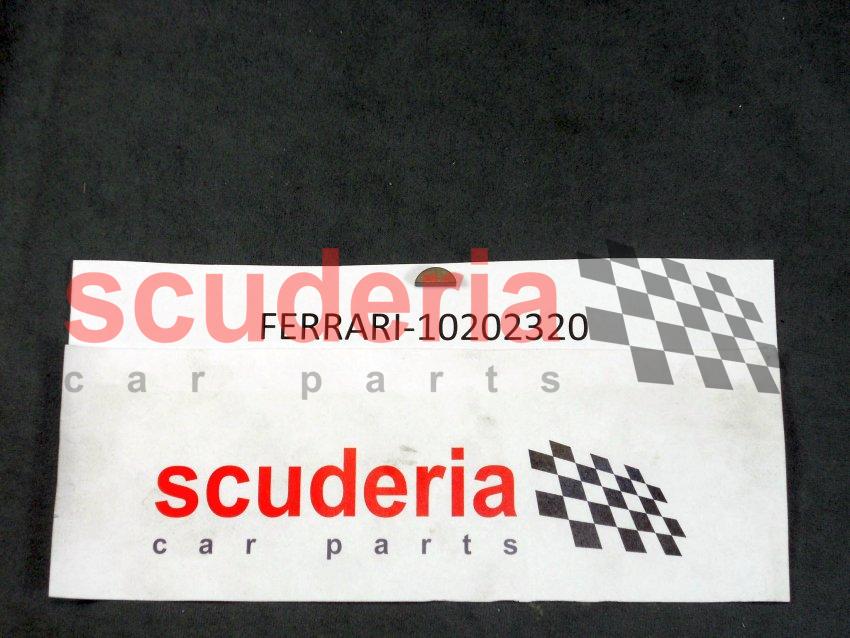

12	10202320	Woodruff Key	10202320 Woodruff Key	$1.12	1
13	143742	BEARING WITH SHAFT	143742 BEARING WITH SHAFT	$289.56	1
14	11059976	SEEGER RING	11059976 SEEGER RING	$1.15 MSRP: ~~1.50~~ (23.3% off)	1

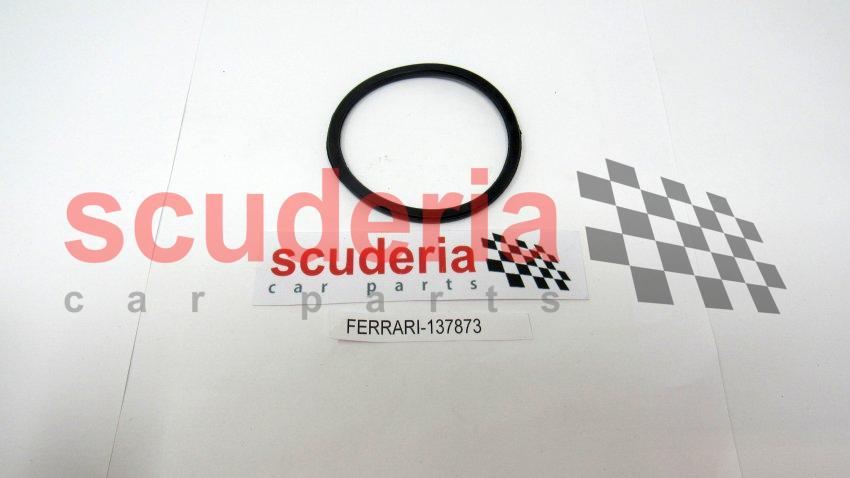

15	137873	O-Ring ARRIVING SOON	137873 O-Ring ARRIVING SOON	$5.28 MSRP: ~~7.55~~ (30.1% off)	1
16	10298460	GASKET	10298460 GASKET	$0.15 MSRP: ~~1.25~~ (88% off)	1
17	180137	TEMPERATURE SENSOR	180137 TEMPERATURE SENSOR SENSOR	$30.23 MSRP: ~~32.99~~ (8.4% off)	1
18	183759	Water Pump Seal	183759 Water Pump Seal	$36.89 MSRP: ~~50.62~~ (27.1% off)	1

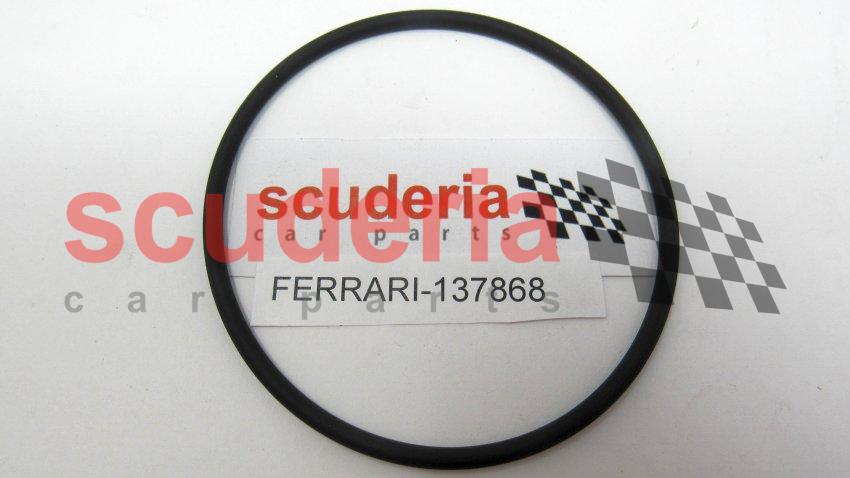

19	137868	O-Ring	137868 O-Ring	$14.77	1
20	176173	WATER PUMP COVER	176173 WATER PUMP COVER	$529.50	1
21	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	6
22	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	6
23	13540924	STUD BOLT	13540924 STUD BOLT	$39.17	6
24	141068	UNION	141068 UNION	$240.67	1
25	100436	BLIND NUT	100436 BLIND NUT	$11.20	1
26	84653800	WASHER	84653800 WASHER	$5.75	1
27	176045	WATER PUMP ROTOR	176045 WATER PUMP ROTOR	$150.82 MSRP: ~~162.38~~ (7.1% off)	1
28	14306424	SCREW	14306424 SCREW	$0.24 MSRP: ~~0.41~~ (41.5% off)	4
29	11193874	WASHER	11193874 WASHER	$0.06	4

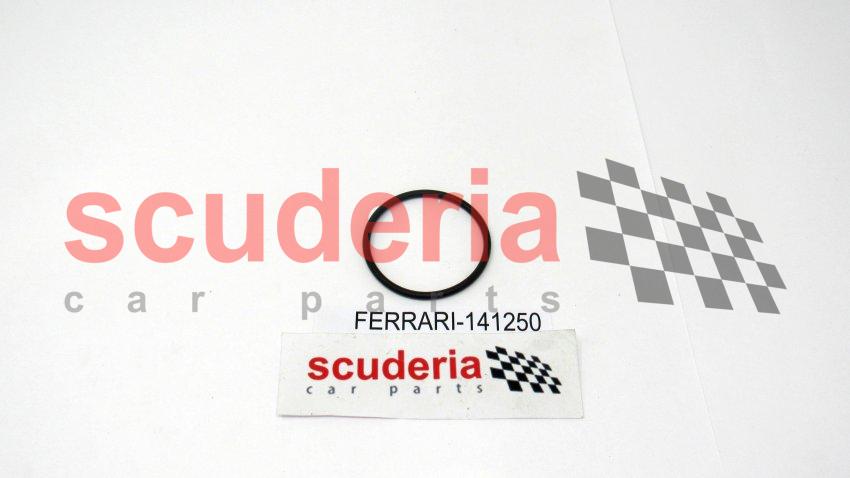

30	141250	O-Ring	141250 O-Ring	$0.19 MSRP: ~~0.50~~ (62% off)	1
31	184255	HEAD WATER MANIFOLD	184255 HEAD WATER MANIFOLD	$706.01	1
32	9162535	THREADED PLUG	9162535 THREADED PLUG	-	1	Enquire
33	180137	TEMPERATURE SENSOR	180137 TEMPERATURE SENSOR	$30.23 MSRP: ~~32.99~~ (8.4% off)	2
34	10298460	GASKET	10298460 GASKET	$0.15 MSRP: ~~1.25~~ (88% off)	2

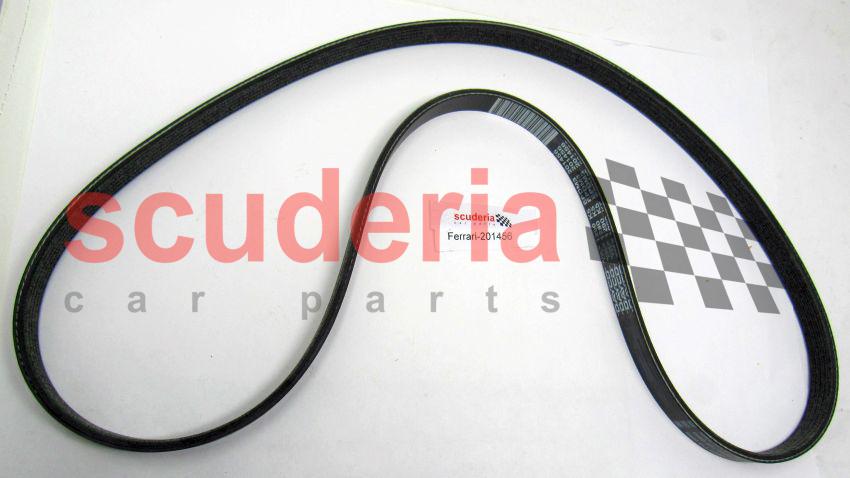

35	201456	WATER PUMP BELT	201456 WATER PUMP BELT	$35.98 MSRP: ~~40.76~~ (11.7% off)	1
36	141332	GASKET	141332 GASKET	$1.46 MSRP: ~~2.15~~ (32.1% off)	12
37	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	27
38	155093	CONNECTOR	155093 CONNECTOR	$15.19 MSRP: ~~26.05~~ (41.7% off)	1
39	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	24
40	191905	PIPE FROM DUCT	191905 PIPE FROM DUCT Valid for GD	$208.58	1
40	189984	PIPE FROM DUCT	189984 PIPE FROM DUCT Not for GD	$57.75	1
41	189983	BRACKET WITH SHEATH	189983 BRACKET WITH SHEATH	$3.99	1
41	145661	BRACKET WITH SHEATH	145661 BRACKET WITH SHEATH	$3.79	1
42	231619	SCREW	231619 SCREW	$0.31	2
43	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
44	145352	O.R. GASKET	145352 O.R. GASKET	$0.57	1
45	181599	WATER HOSE BETWEEN MANIFOLD AND WATER PUMP	181599 WATER HOSE BETWEEN MANIFOLD AND WATER PUMP MANIFOLD AND WATER PUMP	$336.95 MSRP: ~~395.00~~ (14.7% off)	1
46	13000790	SCREW COLLAR	13000790 SCREW COLLAR Replaced by 13000490	$0.81 MSRP: ~~2.25~~ (64% off)	2
46	13000490	Screw Collar	13000490 Screw Collar	$0.83 MSRP: ~~1.90~~ (56.3% off)	2
47	13000490	Screw Collar	13000490 Screw Collar	$0.83 MSRP: ~~1.90~~ (56.3% off)	2
48	175223	RUBBER HOSE	175223 RUBBER HOSE	$9.60 MSRP: ~~11.58~~ (17.1% off)	1
49	191916	PIPE FROM WATER PUMP	191916 PIPE FROM WATER PUMP	$54.46	1
49	191906	PIPE FROM WATER PUMP	191906 PIPE FROM WATER PUMP	$240.67	1
50	176046	BUSHING FOR BYPASS	176046 BUSHING FOR BYPASS	$32.08	1
51	11058376	SEEGER RING	11058376 SEEGER RING	$0.10	1
52	176047	SPRING FOR BYPASS	176047 SPRING FOR BYPASS	$14.18	1
53	176048	CAP FOR BYPASS SPRING	176048 CAP FOR BYPASS SPRING	$15.71	1
54	147278	O-Ring	147278 O-Ring	$0.57 MSRP: ~~1.04~~ (45.2% off)	1
