Ferrari 575M Maranello - COOLING SYSTEM - RADIATOR AND NOURICE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
171772 COMPLETE WATER RADIATOR $7,556.04 To Order
Photo Part No Description Price (each) Stock
168213 COMPLETE OIL RADIATOR $2,724.59 To Order
Photo Part No Description Price (each) Stock
307674 RADIATOR MOUNTING BUSH $8.49 To Order
Photo Part No Description Price (each) Stock
174220 UNION (THREAD INCHES) $142.79 To Order
157160 UNION (METRIC THREAD) $8.44 To Order
Photo Part No Description Price (each) Stock
181601 COWL FOR ELECTRIC FANS $529.50 To Order
Photo Part No Description Price (each) Stock
208819 Complete Electric Fan $738.10 To Order
Photo Part No Description Price (each) Stock
14304324 SCREW $1.15 To Order
Photo Part No Description Price (each) Stock
127493 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
157650 FASTENER BUSHING $14.75 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER $5.75 To Order
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
133989 NUT $0.45 To Order
Photo Part No Description Price (each) Stock
15201024 SCREW $0.19 To Order
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
14084111 NUT $0.05 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
12648224 WASHER $0.28 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
179037 DELIVERY WATER RUBBER PIPE $258.00 To Order
Photo Part No Description Price (each) Stock
296781 COLLAR 30-45MM $9.00 To Order
Photo Part No Description Price (each) Stock
13000790 SCREW COLLAR $0.81 To Order
Photo Part No Description Price (each) Stock
215221 VENT PIPE FROM RADIATOR TO EXPANSION TANK $115.51 To Order
171668 VENT PIPE FROM RADIATOR TO EXPANSION TANK $57.80 To Order
167465 VENT PIPE FROM RADIATOR TO EXPANSION TANK $156.75 To Order
Photo Part No Description Price (each) Stock
177995 CLAMP $1.20 To Order
Photo Part No Description Price (each) Stock
65206300 AIR CONVEYOR $1,010.88 To Order
Photo Part No Description Price (each) Stock
62940900 Allen Head Screw M6 x 15 $1.47 To Order
Photo Part No Description Price (each) Stock
14305234 SCREW $0.26 To Order
Photo Part No Description Price (each) Stock
155441 STRIP $2.24 To Order
Photo Part No Description Price (each) Stock
192608 COMPLETE FUEL CANISTER $449.27 To Order
171974 COMPLETE WATER CANISTER $1,267.62 To Order
Photo Part No Description Price (each) Stock
329417 CAP WITH BREATHER $320.90 To Order
Photo Part No Description Price (each) Stock
13423171 ELASTIC COLLAR $0.05 To Order
Photo Part No Description Price (each) Stock
156082 RUBBER PIPE $336.95 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.57 To Order
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
189069 STUD $11.38 To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.65 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.17 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
102947 VIBRATION DAMPER $19.24 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 To Order
Photo Part No Description Price (each) Stock
174539 O.R. GASKET $12.72 To Order
Photo Part No Description Price (each) Stock
174538 CAP $11.98 To Order
Photo Part No Description Price (each) Stock
13000490 Screw Collar $0.83 To Order
Photo Part No Description Price (each) Stock
207763 RUBBER PIPE $115.51 To Order
157744 RUBBER HOSE FROM TANK TO PUMP $36.89 To Order
Photo Part No Description Price (each) Stock
194911 RUBBER PIPE FROM EXPANSION TANK TO ENGINE $83.11 To Order
194911 RUBBER PIPE FROM EXPANSION TANK TO ENGINE $83.11 To Order
Photo Part No Description Price (each) Stock
63762800 UPPER GASKET $0.83 To Order
Photo Part No Description Price (each) Stock
62765800 ANTI-VIBRATIONS $1.54 To Order
Photo Part No Description Price (each) Stock
13000490 Screw Collar $0.83 To Order
Photo Part No Description Price (each) Stock
181602 GASKET $1.46 To Order
194255 ANTI-VIBRATIONS $1.13 To Order
Photo Part No Description Price (each) Stock
194256 ANTI-VIBRATIONS $0.36 To Order
181603 GASKET $17.62 To Order
Photo Part No Description Price (each) Stock
183649 STRIP $2.24 To Order
Photo Part No Description Price (each) Stock
195910 GASKET $5.28 To Order
View All

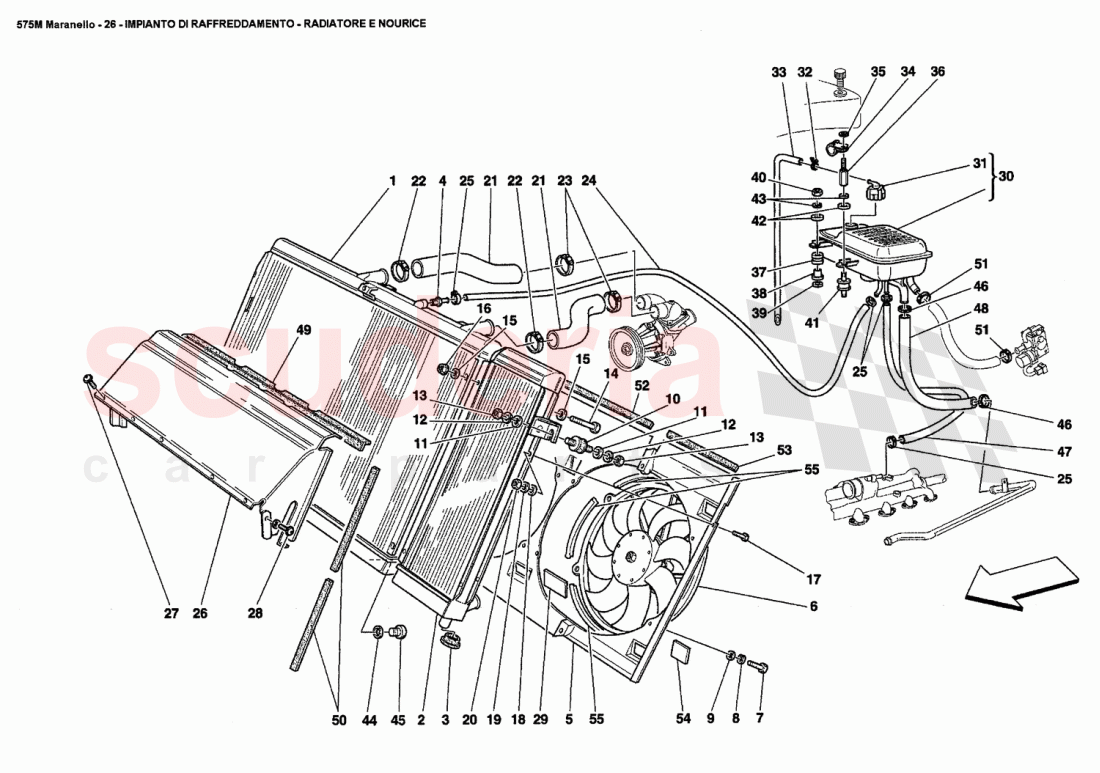

COOLING SYSTEM - RADIATOR AND NOURICE of Ferrari Ferrari 575M Maranello Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 171772
COMPLETE WATER RADIATOR 		$7,556.04 (32.9% off) 1
2 168213
COMPLETE OIL RADIATOR 		$2,724.59 (32.3% off) 1
3 307674
RADIATOR MOUNTING BUSH 		$8.49 2
4 174220
UNION (THREAD INCHES) 		$142.79 1
4 157160
UNION (METRIC THREAD) 		$8.44 1
5 181601
COWL FOR ELECTRIC FANS 		$529.50 (4.5% off) 1
6 208819
Complete Electric Fan 		$738.10 2
7 14304324
SCREW 		$1.15 8
8 127493
WASHER 		$0.06 (80% off) 8
9 12637824
WASHER 		$0.06 (88% off) 8
10 157650
FASTENER BUSHING 		$14.75 (38% off) 2
11 84653800
WASHER 		$5.75 4
12 127496
WASHER 		$0.06 (80% off) 4
13 133989
NUT 		$0.45 (55% off) 4
14 15201024
SCREW 		$0.19 1
15 12637824
WASHER 		$0.06 (88% off) 2
16 14084111
NUT 		$0.05 1
17 231619
SCREW 		$0.31 4
18 12648224
WASHER 		$0.28 4
19 127494
WASHER 		$0.08 (88.2% off) 4
20 14059290
FLANGED NUT M6 		$1.51 4
21 179037
DELIVERY WATER RUBBER PIPE 		$258.00 (18.3% off) 2
22 296781
COLLAR 30-45MM 		$9.00 2
23 13000790
SCREW COLLAR 		$0.81 (64% off) 2
24 215221
VENT PIPE FROM RADIATOR TO EXPANSION TANK 		$115.51 1
24 171668
VENT PIPE FROM RADIATOR TO EXPANSION TANK
EXPANSION TANK / Not for GD 		$57.80 1
24 167465
VENT PIPE FROM RADIATOR TO EXPANSION TANK
Valid for GD / Replaced by 215221 		$156.75 1
25 177995
CLAMP 		$1.20 (44.2% off) 4
26 65206300
AIR CONVEYOR 		$1,010.88 (37.8% off) 1
27 62940900
Allen Head Screw M6 x 15 		$1.47 (16% off) 9
28 14305234
SCREW 		$0.26 1
29 155441
STRIP 		$2.24 1
30 192608
COMPLETE FUEL CANISTER 		$449.27 1
30 171974
COMPLETE WATER CANISTER 		$1,267.62 1
31 329417
CAP WITH BREATHER 		$320.90 1
32 13423171
ELASTIC COLLAR 		$0.05 1
33 156082
RUBBER PIPE 		$336.95 (22.9% off) 1
34 10441290
BRACKET WITH SHEATH 		$0.57 (66.1% off) 1
35 12637824
WASHER 		$0.06 (88% off) 1
36 189069
STUD 		$11.38 1
37 812273
CABLE GROMMET 		$1.65 2
38 149707
SPACER 		$1.17 (33.1% off) 2
39 12643724
WASHER 		$0.06 (88% off) 2
40 14059290
FLANGED NUT M6 		$1.51 2
41 102947
VIBRATION DAMPER 		$19.24 (1.4% off) 1
42 12643724
WASHER 		$0.06 (88% off) 2
43 127494
WASHER 		$0.08 (88.2% off) 2
44 174539
O.R. GASKET 		$12.72 1
45 174538
CAP 		$11.98 (67.9% off) 1
46 13000490
Screw Collar 		$0.83 (56.3% off) 2
47 207763
RUBBER PIPE
TO EXPANSION TANK 		$115.51 1
47 157744
RUBBER HOSE FROM TANK TO PUMP 		$36.89 1
48 194911
RUBBER PIPE FROM EXPANSION TANK TO ENGINE 		$83.11 (47.5% off) 1
48 194911
RUBBER PIPE FROM EXPANSION TANK TO ENGINE
TANK TO ENGINE / Valid till stock exhaustion 		$83.11 (47.5% off) 1
49 63762800
UPPER GASKET 		$0.83 (72.3% off) 1
50 62765800
ANTI-VIBRATIONS 		$1.54 (58.4% off) 2
51 13000490
Screw Collar 		$0.83 (56.3% off) 2
52 181602
GASKET
Replaced by 194255 		$1.46 2
52 194255
ANTI-VIBRATIONS 		$1.13 2
53 194256
ANTI-VIBRATIONS 		$0.36 2
53 181603
GASKET
Replaced by 194256 		$17.62 2
54 183649
STRIP 		$2.24 5
55 195910
GASKET 		$5.28 12
