Name: ENGINE/GEARBOX CONNECTING TUBE AND INSULATION
Rating: 5.0 (1 reviews)

ENGINE/GEARBOX CONNECTING TUBE AND INSULATION of Ferrari Ferrari 575M Maranello

View All

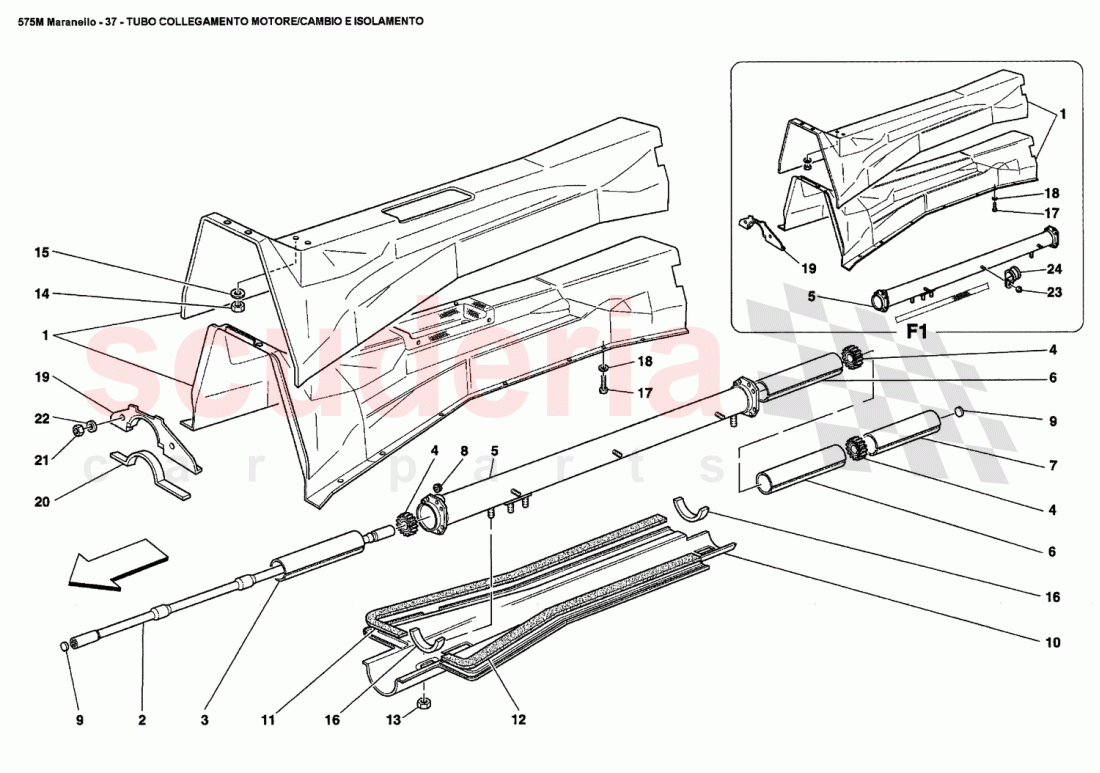

Ferrari 575M Maranello - ENGINE/GEARBOX CONNECTING TUBE AND INSULATION

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	66084200	COMPLETE TUNNEL HEAT SHIELD	$2,902.17	To Order
	66084200	COMPLETE TUNNEL HEAT SHIELD	$2,902.17	To Order
	66924100	COMPLETE TUNNEL HEAT SHIELD	$2,360.35	To Order

Photo	Part No	Description	Price (each)	Stock
	173817	COMPLETE PROPELLER SHAFT	$2,811.24	To Order

Photo	Part No	Description	Price (each)	Stock
	167000	ENGINE SIDE SPACER	$158.84	To Order

Photo	Part No	Description	Price (each)	Stock
	166569	Bearing	$82.43	To Order

Photo	Part No	Description	Price (each)	Stock
	197465	ENGINE-GEARBOX CONNECTING PIPE	$2,986.14	To Order
	197510	ENGINE-GEARBOX CONNECTING PIPE	$2,986.14	To Order
	197465	ENGINE-GEARBOX CONNECTING PIPE	$2,986.14	To Order

Photo	Part No	Description	Price (each)	Stock
	166998	INTERMEDIATE SPACER	$97.38	To Order

Photo	Part No	Description	Price (each)	Stock
	166999	GEARBOX SIDE SPACER	$93.62	To Order

Photo	Part No	Description	Price (each)	Stock
	14059421	NUT	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	144443	SHIM	$3.91	To Order

Photo	Part No	Description	Price (each)	Stock
	197502	SHIELD FOR PIPE PROTECTION	$757.08	To Order

Photo	Part No	Description	Price (each)	Stock
	238988	GASKET	$384.11	To Order

Photo	Part No	Description	Price (each)	Stock
	238988	GASKET	$384.11	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	64517200	GASKET	$8.27	To Order

Photo	Part No	Description	Price (each)	Stock
	10902380	SCREW	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	12648978	WASHER	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	65193500	SEAL PLATE	$52.94	To Order
	66766800	SEAL PLATE	$56.31	To Order

Photo	Part No	Description	Price (each)	Stock
	65200600	GASKET FOR PLATE	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	10441690	BRACKET WITH SHEATH	$2.06	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	66084200	COMPLETE TUNNEL HEAT SHIELD	66084200 COMPLETE TUNNEL HEAT SHIELD	$2,902.17	1
1	66084200	COMPLETE TUNNEL HEAT SHIELD	66084200 COMPLETE TUNNEL HEAT SHIELD Not for F1 /	$2,902.17	1
1	66924100	COMPLETE TUNNEL HEAT SHIELD	66924100 COMPLETE TUNNEL HEAT SHIELD Valid for F1	$2,360.35	1
2	173817	COMPLETE PROPELLER SHAFT	173817 COMPLETE PROPELLER SHAFT	$2,811.24	1
3	167000	ENGINE SIDE SPACER	167000 ENGINE SIDE SPACER	$158.84	1
4	166569	Bearing	166569 Bearing	$82.43 MSRP: ~~146.05~~ (43.6% off)	3
5	197465	ENGINE-GEARBOX CONNECTING PIPE	197465 ENGINE-GEARBOX CONNECTING PIPE	$2,986.14	1
5	197510	ENGINE-GEARBOX CONNECTING PIPE	197510 ENGINE-GEARBOX CONNECTING PIPE	$2,986.14	1
5	197465	ENGINE-GEARBOX CONNECTING PIPE	197465 ENGINE-GEARBOX CONNECTING PIPE Sostituito dal 197465	$2,986.14	1
6	166998	INTERMEDIATE SPACER	166998 INTERMEDIATE SPACER	$97.38	2
7	166999	GEARBOX SIDE SPACER	166999 GEARBOX SIDE SPACER	$93.62	1
8	14059421	NUT	14059421 NUT	$0.52	16
9	144443	SHIM	144443 SHIM	$3.91	2
10	197502	SHIELD FOR PIPE PROTECTION	197502 SHIELD FOR PIPE PROTECTION	$757.08	1
11	238988	GASKET	238988 GASKET	$384.11	1
12	238988	GASKET	238988 GASKET	$384.11	1
13	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
14	13046011	NUT	13046011 NUT	$0.39	4
15	12648925	WASHER	12648925 WASHER	$0.39	4
16	64517200	GASKET	64517200 GASKET	$8.27	2
17	10902380	SCREW	10902380 SCREW	$2.25	14
18	12648978	WASHER	12648978 WASHER	$0.55	14
19	65193500	SEAL PLATE	65193500 SEAL PLATE	$52.94	1
19	66766800	SEAL PLATE	66766800 SEAL PLATE	$56.31	1
20	65200600	GASKET FOR PLATE	65200600 GASKET FOR PLATE	$208.58	1
21	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
22	12648925	WASHER	12648925 WASHER	$0.39	2
23	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	3
24	10441690	BRACKET WITH SHEATH	10441690 BRACKET WITH SHEATH	$2.06	9
