Ferrari 550 Maranello - LAY SHAFT GEARS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
144498 SECONDARY SHAFT BEARING, DIFFERENTIAL SIDE $280.22 To Order
Photo Part No Description Price (each) Stock
228054 ROLLER BEARING $196.15 IN STOCK
Photo Part No Description Price (each) Stock
144511 STOP RING $0.79 To Order
Photo Part No Description Price (each) Stock
159553 RING NUT $15.82 To Order
Photo Part No Description Price (each) Stock
228055 ROLLER BEARING $164.48 To Order
Photo Part No Description Price (each) Stock
143924 RING $61.57 To Order
Photo Part No Description Price (each) Stock
143923 BUSHING $77.88 To Order
Photo Part No Description Price (each) Stock
121822 ROLLER BEARING $399.50 To Order
Photo Part No Description Price (each) Stock
122152 SPACER $176.51 To Order
Photo Part No Description Price (each) Stock
191956 COMPLETE BEVEL GEAR PAIR R.11/43 $1,431.06 To Order
Photo Part No Description Price (each) Stock
152198 SLEEVE FOR SYNCHRONIZER $281.19 To Order
Photo Part No Description Price (each) Stock
152090 BUSHING $569.81 To Order
Photo Part No Description Price (each) Stock
155718 SHIM $43.31 To Order
Photo Part No Description Price (each) Stock
16321434 SCREW -Not as spare part replaced $7.91 To Order
Photo Part No Description Price (each) Stock
157255 SYNCHRONIZER BODY $597.77 To Order
Photo Part No Description Price (each) Stock
157051 PAD FOR SYNCHRONIZER $11.22 To Order
Photo Part No Description Price (each) Stock
157049 SPRING FOR PAD $1.65 To Order
Photo Part No Description Price (each) Stock
157050 BALL $0.13 To Order
Photo Part No Description Price (each) Stock
150004 ROLLER BEARING CAGE $20.99 To Order
Photo Part No Description Price (each) Stock
167986 REVERSE GEAR $1,449.18 To Order
Photo Part No Description Price (each) Stock
152203 SYNCHRONIZER BODY $362.28 To Order
Photo Part No Description Price (each) Stock
152205 SYNCHRONIZER RING $332.04 To Order
Photo Part No Description Price (each) Stock
152195 PAD FOR SYNCHRONIZER $0.76 To Order
Photo Part No Description Price (each) Stock
152196 SPRING FOR SYNCHRONIZER $0.86 To Order
Photo Part No Description Price (each) Stock
152197 BALL $3.97 To Order
Photo Part No Description Price (each) Stock
152091 BUSHING $369.59 To Order
Photo Part No Description Price (each) Stock
167974 PINION FOR 1st GEAR $470.97 To Order
Photo Part No Description Price (each) Stock
156931 SLEEVE FOR SYNCHRONIZER $452.85 To Order
Photo Part No Description Price (each) Stock
159088 SYNCHRONIZER RINGS SERIES $877.81 To Order
Photo Part No Description Price (each) Stock
167972 PINION FOR 6th GEAR $996.29 To Order
Photo Part No Description Price (each) Stock
170056 SPACER $81.61 To Order
Photo Part No Description Price (each) Stock
167971 PINION FOR 5th GEAR $941.95 To Order
Photo Part No Description Price (each) Stock
161995 PINION FOR 4th GEAR $652.12 To Order
Photo Part No Description Price (each) Stock
167969 PINION FOR 3rd GEAR $289.82 To Order
Photo Part No Description Price (each) Stock
143892 BUSHING $90.55 To Order
Photo Part No Description Price (each) Stock
104254 ROLLER CAGE $56.39 To Order
Photo Part No Description Price (each) Stock
167976 PINION FOR 2nd GEAR $1,536.99 To Order
Photo Part No Description Price (each) Stock
157375 SPACER $14.33 To Order
Photo Part No Description Price (each) Stock
104254 ROLLER CAGE $56.39 To Order
View All

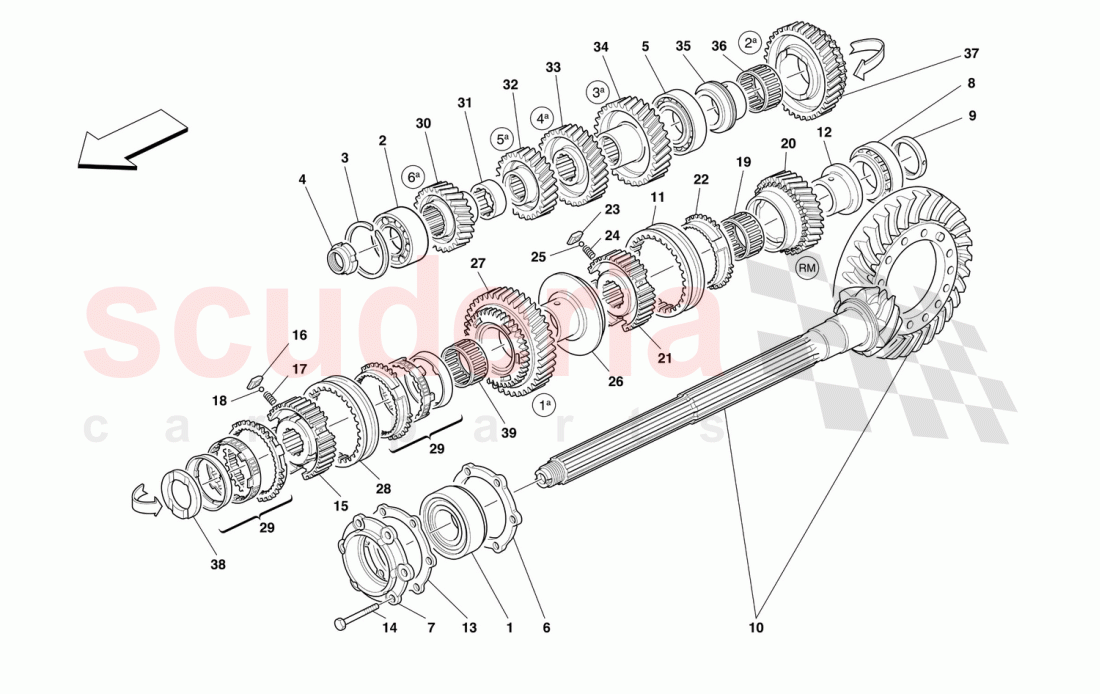

LAY SHAFT GEARS of Ferrari Ferrari 550 Maranello Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 179112
PINION FOR 5th GEAR
Valid from transmission Nr. 1882 		$960.07 1
- 179111
PINION FOR 4th GEAR
Valid from transmission Nr. 1882 		$905.72 1
- 155722
SHIM 		$21.72 1
- 16321430
SCREW 		$0.89 6
- 155719
SHIM 		$69.29 1
- 155720
SHIM 		$33.06 1
- 175375
SHIM 		$38.48 1
- 175376
SHIM 		$45.37 1
- 175377
SHIM 		$23.65 1
- 155721
SHIM 		$32.59 1
- 157668
SPACER
As an alternative 		$97.01 1
1 144498
SECONDARY SHAFT BEARING, DIFFERENTIAL SIDE
DIFFERENTIAL SIDE 		$280.22 1
2 228054
ROLLER BEARING
IN STOCK 		$196.15 1
3 144511
STOP RING 		$0.79 1
4 159553
RING NUT 		$15.82 (69.3% off) 1
5 228055
ROLLER BEARING 		$164.48 (12.1% off) 1
6 143924
RING 		$61.57 1
7 143923
BUSHING 		$77.88 1
8 121822
ROLLER BEARING 		$399.50 1
9 122152
SPACER 		$176.51 1
10 191956
COMPLETE BEVEL GEAR PAIR R.11/43
R.11/43 		$1,431.06 1
11 152198
SLEEVE FOR SYNCHRONIZER 		$281.19 (21.7% off) 1
12 152090
BUSHING 		$569.81 1
13 155718
SHIM 		$43.31 1
14 16321434
SCREW -Not as spare part replaced
by 16321430 		$7.91 6
15 157255
SYNCHRONIZER BODY 		$597.77 1
16 157051
PAD FOR SYNCHRONIZER 		$11.22 3
17 157049
SPRING FOR PAD 		$1.65 3
18 157050
BALL 		$0.13 3
19 150004
ROLLER BEARING CAGE 		$20.99 1
20 167986
REVERSE GEAR 		$1,449.18 1
21 152203
SYNCHRONIZER BODY 		$362.28 1
22 152205
SYNCHRONIZER RING 		$332.04 1
23 152195
PAD FOR SYNCHRONIZER 		$0.76 3
24 152196
SPRING FOR SYNCHRONIZER 		$0.86 3
25 152197
BALL 		$3.97 3
26 152091
BUSHING 		$369.59 1
27 167974
PINION FOR 1st GEAR 		$470.97 1
28 156931
SLEEVE FOR SYNCHRONIZER 		$452.85 (45.3% off) 1
29 159088
SYNCHRONIZER RINGS SERIES 		$877.81 (36.7% off) 2
30 167972
PINION FOR 6th GEAR 		$996.29 1
31 170056
SPACER 		$81.61 1
32 167971
PINION FOR 5th GEAR
Valid till transmission Nr. 1881 		$941.95 1
33 161995
PINION FOR 4th GEAR
Valid till transmission Nr. 1881 		$652.12 1
34 167969
PINION FOR 3rd GEAR 		$289.82 1
35 143892
BUSHING 		$90.55 1
36 104254
ROLLER CAGE 		$56.39 1
37 167976
PINION FOR 2nd GEAR 		$1,536.99 1
38 157375
SPACER 		$14.33 1
39 104254
ROLLER CAGE 		$56.39 1
