DRIVING SHAFT - CONNECTING RODS AND PISTONS

Find Your Part

Ferrari 550 Maranello - DRIVING SHAFT - CONNECTING RODS AND PISTONS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
156634 CRANKSHAFT $25,603.57 To Order
Photo Part No Description Price (each) Stock
163528 THREADED PLUG $4.30 To Order
Photo Part No Description Price (each) Stock
173484 HALF-BEARINGS COMPLETE SERIES $1,416.15 To Order
Photo Part No Description Price (each) Stock
164111 UPPER SHIM RING $144.90 To Order
Photo Part No Description Price (each) Stock
164108 LOWER SHIM RING $144.90 To Order
Photo Part No Description Price (each) Stock
144876 TAB $5.92 To Order
Photo Part No Description Price (each) Stock
170048 COMPLETE CONNECTING ROD AND CAP $1,065.42 To Order
Photo Part No Description Price (each) Stock
158186 CONNECTING ROD TIGHTENING SCREW $244.94 To Order
Photo Part No Description Price (each) Stock
170047 BUSHING $49.40 To Order
Photo Part No Description Price (each) Stock
202389 CONNECTING ROD HALF BEARING $49.73 To Order
Photo Part No Description Price (each) Stock
171090ROR171090G PISTON WITH RINGS Enquire To Order
Photo Part No Description Price (each) Stock
157089 SEAL RING Enquire To Order
Photo Part No Description Price (each) Stock
156288 SEAL RING Enquire To Order
Photo Part No Description Price (each) Stock
154098 OIL SCRAPING RING Enquire To Order
Photo Part No Description Price (each) Stock
154717 GUDGEON PIN $36.73 To Order
Photo Part No Description Price (each) Stock
166901 STOP RING $6.68 To Order
Photo Part No Description Price (each) Stock
193051 Flywheel $1,476.21 To Order
Photo Part No Description Price (each) Stock
201755 Bolt Hex Head M10 x 1.25 $1.18 To Order
Photo Part No Description Price (each) Stock
215963 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
168565 Torsion Damper $2,541.67 To Order
Photo Part No Description Price (each) Stock
140925 SCREW $137.15 To Order
Photo Part No Description Price (each) Stock
140922 WASHER $6.42 To Order
Photo Part No Description Price (each) Stock
159987 PISTONS RINGS SET $288.81 To Order
Photo Part No Description Price (each) Stock
103877 BEARING $33.28 To Order
View All

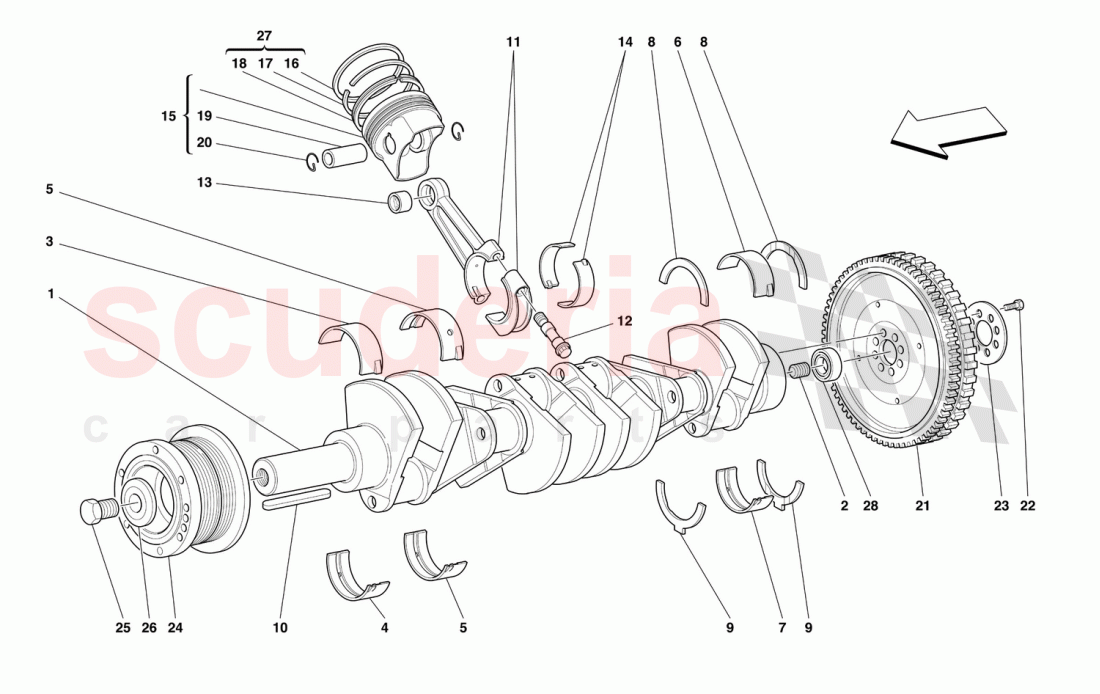

DRIVING SHAFT - CONNECTING RODS AND PISTONS of Ferrari Ferrari 550 Maranello Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 168565
Torsion Damper 		$2,541.67 (32.3% off) 1
- 193051
Flywheel 		$1,476.21 (7.8% off) 1
- 173808GOR173808RDEPENDIN
PISTON WITH RINGS
Valid from engine N¡ 44634 and / valid till engine 54458 		- 12 Enquire
- 180805
PISTON WITH RINGS
Valid from engine N¡ 54459 		$417.18 12
- 166565
2nd undersize 0.508 mm on Ø
2 nd OVERSIZE mm. 0,508 		$105.89 24
- 166566
3rd undersize 0.762 mm on Ø
3 rd OVERSIZE mm. 0,762 		$105.89 24
- 166564
1st undersize 0.254 mm on Ø
1 st OVERSIZE mm. 0,254 		$65.80 (20.9% off) 24
- 164110
LOWER SHIM RING
2 nd OVERSIZE mm. 0,254 / Not as spare part / With the half-bearings complete series 		- 2 Enquire
- 164109
LOWER SHIM RING
1 st OVERSIZE mm. 0,127 / Not as spare part / With the half-bearings complete series 		- 2 Enquire
- 164112
UPPER SHIM RING
1 st OVERSIZE mm. 0,127 / Not as spare part / With the half-bearings complete series 		- 2 Enquire
- 164113
UPPER SHIM RING
2 nd OVERSIZE mm. 0,254 / Not as spare part / With the half-bearings complete series 		- 2 Enquire
- 173485
COMPLETE HALF-BEARING SET
1 st UNDERSIZE mm. 0,254 		$2,098.80 1
- 173486
COMPLETE HALF-BEARING SET
2 nd UNDERSIZE mm. 0,508 		$2,098.80 1
1 156634
CRANKSHAFT 		$25,603.57 1
2 163528
THREADED PLUG 		$4.30 1
3 173484
HALF-BEARINGS COMPLETE SERIES
NOMINAL 		$1,416.15 1
8 164111
UPPER SHIM RING
Not as spare part / With the half-bearings complete series 		$144.90 (26.9% off) 2
9 164108
LOWER SHIM RING
Not as spare part / With the half-bearings complete series 		$144.90 (26.9% off) 2
10 144876
TAB 		$5.92 1
11 170048
COMPLETE CONNECTING ROD AND CAP
AND CAP 		$1,065.42 12
12 158186
CONNECTING ROD TIGHTENING SCREW
TIGHTENING SCREW 		$244.94 24
13 170047
BUSHING 		$49.40 12
14 202389
CONNECTING ROD HALF BEARING 		$49.73 (26% off) 24
15 171090ROR171090G
PISTON WITH RINGS
Valid till engine N¡ 44633 		- 12 Enquire
16 157089
SEAL RING
1st groove / With complete series 159987 		- 12 Enquire
17 156288
SEAL RING
2nd groove / With complete series 159987 		- 12 Enquire
18 154098
OIL SCRAPING RING
3rd groove / With complete series 159987 		- 12 Enquire
19 154717
GUDGEON PIN 		$36.73 (21.6% off) 12
20 166901
STOP RING 		$6.68 (35.8% off) 24
21 193051
Flywheel
Not as spare part / Replaced by 173760 		$1,476.21 (7.8% off) 1
22 201755
Bolt Hex Head M10 x 1.25 		$1.18 (39.5% off) 8
23 215963
WASHER 		- 1 Enquire
24 168565
Torsion Damper
Not as spare part now / Replaced by 168565 		$2,541.67 (32.3% off) 1
25 140925
SCREW 		$137.15 1
26 140922
WASHER 		$6.42 1
27 159987
PISTONS RINGS SET 		$288.81 12
28 103877
BEARING 		$33.28 1
