Differential Carrier And Clutch Cooling Radiator

Ferrari 550 Maranello (2011-2012)

Find Your Part

Ferrari 550 Maranello (2011-2012) - DIFFERENTIAL CARRIER AND CLUTCH COOLING RADIATOR

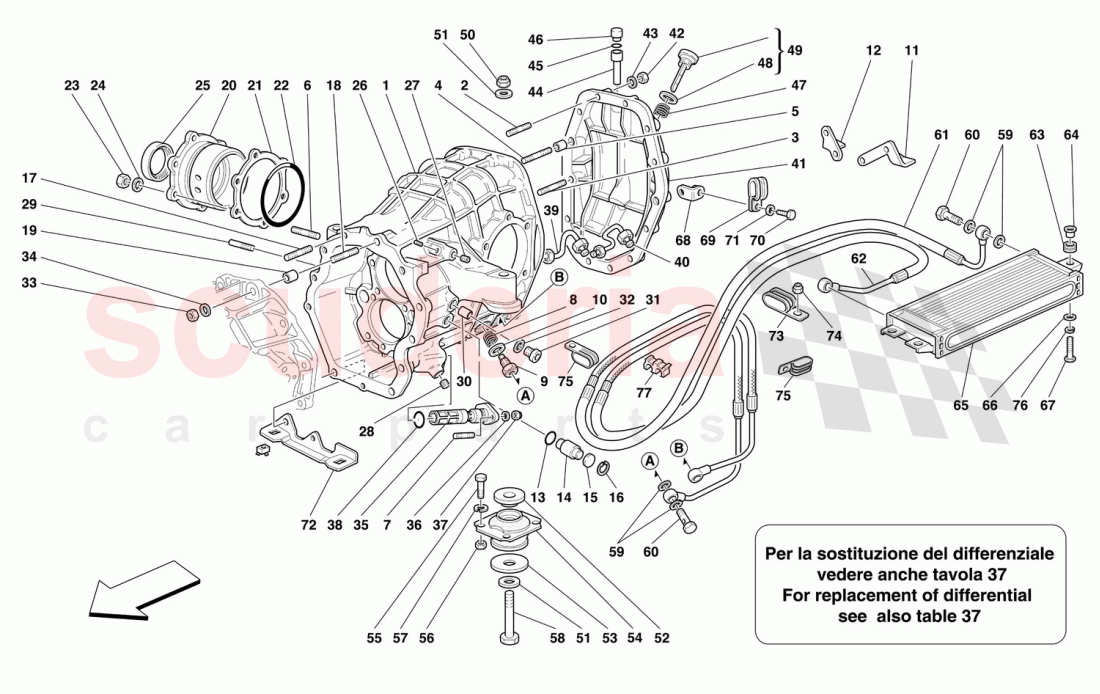

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
161980 GEAR BOX 4th ELEMENT Enquire To Order
Photo Part No Description Price (each) Stock
13543624 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
13543724 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
13543824 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
102704 ALIGNMENT DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
13546224 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
11001024 Stud Enquire To Order
Photo Part No Description Price (each) Stock
223577 THREADED INSERT M22 X 1.5 X 9MM Enquire To Order
Photo Part No Description Price (each) Stock
150853 UNION Enquire To Order
Photo Part No Description Price (each) Stock
10263460 COPPER GASKET D.28-22.3 X 1.5 Enquire To Order
Photo Part No Description Price (each) Stock
169466 L.H. BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
169465 R.H. BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
134232 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
153719 ROD Enquire To Order
Photo Part No Description Price (each) Stock
154698 PAD Enquire To Order
Photo Part No Description Price (each) Stock
11057476 SEEGER RING Enquire To Order
Photo Part No Description Price (each) Stock
13543524 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
13543624 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
102704 ALIGNMENT DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
177438 DIFFERENTIAL COVER WITH BEARING Enquire To Order
Photo Part No Description Price (each) Stock
150099 DIFFERENTIAL COVER SHIM Enquire To Order
Photo Part No Description Price (each) Stock
139453 O.R. GASKET Enquire To Order
Photo Part No Description Price (each) Stock
133988 HEX NUT M10 X 1.25 X 8 Enquire To Order
Photo Part No Description Price (each) Stock
12601474 WAVY WASHER 10MM Enquire To Order
Photo Part No Description Price (each) Stock
133628 RH Oil Sealing Ring Enquire To Order
Photo Part No Description Price (each) Stock
65928500 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
14326150 CAP Enquire To Order
Photo Part No Description Price (each) Stock
14326050 CAP Enquire To Order
Photo Part No Description Price (each) Stock
16183021 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
115376 BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
150731 CAP Enquire To Order
Photo Part No Description Price (each) Stock
10282460 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
251638 GEARBOX OIL FILTER Enquire To Order
Photo Part No Description Price (each) Stock
14496324 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
147278 O-Ring Enquire To Order
Photo Part No Description Price (each) Stock
162321 OIL DELIVERY TUBE Enquire To Order
Photo Part No Description Price (each) Stock
162322 OIL RETURN TUBE Enquire To Order
Photo Part No Description Price (each) Stock
168107 GEARBOX REAR COVER Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
153500 EXTENSION FOR OIL BREATHER Enquire To Order
Photo Part No Description Price (each) Stock
13415400 OIL SEAL DISC FOR BREATHER Enquire To Order
Photo Part No Description Price (each) Stock
13414691 OIL BREATHER Enquire To Order
Photo Part No Description Price (each) Stock
223577 THREADED INSERT M22 X 1.5 X 9MM Enquire To Order
Photo Part No Description Price (each) Stock
10261860 COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5 Enquire To Order
Photo Part No Description Price (each) Stock
172478 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
169193 NUT Enquire To Order
Photo Part No Description Price (each) Stock
10520224 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
172935 UPPER SPACER Enquire To Order
Photo Part No Description Price (each) Stock
132269 LOWER SPACER Enquire To Order
Photo Part No Description Price (each) Stock
169492 WICK BODY Enquire To Order
Photo Part No Description Price (each) Stock
15970634 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
133988 HEX NUT M10 X 1.25 X 8 Enquire To Order
Photo Part No Description Price (each) Stock
127497 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
156458 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
10261060 GASKET COPPER 12 - 16 X 1.5 Enquire To Order
Photo Part No Description Price (each) Stock
132559 UNION Enquire To Order
Photo Part No Description Price (each) Stock
173862 OIL DELIVERY TUBE TO RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
173863 OIL RETURN TUBE FROM RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
149707 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
168744 OIL RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10902521 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
142060 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
81591700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
169464 FRONT BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
138478 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
61712500 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
140728 CLIP Enquire To Order
View All
DIFFERENTIAL CARRIER AND CLUTCH COOLING RADIATOR of Ferrari Ferrari 550 Maranello (2011-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 173862
OIL DELIVERY TUBE TO RADIATOR 		- 1 Enquire
- 173863
OIL RETURN TUBE FROM RADIATOR 		- 1 Enquire
- 181617
LH Rotating Oil Sealing Ring
Valid for "GRAZIANO Trasmissioni" / differential 		- 1 Enquire
- 181618
RH GASKET
Valid for "GRAZIANO Trasmissioni" / differential 		- 1 Enquire
- 141509
L.H. seal ring on
Valid for "ZF" differential 		- 1 Enquire
- 150107
DIFFERENTIAL COVER SHIM 		- - Enquire
- 150108
DIFFERENTIAL COVER SHIM 		- - Enquire
- 175378
DIFFERENTIAL COVER SHIM 		- - Enquire
- 150101
DIFFERENTIAL COVER SHIM 		- - Enquire
- 150102
DIFFERENTIAL COVER SHIM 		- - Enquire
- 150103
DIFFERENTIAL COVER SHIM 		- - Enquire
- 150104
DIFFERENTIAL COVER SHIM 		- - Enquire
- 150105
DIFFERENTIAL COVER SHIM 		- - Enquire
- 150106
DIFFERENTIAL COVER SHIM 		- - Enquire
- 181627
LH DIFFERENTIAL COVER WITH BEARING
WITH BEARING / Valid for "GRAZIANO Trasmissioni" / differential 		- 1 Enquire
- 150100
DIFFERENTIAL COVER SHIM 		- - Enquire
- 177438
DIFFERENTIAL COVER WITH BEARING
WITH BEARING / Valid for "ZF" differential 		- 2 Enquire
- 181626
RH DIFFERENTIAL COVER WITH BEARING
WITH BEARING / Valid for "GRAZIANO Trasmissioni" / differential 		- 1 Enquire
- 172617
COMPLETE GEARBOX ASSEMBLY 		- 1 Enquire
1 161980
GEAR BOX 4th ELEMENT
With complete gear box 		- 1 Enquire
2 13543624
STUD BOLT 		- 10 Enquire
3 13543724
STUD BOLT 		- 2 Enquire
4 13543824
STUD BOLT 		- 2 Enquire
5 102704
ALIGNMENT DOWEL 		- 2 Enquire
6 13546224
STUD BOLT 		- 12 Enquire
7 11001024
Stud 		- 2 Enquire
8 223577
THREADED INSERT M22 X 1.5 X 9MM 		- 2 Enquire
9 150853
UNION 		- 2 Enquire
10 10263460
COPPER GASKET D.28-22.3 X 1.5 		- 2 Enquire
11 169466
L.H. BRACKET 		- 1 Enquire
12 169465
R.H. BRACKET 		- 1 Enquire
13 134232
O-RING 		- 1 Enquire
14 153719
ROD 		- 1 Enquire
15 154698
PAD 		- 1 Enquire
16 11057476
SEEGER RING 		- 1 Enquire
17 13543524
STUD BOLT 		- 7 Enquire
18 13543624
STUD BOLT 		- 2 Enquire
19 102704
ALIGNMENT DOWEL 		- 2 Enquire
20 177438
DIFFERENTIAL COVER WITH BEARING
Not as spare part now / Replaced by 177438 		- 2 Enquire
21 150099
DIFFERENTIAL COVER SHIM
THINCKNESS mm. 1,3 		- 2 Enquire
22 139453
O.R. GASKET 		- 2 Enquire
23 133988
HEX NUT M10 X 1.25 X 8 		- 12 Enquire
24 12601474
WAVY WASHER 10MM 		- 12 Enquire
25 133628
RH Oil Sealing Ring
Valid for "ZF" differential 		- 1 Enquire
26 65928500
THREADED PLUG 		- 2 Enquire
27 14326150
CAP 		- 1 Enquire
28 14326050
CAP 		- 1 Enquire
29 16183021
SCREW 		- 1 Enquire
30 115376
BUSHING 		- 3 Enquire
31 150731
CAP 		- 1 Enquire
32 10282460
GASKET 		- 1 Enquire
33 14040711
NUT M8 FLANGED 		- 13 Enquire
34 12601374
WASHER 		- 13 Enquire
35 251638
GEARBOX OIL FILTER 		- 1 Enquire
36 14496324
WASHER 		- 2 Enquire
37 319201
FUEL FILLER PIPE ASSEMBLY 		- 2 Enquire
38 147278
O-Ring 		- 1 Enquire
39 162321
OIL DELIVERY TUBE 		- 1 Enquire
40 162322
OIL RETURN TUBE 		- 1 Enquire
41 168107
GEARBOX REAR COVER 		- 1 Enquire
42 14040711
NUT M8 FLANGED 		- 14 Enquire
43 12601374
WASHER 		- 14 Enquire
44 153500
EXTENSION FOR OIL BREATHER 		- 1 Enquire
45 13415400
OIL SEAL DISC FOR BREATHER
VENT 		- 1 Enquire
46 13414691
OIL BREATHER 		- 1 Enquire
47 223577
THREADED INSERT M22 X 1.5 X 9MM 		- 1 Enquire
48 10261860
COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5 		- 1 Enquire
49 172478
PLUG 		- 1 Enquire
50 169193
NUT 		- 2 Enquire
51 10520224
WASHER 		- 4 Enquire
52 172935
UPPER SPACER 		- 2 Enquire
53 132269
LOWER SPACER 		- 2 Enquire
54 169492
WICK BODY 		- 2 Enquire
55 15970634
SCREW 		- 8 Enquire
56 133988
HEX NUT M10 X 1.25 X 8 		- 8 Enquire
57 127497
WASHER 		- 8 Enquire
58 156458
SCREW 		- 2 Enquire
59 10261060
GASKET COPPER 12 - 16 X 1.5 		- 8 Enquire
60 132559
UNION 		- 4 Enquire
61 173862
OIL DELIVERY TUBE TO RADIATOR
Not as spare part now replaced by 173862 		- 1 Enquire
62 173863
OIL RETURN TUBE FROM RADIATOR
Not as spare part now replaced by 173863 		- 1 Enquire
63 812273
CABLE GROMMET 		- 3 Enquire
64 149707
SPACER 		- 3 Enquire
65 168744
OIL RADIATOR 		- 1 Enquire
66 12643724
WASHER 		- 3 Enquire
67 10902521
SCREW 		- 3 Enquire
68 142060
BRACKET 		- 1 Enquire
69 10441290
BRACKET WITH SHEATH 		- 2 Enquire
70 81591700
SCREW 		- 2 Enquire
71 127494
WASHER 		- 2 Enquire
72 169464
FRONT BRACKET 		- 1 Enquire
73 138478
BRACKET WITH SHEATH 		- 1 Enquire
74 14059290
FLANGED NUT M6 		- 1 Enquire
75 61712500
BRACKET WITH SHEATH 		- 2 Enquire
76 127494
WASHER 		- 3 Enquire
77 140728
CLIP 		- 1 Enquire

Haven't found what you're looking for?

More: Ferrari Clutch Kits Tuning Parts Need help? Call us

View Cart / Checkout
