Ferrari 512 TR - Rear hood

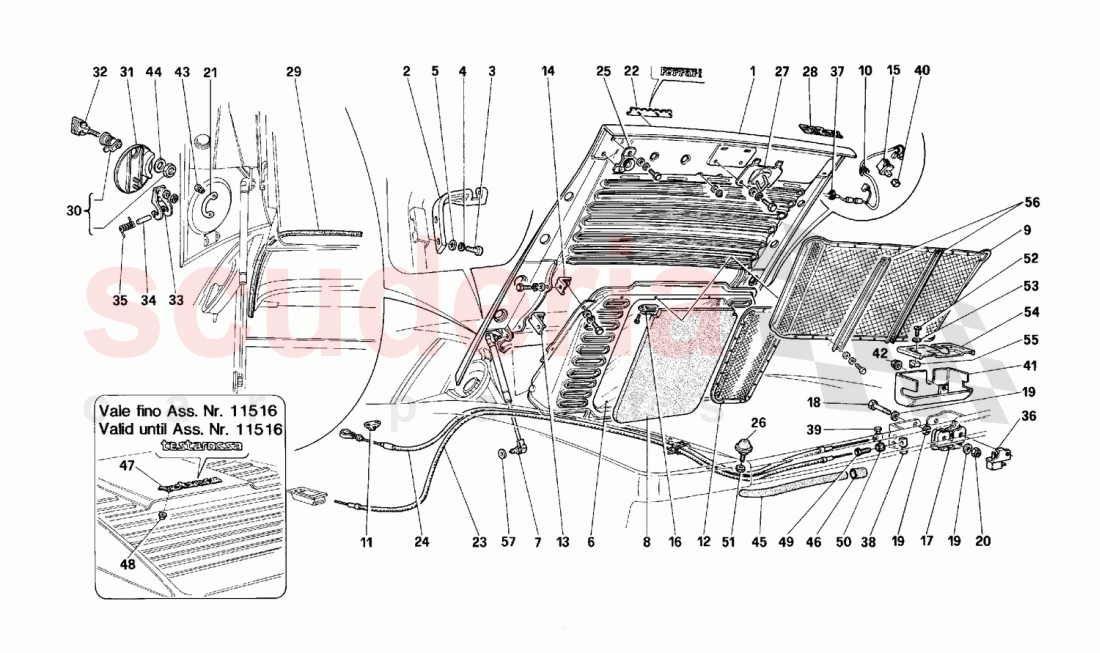

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	63107200	Engine bonnet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63060100	L.H. hinge	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306587	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63062100	Engine cover assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61498100	Device for RH and LH bonnet support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63094300	Engine cover, sound insulation	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63063900	Rear grill for air exhaust	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10396380	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63435000	Hook	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63060200	R.H. side grill	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63076800	L.H. front support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63076600	L.H. rear support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188038	DASHBOARD GLOVE BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61647300	Lamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60277407	ENGINE BONNET LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15212580	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61529900	Fuel filler lid gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63482200	FERRARI LETTERING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63080000	Cable for opening bonnet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63080100	Emergency cable	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61499400	Pad seat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	50051606	HOOD CENTERING PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63067500	Catch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63017000	512 TR nameplate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61500900	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61500200	Fuel filler lid	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	95401152	BLANK KEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61500300	Fuel filler lid hinge	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61500700	Pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61500600	Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61501200	Warning light switch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10396180	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62781500	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62780800	CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63449000	Switch cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63548700	Bonnet lock cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62764000	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63456500	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63094200	Cable protection sheath	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63094100	Cable protection pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61501500	Testarossa nameplate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	808769	CAP NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62764800	Drilled screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14054577	CAP NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64686900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12541874	Spring washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63660600	Covering -Not for GD-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60758600	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63069300	Cross member	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	63664100	Covering -Valid for GD-	63664100 Covering -Valid for GD-	-	1	Enquire
-	63604300	Bonnet lock cover	63604300 Bonnet lock cover Valid for GD	-	1	Enquire
-	164283	Complete anti-theft system	164283 Complete anti-theft system with keys / Valid for USA, CDN, / SA, J	-	1	Enquire
-	164283	Complete anti-theft system	164283 Complete anti-theft system with keys / Not for USA, CDN, SA, J	-	1	Enquire
-	63076500	R.H. rear support	63076500 R.H. rear support	-	1	Enquire
-	63060300	L.H. side grill	63060300 L.H. side grill	-	1	Enquire
-	63076700	R.H. front support	63076700 R.H. front support	-	1	Enquire
-	61498000	Device for L.H. bonnet support	61498000 Device for L.H. bonnet support Not for USA, CDN, AUS	-	1	Enquire
-	61498100	Device for RH and LH bonnet support	61498100 Device for RH and LH bonnet support bonnet support / Valid for USA, CDN, AUS	-	2	Enquire
-	63060000	R.H. hinge	63060000 R.H. hinge	-	1	Enquire
-	63077800	Engine bonnet	63077800 Engine bonnet Valid for USA, CDN, AUS	-	1	Enquire
1	63107200	Engine bonnet	63107200 Engine bonnet Not for USA, CDN, AUS	-	1	Enquire
2	63060100	L.H. hinge	63060100 L.H. hinge	-	1	Enquire
3	14306587	Screw	14306587 Screw	-	4	Enquire
4	127496	WASHER	127496 WASHER	-	4	Enquire
5	12647021	WASHER	12647021 WASHER	-	4	Enquire
6	63062100	Engine cover assembly	63062100 Engine cover assembly	-	1	Enquire
7	61498100	Device for RH and LH bonnet support	61498100 Device for RH and LH bonnet support	-	1	Enquire
8	63094300	Engine cover, sound insulation	63094300 Engine cover, sound insulation insulation	-	1	Enquire
9	63063900	Rear grill for air exhaust	63063900 Rear grill for air exhaust	-	1	Enquire
10	10396380	CABLE GROMMET	10396380 CABLE GROMMET	-	1	Enquire
11	63435000	Hook	63435000 Hook	-	1	Enquire
12	63060200	R.H. side grill	63060200 R.H. side grill	-	1	Enquire
13	63076800	L.H. front support	63076800 L.H. front support	-	1	Enquire
14	63076600	L.H. rear support	63076600 L.H. rear support	-	1	Enquire
15	188038	DASHBOARD GLOVE BOX	188038 DASHBOARD GLOVE BOX	-	1	Enquire
16	61647300	Lamp	61647300 Lamp	-	2	Enquire
17	60277407	ENGINE BONNET LOCK	60277407 ENGINE BONNET LOCK	-	1	Enquire
18	15212580	Screw	15212580 Screw	-	2	Enquire
19	12648925	WASHER	12648925 WASHER	-	6	Enquire
20	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
21	61529900	Fuel filler lid gasket	61529900 Fuel filler lid gasket	-	1	Enquire
22	63482200	FERRARI LETTERING	63482200 FERRARI LETTERING	-	1	Enquire
23	63080000	Cable for opening bonnet	63080000 Cable for opening bonnet	-	1	Enquire
24	63080100	Emergency cable	63080100 Emergency cable	-	1	Enquire
25	61499400	Pad seat	61499400 Pad seat	-	2	Enquire
26	50051606	HOOD CENTERING PAD	50051606 HOOD CENTERING PAD	-	2	Enquire
27	63067500	Catch	63067500 Catch	-	1	Enquire
28	63017000	512 TR nameplate	63017000 512 TR nameplate	-	1	Enquire
29	61500900	Gasket	61500900 Gasket	-	1	Enquire
31	61500200	Fuel filler lid	61500200 Fuel filler lid	-	1	Enquire
32	95401152	BLANK KEY	95401152 BLANK KEY	-	-	Enquire
33	61500300	Fuel filler lid hinge	61500300 Fuel filler lid hinge	-	1	Enquire
34	61500700	Pin	61500700 Pin	-	1	Enquire
35	61500600	Spring	61500600 Spring	-	1	Enquire
36	61501200	Warning light switch	61501200 Warning light switch	-	1	Enquire
37	10396180	CABLE GROMMET	10396180 CABLE GROMMET	-	1	Enquire
38	62781500	Clamp	62781500 Clamp	-	1	Enquire
39	62780800	CONNECTION	62780800 CONNECTION	-	1	Enquire
40	63449000	Switch cap	63449000 Switch cap	-	1	Enquire
41	63548700	Bonnet lock cover	63548700 Bonnet lock cover Not for GD	-	1	Enquire
42	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
43	62764000	RIVET	62764000 RIVET	-	2	Enquire
44	63456500	Washer	63456500 Washer	-	1	Enquire
45	63094200	Cable protection sheath	63094200 Cable protection sheath	-	2	Enquire
46	63094100	Cable protection pipe	63094100 Cable protection pipe	-	2	Enquire
47	61501500	Testarossa nameplate	61501500 Testarossa nameplate Valid till car / Ass. Nr. 11516	-	1	Enquire
48	808769	CAP NUT	808769 CAP NUT Valid till car / Ass. Nr. 11516	-	3	Enquire
49	62764800	Drilled screw	62764800 Drilled screw	-	1	Enquire
50	14054577	CAP NUT	14054577 CAP NUT	-	1	Enquire
51	16102314	NUT	16102314 NUT	-	2	Enquire
52	64686900	SCREW	64686900 SCREW	-	2	Enquire
53	12541874	Spring washer	12541874 Spring washer	-	2	Enquire
54	63660600	Covering -Not for GD-	63660600 Covering -Not for GD-	-	1	Enquire
55	60758600	NUT	60758600 NUT	-	2	Enquire
56	63069300	Cross member	63069300 Cross member	-	2	Enquire
57	84653800	WASHER	84653800 WASHER	-	4	Enquire
