Name: Front hood
Rating: 4.5 (1 reviews)

View All

Ferrari 512 TR - Front hood

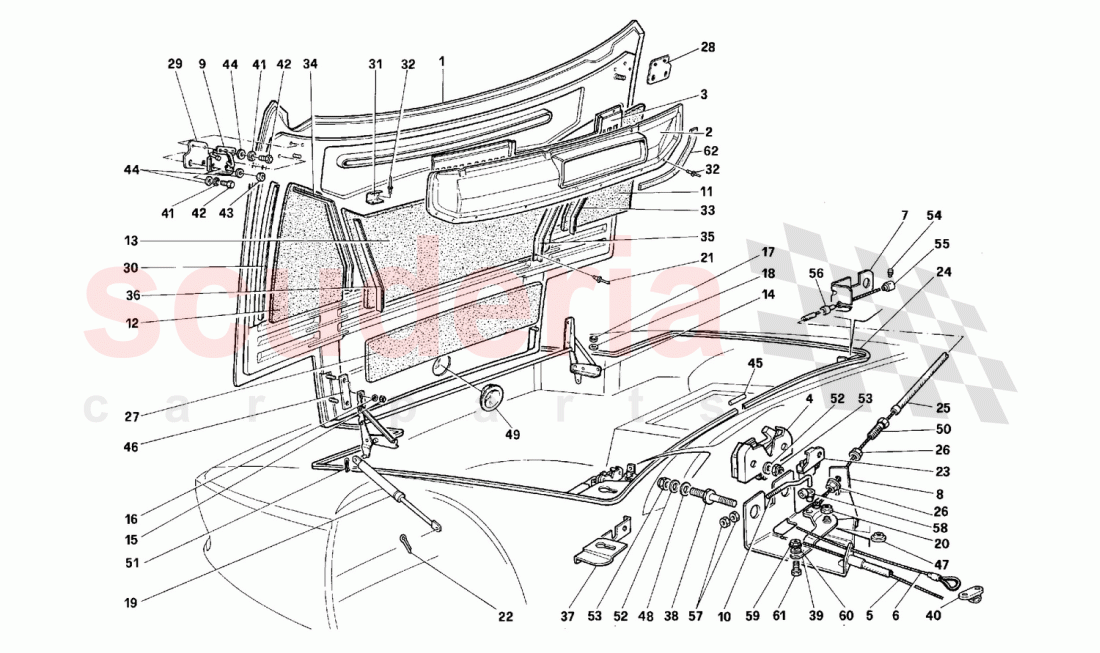

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	61495500	Front bonnet	$4,696.04	To Order

Photo	Part No	Description	Price (each)	Stock
	61570000	Water shield panel	$251.50	To Order

Photo	Part No	Description	Price (each)	Stock
	61558500	Grill with protection net	$80.33	To Order

Photo	Part No	Description	Price (each)	Stock
	60277407	ENGINE BONNET LOCK	$105.37	To Order

Photo	Part No	Description	Price (each)	Stock
	63088400	Cable for opening bonnet	$11.54	To Order

Photo	Part No	Description	Price (each)	Stock
	63088500	Emergency cable	$10.84	To Order

Photo	Part No	Description	Price (each)	Stock
	61495900	Sheath support plate	$61.15	To Order

Photo	Part No	Description	Price (each)	Stock
	63114300	Sheath support plate	$68.11	To Order

Photo	Part No	Description	Price (each)	Stock
	63051700	L.H. lock striker	$101.22	To Order

Photo	Part No	Description	Price (each)	Stock
	61496200	L.H. striker rod	$13.18	To Order

Photo	Part No	Description	Price (each)	Stock
	61570200	R.H. sound insulation	$143.77	To Order

Photo	Part No	Description	Price (each)	Stock
	61570300	L.H. sound insulation	$35.67	To Order

Photo	Part No	Description	Price (each)	Stock
	61570100	Central sound insulation	$326.45	To Order

Photo	Part No	Description	Price (each)	Stock
	61496600	Complete hinge	$2,432.00	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NUT	$0.26	To Order

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	14084411	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	61571600	Support	$38.62	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	60609700	RIVET	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	10766301	Split pin	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	61501200	Warning light switch	$59.19	To Order

Photo	Part No	Description	Price (each)	Stock
	61497000	Bonnet gasket	$73.37	To Order

Photo	Part No	Description	Price (each)	Stock
	61497100	Open bonnet cable	$33.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14054577	CAP NUT	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	61548800	Sound insulation, central lower	$184.43	To Order

Photo	Part No	Description	Price (each)	Stock
	153956	R.H. Zincfoil	$3.08	To Order

Photo	Part No	Description	Price (each)	Stock
	153957	L.H. Zincfoil	$3.08	To Order

Photo	Part No	Description	Price (each)	Stock
	61563300	L.H. angular	$86.97	To Order

Photo	Part No	Description	Price (each)	Stock
	61546600	Clip for front grille	$2.37	To Order

Photo	Part No	Description	Price (each)	Stock
	64386000	Rivet	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	61572200	Angular to fix. RH external insulation	$14.18	To Order

Photo	Part No	Description	Price (each)	Stock
	61572000	Angular to fix. LH external insulation	$13.14	To Order

Photo	Part No	Description	Price (each)	Stock
	61572300	Angular to fix. RH internal insulation	$14.18	To Order

Photo	Part No	Description	Price (each)	Stock
	61572100	Angular to fix. LH internal insulation	$13.14	To Order

Photo	Part No	Description	Price (each)	Stock
	63094600	L.H. bracket for lock	$67.85	To Order

Photo	Part No	Description	Price (each)	Stock
	62770900	Screw	$2.61	To Order

Photo	Part No	Description	Price (each)	Stock
	63114100	Lever	$60.91	To Order

Photo	Part No	Description	Price (each)	Stock
	63435000	Hook	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	10902221	SCREW	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	62781300	Gasket connection pipe	$4.85	To Order

Photo	Part No	Description	Price (each)	Stock
	153959	L.H. Zincfoil hinge	$6.68	To Order

Photo	Part No	Description	Price (each)	Stock
	63117400	Bushing	$6.82	To Order

Photo	Part No	Description	Price (each)	Stock
	14496701	WASHER	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	63051200	Cup	$6.13	To Order

Photo	Part No	Description	Price (each)	Stock
	62764800	Drilled screw	$1.12	To Order

Photo	Part No	Description	Price (each)	Stock
	264555	SPLIT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	60276805	DOWEL	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	60276607	TERMINAL	$42.98	To Order

Photo	Part No	Description	Price (each)	Stock
	63434400	Bushing	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	899480	NUT	$0.42	To Order

Photo	Part No	Description	Price (each)	Stock
	14578283	TIE ROD RETAINING CLIP	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	14084111	NUT	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	62764900	WASHER	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	62764700	Screw	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	62782900	Silent-block	$5.46	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	153958	R.H. Zincfoil hinge	153958 R.H. Zincfoil hinge	$4.15	1
-	63094500	R.H. bracket for lock	63094500 R.H. bracket for lock	$67.85 MSRP: ~~125.00~~ (45.7% off)	1
-	61563200	R.H. angular	61563200 R.H. angular	$86.97	1
-	63051600	R.H. lock striker	63051600 R.H. lock striker	$95.50 MSRP: ~~143.50~~ (33.4% off)	1
-	61532900	R.H. striker rod	61532900 R.H. striker rod Valid for GD	$10.96	1
-	63052300	Water shield panel	63052300 Water shield panel Valid for GD	$103.08 MSRP: ~~125.17~~ (17.6% off)	1
-	61495400	Front bonnet	61495400 Front bonnet Valid for GD	$6,236.73	1
1	61495500	Front bonnet	61495500 Front bonnet Not for GD	$4,696.04 MSRP: ~~12,239.65~~ (61.6% off)	1
2	61570000	Water shield panel	61570000 Water shield panel Not for GD	$251.50 MSRP: ~~544.14~~ (53.8% off)	1
3	61558500	Grill with protection net	61558500 Grill with protection net	$80.33 MSRP: ~~129.75~~ (38.1% off)	1
4	60277407	ENGINE BONNET LOCK	60277407 ENGINE BONNET LOCK	$105.37 MSRP: ~~168.00~~ (37.3% off)	2
5	63088400	Cable for opening bonnet	63088400 Cable for opening bonnet	$11.54 MSRP: ~~105.13~~ (89% off)	1
6	63088500	Emergency cable	63088500 Emergency cable	$10.84	1
7	61495900	Sheath support plate	61495900 Sheath support plate Passenger side	$61.15	1
8	63114300	Sheath support plate	63114300 Sheath support plate Driver side	$68.11 MSRP: ~~102.17~~ (33.3% off)	1
9	63051700	L.H. lock striker	63051700 L.H. lock striker	$101.22	1
10	61496200	L.H. striker rod	61496200 L.H. striker rod Not for GD	$13.18	1
11	61570200	R.H. sound insulation	61570200 R.H. sound insulation	$143.77 MSRP: ~~325.41~~ (55.8% off)	1
12	61570300	L.H. sound insulation	61570300 L.H. sound insulation	$35.67	1
13	61570100	Central sound insulation	61570100 Central sound insulation	$326.45	1
14	61496600	Complete hinge	61496600 Complete hinge	$2,432.00	1
15	104030	NUT	104030 NUT	$0.26 MSRP: ~~1.00~~ (74% off)	4
16	12647021	WASHER	12647021 WASHER	$0.32	4
17	14084411	Nut	14084411 Nut	-	4	Enquire
18	12647021	WASHER	12647021 WASHER	$0.32	4
19	61571600	Support	61571600 Support	$38.62 MSRP: ~~95.00~~ (59.3% off)	2
20	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
21	60609700	RIVET	60609700 RIVET	$0.45	20
22	10766301	Split pin	10766301 Split pin	$0.05	2
23	61501200	Warning light switch	61501200 Warning light switch	$59.19	2
24	61497000	Bonnet gasket	61497000 Bonnet gasket	$73.37 MSRP: ~~158.61~~ (53.7% off)	1
25	61497100	Open bonnet cable	61497100 Open bonnet cable	$33.06 MSRP: ~~75.26~~ (56.1% off)	1
26	14054577	CAP NUT	14054577 CAP NUT	$0.32	2
27	61548800	Sound insulation, central lower	61548800 Sound insulation, central lower	$184.43	1
28	153956	R.H. Zincfoil	153956 R.H. Zincfoil	$3.08	1
29	153957	L.H. Zincfoil	153957 L.H. Zincfoil	$3.08	1
30	61563300	L.H. angular	61563300 L.H. angular	$86.97	1
31	61546600	Clip for front grille	61546600 Clip for front grille	$2.37	6
32	64386000	Rivet	64386000 Rivet	$0.16 MSRP: ~~0.35~~ (54.3% off)	48
33	61572200	Angular to fix. RH external insulation	61572200 Angular to fix. RH external insulation insulation	$14.18 MSRP: ~~34.46~~ (58.9% off)	1
34	61572000	Angular to fix. LH external insulation	61572000 Angular to fix. LH external insulation insulation	$13.14 MSRP: ~~21.20~~ (38% off)	1
35	61572300	Angular to fix. RH internal insulation	61572300 Angular to fix. RH internal insulation insulation	$14.18 MSRP: ~~41.00~~ (65.4% off)	1
36	61572100	Angular to fix. LH internal insulation	61572100 Angular to fix. LH internal insulation insulation	$13.14 MSRP: ~~29.82~~ (55.9% off)	1
37	63094600	L.H. bracket for lock	63094600 L.H. bracket for lock	$67.85 MSRP: ~~125.00~~ (45.7% off)	1
38	62770900	Screw	62770900 Screw	$2.61 MSRP: ~~7.30~~ (64.2% off)	2
39	63114100	Lever	63114100 Lever	$60.91	1
40	63435000	Hook	63435000 Hook	-	1	Enquire
41	127494	WASHER	127494 WASHER	$0.08 MSRP: ~~0.68~~ (88.2% off)	6
42	10902221	SCREW	10902221 SCREW	$1.05 MSRP: ~~3.25~~ (67.7% off)	6
43	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
44	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	8
45	62781300	Gasket connection pipe	62781300 Gasket connection pipe	$4.85	1
46	153959	L.H. Zincfoil hinge	153959 L.H. Zincfoil hinge	$6.68	1
47	63117400	Bushing	63117400 Bushing	$6.82	1
48	14496701	WASHER	14496701 WASHER	$0.45	4
49	63051200	Cup	63051200 Cup	$6.13	1
50	62764800	Drilled screw	62764800 Drilled screw	$1.12	1
51	264555	SPLIT PIN	264555 SPLIT PIN	-	2	Enquire
52	12648925	WASHER	12648925 WASHER	$0.39	6
53	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	6
54	60276805	DOWEL	60276805 DOWEL	$0.79 MSRP: ~~1.50~~ (47.3% off)	1
55	60276607	TERMINAL	60276607 TERMINAL	$42.98 MSRP: ~~64.45~~ (33.3% off)	1
56	63434400	Bushing	63434400 Bushing	$0.32	1
57	899480	NUT	899480 NUT	$0.42	2
58	14578283	TIE ROD RETAINING CLIP	14578283 TIE ROD RETAINING CLIP	$0.11 MSRP: ~~0.75~~ (85.3% off)	2
59	14084111	NUT	14084111 NUT	$0.05	3
60	62764900	WASHER	62764900 WASHER	$0.31	3
61	62764700	Screw	62764700 Screw	$0.76	3
62	62782900	Silent-block	62782900 Silent-block	$5.46 MSRP: ~~7.25~~ (24.7% off)	1
