Body - Internal Components

Ferrari 512 TR

Find Your Part

Ferrari 512 TR - Body - Internal components

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
144654 Front central frame Enquire To Order
Photo Part No Description Price (each) Stock
144642 R.H. front frame Enquire To Order
Photo Part No Description Price (each) Stock
144643 L.H. front frame Enquire To Order
Photo Part No Description Price (each) Stock
61483100 Clip Enquire To Order
Photo Part No Description Price (each) Stock
63037300 R.H. front inner body side Enquire To Order
Photo Part No Description Price (each) Stock
63037400 L.H. front inner body side Enquire To Order
Photo Part No Description Price (each) Stock
61483400 Nut screw plate Enquire To Order
Photo Part No Description Price (each) Stock
61483500 Seat nut screw plate Enquire To Order
Photo Part No Description Price (each) Stock
63455100 L.H. front mudguard strip Enquire To Order
Photo Part No Description Price (each) Stock
63032200 Hinge for door Enquire To Order
Photo Part No Description Price (each) Stock
123391 EXHAUST TUBE Enquire To Order
Photo Part No Description Price (each) Stock
61484000 Upper stiffening Enquire To Order
Photo Part No Description Price (each) Stock
61484100 Lower stiffening Enquire To Order
Photo Part No Description Price (each) Stock
61484200 Bracket Enquire To Order
Photo Part No Description Price (each) Stock
63026200 Pin for door hinge Enquire To Order
Photo Part No Description Price (each) Stock
61484400 R.H. pillar Enquire To Order
Photo Part No Description Price (each) Stock
61484500 L.H. pillar Enquire To Order
Photo Part No Description Price (each) Stock
62926400 Windshield curved element Enquire To Order
Photo Part No Description Price (each) Stock
61484700 Front rib Enquire To Order
Photo Part No Description Price (each) Stock
61484800 Central rib Enquire To Order
Photo Part No Description Price (each) Stock
61488100 Rear rib Enquire To Order
Photo Part No Description Price (each) Stock
61484900 R.H. rear door pillar Enquire To Order
Photo Part No Description Price (each) Stock
61485000 L.H. rear door pillar Enquire To Order
Photo Part No Description Price (each) Stock
61485200 Bracket Enquire To Order
Photo Part No Description Price (each) Stock
62926200 R.H. belt retractor housing Enquire To Order
Photo Part No Description Price (each) Stock
62926300 L.H. belt retractor housing Enquire To Order
Photo Part No Description Price (each) Stock
61485500 Front stiffening for central rib Enquire To Order
Photo Part No Description Price (each) Stock
61485600 Rear stiffening for central rib Enquire To Order
Photo Part No Description Price (each) Stock
61485600 Rear stiffening for central rib Enquire To Order
Photo Part No Description Price (each) Stock
61488000 Rear window plate Enquire To Order
Photo Part No Description Price (each) Stock
61487900 L.H. upper frame for passenger comp. Enquire To Order
Photo Part No Description Price (each) Stock
61558300 Inner connection plate RH complete Enquire To Order
Photo Part No Description Price (each) Stock
61558400 Inner connection plate LH complete Enquire To Order
Photo Part No Description Price (each) Stock
61486400 Fuel filler seat Enquire To Order
Photo Part No Description Price (each) Stock
61486600 L.H. light seat Enquire To Order
Photo Part No Description Price (each) Stock
61486700 Frame Enquire To Order
Photo Part No Description Price (each) Stock
61486800 Rear window plate Enquire To Order
Photo Part No Description Price (each) Stock
61487000 L.H. roof side rail Enquire To Order
Photo Part No Description Price (each) Stock
61487200 Upper rail for L.H. door opening Enquire To Order
Photo Part No Description Price (each) Stock
61487300 R.H. rear pillar Enquire To Order
Photo Part No Description Price (each) Stock
61487400 L.H. rear pillar Enquire To Order
Photo Part No Description Price (each) Stock
61487500 Rear window framework Enquire To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
61485100 Stiffening Enquire To Order
Photo Part No Description Price (each) Stock
61580500 L.H. aluminium Enquire To Order
Photo Part No Description Price (each) Stock
145530 Flat bed complete -Not for GD- Enquire To Order
Photo Part No Description Price (each) Stock
61580300 Zincfoil for L.H. door hinge Enquire To Order
Photo Part No Description Price (each) Stock
50206408 Screw Enquire To Order
Photo Part No Description Price (each) Stock
11087974 SNAP RING Enquire To Order
Photo Part No Description Price (each) Stock
157385 PILOT SIDE SPRING Enquire To Order
Photo Part No Description Price (each) Stock
15687870 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
63052000 Water drain pipe Enquire To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
62770500 Cable grommet Enquire To Order
Photo Part No Description Price (each) Stock
64545200 Cables pipe Enquire To Order
View All

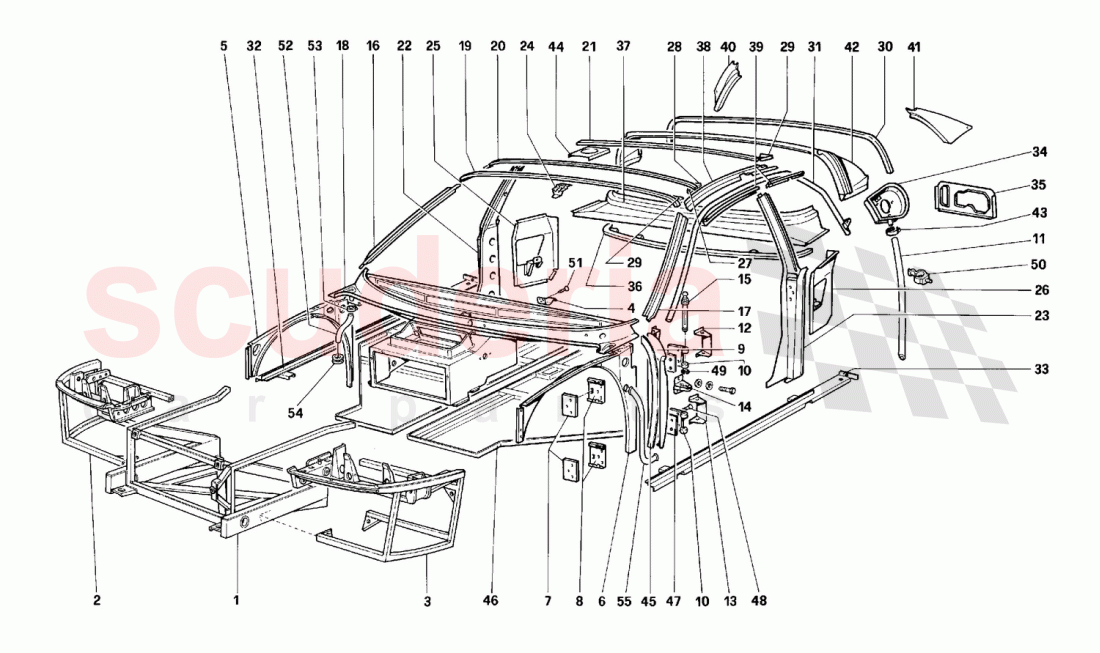

Body - Internal components of Ferrari Ferrari 512 TR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 63423000
Cables pipe
Valid for GD 		- 1 Enquire
- 62770500
Cable grommet 		- 2 Enquire
- 61580200
Zincfoil for R.H. door hinge 		- 2 Enquire
- 61580400
R.H. aluminium 		- 1 Enquire
- 150303
Flat bed complete -Valid for GD- 		- 1 Enquire
- 61486900
R.H. roof side rail 		- 1 Enquire
- 61487100
Upper rail for R.H. door opening 		- 1 Enquire
- 61486500
R.H. light seat 		- 1 Enquire
- 61487800
RH upper frame for passenger comp.
passenger comp. 		- 1 Enquire
- 63461400
Inner connection plate RH complete
complete -Valid for CH 		- 1 Enquire
- 63461500
Inner connection plate LH complete
complete -Valid for CH 		- 1 Enquire
- 63684700
Windshield curved element
With air conditioning case / Valid for GD 		- 1 Enquire
- 63455000
R.H. front mudguard strip
Not for USA, CDN, SA, J 		- 1 Enquire
- 63046300
R.H. front mudguard strip
Valid for USA, CDN, SA, J 		- 1 Enquire
- 63046400
L.H. front mudguard strip
Valid for USA, CDN, SA, J 		- 1 Enquire
1 144654
Front central frame 		- 1 Enquire
2 144642
R.H. front frame 		- 1 Enquire
3 144643
L.H. front frame 		- 1 Enquire
4 61483100
Clip 		- 1 Enquire
5 63037300
R.H. front inner body side 		- 1 Enquire
6 63037400
L.H. front inner body side 		- 1 Enquire
7 61483400
Nut screw plate 		- 4 Enquire
8 61483500
Seat nut screw plate 		- 4 Enquire
9 63455100
L.H. front mudguard strip
Not for USA, CDN, SA, J 		- 1 Enquire
10 63032200
Hinge for door 		- 4 Enquire
11 123391
EXHAUST TUBE 		- 1 Enquire
12 61484000
Upper stiffening 		- 2 Enquire
13 61484100
Lower stiffening 		- 2 Enquire
14 61484200
Bracket 		- 2 Enquire
15 63026200
Pin for door hinge 		- 4 Enquire
16 61484400
R.H. pillar 		- 1 Enquire
17 61484500
L.H. pillar 		- 1 Enquire
18 62926400
Windshield curved element
With air conditioning case / Not for GD 		- 1 Enquire
19 61484700
Front rib 		- 1 Enquire
20 61484800
Central rib 		- 1 Enquire
21 61488100
Rear rib 		- 1 Enquire
22 61484900
R.H. rear door pillar 		- 1 Enquire
23 61485000
L.H. rear door pillar 		- 1 Enquire
24 61485200
Bracket 		- 1 Enquire
25 62926200
R.H. belt retractor housing 		- 1 Enquire
26 62926300
L.H. belt retractor housing 		- 1 Enquire
27 61485500
Front stiffening for central rib 		- 2 Enquire
28 61485600
Rear stiffening for central rib 		- 2 Enquire
29 61485600
Rear stiffening for central rib 		- 4 Enquire
30 61488000
Rear window plate 		- 1 Enquire
31 61487900
L.H. upper frame for passenger comp.
passenger comp. 		- 1 Enquire
32 61558300
Inner connection plate RH complete
complete -Not for CH 		- 1 Enquire
33 61558400
Inner connection plate LH complete
complete -Not for CH 		- 1 Enquire
34 61486400
Fuel filler seat 		- 1 Enquire
35 61486600
L.H. light seat 		- 1 Enquire
36 61486700
Frame 		- 1 Enquire
37 61486800
Rear window plate 		- 1 Enquire
38 61487000
L.H. roof side rail 		- 1 Enquire
39 61487200
Upper rail for L.H. door opening 		- 1 Enquire
40 61487300
R.H. rear pillar 		- 1 Enquire
41 61487400
L.H. rear pillar 		- 1 Enquire
42 61487500
Rear window framework 		- 1 Enquire
43 13432070
HOSE COLLAR 		- 1 Enquire
44 61485100
Stiffening 		- 1 Enquire
45 61580500
L.H. aluminium 		- 1 Enquire
46 145530
Flat bed complete -Not for GD- 		- 1 Enquire
47 61580300
Zincfoil for L.H. door hinge 		- 2 Enquire
48 50206408
Screw 		- 12 Enquire
49 11087974
SNAP RING 		- 4 Enquire
50 157385
PILOT SIDE SPRING 		- 2 Enquire
51 15687870
SCREW 		- 3 Enquire
52 63052000
Water drain pipe 		- 2 Enquire
53 13432070
HOSE COLLAR 		- 2 Enquire
54 62770500
Cable grommet
Not as spare par now / Replaced by 62770500 		- 2 Enquire
55 64545200
Cables pipe
Not for GD 		- 1 Enquire
