Rear Suspension - Brake Disc

Ferrari 512 M

Find Your Part

Ferrari 512 M - Rear suspension - Brake disc

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
104370 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
144782 Brake disc Enquire To Order
Photo Part No Description Price (each) Stock
167259 NUT Enquire To Order
Photo Part No Description Price (each) Stock
143332 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
157901 HUB COMPLETE BEARING Enquire To Order
Photo Part No Description Price (each) Stock
148712 Support Enquire To Order
Photo Part No Description Price (each) Stock
11499924 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
155733 R.H. hub holder complete Enquire To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14275234 Screw Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
13525470 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
127496 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13001090 SCREW COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
149765 Air conveyor complete Enquire To Order
Photo Part No Description Price (each) Stock
10977524 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
13577724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
149795 Bracket Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
13001090 SCREW COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
10977524 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
156664 R.H. air conveyor Enquire To Order
Photo Part No Description Price (each) Stock
148144 L.H. air conveyor Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
149796 Brake cooling pipe Enquire To Order
Photo Part No Description Price (each) Stock
11499924 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
149797 Bracket Enquire To Order
Photo Part No Description Price (each) Stock
151200 Phonic wheel for ABS Enquire To Order
View All

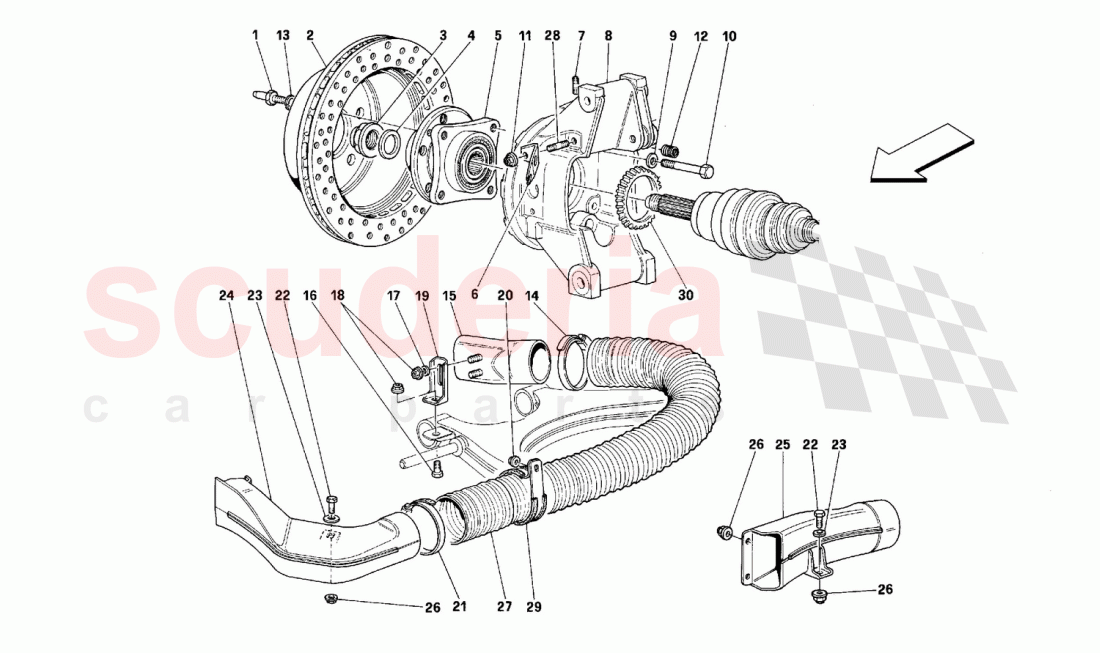

Rear suspension - Brake disc of Ferrari Ferrari 512 M Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 155734
L.H. hub holder complete 		- 1 Enquire
- 167259
NUT
Valid after stock exhaustion / of 148852 		- 2 Enquire
- 14306924
SCREW 		- 4 Enquire
1 104370
SCREW
Not as spare parts now / Replaced by 16043424 		- 4 Enquire
2 144782
Brake disc 		- 2 Enquire
3 167259
NUT 		- 2 Enquire
4 143332
WASHER 		- 2 Enquire
5 157901
HUB COMPLETE BEARING 		- 1 Enquire
6 148712
Support 		- 2 Enquire
7 11499924
STUD BOLT 		- 2 Enquire
8 155733
R.H. hub holder complete 		- 1 Enquire
9 84653800
WASHER 		- 8 Enquire
10 14275234
Screw 		- 8 Enquire
11 14059290
FLANGED NUT M6 		- 2 Enquire
12 13525470
THREADED INSERT 		- 4 Enquire
13 127496
WASHER 		- 4 Enquire
14 13001090
SCREW COLLAR 		- 2 Enquire
15 149765
Air conveyor complete 		- 2 Enquire
16 10977524
SCREW 		- 2 Enquire
17 13577724
WASHER 		- 4 Enquire
18 14059290
FLANGED NUT M6 		- 6 Enquire
19 149795
Bracket 		- 2 Enquire
20 14059290
FLANGED NUT M6 		- 2 Enquire
21 13001090
SCREW COLLAR 		- 2 Enquire
22 10977524
SCREW 		- 2 Enquire
23 12643724
WASHER 		- 2 Enquire
24 156664
R.H. air conveyor 		- 1 Enquire
25 148144
L.H. air conveyor 		- 1 Enquire
26 14059290
FLANGED NUT M6 		- 4 Enquire
27 149796
Brake cooling pipe 		- 2 Enquire
28 11499924
STUD BOLT 		- 2 Enquire
29 149797
Bracket 		- 2 Enquire
30 151200
Phonic wheel for ABS 		- 2 Enquire
